This inline duct fan is published with the manufacturer’s full specification — 110V-120V 60HZ & 220V-240V 50HZ, airflow See Product Description. Made by Quanzhou Orientrise Horticulture Products Co., Ltd. (16 years on the platform, typical reply ≤5h). Quantity and destination market determine the final price — tell us both for a firm quote.
Key Features of This Inline Duct Fan
- Model Number: ORHDD100P
- Power: See Product Description
- Voltage: 110V-120V 60HZ & 220V-240V 50HZ
- Airflow: See Product Description
- Blade Material: Plastic
- Warranty: 1 Year
Technical Specifications
| Mounting | Free Standing |
|---|---|
| Voltage | 110V-120V 60HZ & 220V-240V 50HZ |
| Blade Material | Plastic |
| Electric Current Type | AC |
| Warranty | 1 Year |
| After-Sales Service Provided | Online support |
| Place Of Origin | Fujian, China |
| Brand Name | Orientrise |
| Model Number | ORHDD100P |

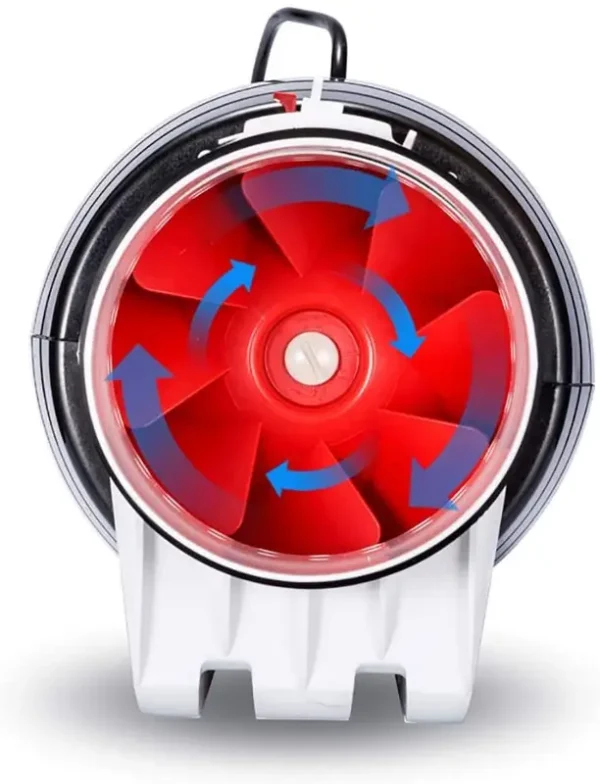

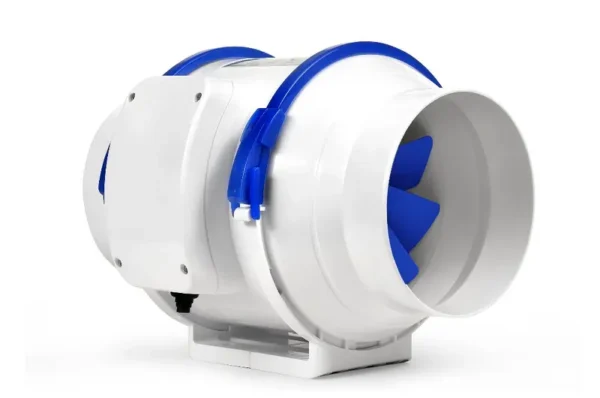

| Product Name | Silent Mixed Flow Exhaust Inline Duct Fan |
| Tape | Silent Inline Fan |
| Power | See Product Description |
| Airflow | See Product Description |
| Noise | See Product Description |
| Certification | CE |
| Packaging Details | 1PC/CTN |
| Port Of Dispatch | XIAMEN CHINA |
| Selling Units | Single item |
| Single Volume | 0 cm³ |
| Single Gross Weight | 0.0 kg |
| Supply Ability | 10000 pieces per Month |

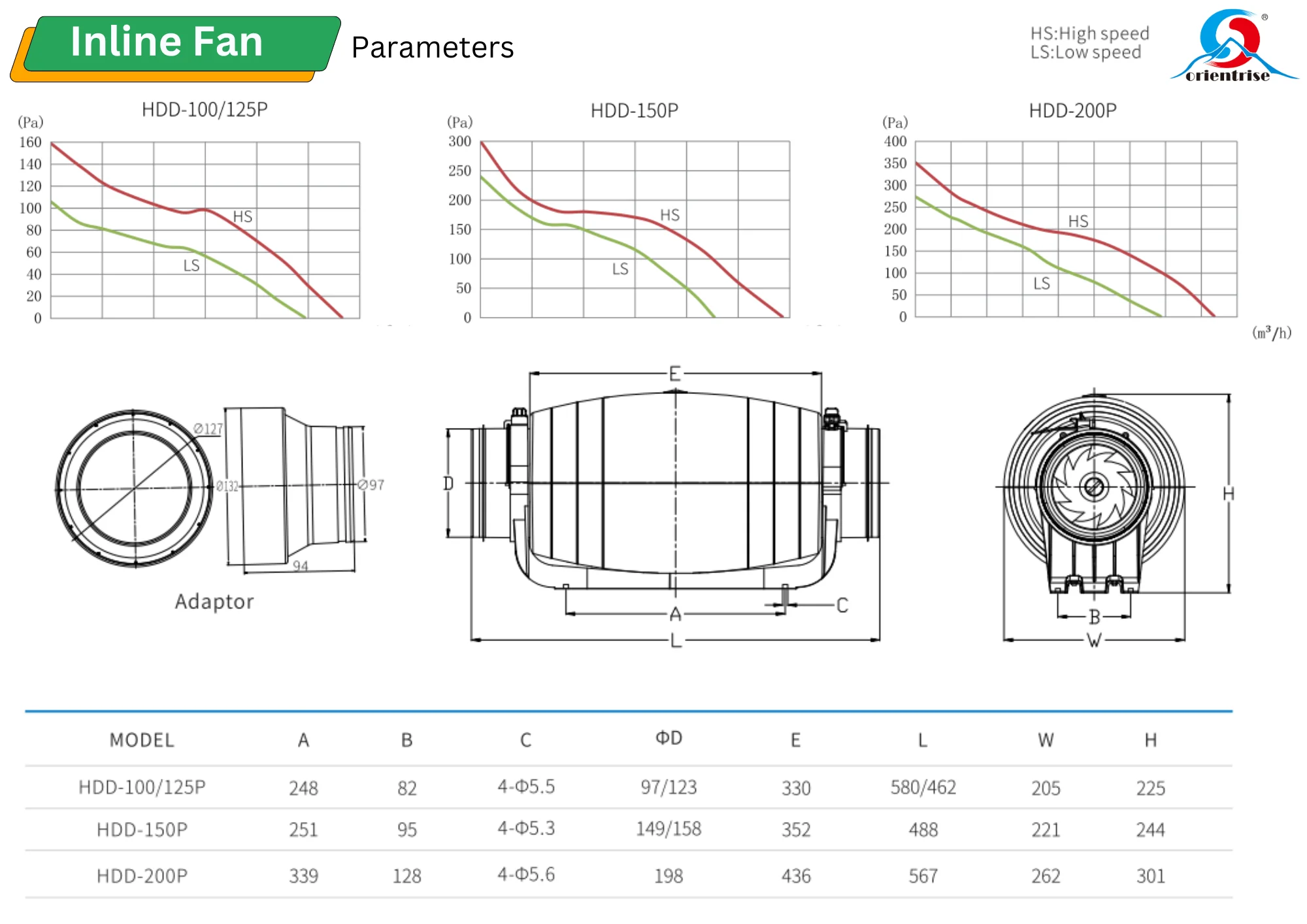

Product Details
Model | Speed | Voltage /Frequency | Current (Amps) | Power | Speed (RPM) | Airflow (m³/h) | Air Pressure (Pa) | Noise (dB) | Net Weight (kgs) |
HDD-100/125P | H L | 220~240V/50Hz | 0.14 0.13 | 33 28 | 2250 1850 | 284 248 | 159 106 | 25 22 | 2.8 |
H L | 100~120V/60Hz | 0.30 0.26 | 32 27 | 2250 1850 | 284 248 | 159 106 | 25 22 | ||
HDD-150P | H L | 220~240V/50Hz | 0.25 0.20 | 50 43 | 2550 1850 | 530 410 | 300 240 | 31 26 | 4.0 |
H L | 100~120V/60Hz | 0.55 0.47 | 62 51 | 2550 1850 | 530 410 | 300 240 | 31 26 | ||
HDD-200P | H L | 220~240V/50Hz | 0.57 0.52 | 128 123 | 2450 1950 | 840 690 | 352 274 | 35 29 | 5.9 |
H L | 100~120V/60Hz | 1.41 1.27 | 162 146 | 2450 1950 | 840 690 | 352 274 | 35 29 |
Ordering and Pricing
- Minimum order quantity: 20 piece
- Volume pricing:
- 20–49 piece: US $65 / piece
- 50–99 piece: US $64.5 / piece
- 100–499 piece: US $64 / piece
- 500+ piece: US $63.5 / piece
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this inline duct fan?
The standard minimum order quantity is 20 piece. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.
Which certifications does this inline duct fan carry?
It is supplied with CE documentation, which covers the requirements of most import markets. Additional test reports can be issued on request.
Can the inline duct fan be supplied for my local voltage?
The standard configuration is 110V-120V 60HZ & 220V-240V 50HZ. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
About the Manufacturer
This product is produced by Quanzhou Orientrise Horticulture Products Co., Ltd., based in China. The company 16 years as a verified Alibaba.com supplier, operates its own manufacturing. Browse the full Quanzhou Orientrise Horticulture Products Co., Ltd. range on HVACR Nexus.
See more in Mixed Flow Duct Fans on HVACR Nexus.
