The inline duct fan listed here carries voltage 220-240V, power 60-245, documented exactly as the manufacturer publishes it. Made by Foshan Brespalin Co., Ltd (10 years on the platform, typical reply ≤5h). Send your target quantity and destination for a firm quotation with current lead times.
Key Features of This Inline Duct Fan
- Model Number: DJT
- Power (W): 60-245
- Power Source: Electric
- Power: 60-245 W
- Voltage: 220-240V
- Material: Metal
Technical Specifications
| Application | Hotel, Garage, Commercial, Household |
|---|---|
| Type | Ventilation Fan |
| Power (W) | 60-245 |
| Motor | AC Motor |
| Speed | 1 |
| Material | Metal |
| Warranty | 1 Year |
| After-Sales Service Provided | Free Spare Parts |
| Power Source | Electric |
| Number Of Blades | 11 |
| Control Method | no controller |
| Feature | Strong Wind |
| App-Controlled | No |
| Packaging Types | Corrugated Box |
| Place Of Origin | Guangdong, China |
| Brand Name | Brespalin / OEM |
| Model Number | DJT |
| Product Name | Round Metal Inline Duct Fan for HVAC System |
| Power | 60-245 W |
| Air Volume | 220-1500 cmh |
| Static Pressure | 310-550 Pa |
| Duct Size | 100-315 mm |
| Fan Type | centrifugal |
| Voltage | 220-240V |
| Frequency | 50HZ/60HZ |
| Selling Units | Single item |
| Single Volume | 0 cm³ |
| Single Gross Weight | 0.0 kg |
Product Details
Product Description

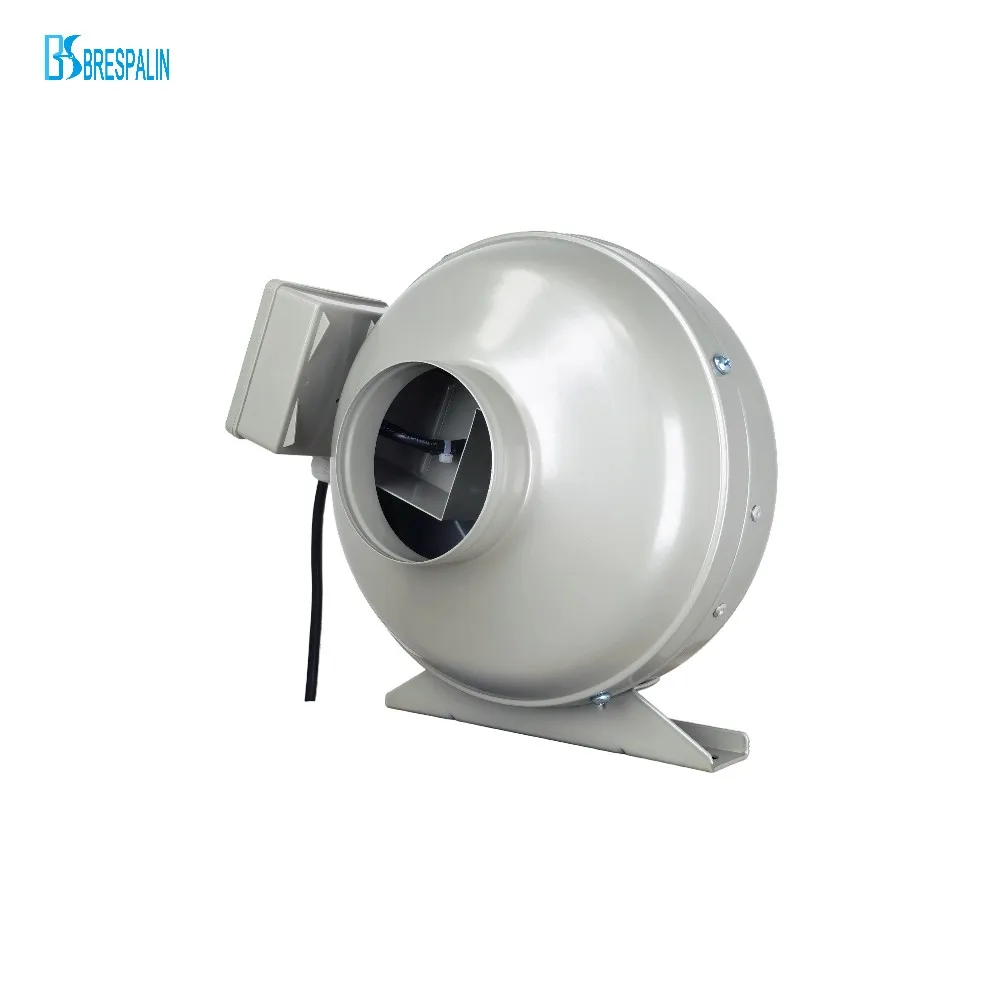

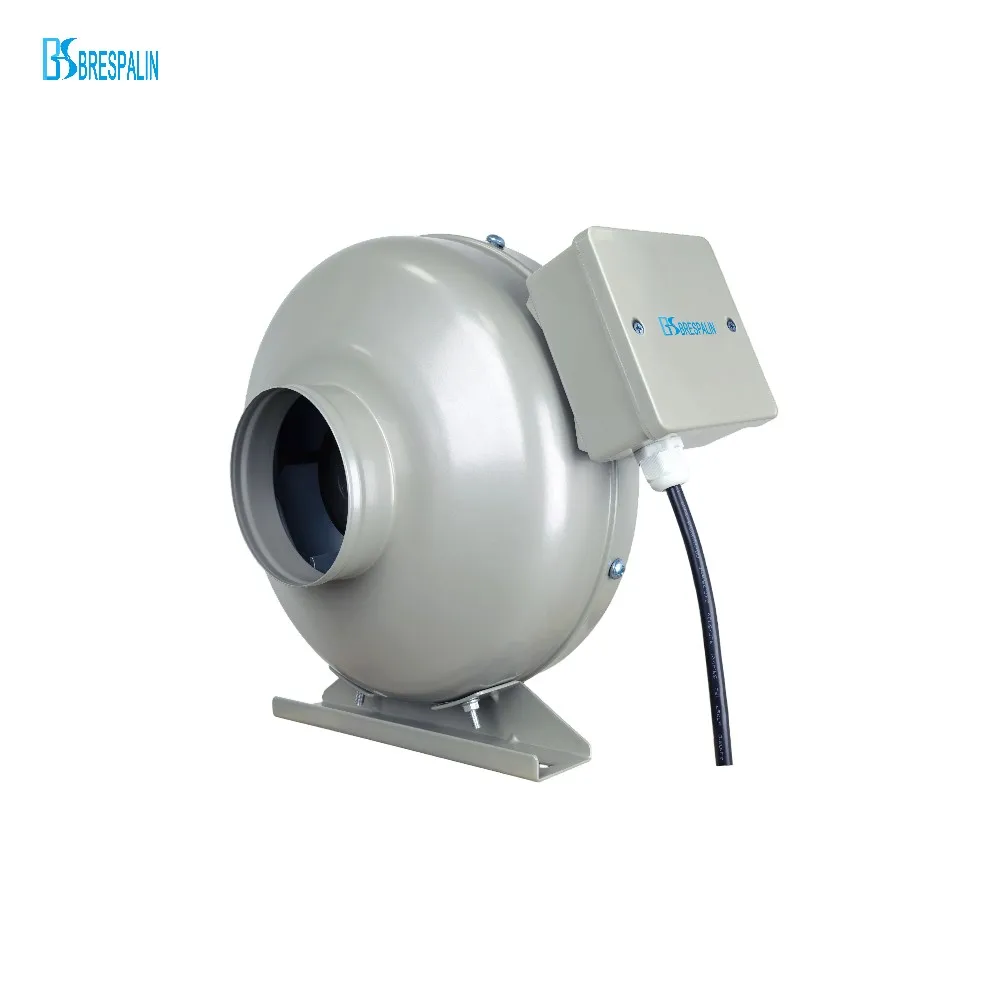

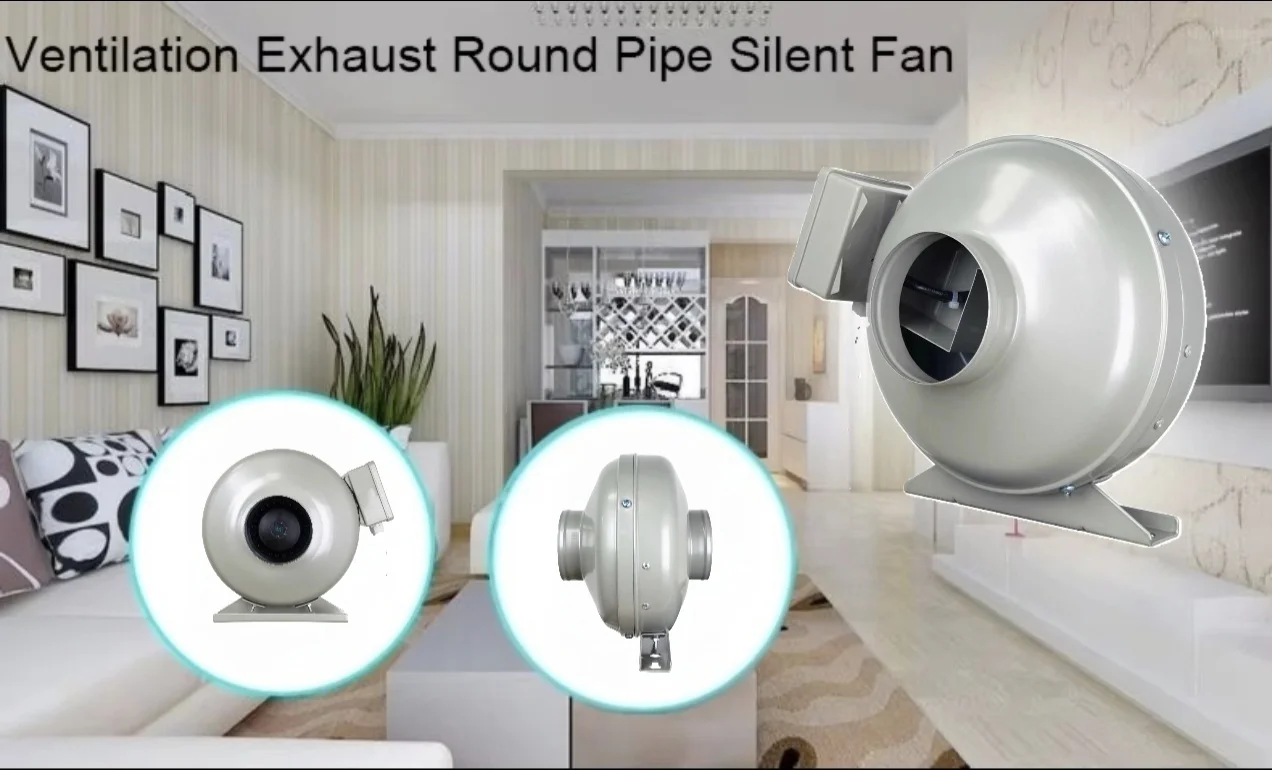

— Circular Centrifugal Inline Duct Fan for HVAC Air Pressurization & Pushing
♦ Simple installation.
♦ Ball bearing motor.
♦ High Pressure, high efficiency
♦ Duct air pressurization.
♦ Stable long service life
♦ Unique Design.
♦ Ball bearing motor.
♦ High Pressure, high efficiency
♦ Duct air pressurization.
♦ Stable long service life
♦ Unique Design.
Performance Table
Model No. | Voltage (V/HZ) | Power (W) | Air Volune (m3/h) | Static Pressure (Pa) | Duct Siza (mm) |
DJT10-A | 220/50 | 60 | 220 | 310 | 100 |
DJT10-B | 220/50 | 88 | 240 | 310 | 100 |
DJT12-A | 220/50 | 62 | 280 | 310 | 125 |
DJT12-B | 220/50 | 90 | 310 | 310 | 125 |
DJT15-A | 220/50 | 91 | 530 | 350 | 150 |
DJT15-B | 220/50 | 101 | 600 | 350 | 150 |
DJT16-A | 220/50 | 93 | 580 | 320 | 160 |
DJT16-B | 220/50 | 103 | 670 | 320 | 160 |
DJT20-A | 220/50 | 170 | 940 | 490 | 200 |
DJT20-B | 220/50 | 180 | 980 | 490 | 200 |
DJT25-A | 220/50 | 160 | 950 | 490 | 250 |
DJT25-B | 220/50 | 172 | 1000 | 490 | 250 |
DJT31-A | 220/50 | 220 | 1350 | 550 | 315 |
DJT31-B | 220/50 | 245 | 1500 | 550 | 315 |

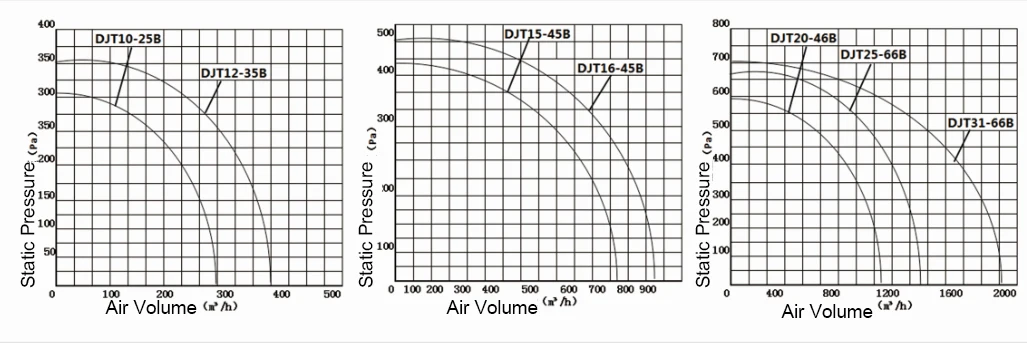

Performance Curve
Application

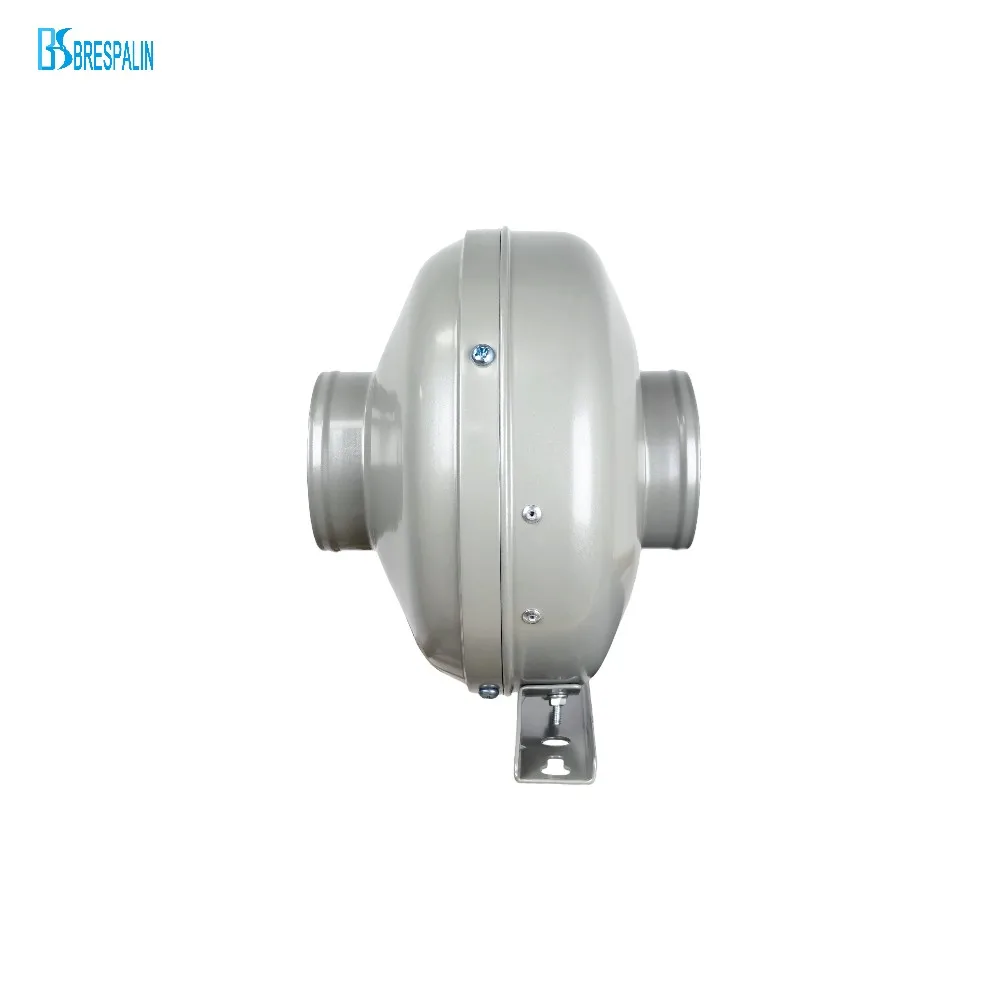

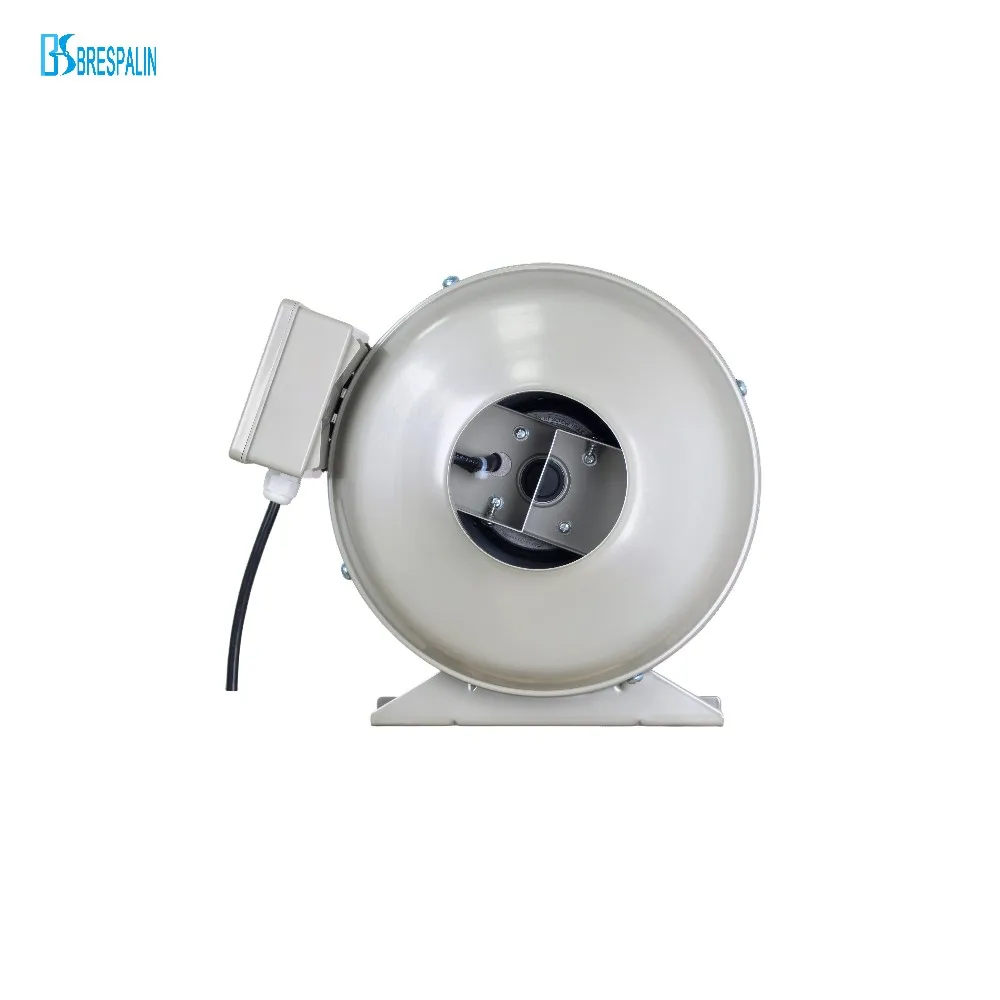

Product Details Display

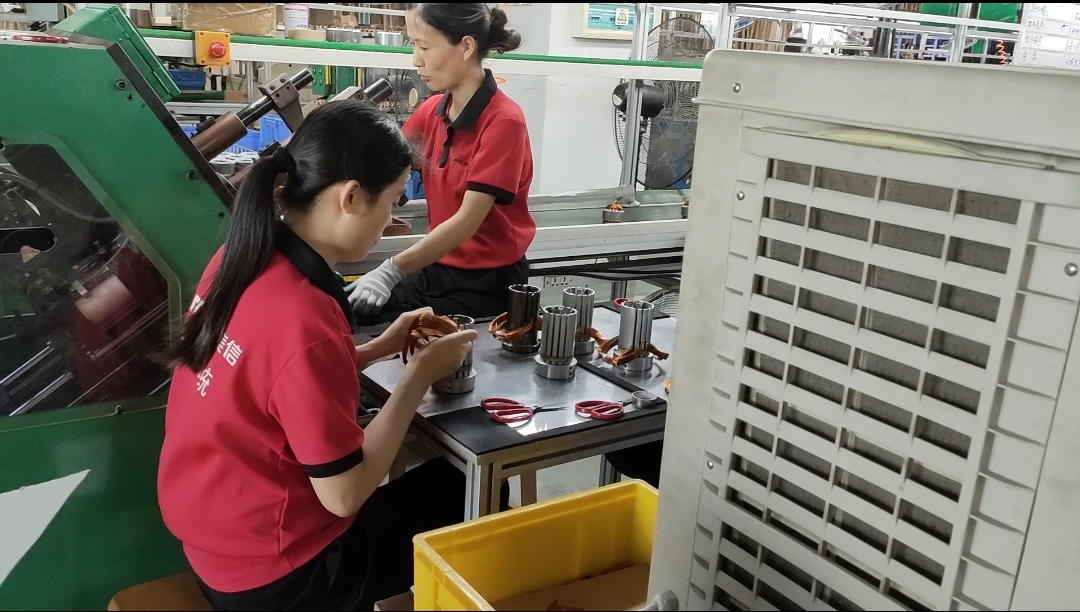

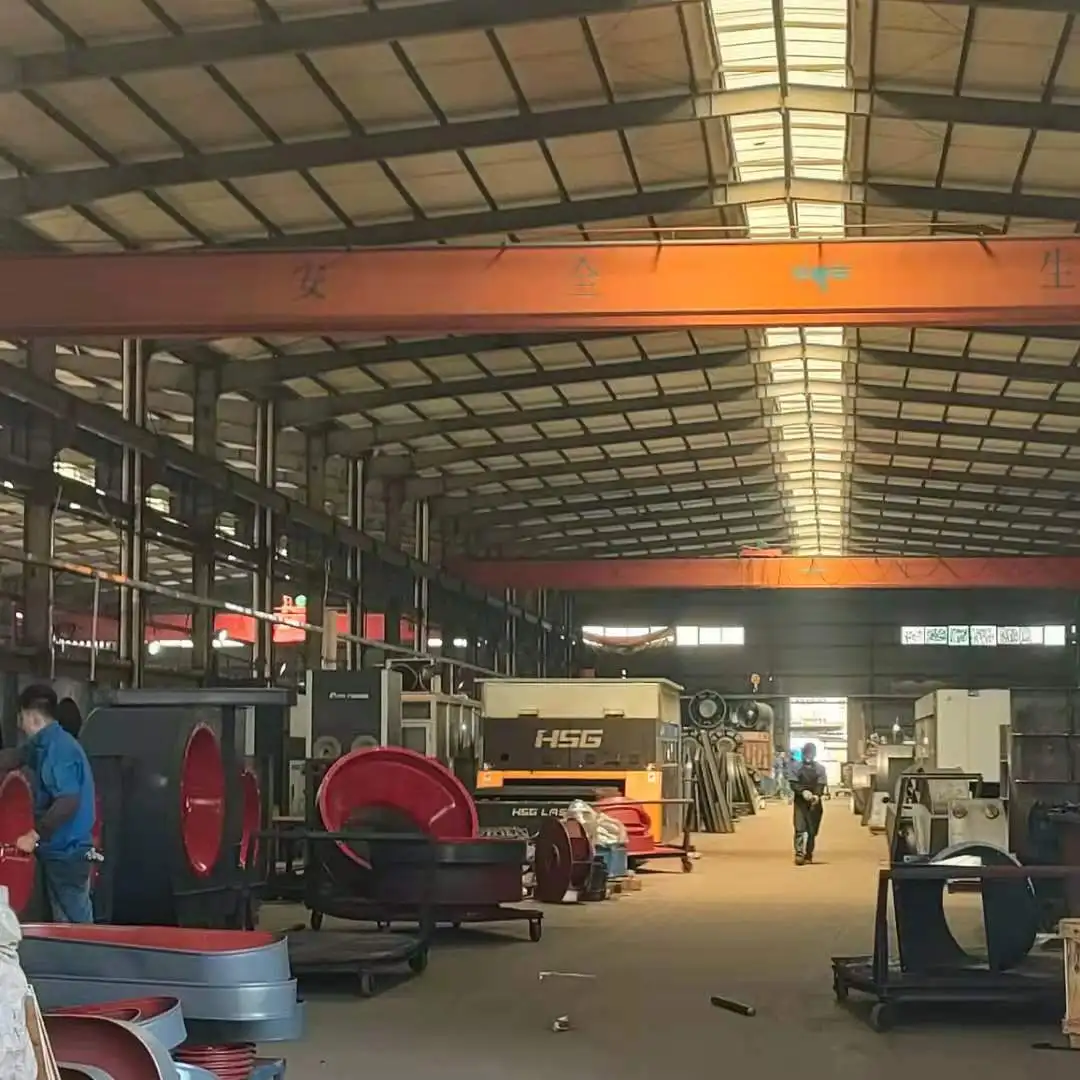

Company Profile

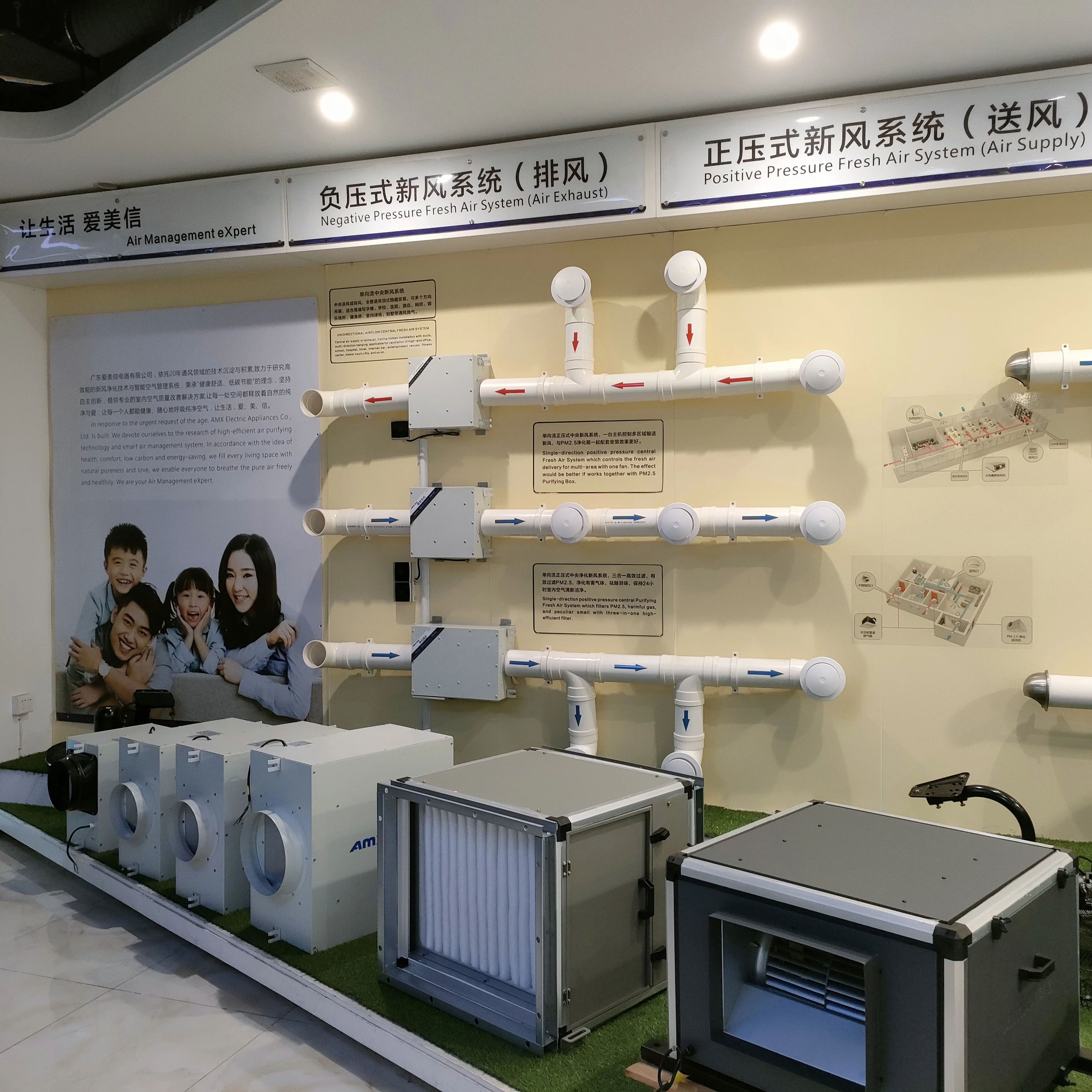

BRESPALIN is based on around 20 years' experience of manufacturing Air purifying, Fresh air system, Ventilation system and Industrial fans.Currently, we are invested by several factories.
We are built for below missions.1. We belongs to the factory, so price we can give is based on factory cost, not trading cost.2.
We are sole International sales of the factory, we can help to control and protect the market of clients.3. We integrates
different kinds of products for air management. For these products, you can get professional service in one stop.4. We are
independent of factory. This make us standing in the position of client instead of factories. It will solve your problem of
communication with factory.
We are sole International sales of the factory, we can help to control and protect the market of clients.3. We integrates
different kinds of products for air management. For these products, you can get professional service in one stop.4. We are
independent of factory. This make us standing in the position of client instead of factories. It will solve your problem of
communication with factory.
FAQ
Q1. Are you a factory?

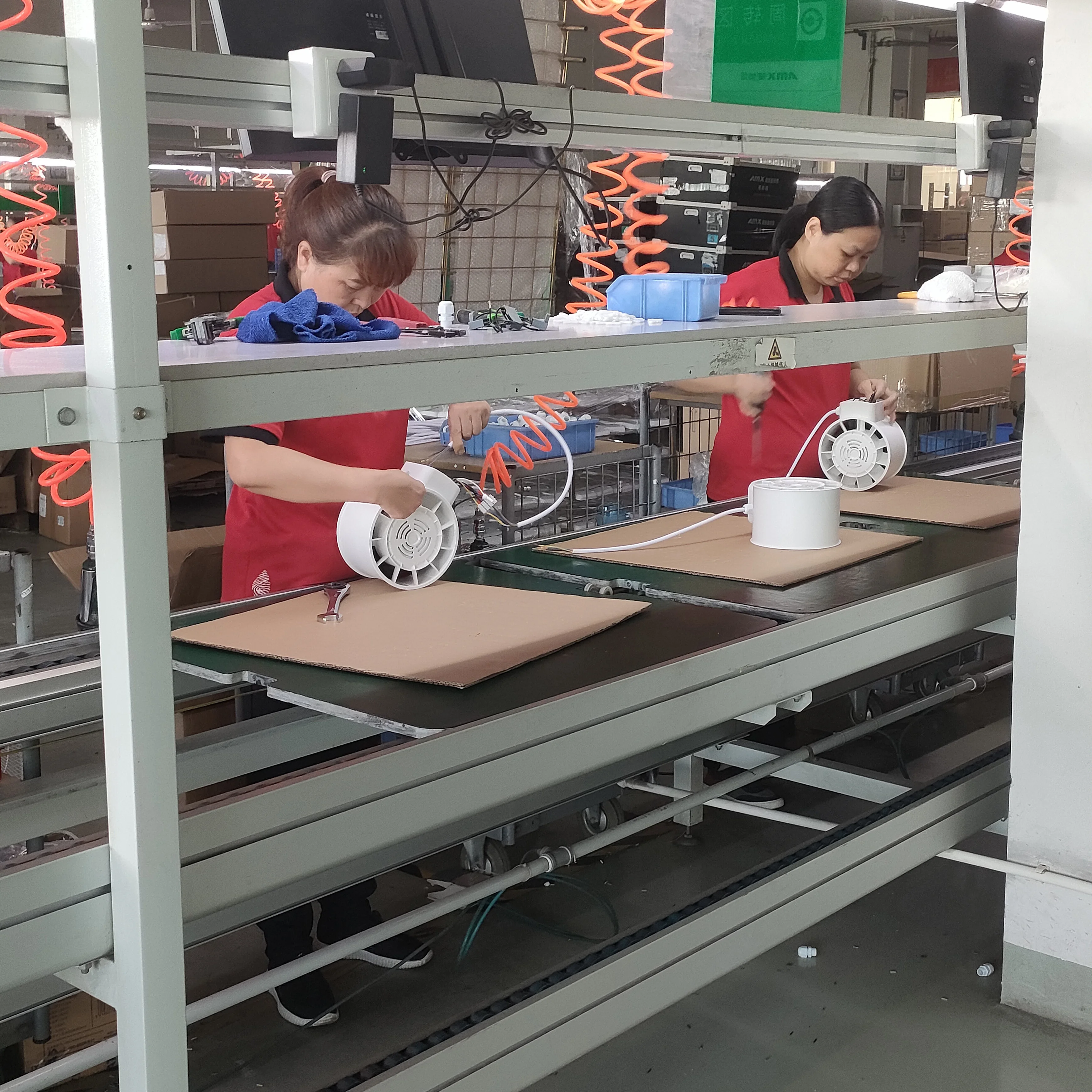

Yes, we are a factory. We specialized in industrial fans, exhaust fan, inline duct fans and motors for more than 23 years. There are 1300 staff in our factory and it covers 115, 000 m2. Surely, we are able to give you the best products and service for long
term.
Q2. What information do you need in order to get a quotation?
Generally, information about Models, Quantity, Voltage/Frequency, and other special requirements of fans are needed in order to select a right one and accurate quotation for you.
Take our inline fan for example, if you would like to get an offer, please provide info including Model, Voltage/Frequency, Air Volume, Quantity, and others such as Noise, Applicable Area and so on.
Q3. Can I have samples for testing before bulk orders, how to get samples?
Yes, samples order would be welcomed. We understand it’s necessary to get samples for evaluation. Please note that the samples
order are just allowed for the very first order.
Of course, we may return the cost of samples from the bulk order according to sample and bulk order quantity.
Q4. Can I use my own logo on the products & carton box ?
Yes, OEM&ODM are both welcomed.
Normally, we provide customization of Rating label, Instructions manual, Packing box.
A MOQ is required for customization of each item. Please contact us to share your detailed requirements so as to get the MOQ & price.
Q5. What can I do if we can NOT find the suitable fan model in the fan list?
It depends.
Yes, we are a factory. We specialized in industrial fans, exhaust fan, inline duct fans and motors for more than 23 years. There are 1300 staff in our factory and it covers 115, 000 m2. Surely, we are able to give you the best products and service for long
term.
Q2. What information do you need in order to get a quotation?
Generally, information about Models, Quantity, Voltage/Frequency, and other special requirements of fans are needed in order to select a right one and accurate quotation for you.
Take our inline fan for example, if you would like to get an offer, please provide info including Model, Voltage/Frequency, Air Volume, Quantity, and others such as Noise, Applicable Area and so on.
Q3. Can I have samples for testing before bulk orders, how to get samples?
Yes, samples order would be welcomed. We understand it’s necessary to get samples for evaluation. Please note that the samples
order are just allowed for the very first order.
Of course, we may return the cost of samples from the bulk order according to sample and bulk order quantity.
Q4. Can I use my own logo on the products & carton box ?
Yes, OEM&ODM are both welcomed.
Normally, we provide customization of Rating label, Instructions manual, Packing box.
A MOQ is required for customization of each item. Please contact us to share your detailed requirements so as to get the MOQ & price.
Q5. What can I do if we can NOT find the suitable fan model in the fan list?
It depends.
On the one hand, if you want to add some extra functions to our products we sold before, please contact us to confirm if we can make it and get a quote.
On the other hand, if you prefer to customize a new exhaust fan, blower or motor, as you may know, there would be more details to be discussed.
On the other hand, if you prefer to customize a new exhaust fan, blower or motor, as you may know, there would be more details to be discussed.
Basically, you will have to consider below questions:
1. Is it a long-term demand?
2. Normally we will try our best to offer you a good price lower than the others. Is this price difference offers you enough space to get big market?
3. Is the demand quantity is big enough for making a new model?
4. Is there enough time for the product development?
5. Will you be able to pay some necessary cost for R&D, Mold and sample cost?
1. Is it a long-term demand?
2. Normally we will try our best to offer you a good price lower than the others. Is this price difference offers you enough space to get big market?
3. Is the demand quantity is big enough for making a new model?
4. Is there enough time for the product development?
5. Will you be able to pay some necessary cost for R&D, Mold and sample cost?
We are specialized in this area for long time and we have a big team for R&D. So no matter what you need exhaust fan, inline duct fan, industrial fan, motor, blower, or components of these products, we are able to offer you a best solution.
Please contact us for further discussion.
Ordering and Pricing
- Minimum order quantity: 1 piece
- Volume pricing:
- 1–199 piece: US $38 / piece
- 200–299 piece: US $27.5 / piece
- 300+ piece: US $26.8 / piece
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this inline duct fan?
The standard minimum order quantity is 1 piece. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.
Can the inline duct fan be supplied for my local voltage?
The standard configuration is 220-240V. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
About the Manufacturer
This product is produced by Foshan Brespalin Co., Ltd, based in China. The company 10 years as a verified Alibaba.com supplier, operates its own manufacturing. Browse the full Foshan Brespalin Co., Ltd range on HVACR Nexus.
