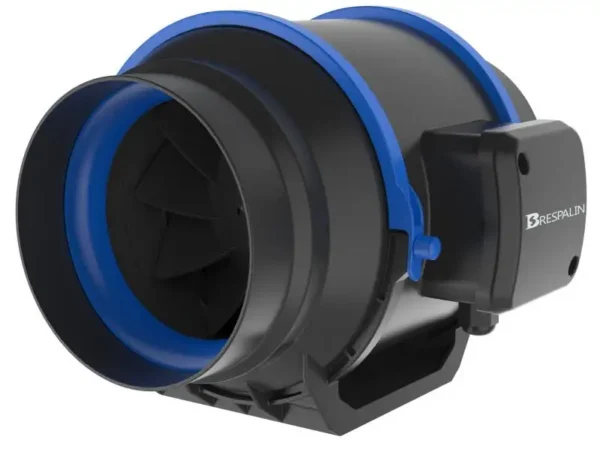

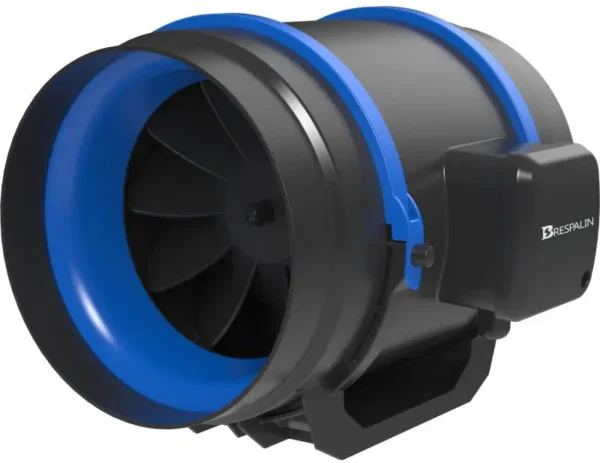

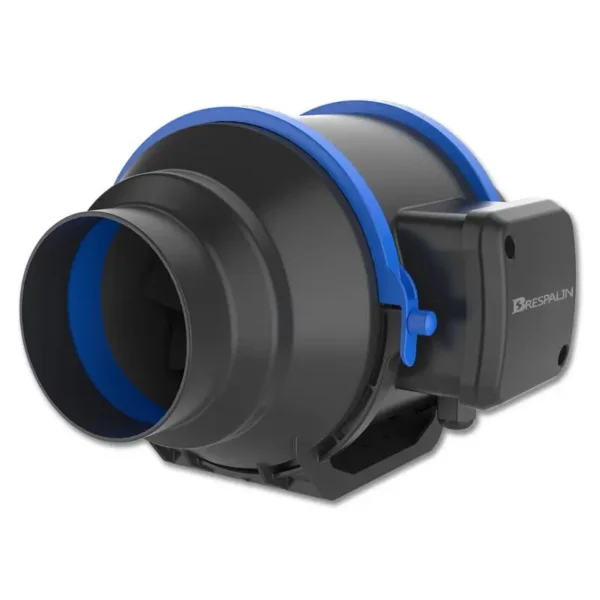

Inline duct fan — 220V/50Hz, power 40/38 W. The complete factory specification follows. Made by Foshan Brespalin Co., Ltd (10 years on the platform, typical reply ≤5h). Quantity and destination market determine the final price — tell us both for a firm quote.
Key Features of This Inline Duct Fan
- Model Number: AM100
- Power: 40/38 W
- Voltage: 220V/50Hz
- Blade Material: Plastic
- Main Material: Plastic
- Speed: Low / High (Double Speed)
Technical Specifications
| Voltage | 220V/50Hz |
|---|---|
| Blade Material | Plastic |
| Electric Current Type | AC/EC(on demand) |
| Mounting Type | Duct Fan |
| Warranty | 1 Year |
| After-Sales Service Provided | Video Technical Support |
| Place Of Origin | Guangdong, China |
| Brand Name | N/M |
| Model Number | AM100 |
| Product Name | Mixed Flow Inline Duct Fan for Air Booster of HVAC |
| Power | 40/38 W |
| Air Volume | 200/150 cbm/h |
| Frequency | 50 Hz |
| Main Material | Plastic |
| Noise | 30/25 dB |
| Static Pressure | 180/130 Pa |
| Speed | Low / High (Double Speed) |
| Duct Size | 100/125 mm, 4/5 inch Inline Duct Extractor |
| Packaging Details | Carton with Foam. a) 4 single carton in 1 master caton (ror AM100, AM150, AM200) b) 1 single carton (for AM 250, AM315) |
| Selling Units | Single item |
| Single Volume | 0 cm³ |
| Single Gross Weight | 0.0 kg |
Product Details
A solution for most kind of ducting ventilation system.
Mixed Flow Inline Duct Fan
♦ Simple installation, simple maintenance.
♦ Ball bearing motor.
♦ Large air flow.
♦ High Pressure, high efficiency
♦ Duct air pressurization.
♦ 2 Speeds/ stepless speeds
♦ Stable long service life
♦ Unique Design.
♦ Low cost.

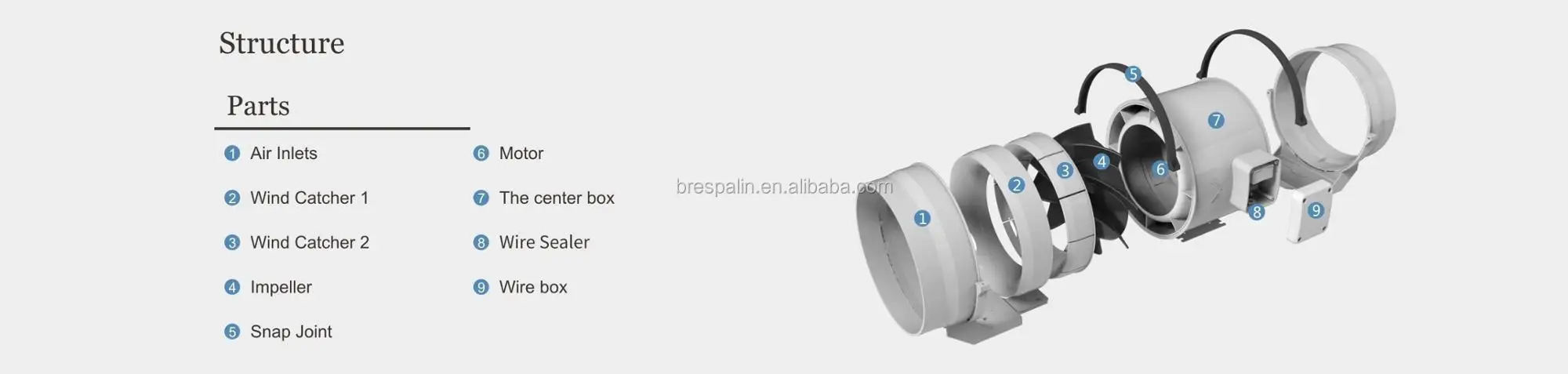

Product Structure
Blower can be taken out just by unscrew two screws with any operation on the duct and spigot connector.
PerformanceTable
| Model | Power (W) | Air Volume (m³/h) | Static Pressure (Pa) | Noise (dB) | Duct Size (mm) | Net Weight | Applicable Area |
| AM100 | 40/38 | 200/150 | 180/130 | 30/25 | 100/125 | 1.8 | 8-16 |
| AM150 | 60/50 | 500/400 | 300/250 | 35/30 | 150/160 | 2.2 | 18-36 |
| AM200 | 100/85 | 850/700 | 350/280 | 50/45 | 200 | 3.1 | 34-76 |
| AM250 | 200/130 | 1500/1100 | 550/400 | 60/54 | 250 | 7.0 | 42-84 |
| AM315 | 350/280 | 2300/1800 | 700/500 | 66/61 | 315 | 9.7 | 60-120 |

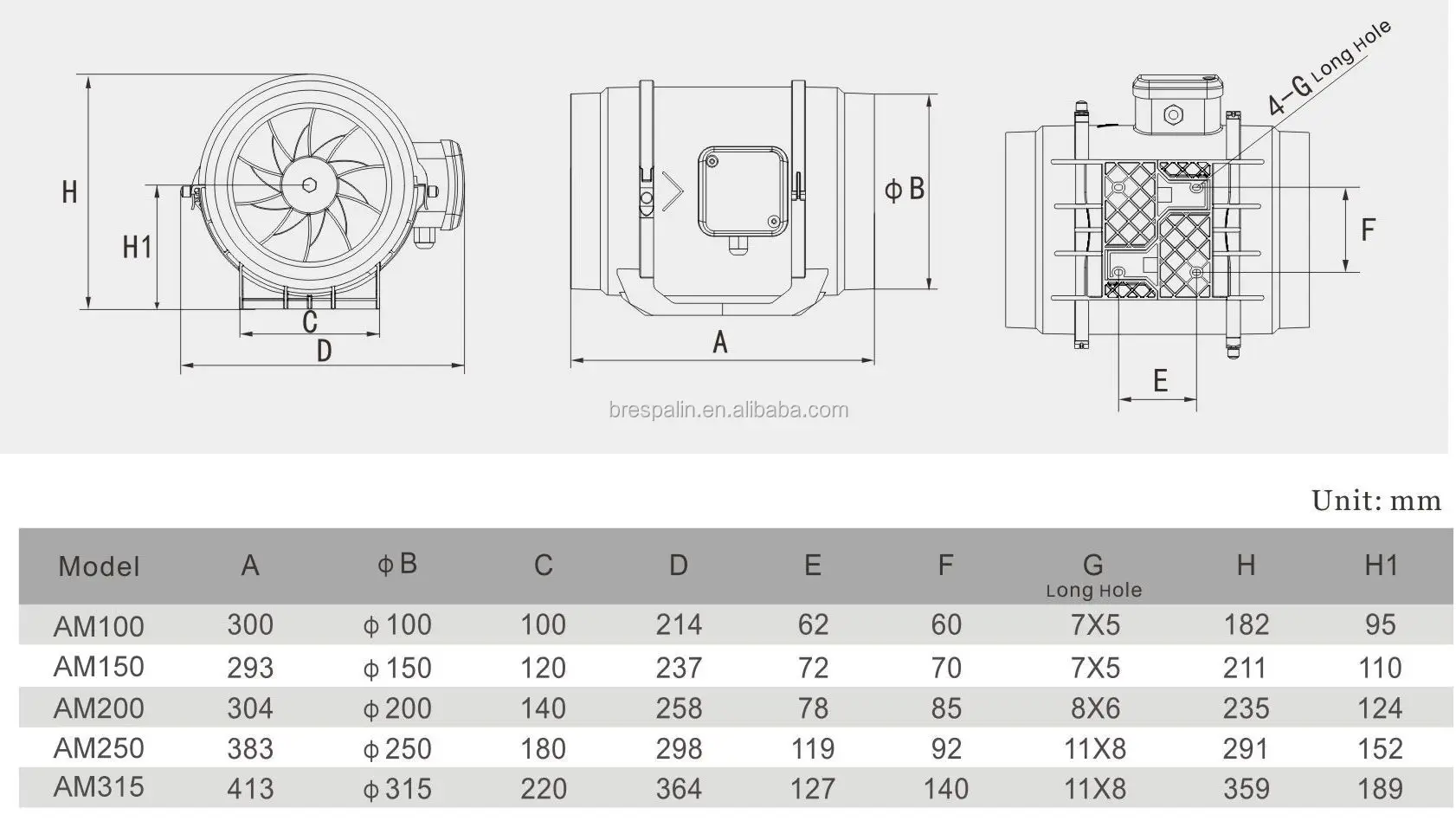

Overall and Installation Dimension

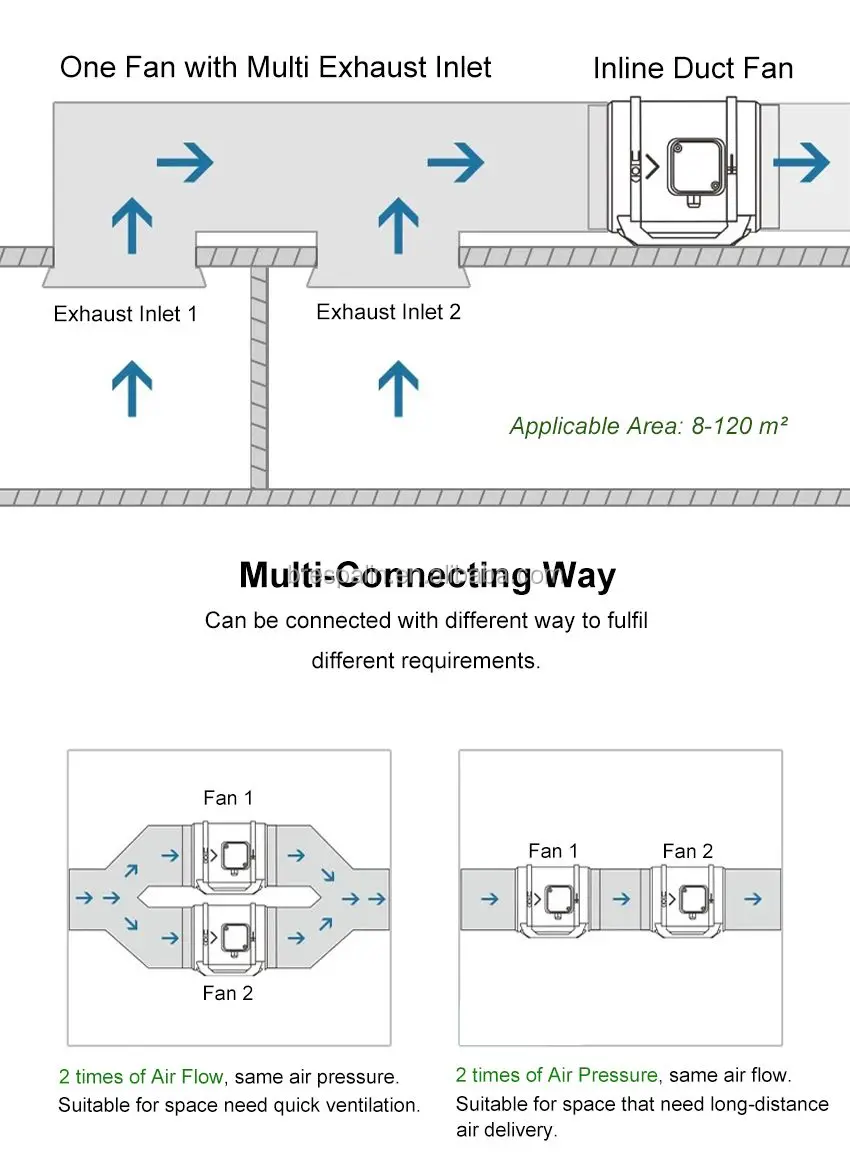

Multi-Application

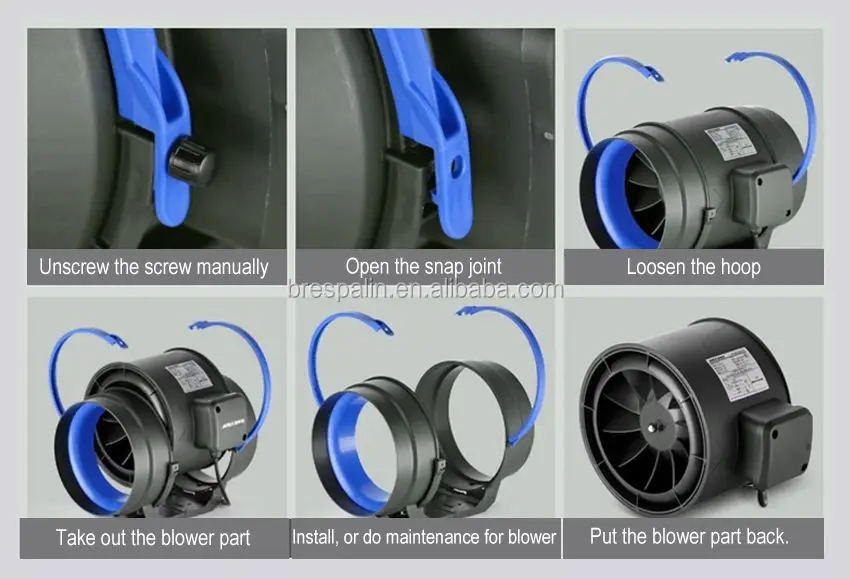

Easy Installation & Maintenance
Blower can be taken out just by unscrew two screws with any operation on the duct and spigot connector.

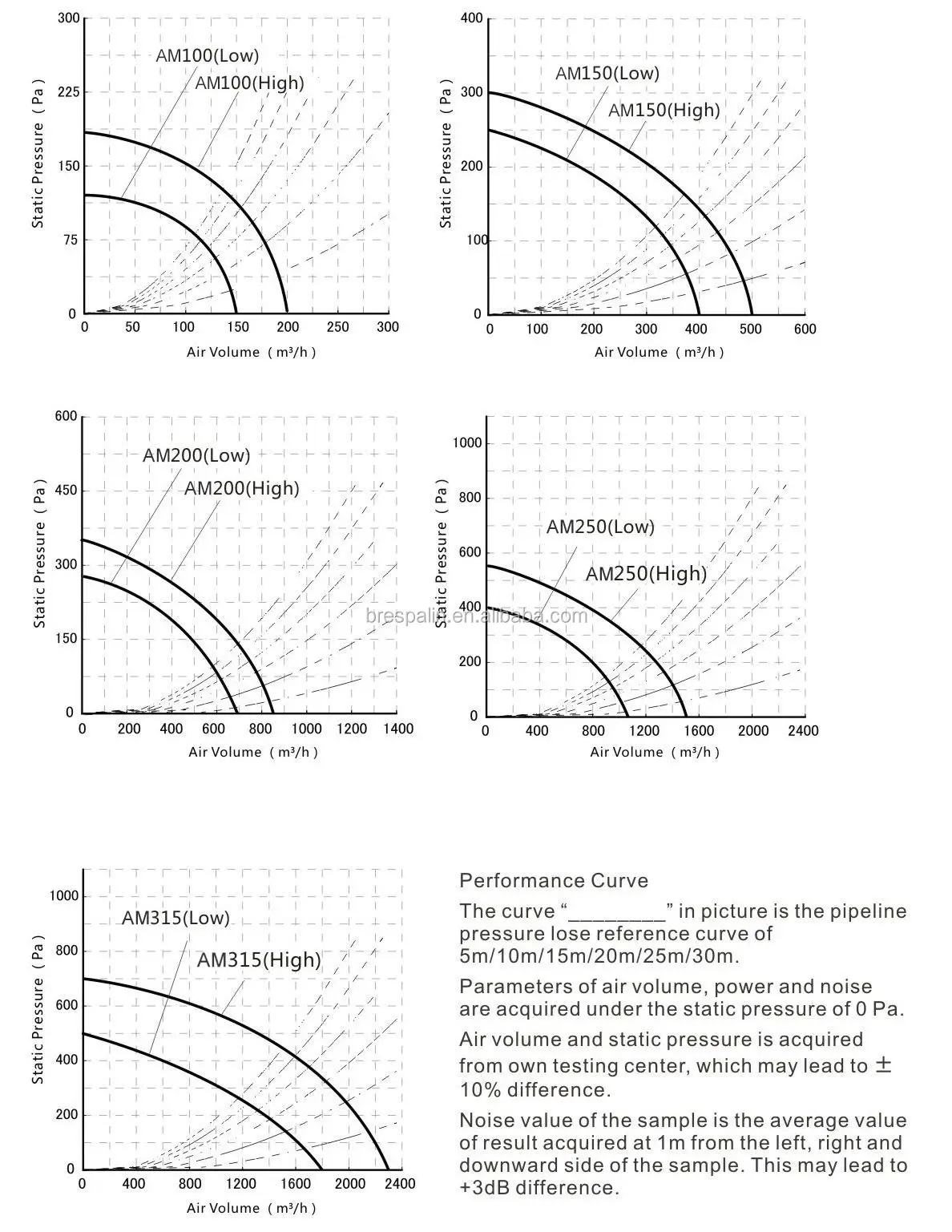

Performance Curve
Q1. Are you a factory?
Yes, we are a factory. We specialized in industrial fans, exhaust fan, inline duct fans and motors for more than 23 years. There are 1300 staff in our factory and it covers 115, 000 m2. Surely, we are able to give you the best products and service for long term.
Q2. What information do you need in order to get a quotation?
Generally, information about Models, Quantity, Voltage/Frequency, and other special requirements of fans are needed in order to select a right one and accurate quotation for you.
Take our inline fan for example, if you would like to get an offer, please provide info including Model, Voltage/Frequency, Air Volume, Quantity, and others such as Noise, Applicable Area and so on.
Q3. Can I have samples for testing before bulk orders, how to get samples?
Yes, samples order would be welcomed. We understand it’s necessary to get samples for evaluation. Please note that the samples order are just allowed for the very first order.
Of course, we may return the cost of samples from the bulk order according to sample and bulk order quantity.
Q4. Can I use my own logo on the products & carton box ?
Yes, OEM&ODM are both welcomed.
Normally, we provide customization of Rating label, Instructions manual, Packing box.
A MOQ is required for customization of each item. Please contact us to share your detailed requirements so as to get the MOQ & price.
Q5. What can I do if we can NOT find the suitable fan model in the fan list?
It depends.
On the one hand, if you want to add some extra functions to our products we sold before, please contact us to confirm if we can make it and get a quote.
On the other hand, if you prefer to customize a new exhaust fan, blower or motor, as you may know, there would be more details to be discussed.
Basically, you will have to consider below questions:
1. Is it a long-term demand?
2. Normally we will try our best to offer you a good price lower than the others. Is this price difference offers you enough space to get big market?
3. Is the demand quantity is big enough for making a new model?
4. Is there enough time for the product development?
5. Will you be able to pay some necessary cost for R&D, Mold and sample cost?
We are specialized in this area for long time and we have a big team for R&D. So no matter what you need exhaust fan, inline duct fan, industrial fan, motor, blower, or components of these products, we are able to offer you a best solution.
Please contact us for further discussion.
We control every step of your order to make sure the goods arrive your side with good situation on time without any worry.
Strict testing for new products, OEM/ODM products, or customized products.
Our own molding factory (90T-1600T) provide us best cost, delivery time, quality for our Air Purifier, Anion generator, UV sterilizer, Fresh Air System, Exhaust Fan, Bathroom Fan, Heat Recovery Ventilator, Inline Duct Fan and so on.
Our own motor production line (two different department separated for different usage of motor.) provide us best cost, delivery time, quality for our own products.
Strictly required 5S workshop, regular staff training, in-process and final inspection, make sure every tiny mistake is stopped before delivery.
Specialized staff gives you an eye on your products. From our detailed loading report, you will know how are the products loaded. What you see will be what you received.
Ordering and Pricing
- Minimum order quantity: 20 piece
- Volume pricing:
- 20–99 piece: US $25 / piece
- 100+ piece: US $22 / piece
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this inline duct fan?
The standard minimum order quantity is 20 piece. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.
Can the inline duct fan be supplied for my local voltage?
The standard configuration is 220V/50Hz. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
About the Manufacturer
This product is produced by Foshan Brespalin Co., Ltd, based in China. The company 10 years as a verified Alibaba.com supplier, operates its own manufacturing. Browse the full Foshan Brespalin Co., Ltd range on HVACR Nexus.
