Key specification for this inverter ducted for conditioner: voltage AC 240V, 900 CFM. Everything below is reproduced from the factory data sheet. Made by Sara Srl (1 year on the platform, typical reply ≤6h). For a binding price and lead time, send the volume you need and where it ships to.
Key Features of This Inverter Ducted For Conditioner
- Model Number: lg-canalizzato-21-9912
- Voltage: AC 240V
- Cooling Capacity: 9000+9000+12000 BTU
- Maximum Airflow: 900 CFM
- Refrigerant Type: R-32
- Warranty: 5 year
Technical Specifications
| Type | HVAC Systems |
|---|---|
| Application | Home Office |
| Voltage | AC 240V |
| Refrigerant Type | R-32 |
| Maximum Airflow | 900 CFM |
| Temperature Control Range | 60-120f |
| Feature | Flexible |
| Warranty | 5 year |
| After-Sale Service | N/A |
| Design Style | Contemporary |
| Project Solution Capability | N/A |
| Place Of Origin | Italy |
| Cooling Capacity | 9000+9000+12000 BTU |
| Brand Name | Lg |
| Model Number | lg-canalizzato-21-9912 |
| Selling Units | Single item |
| Single Volume | 0 cm³ |
| Single Gross Weight | 5.0 kg |
Product Details

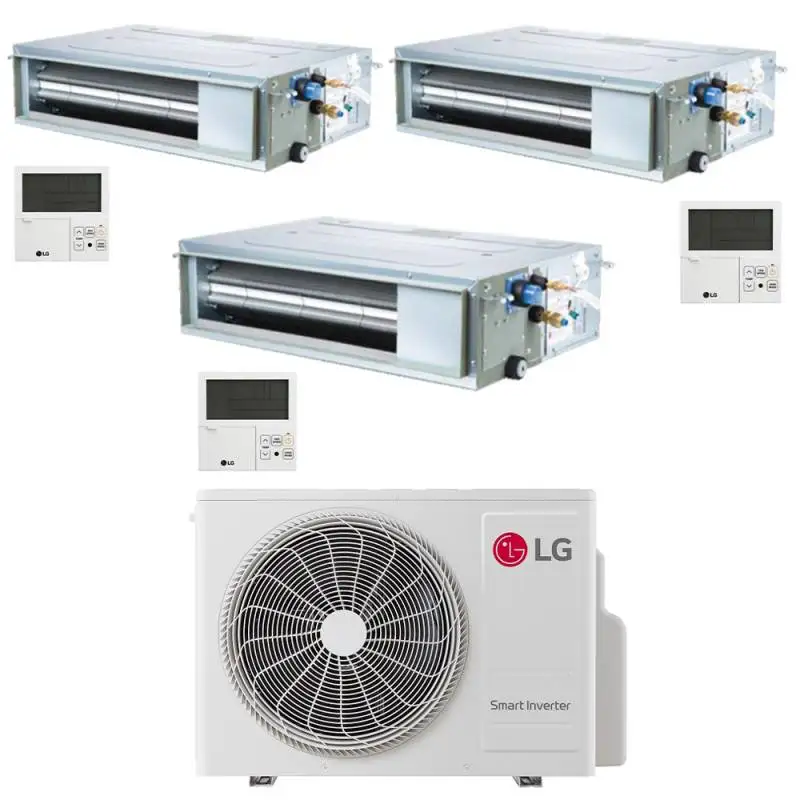

Ducted inverter LG trial split 9000+9000+12000 btu A+++ MU3R21 in R32
The ductable air conditioner with three splits of 9+9+12 btu includes the internal units CL09F.N50, CL12F.N50, and the external unit MU3R21 A+++. It features a wired command PREMTB001 and has dehumidification, cooling, and heat pump heating functions. 10-year warranty.

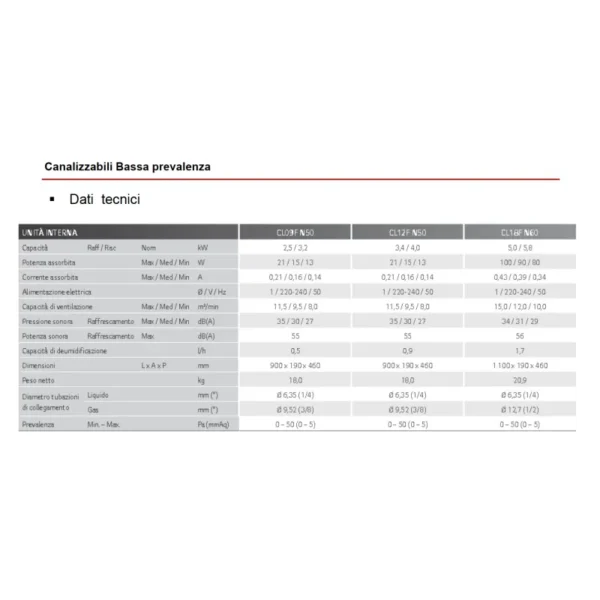

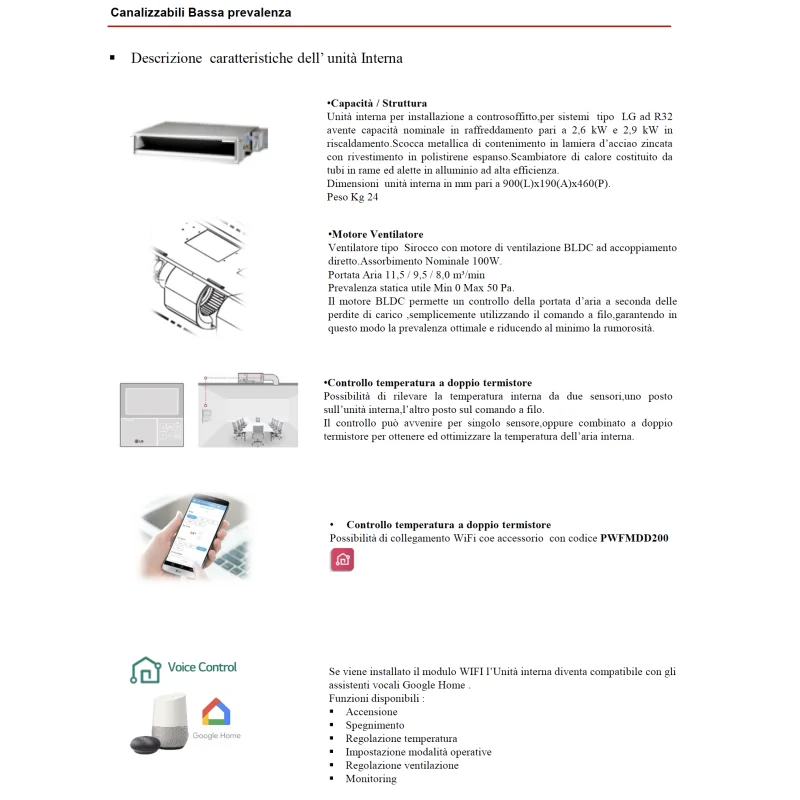

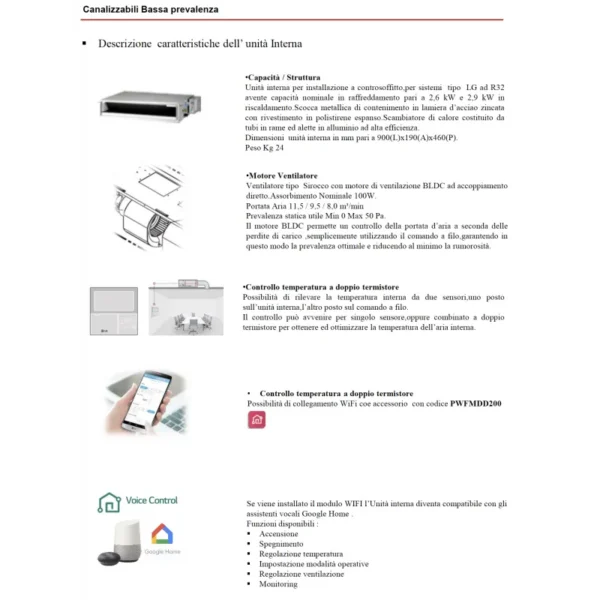

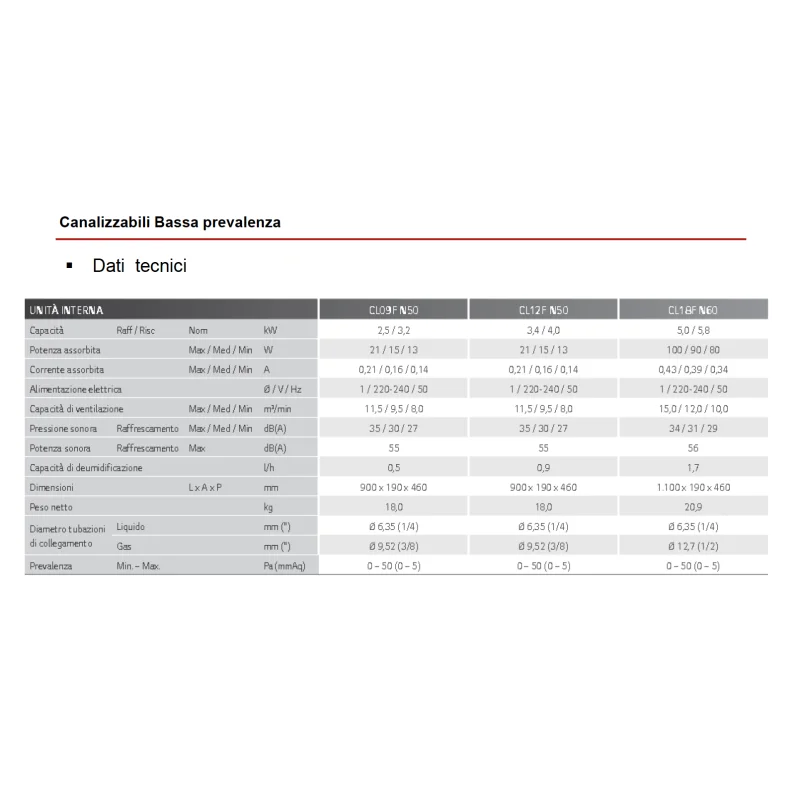

Description of Internal Unit Features
Capacity/Structure
Internal unit for ceiling installation, suitable for LGad R32 systems, with a nominal cooling capacity of 3.5kW and 3.9kW in heating. The casing is made of galvanized steel sheet with expanded polystyrene coating. The heat exchanger consists of copper tubes and high-efficiency aluminum fins.
Internal unit dimensions in mm: 900(L) x 190(H) x 460(D).
Weight: 24 kg.
Internal Unit Features
Fan Motor
Sirocco-type fan with a direct-drive BLDC ventilation motor.
Useful static pressure: Min 0 Max 50 Pa.
The BLDC motor allows control of the airflow based on load losses, simply using the wired command, ensuring optimal pressure and minimizing noise.
Dual Thermistor Temperature Control
Ability to detect internal temperature from two sensors, one placed on the internal unit and the other on the wired command.
Control can be done by a single sensor or combined with a dual thermistor to optimize the internal air temperature.
Optional WiFi
WiFi connectivity possible with accessory code PWFMDD200.
Voice Control
If the WiFi module is installed, the internal unit becomes compatible with Google Home and Alexa voice assistants.
Available Functions:
– On
– Off
– Temperature Adjustment
– Operating Mode Setting
– Fan Speed Adjustment
– Monitoring

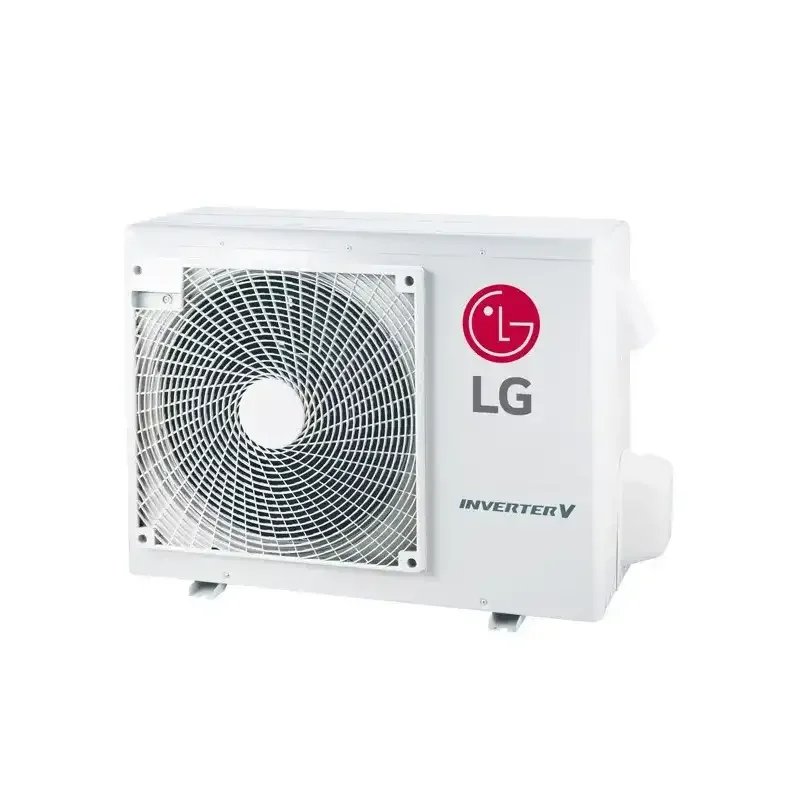

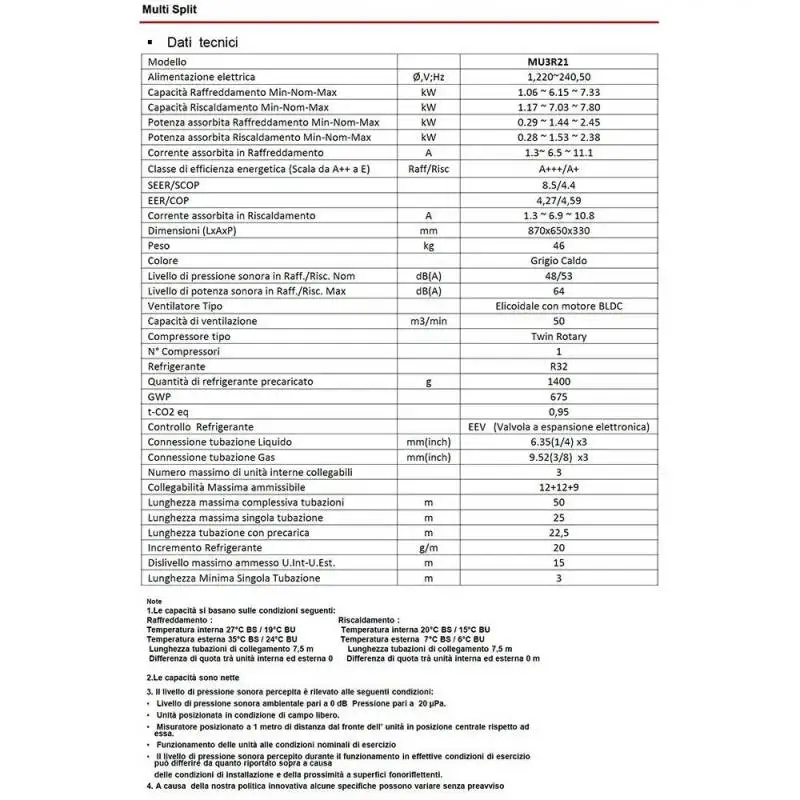

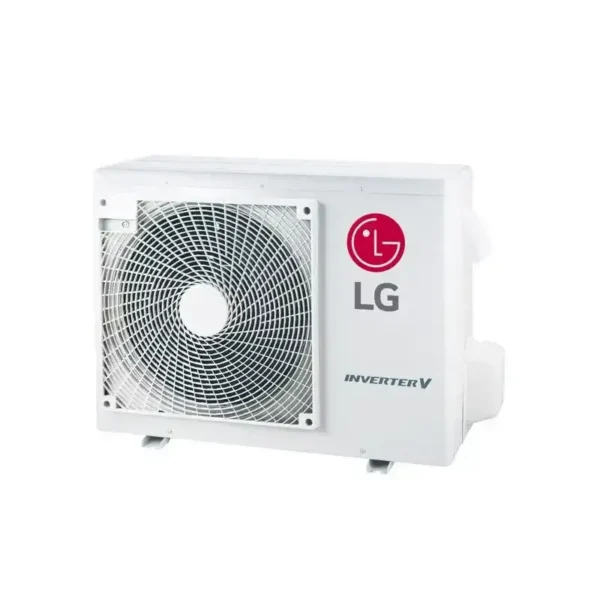

External Unit Features
Maximum number of connectable units: 3
Power Supply: 220-240 V, single-phase, 50 Hz.
Structure
Self-supporting structure with galvanized steel panels painted in warm gray, with surface treatment and cataphoresis process, providing significant corrosion resistance to protect the external unit from atmospheric agents. Removable right panel for refrigerant circuit connection with an integrated handle for easy transport and positioning. Removable top cover for access to control components with an integrated handle on the right side for easy transport and positioning. Protective grille on the air outlet.
Wide Louver Black Fin Heat Exchanger
The heat exchanger with LG's exclusive "Black Fin" coating is designed to provide the best performance even in extremely corrosive environments. The reinforced epoxy resin black coating effectively protects against various types of external conditions that cause corrosion, such as salt contamination and air pollution from factory fumes. Additionally, the hydrophilic finish prevents water accumulation on the heat exchanger fins, minimizing moisture stagnation and reducing the risk of rust.
Compressor
Capacity delivery system consisting of 1 hermetic Twin Rotary BLDC inverter compressor with direct start, linear capacity control with a range from a minimum of 10% to a maximum of 130%.
Fan
Thermal exchange fan with the outside, helical type, with rear suction and horizontal discharge at the front, with an airflow of 28.2 m³/min. BLDC inverter motor type with low noise and efficient airflow.
Refrigerant Circuit
Made of copper tubes, complete with dehydrating filters, 4-way cycle inversion valve, electronic expansion valves on each connection, liquid refrigerant separator with accumulator function for compressor suction, and dedicated service valves for each gas-side connection of the internal units. The distribution system includes connections with liquid and gas diameters of 6.35 mm and 9.52 mm, respectively.
Main Electronic Board
Main control and safety electronic board accessible by removing the top cover, capable of automatically managing operating modes, cooling, heating, and defrosting of the external heat exchanger, based on signals from control sensors placed on the external circuit and individual peripheral internal units via transmission signal according to Fuzzy Logic control system.
Monitoring/Settings Board
Electronic board accessible by removing the side cover…
| Warranty | 5 year |
| Project Solution Capability | N/A |
| Model Number | MU3R21 |
| Refrigerant Type | R-32 |
| Design Style | Contemporary |
| After-sale Service | N/A |
| Feature | Flexible |
| cooling capacity | 9000+9000+12000 BTU |
| Brand Name | LG |
| Maximum airflow | 900 CFM |
| Type | HVAC Systems |
| Voltage | AC 240V |
| Temperature control range | 60-120f |
| Application | Home Office |
| Company Name | Sara Srl |
| Company Address | XX September Street 72 |
| Company Country | IT |
| Company Zip | 87018 |
Ordering and Pricing
- Minimum order quantity: 1 piece
- Volume pricing:
- 1+ piece: US $3888.44 / piece
- Ships from: IT
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this inverter ducted for conditioner?
The standard minimum order quantity is 1 piece. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 5 year warranty. Spare parts and technical support remain available after the warranty period.
Can the inverter ducted for conditioner be supplied for my local voltage?
The standard configuration is AC 240V. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
