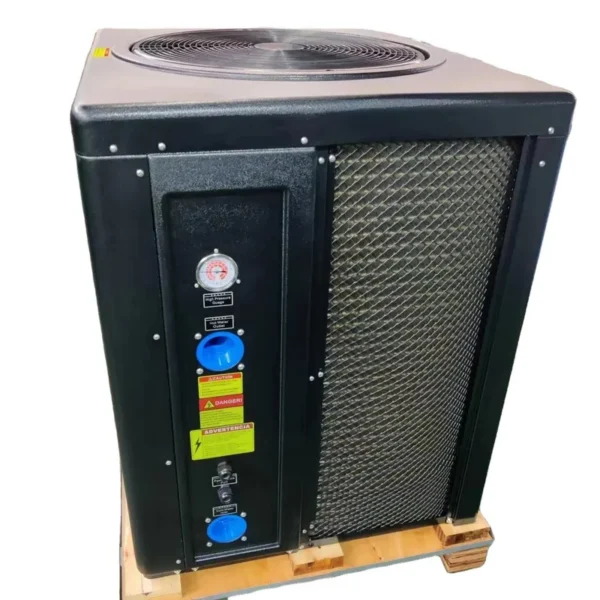

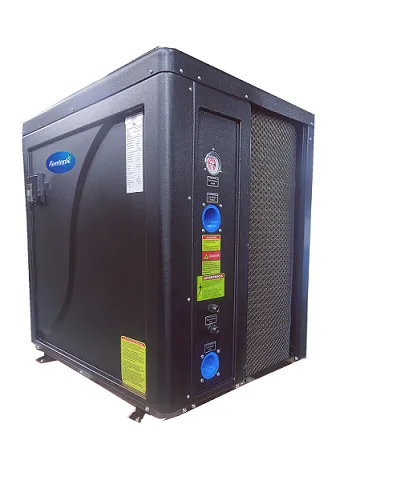

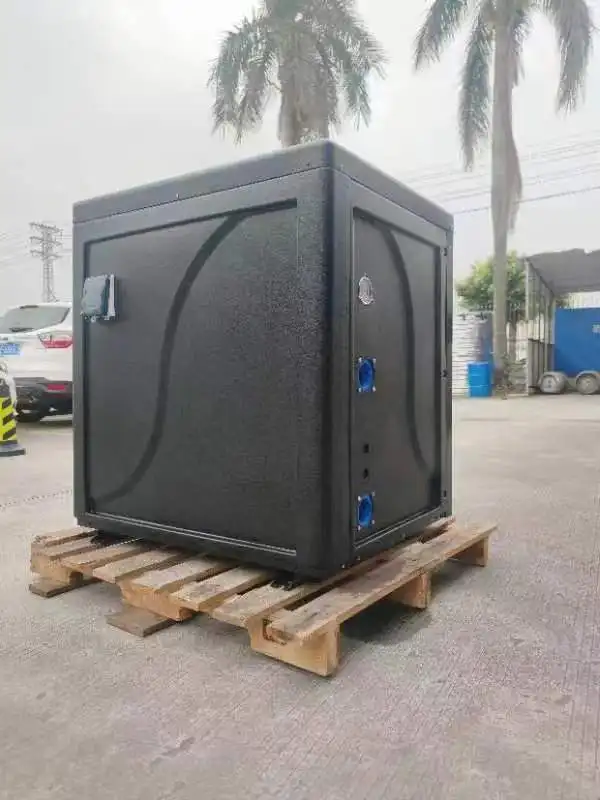

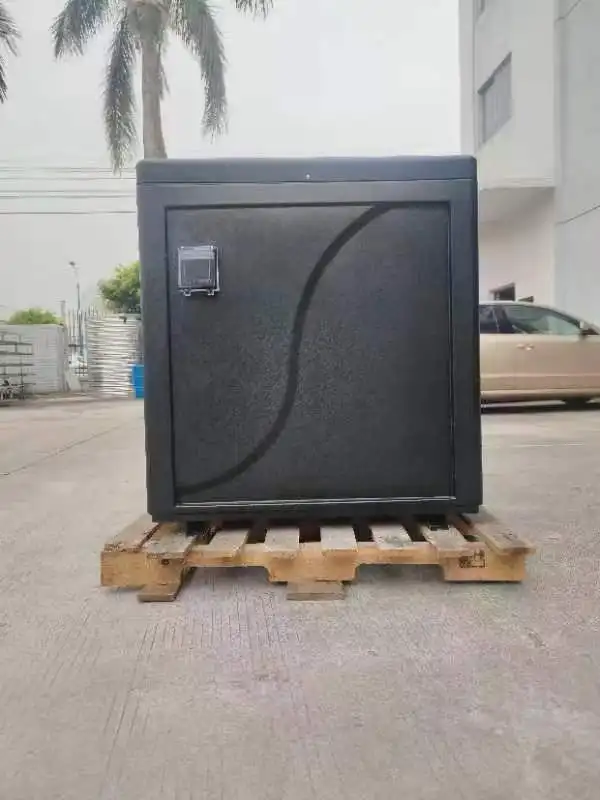

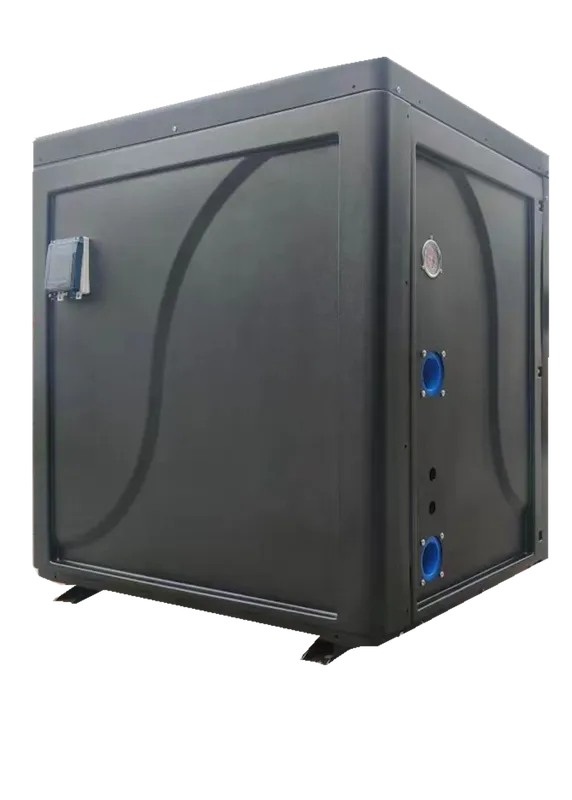

Inverter Pool Heater, 140000BTU, Plastic

Key specification for this inverter pool heater: 220V/1ph/60HZ, power source Electric. Everything below is reproduced from the factory data sheet. Made by Fantastic Energy Saving Equipment Factory (7 years on the platform, typical reply ≤6h). Send your target quantity and destination for a firm quotation with current lead times.

Key Features of This Inverter Pool Heater

• Model Number: FIP35T3
• Power Source: Electric
• Voltage: 220V/1ph/60HZ
• Housing Material: Metal casing
• Refrigerant: R32/R410A
• Warranty: 3 Years

Technical Specifications

Product Details

Product Description

FANTASTIC R32 CE Inverter Pool Heat Pump For Heating Cooling

1. 20-Years Experience，over 86,000 Pcs Inverter Pool Heat Pump Sold Worldwide

2. Heating Capacity: DC Inverter 3 KW 5kKW 7.5KW 10KW  12kw 15KW 17.5KW 20KW 25KW 30KW 35KW 40KW 50KW 60KW 75KW 100KW 125KW 150KW 180KW 200KW 250kw 300KW 350KW Inverter Heat Pump Pool Heater

3. Power Supply : 220V 1PH /380V 3PH

3. Best Selling Market:USA, Canada,UK, France, Germany, Poland, Sweden,Spain, Portugal, Czech Republic, Slovak, Austria,Switzerland, Ukraine, Russia, Macedonia, Kosovo, Serbia, BIH, Croatia, Slovenia, Italy, US, Canada, South Korea, Israel, Australia,New Zealand, Chile,Jordan, Romania, Bulgaria, Turkey, Lithuania, Estonia, Finland, Norway, Iceland, Ireland, Netherlands, Denmark.etc.

5. Ambient Temp of Using: Minus 15C, max 40C Hot Water Output

6. Certificate: UL by TUV for North America and ISO9001, CE, EMC, ROHS for Europe

7. *Panasonic* or “Copeland” dual-rotor Compressor for DC Inverter Heat Pump Series

8. High COP to be 16.65，super energy saving

8. DC inverter brushless fan motor. (Lowest to be 36 dB)

10. FANTASTIC Inverter heat pump equipped wifi control function by phone which more convinent for you to control and adjust your heat pump by phone anytime & anywhere

11. Multi-Function :

① Base function : Space heating/ cooling & automatical heat/cool

② Heating curve function to make out different water temp. by different ambient temp. automatically as a best energy saving and meet heating demand logic.

③ Carel controller for option with timing sterilization function and APl function

④ Various system protection functions.etc.

MODEL	FIP7T	FIP10T	FIP13T	FIP17T
Power suply	220～240V / 1/ 50 Hz	220～240V / 1/ 50 Hz	220～240V / 1/ 50 Hz	220～240V / 1/ 50 Hz
Heating Capacity at Air 26℃, Humidity 80%, Water 26℃ in, 28℃ out
Heating Capacity（kW)	7.82～1.65	10.58～2.42	13.66～3.14	17.16～3.91
Power Input（kW)	1.12～0.103	1.519～0.149	1.98～0.193	2.48～0.245
COP	16.02～6.98	16.24～6.97	16.27～6.99	15.96～6.99
Heating Capacity at Air 15℃, Humidity 70%, Water 26℃ in, 28℃ out
Heating Capacity（kW)	5.78～1.31	7.86～1.80	10.14～2.31	12.8～3.91
Power Input（kW)	1.15～0.17	1.57～0.236	2.03～0.30	2.56～0.38
COP	7.70～5.02	7.62～5.00	7.7～5.00	7.65～5.00
Cooling Capacity at Air 35℃, Water 29℃ in, 27℃ out
Cooling Capacity（kW)	4.30～1.08	5.94～1.50	7.26～1.85	9.49～2.38
Power Input（kW)	1.14～0.16	1.57～0.22	1.89～0.265	2.51～0.345
EER	6.75~3.77	6.82～3.78	6.98～3.84	6.90～3.78
Rated Power Input（kW)	1.2	1.6	2.1	2.6
Rated Current(A)	5.4	7.3	9.4	11.7
Refrigerant	R32	R32	R32	R32
Heat Exchanger	Titanium	Titanium	Titanium	Titanium
Air Flow Direction	Horizontal	Horizontal	Horizontal	Horizontal
Water Flow Volume（m3/h)	2.5	3.5	4.5	5.5
Kind of defrost	by 4 way valve	by 4 way valve	by 4 way valve	by 4 way valve
Working temperature range（℃）	-15～43	-15～43	-15～43	-15～43
Noise level (dBa) at 1m	<36～<45	<37～<46	<39～<47	<40～<48
Noise level (dBa) at 10m	<19～<26	<20～<26	<20～<28	<21～<30
Casing Material	ABS plastic	ABS plastic	ABS plastic	ABS plastic
Water Proof Level	IPX4	IPX4	IPX4	IPX4

Model	FIP21T	FIP30T	FIP35T	FIP35T3
Power suply	220～240V / 1/ 50 Hz	220～240V / 1/ 50 Hz	220～240V / 1/ 50 Hz	380V / 3/ 50 Hz
Heating Capacity at Air 26℃, Humidity 80%, Water 26℃ in, 28℃ out
Heating Capacity（kW)	21.42～4.86	30.05～6.83	35.80～8.24	35.80～8.24
Power Input（kW)	3.07～0.30	4.30～0.42	5.10～0.51	5.10～0.51
COP	15.96～6.98	16.26～6.99	16.54～6.98	16.54～6.98
Heating Capacity at Air 15℃, Humidity 70%, Water 26℃ in, 28℃ out
Heating Capacity（kW)	15.92～3.61	22.05～5.00	28.61～6.60	28.61～6.60
Power Input（kW)	3.19～0.47	4.42～0.65	5.73～0.87	5.73～0.87
COP	7.68～4.99	7.69～4.99	7.67～4.98	7.67～4.98
Cooling Capacity at Air 35℃, Water 29℃ in, 27℃ out
Cooling Capacity（kW)	11.60～2.96	15.88～3.92	20.13～4.67	20.13～4.67
Power Input（kW)	3.06～0.43	4.19～0.56	5.27～0.67	5.27～0.67
EER	6.93～3.79	6.99～3.79	6.99～3.81	6.99～3.81
Rated Power Input（kW)	3.2	4.4	5.7	5.7
Rated Current(A)	14.6	20.1	26	15
Refrigerant	R32	R32	R32	R32
Heat Exchanger	Titanium	Titanium	Titanium	Titanium
Air Flow Direction	Horizontal	Horizontal	Horizontal	Horizontal
Water Flow Volume（m3/h)	6.5	9	12	12
Kind of defrost	by 4 way valve	by 4 way valve	by 4 way valve	by 4 way valve
Working temperature range（℃）	-15～43	-15～43	-15～43	-15～43
Noise level (dBa) at 1m	<41～<49	<42～<50	<42～<50	<42～<50
Noise level (dBa) at 10m	<23～<31	<24～<33	<24～<33	<24～<33
Casing Material	ABS plastic	ABS plastic	ABS plastic	ABS plastic
Water Proof Level	IPX4	IPX4	IPX4	IPX4

Model	FIP40T3	FIP55T3	FIP65T3	FIP80T3
Power Supply	380-415V~/3Ph~50Hz（60HZ）	380-415V~/3Ph~50Hz（60HZ）	380-415V~/3Ph~50Hz（60HZ）	380-415V~/3Ph~50Hz
Operating Air Temperature(℃)	-15~55	-15~55	-15~55	-15~55
Heating Capacity: Air 27℃/Water 26℃/Humidity 80%
Boost Mode Capacity (kW)	40	55	65	80
Heating Capacity(kW)	6.3~32.6	8.4~43.47	10.5~54.3	12.6~65.2
Heating Capacity(Btu)	20813~110890	27751~147853	34688~184817	41626~221780
Consumed Power(kW)	0.39~5.31	0.52~7.07	0.65~8.84	0.78~10.61
Current (A)	1.02~13.9	1.36~18.6	1.7~23.26	2.05~27.92
COP	6.15~16.11	6.15~16.11	6.15~16.11	6.15~16.11
Heating Capacity: Air 15℃/Water 26℃/Humidity 70%
Boost Mode Capacity (kW)	30	40	50	60
Heating Capacity(kW)	4.81~25.06	6.41~33.41	8.02~41.8	9.62~50.12
Heating Capacity(Btu)	16378~85471	21837~113961	27296~142451	32755~170941
Consumed Power(kW)	0.96~2.96	1.27~3.95	1.59~4.93	1.91~5.92
Current (A)	2.52~7.78	3.34~10.39	4.18~12.97	5.02~15.57
COP	4.95~8.45	4.95~8.45	4.95~8.45	4.95~8.45
Cooling Capacity: Air 43℃/Water 26℃/Humidity 70%
Boost Mode Capacity (kW)	21	28	35	42
Cooling Capacity(kW)	7.63~15.12	10.17~20.15	12.72~25.19	15.26~30.23
Cooling Capacity(Btu)	25590~51521	34120~68695	42650~85868	51180~103042
Consumed Power(kW)	1.46~3.68	1.95~4.91	2.43~6.13	2.92~7.36
Current (A)	3.84~9.68	5.13~12.92	6.39~16.13	7.68~19.36
EER	4.15~5.13	4.15~5.13	4.15~5.13	4.15~5.13
Casing Type	Metal sheet	Metal sheet	Metal sheet	Metal sheet
Compressor	DC inveter type	DC inveter type	DC inveter type	DC inveter type
Fan Direction	Vertical	Vertical	Vertical	Vertical
Sound Pressure 1m dB(A)	55	58	58	60
Sound Pressure 10m dB(A)	35	38	38	40
Water Flow Volume (m3/h)	14	17	21	25
Refrigerant Gas	R32/R410A	R32/R410A	R32/R410A	R32/R410A

Certifications

Customers Feedback

Product Photos

Packing & Delivery

Company Profile

Established in 2002, FANTASTIC is one of the largest manufacturers of house heating/cooling heat pumps and swimming pool heat pumps and hot water heat pumps and other kinds of heat pump products in China.

With more than 500 professional staffs and 15 production lines focusing on heat pump manufacturing and technologies, 80% of staffs are more than 10 years experience. with 232,000 sqm workshop plant, 1 million set of annual production output .

FANTASTIC owns many unique technologies and patents, and products are certified CE, ROHS, BAFA, ,A+++ for Europe ,UV UL for North America ,, SAA, WATERMARK, STANDARD MARK, C-TICK ,SAA for Australia, ISO9001 and so on by TUV.

Technical testing

Warranty

Warranty

The warranty is 2 years at least.

Ordering and Pricing

• Minimum order quantity: 2 piece
• Volume pricing:
  • 2–29 piece: US $1590 / piece
  • 30+ piece: US $1420 / piece
• Ships from: China
• Customization: OEM and ODM accepted on qualifying volumes.

Frequently Asked Questions

What is the minimum order quantity for this inverter pool heater?

The standard minimum order quantity is 2 piece. Trial orders can usually be arranged for buyers evaluating the product before a full production run.

What warranty is provided?

The manufacturer provides a 3 Years warranty. Spare parts and technical support remain available after the warranty period.

Can the inverter pool heater be supplied for my local voltage?

The standard configuration is 220V/1ph/60HZ. Alternative voltage and frequency builds are available when specified at the time of order.

Do you accept OEM or custom branding?

Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.

How long does production and delivery take?

In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
