Key specification for this low noise exhaust fan: 5V/12V, power source Electric. Everything below is reproduced from the factory data sheet. Made by Shenzhen Yofolon Electronic Co.,ltd. (13 years on the platform, typical reply ≤6h). For a binding price and lead time, send the volume you need and where it ships to.
Key Features of This Low Noise Exhaust Fan
- Model Number: DC6015S05H
- Power Source: Electric
- Voltage: 5V/12V
- Material: Plastic
- Blade Material: Plastic
- Noise Level: 32.7dBA
Technical Specifications
| Voltage | 5V/12V |
|---|---|
| Speed | 4000 |
| Type | dc cooling fan |
| Material | Plastic |
| Blade Material | Plastic |
| Mounting Type | Screw fixing |
| Bearing Type | Sleeve Bearing |
| Power Source | Electric |
| Warranty | 3 Years |
| After-Sales Service Provided | Free Spare Parts |
| Customized Support | OEM, ODM |
| Place Of Origin | Guangdong, China |
| Brand Name | YOFOLON |
| Model Number | DC6015S05H |
| Product Name | DC Brushless Axial Fan |
| Size | 60x60x15mm |
| Input Current | 0.25A |
| Static Pressure | 2.68mmH2O |
| Noise Level | 32.7dBA |
| Application | Printer, Car seat Cooling, Home Appliance,etc |
| Sample | Free |
| Weight | 38g |
| Selling Units | Single item |
| Single Package Size | 10X10X8 cm |
| Single Gross Weight | 0.5 kg |

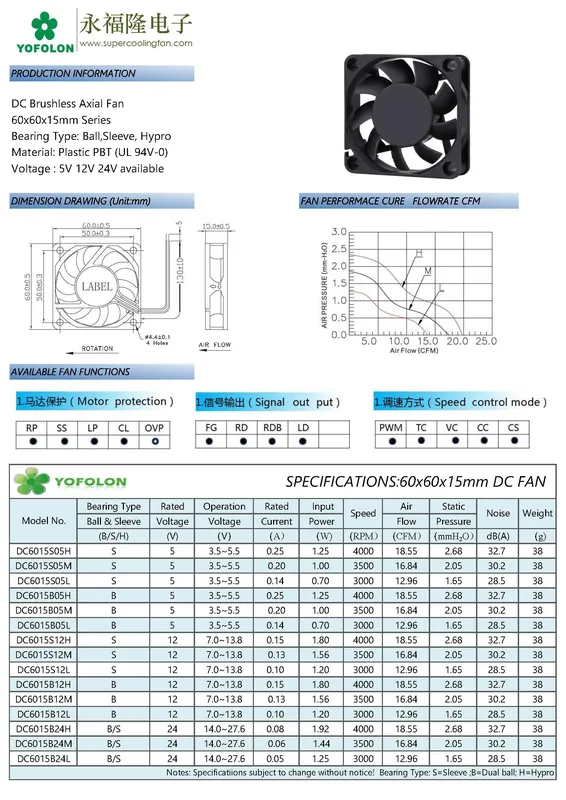

Product Details
60x60x15mm OEM 5V 12V/24V DC Cooling Fan CE RoHS UL 60mm dc axial fan | 40x40x20mm 12V DC BLOWER FAN | |
Size | 60x60x15mm | |
Frame | Plastic Impeller: Plastic P. B. T. | |
Voltage | 5V, 12V,24V | |
Bear type | Ball, Sleeve | |
Power | 1.0~1.92W | |
Motor | Brushless DC, auto restart Impedance & polarity protected | |
Weight | 38G | |
Speed | 3000~4000RPM | |
Rated Current | 0.05~0.25A | |
Air Flow | 12.96~18.55CFM | |
Pressure | 1.65~2.68(mmH2O) | |
Noise | 28.5~32.7dBA | |
Operation temperature | -20° C~80° C | |
Insulation Resistance | 10 At 500VDC between lead and frame | |
Dielectric Strength | 1 min at 500VAC/50-60Hz, current min 5mA Operation Humidity: 20%~85% | |
Working voltage | Rated voltage± 15% | |
Life at 25oC | Ball bearing 50, 000hrs and sleeve bearing 30, 000hrs | |
Specification
regulation, EC: Ac to DC, VCC: (Voltage control/Automatic control) function.
Additional protection: Automatic lock/start function of AS, Slow start function, Overcurrent protection, Reverse connection
protection, Overvoltage protection, dustproof waterproof IP54 IP55, IP67.
Why Choose Us?
2.We support product customization and a series of technical discussions. We can cooperate with the development or provide corresponding improvement and optimization suggestions during the customer's product development stage or improvement and optimization projects.
3.High response rate and fast response speed, less 8hours.
4.We have a series of test equipment, like Wind tester, fan blade balance machine, high and low temperature tester, etc.
A: We are a combination of manufacturers and agents, with the Top Professional Team, serving dc brushless fan and motor, dc axial fan, dc blower fan, dc centrifugal fan, high speed fan, high pressure fan, low noise fan.
Q2: What's your products MOQ?
A: We will provide you small MOQ for each item, it depends your specific order!
Q3: How about your delivery time?
A: Generally, our stock products would be shipped in 2-3days after payment received, finally depends on order quantities.
Q4: What's your warranty?
Q5: How do you make our business long-term and good relationship?
A: We keep good quality and competitive price to ensure our customers benefit ; We respect every customer as our friend and we sincerely do business and make friends with them,It's not something that can be replaced.
Q6: Do you also support quote BOM list? then Shipment to us together?
A: Yes, we also can support quote BOM and shipment all components together. Please send list to us for check.
Ordering and Pricing
- Minimum order quantity: 1 piece
- Volume pricing:
- 1–99 piece: US $1 / piece
- 100–999 piece: US $0.85 / piece
- 1000–2999 piece: US $0.75 / piece
- 3000+ piece: US $0.64 / piece
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this low noise exhaust fan?
The standard minimum order quantity is 1 piece. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 3 Years warranty. Spare parts and technical support remain available after the warranty period.
Can the low noise exhaust fan be supplied for my local voltage?
The standard configuration is 5V/12V. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
About the Manufacturer
This product is produced by Shenzhen Yofolon Electronic Co.,ltd., based in China. The company 13 years as a verified Alibaba.com supplier, operates its own manufacturing. Browse the full Shenzhen Yofolon Electronic Co.,ltd. range on HVACR Nexus.
