Low temperature heat pump — voltage According to country, power 5-75kw. The complete factory specification follows. Made by Jiangsu Hengmai Drying Technology Co., Ltd. (6 years on the platform, factory-assessed). Quantity and destination market determine the final price — tell us both for a firm quote.
Key Features of This Low Temperature Heat Pump
- Power(W): 5-75kw
- Power Supply: AC 3 Phase 380V 60/50Hz
- Voltage: According to country
- Material: SUS304, Other
- Warranty: 1 Year
- Place Of Origin: Jiangsu, China
Technical Specifications
| Type | Hollow blade drying |
|---|---|
| Voltage | According to country |
| Heating Method | Gas Heating |
| Material | SUS304, Other |
| Power(W) | 5-75kw |
| Application | Chemicals Processing, Plastics Processing, Food Processing |
| Core Components | Motor |
| Key Selling Points | Automatic |
| Warranty | 1 Year |
| Machinery Test Report | Provided |
| Video Outgoing-Inspection | Provided |
| Place Of Origin | Jiangsu, China |
| Weight (Kg) | 1000 |
| Brand Name | Hengmai |
| Dimension(L*W*H) | Varied |
| Product Name | Hollow blade drying |
| Name | Industrial Drying Machine |
| Keywords | Dryer Drying Machine |
| Function | Dry |
| Usage | Industrial Usage |
| Heating Source | Electricity Steam Oil Gas |
| Power Supply | AC 3 Phase 380V 60/50Hz |
| Temperature Range | RT~200C/300C/400C/500C |
| Selling Units | Single item |
| Single Volume | 0 cm³ |
| Single Gross Weight | 0.0 kg |
Product Details
Product Overview

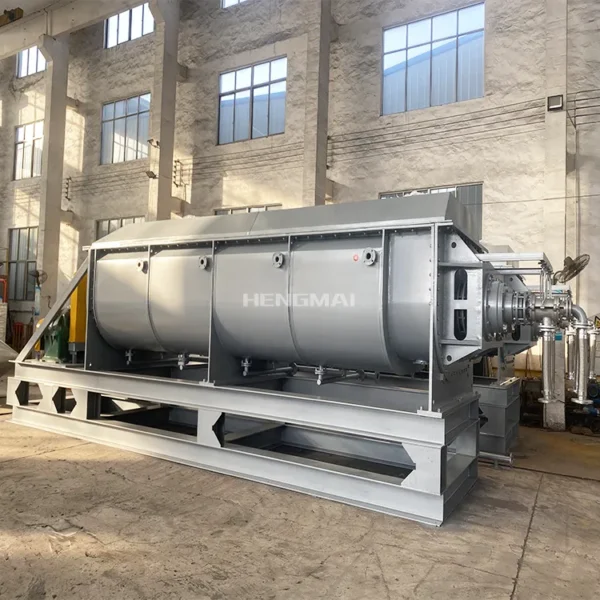

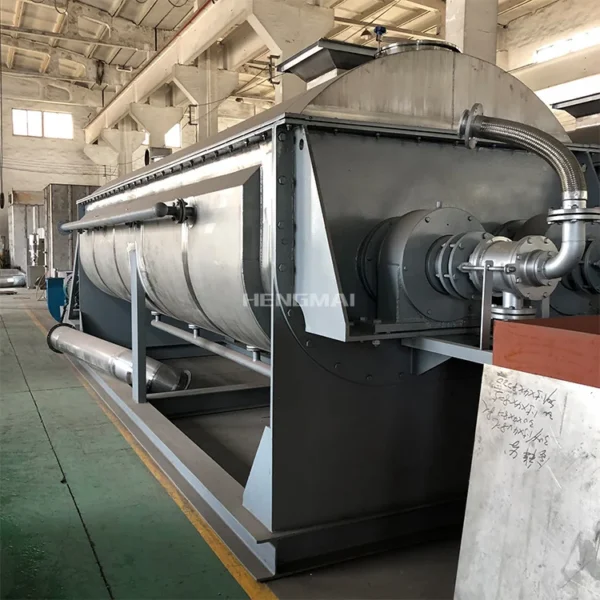

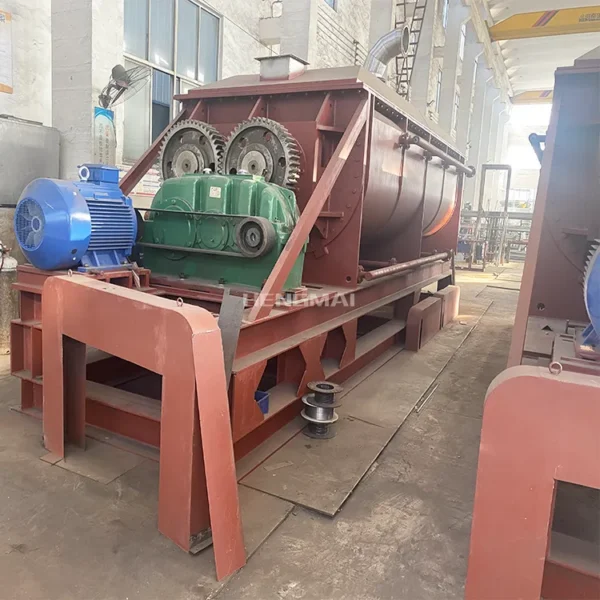

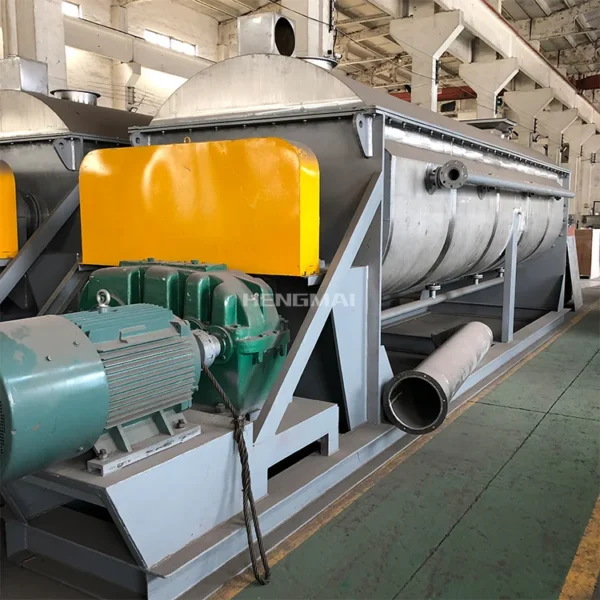

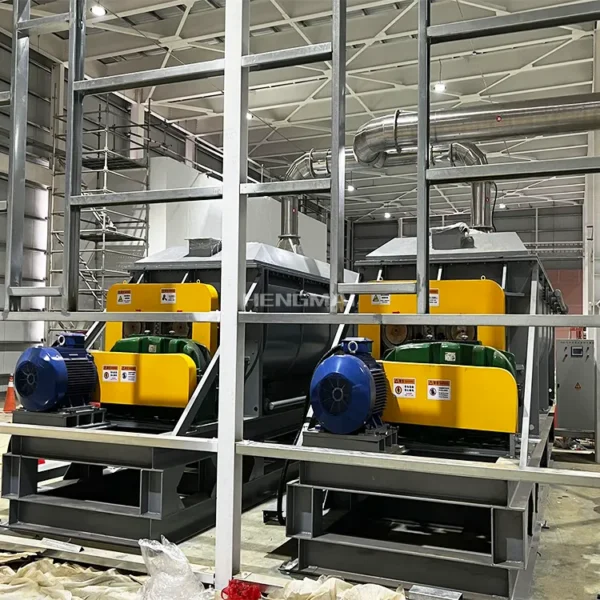

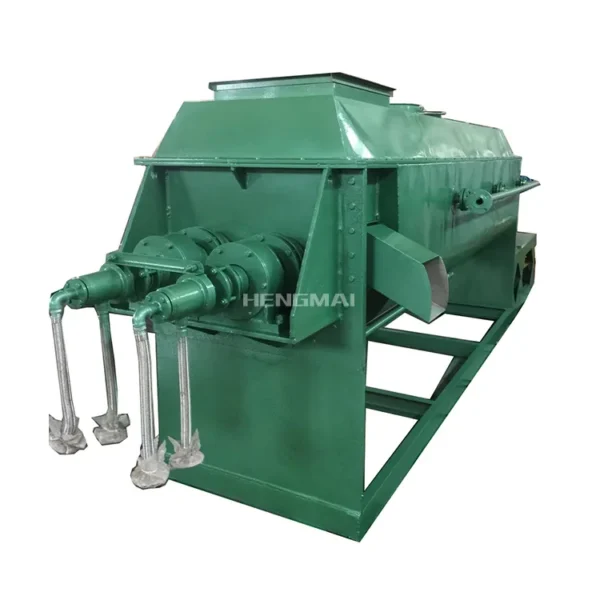

Paddle dryer is a low-speed stirring dryer set in the equipment to make the wet material under the agitation of the blade, fully contact with the heat carrier and the hot surface so as to achieve the purpose of drying, the structure is generally horizontal, biaxial or four-axis. Paddle dryer is divided into hot air type and conduction type. In the hot air type, the heat carrier (such as hot air) is in contact with the dried material and is dried. In the conductive type, the heat carrier is not in direct contact with the dried material, but the hot surface is in contact with the material.
Main Feature
Low energy consumption: due to indirect heating, there is no large amount of air to take away the heat, and the outer wall of the dryer is set with insulation layer, which only needs 1.2kg of water vapor to evaporate 1kg of slurry material.
Low cost: it has a huge heat transfer surface per unit effective volume, which shorens the treatment time and reduces the
equipment size. Greatly reduced the building area and space.
Wide range of processing materials: using different thermal media, it can handle both heat sensitive materials and materials requiring high temperature treatment. Common media: steam, heat conduction oil, hot water, cooling water and so on. It can be operated continuously or intermittently and can be used in many fields.
Small environmental pollution: do not use carrying air, dust material entrainment is small. The material solvent evaporation
capacity is very small, easy to handle.The structure of closed-circuit cycle can be used for contaminated materials or solvent recovery.
Low operating costs:small wear and tear, low maintenance costs.
Stable operation: due to the special compression-expansion and stirring effect of wedge blade, the material particles are in full contact with the heat transfer surface. Within the axial range, the temperature, humidity and mixing degree gradient of the material are very small, thus ensuring the stability of the process.
Low cost: it has a huge heat transfer surface per unit effective volume, which shorens the treatment time and reduces the
equipment size. Greatly reduced the building area and space.
Wide range of processing materials: using different thermal media, it can handle both heat sensitive materials and materials requiring high temperature treatment. Common media: steam, heat conduction oil, hot water, cooling water and so on. It can be operated continuously or intermittently and can be used in many fields.
Small environmental pollution: do not use carrying air, dust material entrainment is small. The material solvent evaporation
capacity is very small, easy to handle.The structure of closed-circuit cycle can be used for contaminated materials or solvent recovery.
Low operating costs:small wear and tear, low maintenance costs.
Stable operation: due to the special compression-expansion and stirring effect of wedge blade, the material particles are in full contact with the heat transfer surface. Within the axial range, the temperature, humidity and mixing degree gradient of the material are very small, thus ensuring the stability of the process.
Hollow Blade Dryer | ||||||||||||
Model | Drying area(m²) | Drying strength(Water.kg/D) | Motor power(kw) | Effective volume(m³) | Size.L×W×D(mm) | Spindle speed(r.p.m.) | ||||||
KJG-5 | 5 | 50-140 | 3 | 0.08 | 3700×600×980 | 10~30 | ||||||
KJG-10 | 10 | 100-280 | 4 | 0.4 | 3800×800×1200 | |||||||
KJG-18 | 18 | 180-504 | 7.5 | 1.09 | 4000×1200×1600 | |||||||
KJG-29 | 29 | 290-812 | 11 | 1.85 | 5600×1500×1800 | |||||||
KJG-36 | 36 | 360-1008 | 30 | 2.42 | 6000×1500×1800 | |||||||
KJG-41 | 41 | 410-1148 | 37 | 2.8 | 6000×1600×1800 | |||||||
KJG-50 | 50 | 500-1400 | 45 | 3.57 | 6200×1700×2300 | |||||||
KJG-87 | 87 | 870-2436 | 55 | 7.39 | 6700×2400×2600 | |||||||
KJG-128 | 128 | 1280-3584 | 90 | 12 | 7500×3300×2700 | |||||||
KJG-256 | 256 | 2560-7168 | 180 | 28.4 | 9100×3700×3300 | |||||||
Different product parameters, freight cost different, please consult before ordering.Support non-standard customization.
Applications
Petrochemical Industry: polyolefin powder, polycarbonate resin, high and low density polyethylene, linear low density polyethylene, polyacetal particles, nylon 6, nylon 66, nylon 12, acetate fiber, polyphenylene sulfide, propylene based resin, polypropylene, engineering plastics, polyvinyl chloride, polyvinyl alcohol, polystyrene, polyester, polyformaldehyde, styrene acrylonitrile copolymerization Ethylene Propylene Copolymerization. Environmental protection industry: sludge, electroplating sewage sludge, boiler soot, sugar factory waste residue, pharmaceutical factory waste residue, monosodium glutamate factory waste residue and coal ash. Feed industry: soy sauce residue, bone based feed, distiller's grains, food leftovers, apple residue, orange peel, soybean meal, chicken bone feed, fish meal, feed additives, biological residue mud. Food industry: starch, cocoa beans, corn kernels, salt, modified starch and drugs. Chemical industry: soda ash, nitrogen phosphorus potassium compound fertilizer, kaolin, bentonite, white carbon black, carbon black, phosphogypsum, calcium sulfate, calcium nitrate, magnesium carbonate, sodium cyanide, sodium fluoride oxide, aluminum hydroxide, barium sulfate, calcium carbonate, molecular sieve, dye and saponin.
Company Profile
Jiangsu Hengmai Drying Technology Co., Ltd. located in Changzhou, an industrial star city and a beautiful water town in the south of the Yangtze River, covering total area of 5000sqm. With strong technical force, perfect test system, precision processing equipment and strict management system. We have 10 years of customization experience and excellent R&D team. We specializing in the production of oven, belt dryer, vacuum drying machine, vacuum rotary dryer, drying machine, centrifugal spray dryer, drum scraper dryer, hollow leaf dryer, drum scraper dryer, three dimensional mixing machine, high efficiency wet granulation machine, two dimensional mixer, trough mixer, twin screw mixer, rotary granulator, V mixer, swing system Granulator, high efficiency granulator, hot blast stove, pulverizer, etc. We support non-standard customization and have a great advantage in the quality of price, devoted to creating a set of product design and development, processing and manufacturing, engineering installation and after-sales service in one integrated enterprise.
Raise requirement
Customer drawings, samples, ideas
Provide design scheme
Give solutions as required and confirm quotation
Sign contract
Confirm cooperation, sign contract, pay advance payment
Production
Arrange production and delivery inspection
Delivery
Pay the balance and deliver the goods
After-sale service
One year warranty, video service, on-site solution
Product packaging and delivery
Recommend Products
FAQ
Q: How to choose suitable equipment?
A: Tell us your work flow and requirements, then we will recommend you suitable equipments.
Q: What is your minimum order quantity?
A: 1 set.
Q: Does your price include freight?
A: Our usual price is based on FOB Shanghai. We can provide CIF quote upon request.
Q: How long is your delivery time?
A: We make machines after receiving the payment, the production cycle is usually around 15-35 days, depending on which kind of machine.
Q: What’s the quality control procedure?
A:We have an experienced technical team to support and provide solutions to meet the project requirements of our clients. We are certified with ISO9001 quality management system. We are following a strict quality control procedure to ensure the product quality.
Q: What is the warranty period?
A: 24 hours timely response. The warranty period for non-artificial damage is 1 year after delivery of goods.
Q: How to solve the equipment trouble during using?
A: Please email us about problem with pictures or a small video will be better, we will find the problem and solve it. We suggest ordering more consumable parts in advance.
Q: What is your minimum order quantity?
A: 1 set.
Q: Does your price include freight?
A: Our usual price is based on FOB Shanghai. We can provide CIF quote upon request.
Q: How long is your delivery time?
A: We make machines after receiving the payment, the production cycle is usually around 15-35 days, depending on which kind of machine.
Q: What’s the quality control procedure?
A:We have an experienced technical team to support and provide solutions to meet the project requirements of our clients. We are certified with ISO9001 quality management system. We are following a strict quality control procedure to ensure the product quality.
Q: What is the warranty period?
A: 24 hours timely response. The warranty period for non-artificial damage is 1 year after delivery of goods.
Q: How to solve the equipment trouble during using?
A: Please email us about problem with pictures or a small video will be better, we will find the problem and solve it. We suggest ordering more consumable parts in advance.
Ordering and Pricing
- Minimum order quantity: 1 set
- Volume pricing:
- 1+ set: US $13500 / set
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this low temperature heat pump?
The standard minimum order quantity is 1 set. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.
Can the low temperature heat pump be supplied for my local voltage?
The standard configuration is According to country. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
About the Manufacturer
This product is produced by Jiangsu Hengmai Drying Technology Co., Ltd., based in China. The company 6 years as a verified Alibaba.com supplier, operates its own manufacturing, passed third-party supplier assessment. Browse the full Jiangsu Hengmai Drying Technology Co., Ltd. range on HVACR Nexus.
