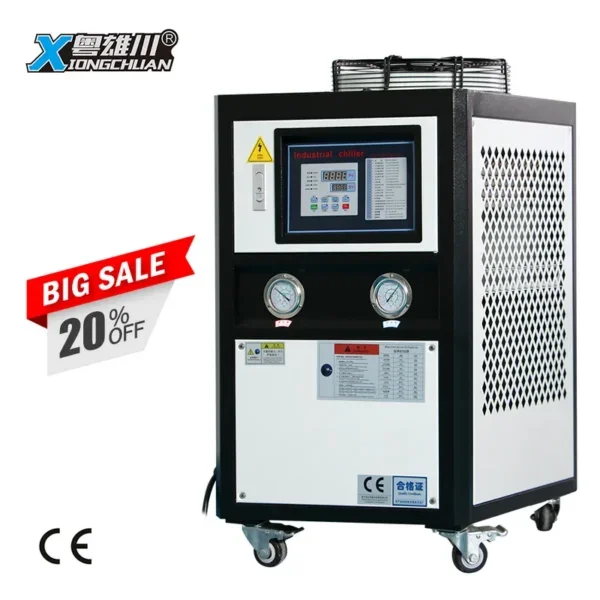

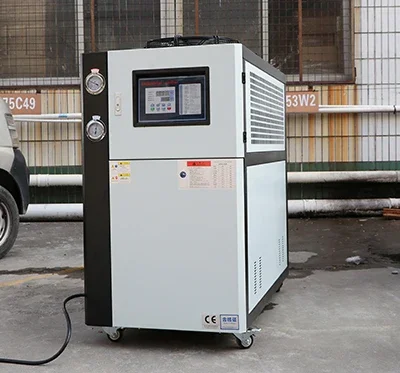

Machine chiller — 5HP 10HP 380V, 13.95kw(18.71hp). The complete factory specification follows. Quantity and destination market determine the final price — tell us both for a firm quote.
Key Features of This Machine Chiller
- Power: 13.95kw(18.71hp)
- Voltage: 5HP 10HP 380V
- Warranty: 1 Year
- Place Of Origin: China
- Weight (Kg): 177
- Single Gross Weight: 0.0 kg
Technical Specifications
| Voltage | 5HP 10HP 380V |
|---|---|
| Power | 13.95kw(18.71hp) |
| Warranty | 1 Year |
| Machinery Test Report | Provided |
| Video Outgoing-Inspection | Provided |
| Key Selling Points | Automatic |
| Core Components | Motor, Pump, Compressor |
| Place Of Origin | China |
| Weight (Kg) | 177 |
| Brand Name | xiongchaung |
| Dimension(L*W*H) | 550*440*750 mm(21.65*17.32*29.53in) |
| Working Temperature Range | 20-37 celsius degree |
| Selling Units | Single item |
| Single Volume | 0 cm³ |
| Single Gross Weight | 0.0 kg |
Product Details
Products Description
Suitable for various industries
Industrial chillers are widely used in plastics, electronics manufacturing, electroplating, pharmaceutical and chemical, ultrasonic cooling, printing and other industrial productions. It can precisely control the temperature required for modern industrial manufacturing and largely improve efficiency and product quality. It is the best choice for modern industries with simple operation, reasonable design and superior quality and over one hundred different models.
Industrial water chiller is to provide a cooling process in plastic molding, to improve quality of molded products andshortenperiod of injection molding cycles. Hence maximizes productivity of plastic molding manufacturing.
Comprehensive display

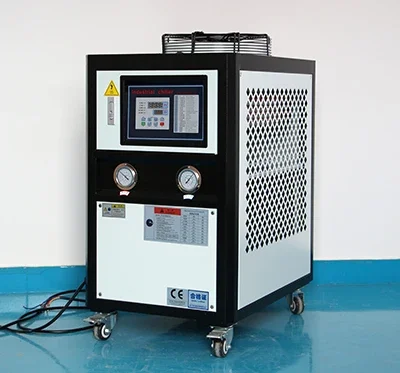

2P Air-Cooled

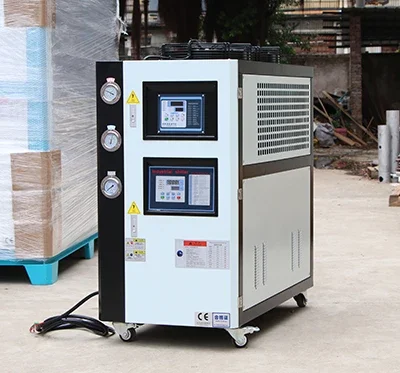

5P Air-Cooled

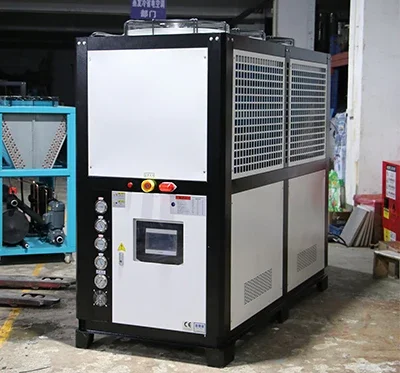

25P Air-Cooled

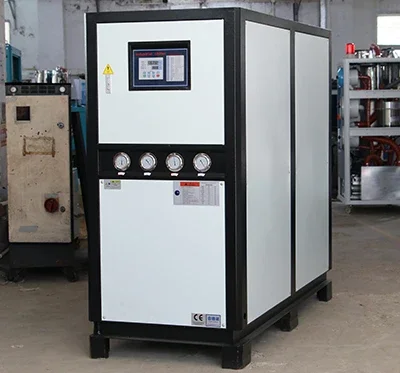

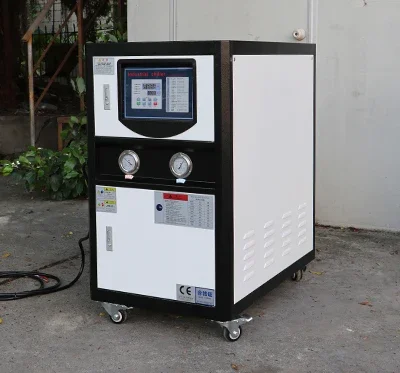

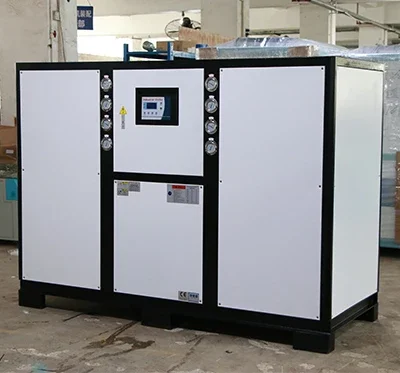

5P Water-Cooled
20P Water-Cooled
30P Water-Cooled

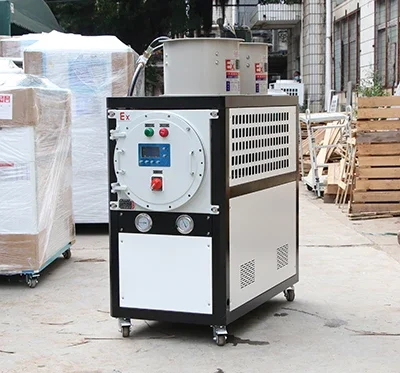

5P Explosion-Proof Machine

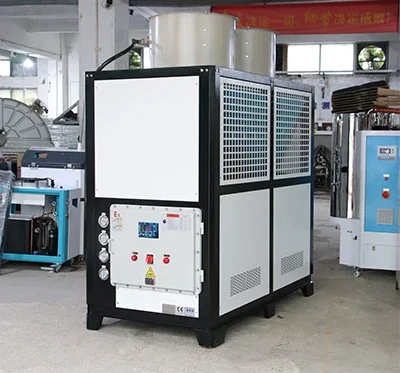

20P Explosion-Proof Machine
Cold and Hot Integrated Machine
Product parameters
Air Cooled Chiller | ||||||||||||||||||
Model | XC-01 | XC-02 | XC-03 | XC-05 | XC-08 | XC-10 | XC-15 | XC-20 | ||||||||||
Refrigeration capacity | KW/hr | 1.67 | 5.67 | 8.39 | 13.95 | 21.8 | 28.01 | 44.15 | 59.08 | |||||||||
Kcal | 1438 | 4872 | 7216 | 11990 | 18748 | 24089 | 37965 | 50805 | ||||||||||
Temperature range | ℃ | 5-50℃ Room temperature (Below 0℃ can be customized) | ||||||||||||||||
Power supply | 1N-220V 50HZ | 3N-380V 50HZ/Non standard voltage customizable | 5N-380V 50HZ/Non standard voltage customizable | |||||||||||||||
Total power | KW | 1.10 | 2.005 | 2.89 | 4.58 | 7.25 | 9.09 | 13.85 | 18.95 | |||||||||
Throttling control method | Capillary | Expansion valve | ||||||||||||||||
Types | Fully enclosed vortex or piston type | |||||||||||||||||
Power /KW | 0.69 | 1.50 | 2.25 | 3.75 | 6.00 | 7.50 | 11.25 | 15 | ||||||||||
Refrigerant | R22、R407C、R404A、R134A、R410A | |||||||||||||||||
Airvolume (M³/h) | 1000 | 2000 | 3000 | 5000 | 8000 | 10000 | 15000 | 20000 | ||||||||||
Power/Kw | 0.14 | 0.14 | 0.28 | 0.36 | 0.9 | 0.9 | 1.20 | 1.6 | ||||||||||
Evaporator | Amount of water (M³/h) | 0.51 | 0.97 | 1.44 | 2.40 | 3.75 | 4.82 | 7.60 | 10.16 | |||||||||
Water tank capacity (L) | L | 30 | 33 | 46 | 56 | 125 | 125 | 195 | 280 | |||||||||
Import and export caliber (MM) | MM | DN15 | DN20 | DN20 | DN20 | DN40 | DN40 | DN50 | DN65 | |||||||||
Circulating pump | Power /KW | 0.37 | 0.37 | 0.37 | 0.37 | 0.75 | 0.75 | 1.50 | 2.25 | |||||||||
Flow | L/MIN | 33 | 90 | 90 | 90 | 170 | 170 | 340 | 500 | |||||||||
Lift | M | 24 | 18 | 18 | 18 | 16 | 16 | 17 | 17 | |||||||||
Machine Dimensions | Long/MM | 400 | 750 | 1150 | 1150 | 1440 | 1530 | 1750 | 1900 | |||||||||
Wide/MM | 410 | 520 | 600 | 600 | 700 | 750 | 850 | 1000 | ||||||||||
Height/MM | 870 | 970 | 1180 | 1450 | 1450 | 1500 | 1600 | 1870 | ||||||||||
Protection System
Compressor overload protection, high and low voltage protection device, and phase loss and reverse protection device
Product details

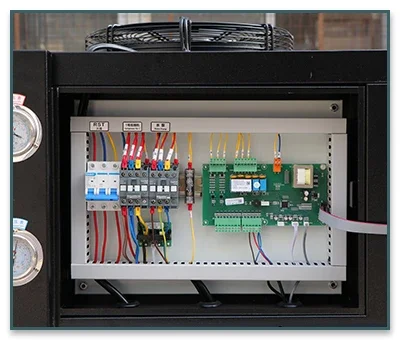

Microcomputer control, easy to operate.The water temperature error can be accurately controlled within ±1℃.

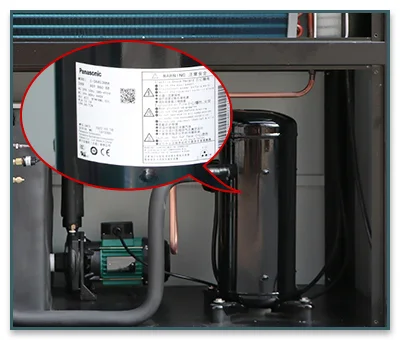

Using panasonic and copeland fully enclosed scrollcompressors,powerful refrigeration,silent and energy saving.

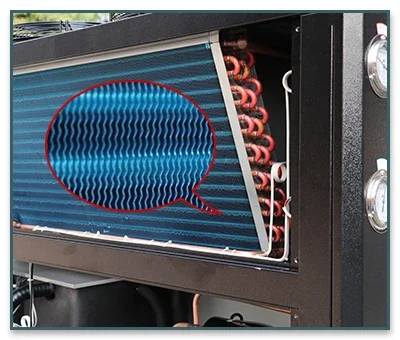

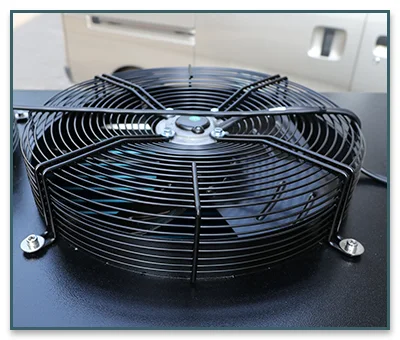

Copper tube sleeve aluminum fin condenser,V-shaped appearance greatly increases the heat dissipation area, with a cooling fan
,enhaces the heat dissipation effect.

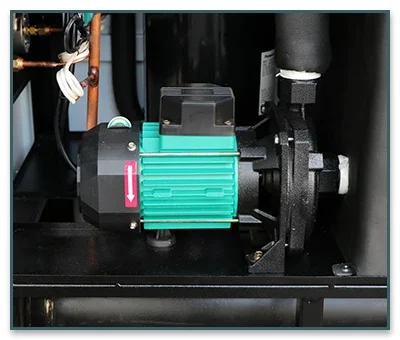

Using two or four-level standard motors,stable operation,low noise,large flow.
Using Schneider brand electrical appliances,better performance and longer service life.
Device Connection Diagram

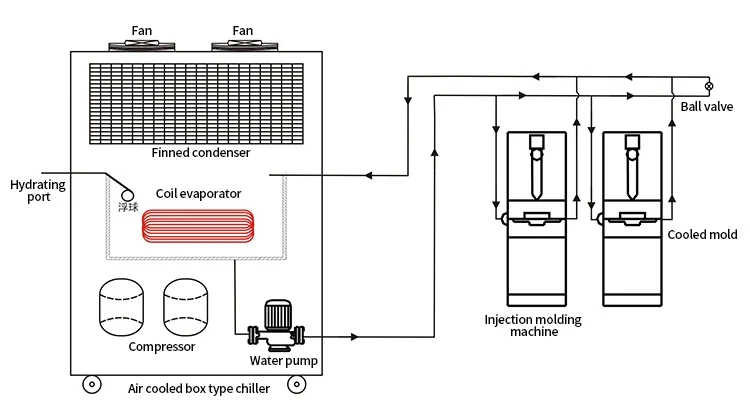

Air-cooled connection

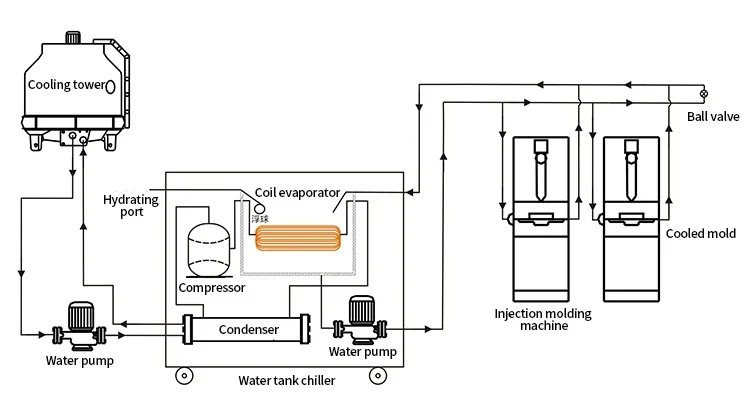

Water-cooled connection
About us

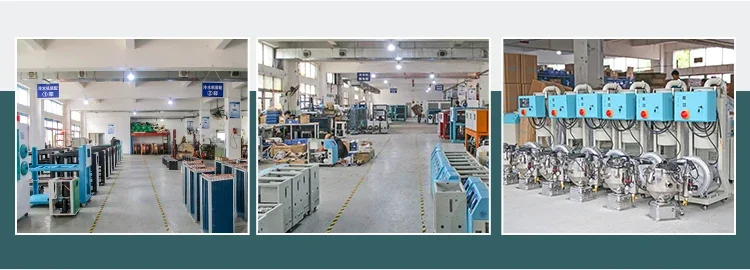

Company Profile
Dongguan Xiongchuan Intelligent Technology Co., Ltd. (referred to as Xiongchuan) is a professional enterprise that develops and produces refrigeration and heating temperature control mechanical equipment, crushing and recycling series, drying and conveying series, mixing and color mixing series, and other equipment. The company was established in 2011. Since its establishment, we have adhered to the principle of taking product quality as the foundation, market demand as the guide, and customer value creation as our responsibility. We are honest, professional, and constantly exploring and innovating, providing a strong guarantee for the continuous optimization of product quality.
Logistics information
FAQ
What is the MOQ?
1 SET Commercial Air Conditioner R22 Modular Air Cooled Water Chiller.
How is the quality of your product?
Our products are produced in strict accordance with national and international standards.We have CE, ISO certification.We rigorously test each product before delivery.
Could you accept customization?
Yes,We accept OEM and ODM.
What is your voltage?
We accept custom voltages from our customers.Such as 400v,208v,380v,220v etc.
How is your price?
We will give a best discount to our customers.
Ordering and Pricing
- Minimum order quantity: 1 piece
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this machine chiller?
The standard minimum order quantity is 1 piece. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.
Can the machine chiller be supplied for my local voltage?
The standard configuration is 5HP 10HP 380V. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
