Packaged terminal air conditioner — capacity 9000-24000, power type AC. The complete factory specification follows. Made by Moyu Technology Co., Ltd. Zhuhai (6 years on the platform, factory-assessed). Quantity and destination market determine the final price — tell us both for a firm quote.
Key Features of This Packaged Terminal Air Conditioner
- Model Number: MYBPTAC15ACH
- Power Type: AC
- Power Source: Electric
- Power (W): 4500
- Capacity (Btu): 9000-24000
- Maximum Airflow Rate: 12000
Technical Specifications
| Type | Window Mounted Air Conditioners |
|---|---|
| Capacity (Btu) | 9000-24000 |
| Cooling/Heating | Cooling/Heating |
| Application | Commercial, Hotel, Household, RV |
| EER | 3.45 |
| Fixed Frequency/Variable Frequency | Fixed Frequency |
| Power Type | AC |
| Power Source | Electric |
| Refrigerant | R410A |
| App-Controlled | Yes |
| Remote Control | Yes |
| Power (W) | 4500 |
| Warranty | 5 year |
| After-Sales Service Provided | Overseas Call Centers |
| Operating Language | English |
| Private Mold | No |
| Packaging Types | Corrugated Box |
| Place Of Origin | Guangdong, China |
| Recommended Room Size（Square Feet） | 500 |
| Brand Name | BESTCOLD |
| Cop | 3.6 |
| Maximum Airflow Rate | 12000 |
| Model Number | MYBPTAC15ACH |
| Certification | ETL, AHRI |
| Control | Remote + Wifi Optional |
| Quality Guarantee Period | 5YEARS |
| Name | BESTCOLD PTAC |
| Low Noise | YES |
| SIZE | 42inch |
| Applicable Temperature Range | -15~43℃ |
| Mounting | Window mounted |
| Selling Units | Single item |
| Single Package Size | 115X63X48 cm |
| Single Gross Weight | 55.000 kg |
Product Details
Inverter Efficiency C Series PTAC | ||||||||||
Model | MYP-09ANVRI-C | MYP-12ANVR1-C | MYP-15ANVR1-C | |||||||
Power supply | v/N/Hz | 208~230/1/60 | 208~230/1/60 | 208~230/1/60 | ||||||
Cooling | Capacity | Btu/h | 9600/9400 | 12200/12000 | 15200/15000 | |||||
Power input | W | 820/800 | 1065/1045 | 1400/1380 | ||||||
EER | Btu/h/w | 11.7/11.7 | 11.5/11.5 | 10.8/10.8 | ||||||
IEER | Btu/h/w | 18.64 | 17.74 | 18.09 | ||||||

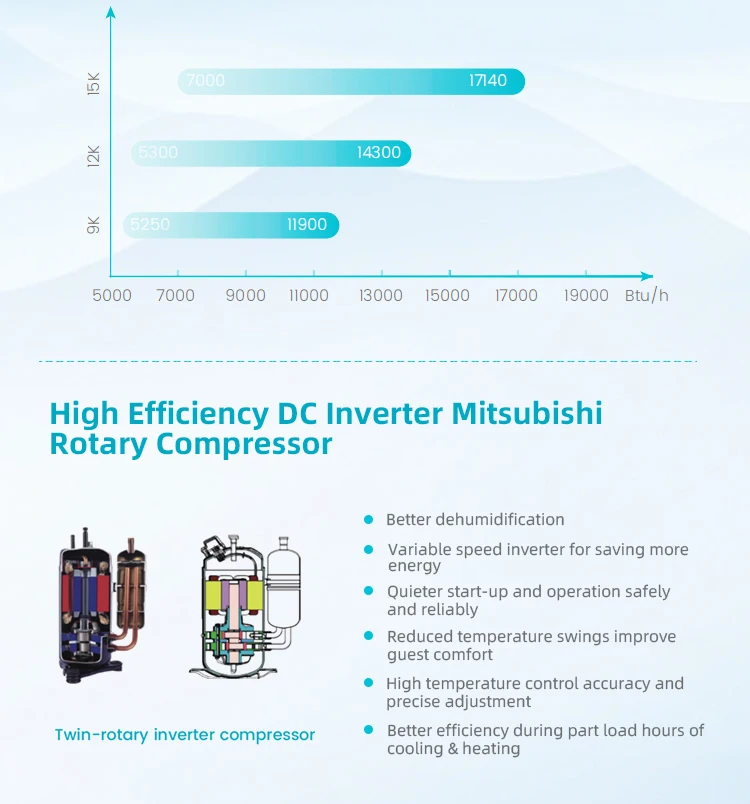

Heati ng | Capacity range | Btu/h | 5250-11900 | 5300-14300 | 7000-17140 | |||||
Capacity | Btu/h | 8800/8500 | 11900/11800 | 13800/13600 | ||||||
Power input | W | 720/695 | 970/960 | 1170/1160 | ||||||
Indoo r side performance | COP | w/w | 3.58/3.58 | 3.60/3.60 | 3.48/3.48 | |||||
Capacity range | Btu/h | 4070-11570 | 4140-13100 | 6600-14800 | ||||||
Air flow | CFM | 400/290 | 470/360 | 470/360 | ||||||
Noise level | dB(A) | 50/42 | 52/46 | 52/46 | ||||||
Optional E-heater | KW | 2.0/2.5/3.0 | 2.0/2.5/3.0/(3+2) | 2.0/2.5/3.0/3.6/(3+2) | ||||||
Compressor brand | MTSUIBISHI | MITSUIBISHI | MTSUIBISHI | |||||||
Net dimension | WxDxH | inch | 42x21x16 | 42x2lx16 | 42x21x16 | |||||
Packing dimension | WxDxH | inch | 45x25x19 | 45x25x19 | 45x25x19 | |||||
Net weight | LBS | 106 | 108 | 108 | ||||||
Gross weight | LBS | 119 | 121 | 121 | ||||||
Refrigerant | Charge volume | g/oz | 840/29.6 | 910/32.1 | 970/34.2 | |||||
Qty per 20'/40'/40/HQ | Set | 72/152/190 | 72/152/190 | 72/152/190 | ||||||
We are based in Guangdong, China, start from 2019,sell to North America(50.00%),Africa(20.00%),Southeast Asia(20.00%),South Asia(2.00%),South America(2.00%),Western Europe(2.00%),Domestic Market(2.00%),Mid East(2.00%),Eastern Asia(0.00%),Oceania(0.00%),Southern Europe(0.00%),Central America(0.00%),Northern Europe(0.00%),Eastern Europe(0.00%). There are total about 11-50 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Air Conditioner
4. why should you buy from us not from other suppliers?
It has three research institutes, is staffed with over 7,000 research and development personnel, and owns over 6,000 technical patents including more than 1,300 invention patents. It is the most powerful company with the most core technologies in air cons.
5. what services can we provide?
Accepted Delivery Terms: FOB,CIF,EXW,CIP,DDP,DDU,Express Delivery；
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;
Accepted Payment Type: T/T,L/C,D/P D/A,Credit Card,PayPal,Western Union,Cash;
Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,Russian,Korean,Hindi,Italian
Ordering and Pricing
- Minimum order quantity: 2 unit
- Volume pricing:
- 2–9 unit: US $385 / unit
- 10–29 unit: US $350 / unit
- 30+ unit: US $335 / unit
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this packaged terminal air conditioner?
The standard minimum order quantity is 2 unit. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 5 year warranty. Spare parts and technical support remain available after the warranty period.
Which certifications does this packaged terminal air conditioner carry?
It is supplied with ETL, AHRI documentation, which covers the requirements of most import markets. Additional test reports can be issued on request.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
About the Manufacturer
This product is produced by Moyu Technology Co., Ltd. Zhuhai, based in China. The company 6 years as a verified Alibaba.com supplier, operates its own manufacturing, passed third-party supplier assessment. Browse the full Moyu Technology Co., Ltd. Zhuhai range on HVACR Nexus.
