This plate heat exchanger is published with the manufacturer’s full specification — type heat exchanger plate. Made by Shanghai Jiangxing Chemical Equipment Co., Ltd. (11 years on the platform, typical reply ≤6h). Send your target quantity and destination for a firm quotation with current lead times.
Key Features of This Plate Heat Exchanger
- Plate Material: SS304/316L/Titanium/SMO254
- Gasket Material: NBR.HNBR EPDM HEPDM
- Warranty: 1 Year
- Place Of Origin: Shanghai, China
- Application: Heater Parts
- Type: heat exchanger plate
Technical Specifications
| Application | Heater Parts |
|---|---|
| Type | heat exchanger plate |
| Warranty | 1 Year |
| Machinery Test Report | Provided |
| Video Outgoing-Inspection | Provided |
| Weight (Kg) | 1 |
| Place Of Origin | Shanghai, China |
| Brand Name | jiangxing |

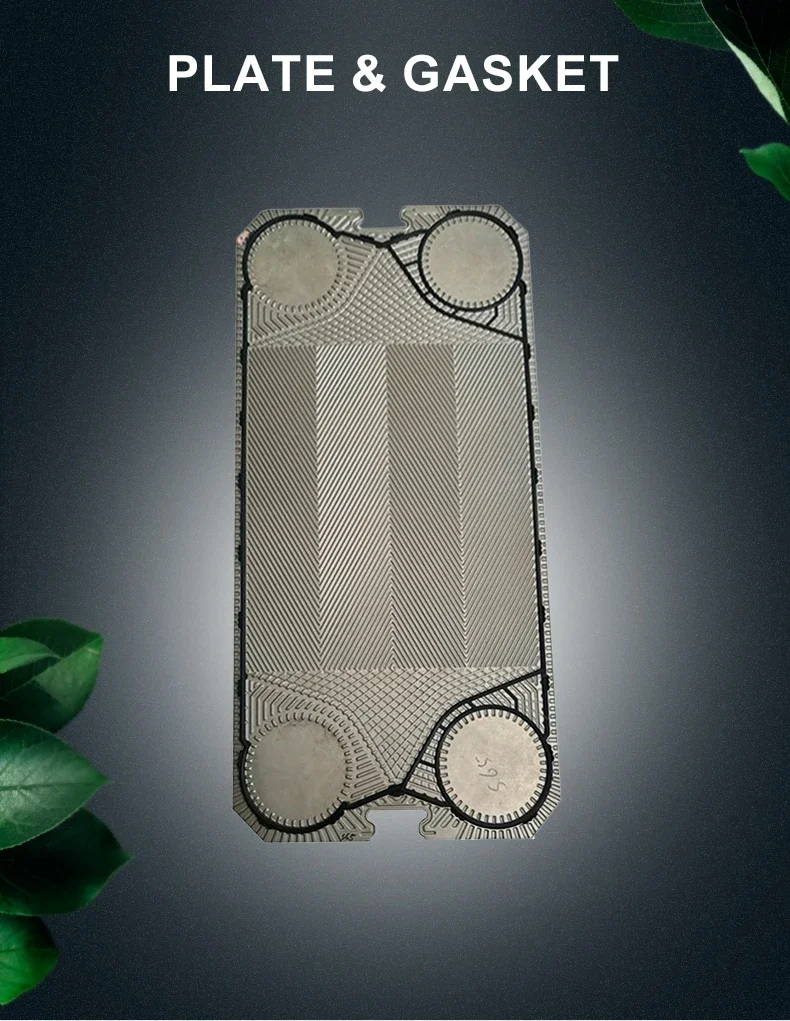

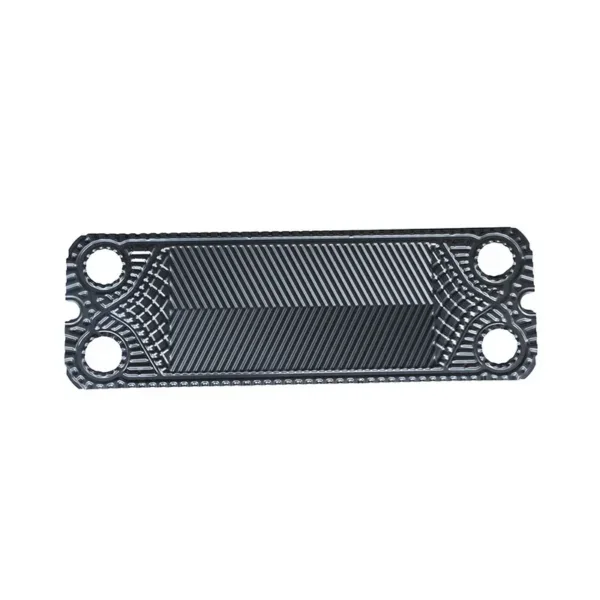

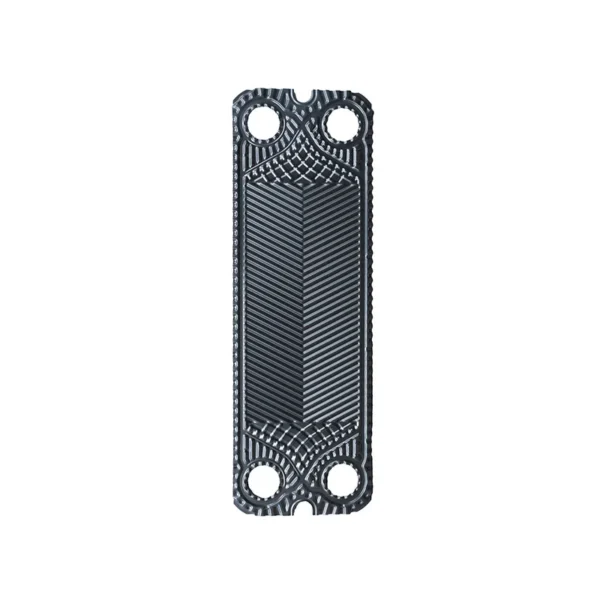

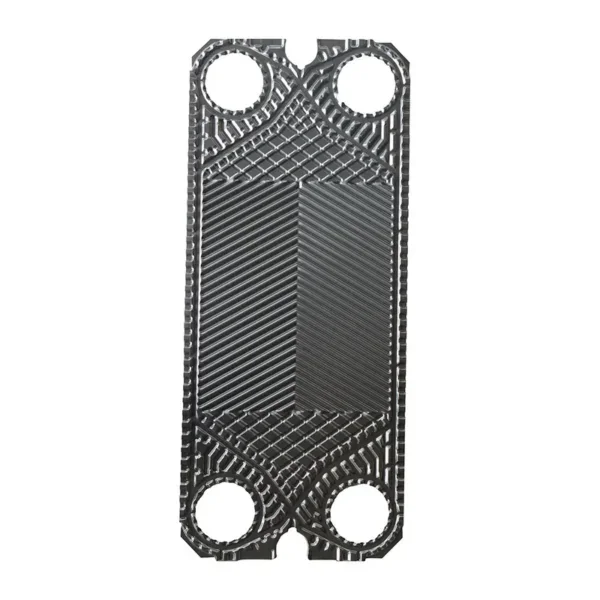

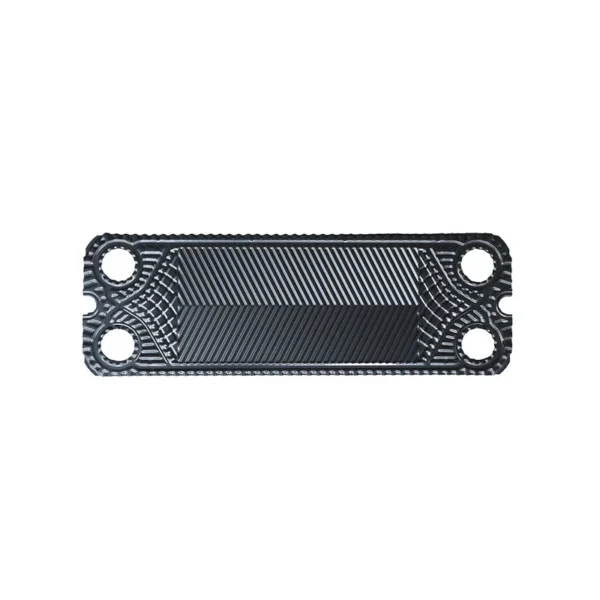

| Plate Material | SS304/316L/Titanium/SMO254 |
| Gasket Material | NBR.HNBR EPDM HEPDM |
| PLATE THICKNESS | 0.5MM/0.6MM |
| Packing | Plywood Case |
| Brand | GEA,FUNKE,SONDEX |
| Location | Factory |
| Structure | plateheat exchanger |
| Export Markets | Global |
| Condition | New |
| Selling Units | Single item |
| Single Package Size | 60X37X42 cm |
| Single Gross Weight | 10.0 kg |
Product Details
| NO | Corrugation Depth(mm) | Compression Distance(mm) | Plate Outline Dimension(mm) | Centre Distance(mm) | Cross Section Area(mm) |
| M3 | 2.5 | 2.5 | 430*125*0.5 | 360*30 | 0.000242 |
| M6 | 2 | 2.5 | 750*250*0.5 | 640*140 | 0.000432 |
| M6M | 3 | 3.5 | 750*248*0.5 | 640*140 | 0.000624 |
| M10B | 2.6 | 3 | 875*375*0.5 | 718*223 | 0.000869 |
| M10M | 4 | 4.5 | 875*373*0.5 | 718*223 | 0.001291 |
| M15B | 2.6 | 3 | 1500*496*0.5 | 1293*296 | 0.001162 |
| M15M | 4 | 4.5 | 1497*496*0.5 | 1295*298 | 0.001805 |
| M20M | 4 | 4.5 | 1745*620*0.5 | 1475*353 | 0.002288 |
| M30 | 3.4 | 3.8 | 2245*995*0.5 | 1842*596 | 0.00321 |

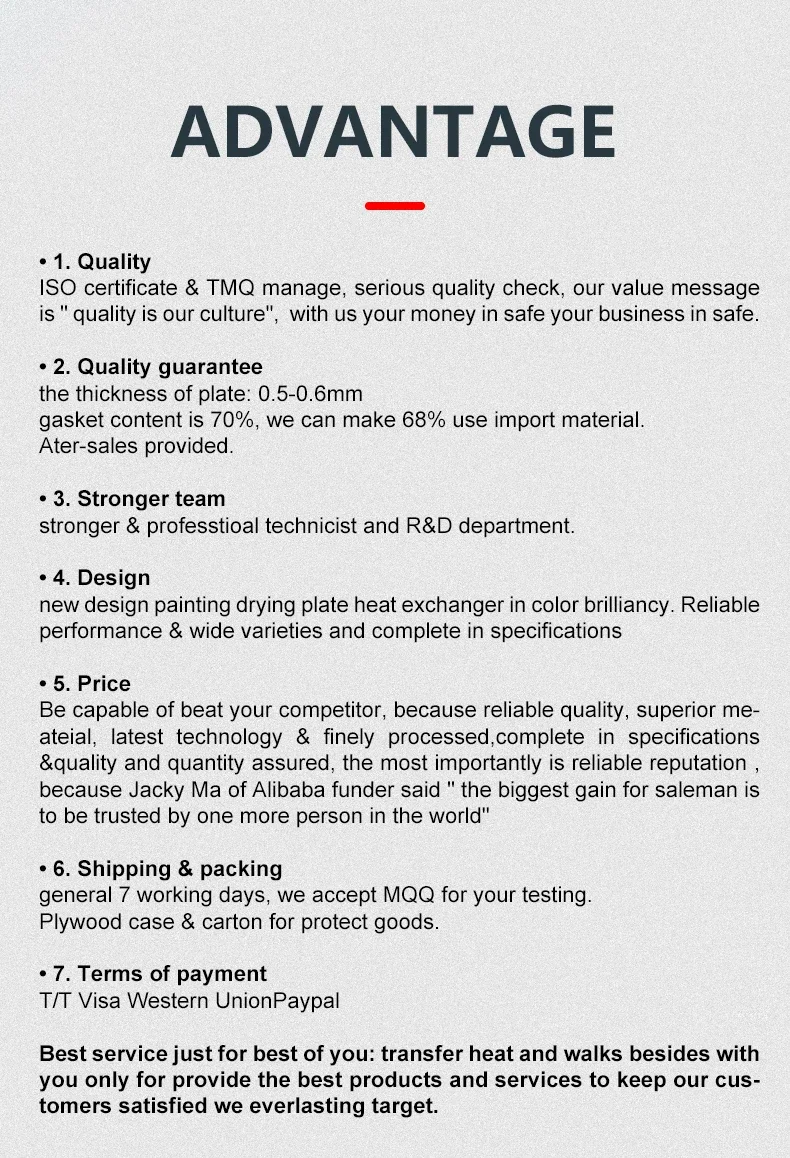

• 1. Quality
ISO certificate & TMQ manage, serious quality check, our value message is " quality is our culture", with us your money in safe your business in safe.
• 2. Quality guarantee
the thickness of plate: 0.5-0.6mm
gasket content is 70%, we can make 68% use import material.
Ater-sales provided.
• 3. Stronger team
stronger & professtioal technicist and R&D department.
• 4. Design
new design painting drying plate heat exchanger in color brilliancy. Reliable performance & wide varieties and complete in specifications
• 5. Price
Be capable of beat your competitor, because reliable quality, superior meateial, latest technology & finely processed,complete in specifications &quality and quantity assured, the most importantly is reliable reputation , because Jacky Ma of Alibaba funder said " the biggest gain for saleman is to be trusted by one more person in the world"
• 6. Shipping & packing
general 7 working days, we accept MQQ for your testing.
Plywood case & carton for protect goods.
• 7. Terms of payment
T/T Visa Western UnionPaypal
Ordering and Pricing
- Minimum order quantity: 10 unit
- Volume pricing:
- 10–49 unit: US $100 / unit
- 50–99 unit: US $80 / unit
- 100+ unit: US $60 / unit
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this plate heat exchanger?
The standard minimum order quantity is 10 unit. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
About the Manufacturer
This product is produced by Shanghai Jiangxing Chemical Equipment Co., Ltd., based in China. The company 11 years as a verified Alibaba.com supplier, Trading Company. Browse the full Shanghai Jiangxing Chemical Equipment Co., Ltd. range on HVACR Nexus.
