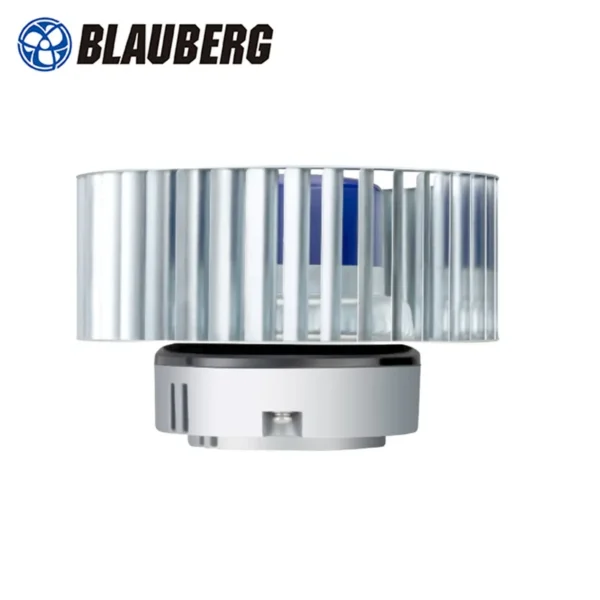

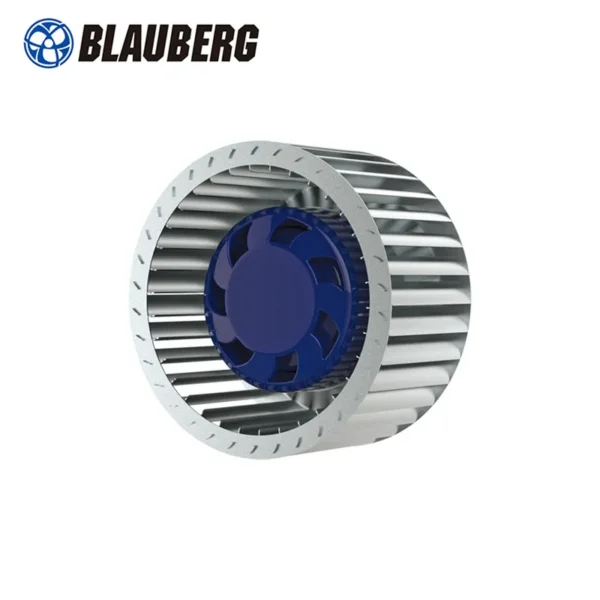

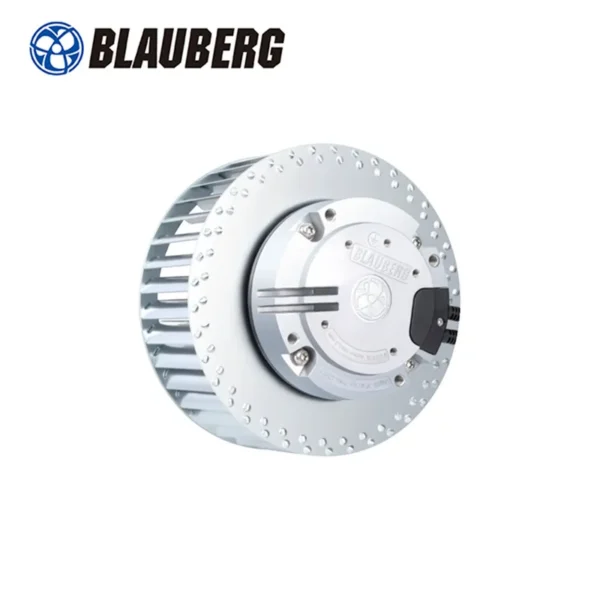

Key specification for this plug fan: 310V, power source Electric. Everything below is reproduced from the factory data sheet. Made by Suzhou Blauberg Motoren Technology Co., Ltd. (7 years on the platform, typical reply ≤1h). Send your target quantity and destination for a firm quotation with current lead times.
Key Features of This Plug Fan
- Model Number: BN-F160C-EC-02
- Power Source: Electric
- Rated Voltage: 310V
- Blade Material: Galvanized Steel Sheet
- Noise Level: 69dB
- Speed: 2600RPM
Technical Specifications
| Application | Fan Blower |
|---|---|
| Power Source | Electric |
| Rated Voltage | 310V |
| Electric Current Type | DC |
| Motor Type | DC Motor |
| Speed | 2600RPM |
| Blade Material | Galvanized Steel Sheet |
| Noise Level | 69dB |
| Pressure | Medium Pressure |
| Warranty | 2 Years |
| Customized Support | OEM, ODM, OBM |
| Place Of Origin | Jiangsu, China |
| Brand Name | Blauberg |
| Model Number | BN-F160C-EC-02 |
| Selling Units | Single item |
| Single Package Size | 30X30X30 cm |
| Single Gross Weight | 3.5 kg |

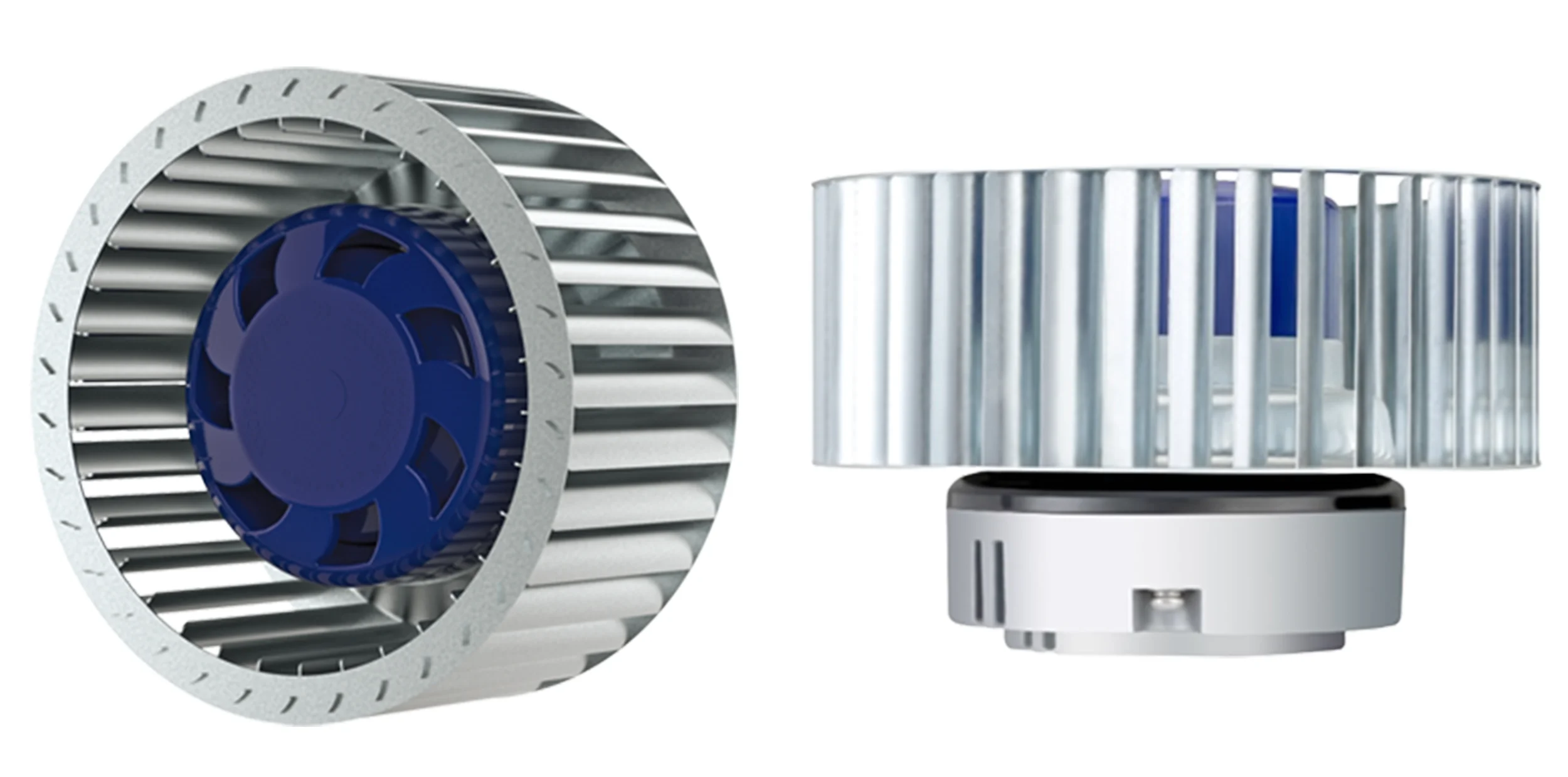

Product Details
Type | BN-F160C-EC-02 | Nominal Speed | 2600±5%RPM | |
Nominal Voltage | 310V | Max. Input Power | 115W | |
Frequency | 50/60 Hz | Max. Input Current | 0.38A | |
Min.Ambient Temperature | -25℃ | Max.Ambient Temperature | 60℃ | |
Sound level | 69dB | ML=Max. load ME=Max, effciency FA=Free Air | ||

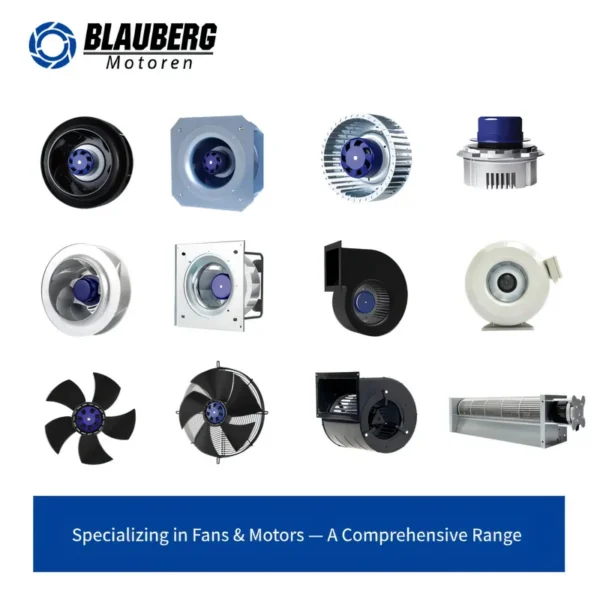

Related Products | ||||||||||||
Model | Voltage [V] | Frequency [Hz] | Power [W] | Current [A] | Noise Level [dB] | Rated Speed [RPM] | ||||||
SW-F120B-EC-00 | 115/230 | 50/60 | 75 | 1.3/0.65 | 68 | 2600 | ||||||
SW-F120B-EC-02 | 115/230 | 50/60 | 95 | 1.7/0.85 | 71 | 3000 | ||||||
SW-F140B-EC-00 | 115/230 | 50/60 | 85 | 1.3/0.65 | 65 | 1800 | ||||||
SW-F140C-EC-00 | 115/230 | 50/60 | 85 | 1.3/0.65 | 65 | 1950 | ||||||
SW-F140B-EC-02 | 115/230 | 50/60 | 115 | 1.7/0.85 | 67 | 2150 | ||||||
SW-F140C-EC-02 | 115/230 | 50/60 | 115 | 1.7/0.85 | 67 | 2250 | ||||||
SW-F160B-EC-00 | 115/230 | 50/60 | 85 | 1.3/0.65 | 65 | 1450 | ||||||
SW-F160C-EC-00 | 115/230 | 50/60 | 85 | 1.3/0.65 | 65 | 1400 | ||||||
SW-F160B-EC-02 | 115/230 | 50/60 | 115 | 1.7/0.85 | 67 | 1850 | ||||||
SW-F160C-EC-02 | 115/230 | 50/60 | 115 | 1.7/0.85 | 67 | 1780 | ||||||
SW-F160B-EC-01 | 115/230 | 50/60 | 170 | 2.6/1.3 | 69 | 2100 | ||||||
SW-F160C-EC-01 | 115/230 | 50/60 | 155 | 2.3/1.15 | 69 | 2020 | ||||||
SW-F160B-EC-07 | 115/230 | 50/60 | 220 | 3.2/1.6 | 75 | 2400 | ||||||
SW-F160C-EC-07 | 115/230 | 50/60 | 220 | 3.2/1.6 | 73 | 2300 | ||||||
SW-F180A-EC-01 | 115/230 | 50/60 | 170 | 2.6/1.3 | 71 | 1600 | ||||||
SW-F180A-EC-07 | 115/230 | 50/60 | 220 | 3.2/1.6 | 73 | 1800 | ||||||
SL-F180E-EC-F05 | 230 | 50/60 | 500 | 2.3 | 79 | 2350 | ||||||
SL-F180E-EC-05 | 230 | 50/60 | 520 | 2.4 | 80 | 2450 | ||||||
SY-F180E-EC-05 | 3～380 | 50/60 | 520 | 0.9 | 80 | 2450 | ||||||
SW-F200E-EC-07 | 115/230 | 50/60 | 200 | 3.0/1.5 | 70 | 1150 | ||||||
SL-F200E-EC-F05 | 230 | 50/60 | 480 | 2.2 | 76 | 1650 | ||||||
SL-F200E-EC-05 | 230 | 50/60 | 520 | 1.5 | 76 | 1700 | ||||||
SY-F200E-EC-05 | 3～380 | 50/60 | 750 | 1.2 | 79 | 1900 | ||||||
SL-F225E-EC-05 | 230 | 50/60 | 700 | 3.2 | 78 | 1680 | ||||||
SY-F225E-EC-05 | 3～380 | 50/60 | 750 | 1.2 | 80 | 1800 | ||||||
SL-F250E-EC-05 | 230 | 50/60 | 520 | 2.4 | 78 | 1350 | ||||||
SY-F250E-EC-05 | 3～380 | 50/60 | 750 | 1.2 | 80 | 1450 | ||||||
DW-F120B-EC-00 | 115/230 | 50/60 | 85 | 1.3/0.65 | 63 | 1900 | ||||||
DW-F133B-EC-N07 | 115/230 | 50/60 | 170 | 2.6/1.3 | 72 | 2150 | ||||||
DW-F146B-EC-N07 | 115/230 | 50/60 | 230 | 3.4/1.7 | 72 | 1750 | ||||||
DW-F146B-EC-V2 | 115/230 | 50/60 | 115 | 1.7/0.85 | 65 | 1680 | ||||||
DW-F146B-EC-V7 | 115/230 | 50/60 | 230 | 3.4/1.7 | 70 | 2250 | ||||||
DL-F200E-EC-F05 | 230 | 50/60 | 400 | 1.8 | 77 | 1400 | ||||||
of ventilation products—from domestic to industrial—and specializes in providing customized solutions and parts to meet diverse
client needs with an optimal balance of price and quality.
Q: Why choose us？
A: Large-scale producer of fans with modern facilities, high annual capacity, and a strong focus on customized solutions and
customer support.
Q: Wonder if you accept small orders?
A: Do not worry. Feel free to contact us .In order to get more orders and give our clients more convener ,we accept small
order.
Q: Can you do OEM for me?
A: We accept all OEM orders,just contact us and give me your design.we will offer you a reasonable price and make samples for you.
Q: What's your payment terms ?
A: By T/T,LC AT SIGHT,30% deposit in advance, balance 70% before shipment.
Ordering and Pricing
- Minimum order quantity: 1 bag
- Volume pricing:
- 1–29 bag: US $48.65 / bag
- 30–499 bag: US $41.94 / bag
- 500+ bag: US $40.44 / bag
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this plug fan?
The standard minimum order quantity is 1 bag. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 2 Years warranty. Spare parts and technical support remain available after the warranty period.
Can the plug fan be supplied for my local voltage?
The standard configuration is 310V. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.

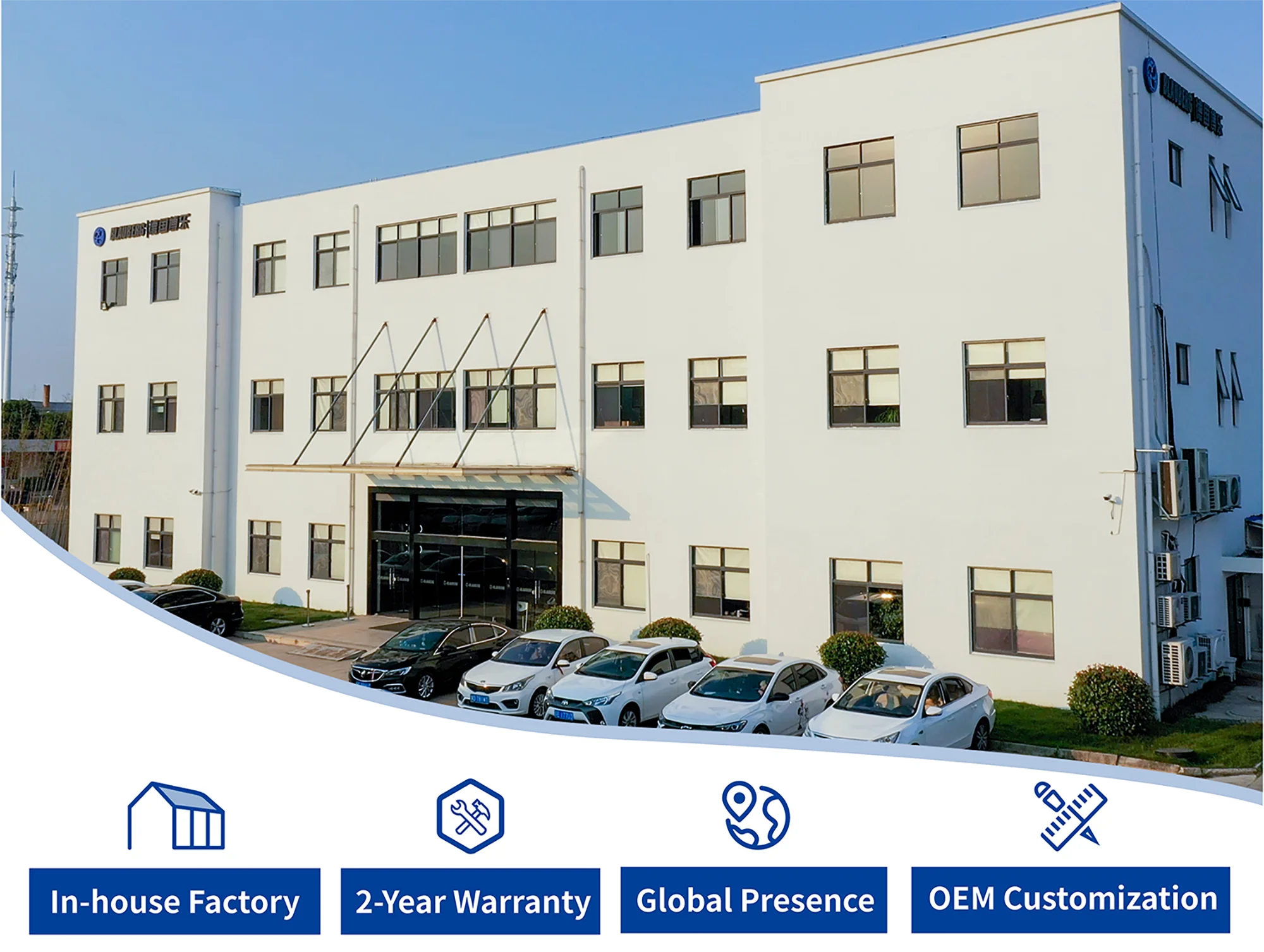

About the Manufacturer
