Plug fan — 230V, power source type Electric. The complete factory specification follows. Made by ASIA PACIFIC SHENGRUI LIMITED (1 year on the platform, typical reply ≤3h). For a binding price and lead time, send the volume you need and where it ships to.
Key Features of This Plug Fan
- Model Number: GTM023EUG10R-V
- Power Source Type: Electric
- Power: 180W
- Voltage: 230V
- Material: Plastic
- Blade Material: Plastic
Technical Specifications
| Mounting | Free Standing |
|---|---|
| Voltage | 230V |
| Motor Type | EC Motor |
| Speed | 3000RPM |
| Material | Plastic |
| Blade Material | Plastic |
| Power Source Type | Electric |
| Warranty | 1 Year |
| After-Sales Service Provided | Online support |
| Customized Support | OEM, ODM |
| Place Of Origin | China |
| Brand Name | Delta |
| Model Number | GTM023EUG10R-V |
| Current | 1.0A |
| Power | 180W |
| Type | Centrifugal fan |
| Bearing Type | Ball bearing |

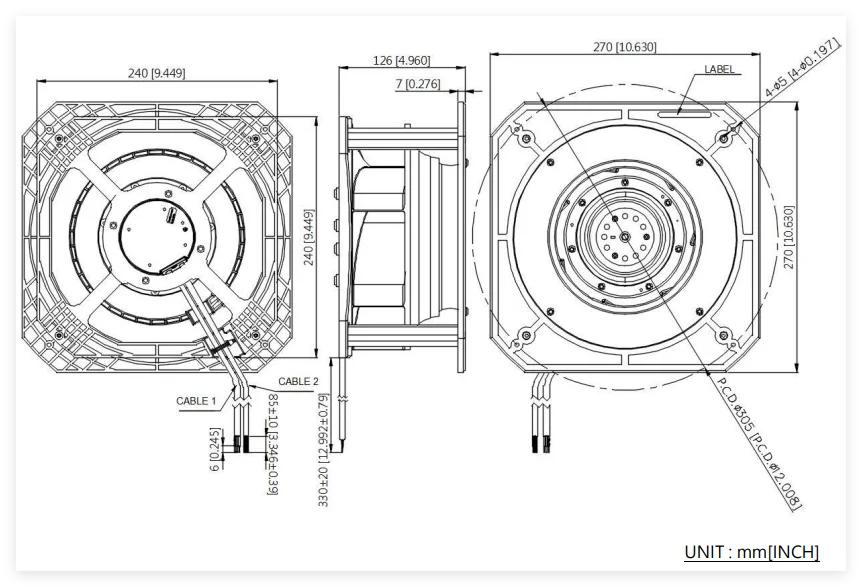

| Size | 270*270*126mm |
| Weight | 2.4kg |
| Selling Units | Single item |
| Single Package Size | 45X45X28 cm |
| Single Gross Weight | 8.0 kg |
Product Details

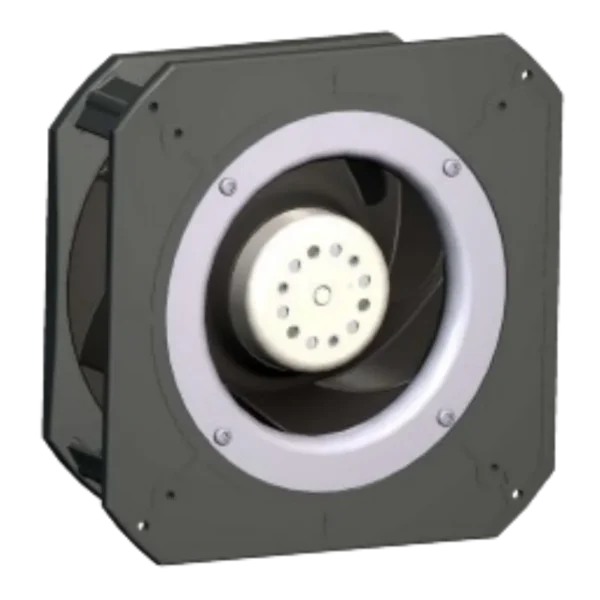

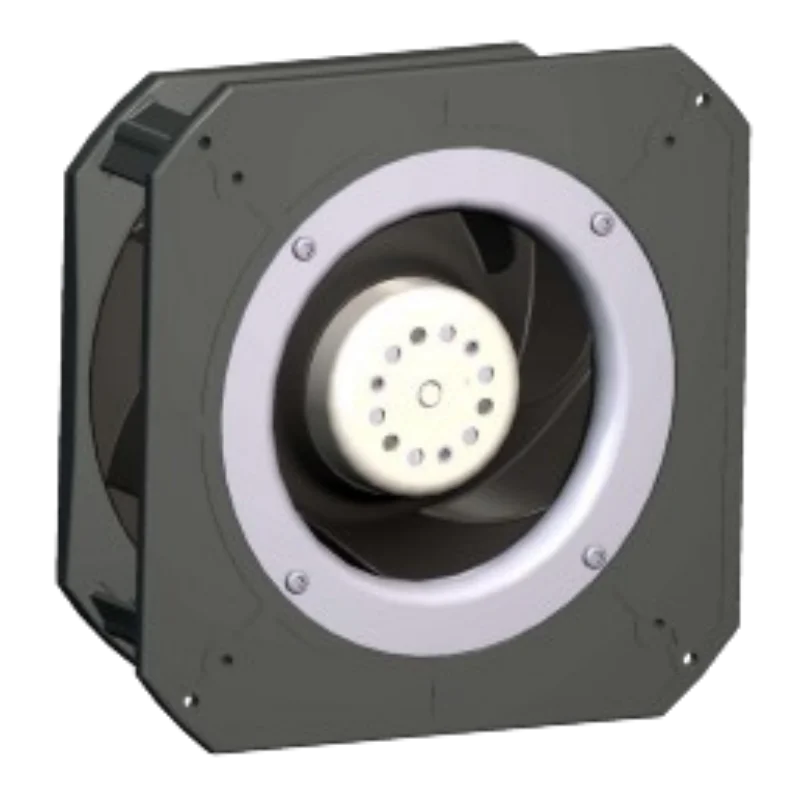

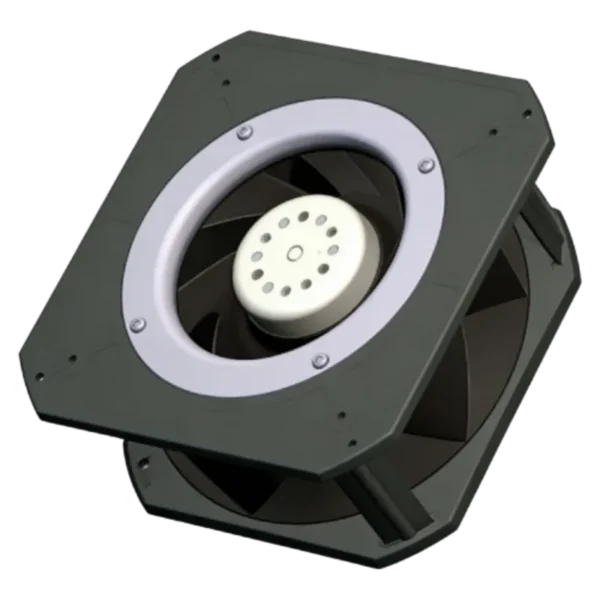

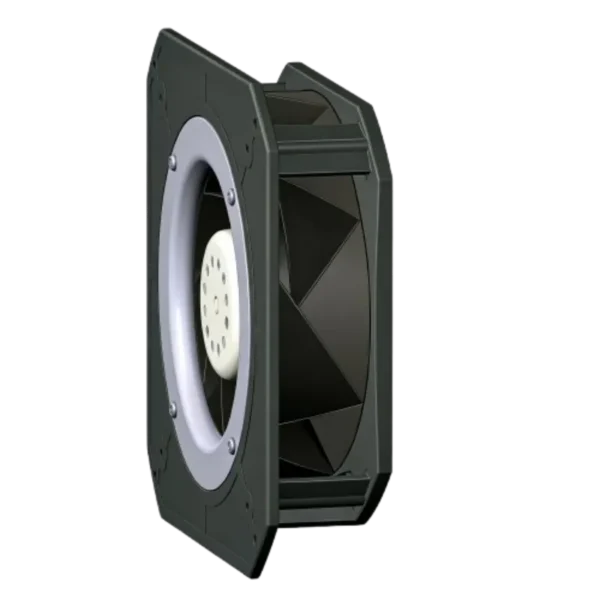

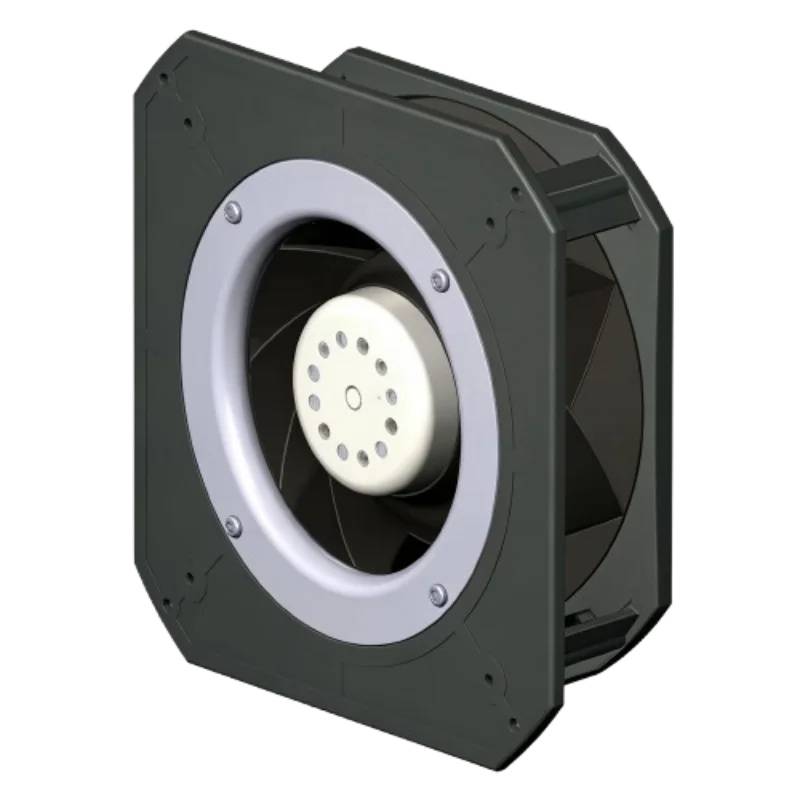

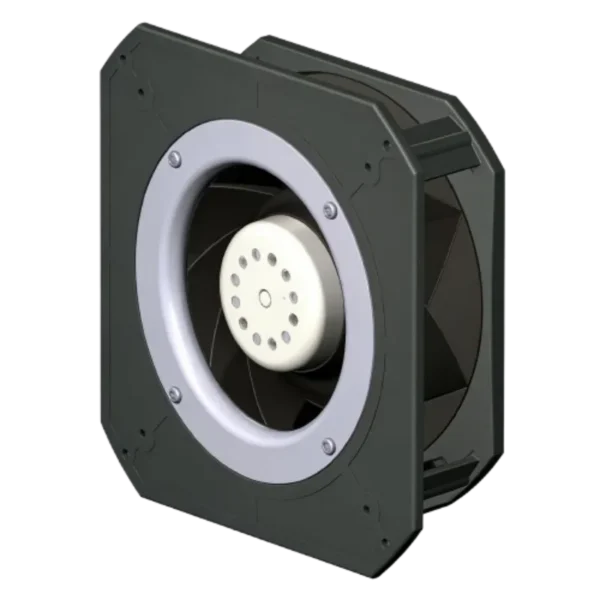

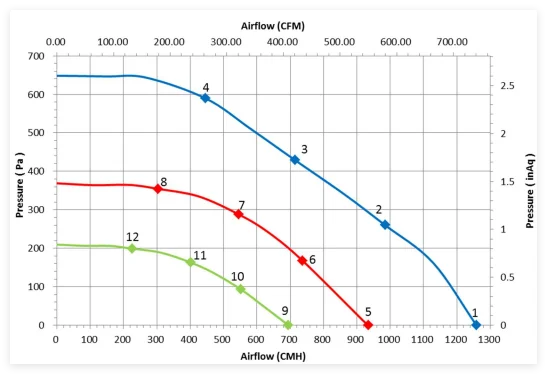

Delta GTM023EUG10R-V 230V 50/60Hz 180W 1.0A 3000RPM 1259CMH IP54 AHU Air Handling Unit EC Plug Fan Centrifugal Cooling Fan
item | value |
Voltage | 230V |
Blade Material | Plastic |
place of origin | China |
speed | 3000RPM |
customized support | OEM, ODM |
mounting | Free Standing |
brand name | Delta |
model number | GTM023EUG10R-V |
Motor Type | EC Motor |
warranty | 1 Year |
After-sales Service Provided | Online support |
Power source type | Electric |
Model number | GTM023EUG10R-V |
Brand name | Delta |
Voltage | 230V |
Current | 1.0A |
Power | 180W |
Speed | 3000RPM |
Type | Centrifugal fan |
Bearing type | Ball bearing |
Size | 270*270*126mm |
Weight | 2.4kg |
Delta EC Centrifugal Fans
Main Product Series
EC Centrifugal fan size range:190-637mm
Delta EC Fan Technology
Control Module
· 0-10V, RS485 communication · Active PFC as option · High power quality
BLDC Motor
· High Efficiency
· >90%With IP54
· Robust design
Impeller
· High efficiency
· Low Noise
· Multi-layer design
Comparison of application with DC fans
– Need not AC/DC Power Supply,Space saving. – Controlled by serial transmission, easy to
connect.
– High performance, reducing the number of
fans.
> DC Fan
Application Scenarios
Delta fans are engineered to perform in critical environments. Our products are widely used in:
Data center
Delta launches InfraSuite, the new-generation intelligent solution exclusively for data centers
IT & Telecom
Servers, Data Centers, Routers, Switches, and Workstations.
Industrial Automation
CNC Machines, Inverters, Control Cabinets, and Welding Equipment.
Renewable Energy
Solar Inverters, Wind Power Converters, and ESS (Energy Storage Systems).
Medical Equipment
Imaging systems, Ventilators, and Laboratory Devices.
EV Charging
Cooling systems for Electric Vehicle Charging Stations.
Why Source From Us?
Genuine Quality Control:
We source directly from Delta’s supply chain. Every fan has an original barcode for traceability.
Competitive Wholesale Pricing:
Strong price advantage for bulk OEM/ODM orders.
Flexible MOQ:
Small trial orders are accepted for prototype testing.
One-Stop Thermal Solution:
We also provide matching finger guards, filter assemblies, and customized connector wiring services.
Packaging & Delivery
Packaging:
Original Delta factory industrial pallet/carton packaging to prevent any damage during international transit.
Lead Time:
1-3 days for stock items; 4-6 weeks for factory-order bulk quantities.
Shipping Methods:
DHL, FedEx, UPS, TNT, Air Cargo, or Sea Freight (FOB/CIF/DDP supported).
About APAC FAN
ASIA PACIFIC SHENGRUI LIMITED is located in Hong Kong, the global trade center, specializing in providing ventilation and air-conditioning related products and solutions. Attached to advantages of import and export price in Hong Kong, we represent and sell various world famous brands of fans, blowers and ventilation related products. Quality is our life, customers are our market, the pursuit of excellence is our belief. We sincerely welcome cooperation with friends from all walks of life, and endeavor to develop and create a better future with our integrity and professional.
Sold To World Market
The company has set up a number of distribution points in Germany, Wuxi, Singapore and other key regional markets, distributing ebmpapst, ZIEHL-ABEGG, Wistro, Rosenberg, DELTA, SANYO, FULLTECH, SANMU and other brands of fans. Products are exported to Europe, North America, Central and South America, Southeast Asia, the Middle East, Africa, Oceania, Russia and other more than 150 countries and regions.
Order Instructions
> About Express Delivery Receipt
· When receiving the express delivery, please be sure to unpack and inspect the goods in the presence of the courier! · If the goods are damaged, the courier is responsible for compensation and handling. · If you sign for it directly without inspection, and later find that the product is deformed or damaged due to
transportation, it cannot be returned or exchanged! We will not be responsible at all!
> About After-sales Instructions
We guarantee the quality under normal working conditions, with a one-year warranty period.In cases such as electroplating factories, humid environments, strong acids and alkalis, oil fumes, high temperatures, heavy dust, 24-hour continuous use, unstable voltage, or three-phase power phase loss, which lead to motor burnout. Or if the motor is disassembled, modified, or damaged manually. We cannot provide warranty for these unsuitable motor environments and conditions.
Ordering and Pricing
- Minimum order quantity: 1 piece
- Volume pricing:
- 1–49 piece: US $709 / piece
- 50–199 piece: US $669 / piece
- 200+ piece: US $649 / piece
- Ships from: HK
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this plug fan?
The standard minimum order quantity is 1 piece. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.
Can the plug fan be supplied for my local voltage?
The standard configuration is 230V. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
About the Manufacturer
This product is produced by ASIA PACIFIC SHENGRUI LIMITED. The company 1 years as a verified Alibaba.com supplier, operates its own manufacturing. Browse the full ASIA PACIFIC SHENGRUI LIMITED range on HVACR Nexus.
