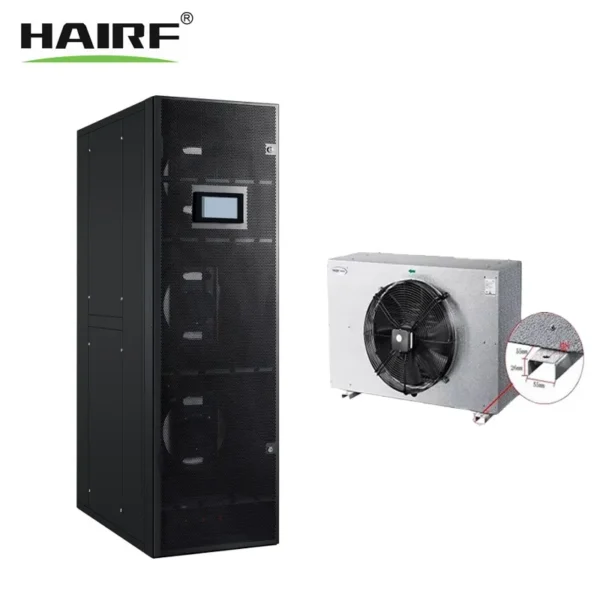

Precision air conditioner — refrigerant R-410A, type Precision air conditioner. The complete factory specification follows. Made by Jiangxi Hairf International Trading Co., Ltd. (1 year on the platform, typical reply ≤3h). Quantity and destination market determine the final price — tell us both for a firm quote.
Key Features of This Precision Air Conditioner
- Refrigerant: R-410A
- Warranty: 1 Year
- Place Of Origin: Jiangxi, China
- Application: Hospital, Data center, Computer server room
- Type: Precision air conditioner
- Mounting Type: Floor Standing
Technical Specifications
| Type | Precision air conditioner |
|---|---|
| Refrigerant | R-410A |
| Mounting Type | Floor Standing |
| Compressor Brand | Copeland |
| Fan Motors Type | AC |
| Motor Type | DC Motor |
| Filter Type | Regular Filter |
| Application | Hospital, Data center, Computer server room |
| Key Selling Points | Eco-Friendly, Competitive Price, Easy To Operate, Remote Monitoring, Energy Saving |
| Warranty | 1 Year |
| Core Components | Motor, PLC |
| Place Of Origin | Jiangxi, China |
| Weight (Kg) | 300 |
| Brand Name | HAIRF |
| Dimension(L*W*H) | 300*1200*2000mm(11.81*47.24*78.74in) |
| Keyword | HVAC |
| Compressor | Copeland Srcoll Compressor |
| After-Sales Service Provided | Online Support |
| EER | 3.6 |
| Compressor Type | DC Inverter Rotaty |
| Function | Cooling Heating |
| Product Name | Precision Air Conditioner |
| Fan Type | AC fan,EC fan |
| Noise | 50-60db |
| Selling Units | Single item |
| Single Volume | 0 cm³ |
| Single Gross Weight | 0.0 kg |
Product Details
Product & Manufacture
1.HAIRF Company: We specialized in manufacturing precision air conditioner, data center integrated
solution and UPS over 20 years‘ experience.
2.HAIRF Product: Precision air conditioner,UPS,Modular data center cooling solution,10 years' average
life.Meanwhile,accepting customized order according to your requirements.
3.Application: Data center,computer server room,library and so on.
4.Cooling Capacity: 5.9KW~156.8KW
5.Cooling Mode: Air-cooled,Water-cooled,Chilled water
| In-row Technical Parameters Direct Expansion(Air-cool,Water-cool,Chilled water) | ||||||||||
| Model(indoor unit) | R161A | R261A | R401A | R501A | R161W | R261W | R351W | R401W | R450C | R900C |
| Main Power supply | 380V/3PH/50hz | |||||||||
| 37℃DB/24%RH | Water inlet & outlet Temperature(7℃/12℃) | |||||||||
| Total cooling capacity(KW) | 17.5 | 25.8 | 41.6 | 50.5 | 19.3 | 28.4 | 39.4 | 45.8 | 42.3 | 84.2 |
| Sensible cooling capacity(KW) | 17.5 | 25.8 | 41.6 | 50.5 | 19.3 | 28.4 | 39.4 | 45.8 | 38.7 | 80.8 |
| 35℃DB/26%RH | ||||||||||
| Total cooling capacity(KW) | 16.1 | 24.6 | 39.9 | 49.6 | 17.7 | 27.1 | 37.7 | 43.9 | 38.1 | 77.3 |
| Sensible cooling capacity(KW) | 16.1 | 24.6 | 39.9 | 49.6 | 17.7 | 27.1 | 37.7 | 43.9 | 35.9 | 74.5 |
| 32℃DB/29%RH | ||||||||||
| Total cooling capacity(KW) | 14.6 | 23.5 | 38.2 | 47.5 | 16.1 | 25.8 | 36.1 | 42.1 | 33.1 | 66.8 |
| Sensible cooling capacity(KW) | 14.6 | 23.5 | 38.2 | 47.5 | 16.1 | 25.8 | 36.1 | 42.1 | 31.5 | 64.9 |
| 30℃DB/34%RH | ||||||||||
| Total cooling capacity(KW) | 13.1 | 22.4 | 36.9 | 46.7 | 14.4 | 24.6 | 34.2 | 40.6 | 30.8 | 61.5 |
| Sensible cooling capacity(KW) | 13.1 | 22.4 | 36.9 | 46.7 | 14.4 | 24.6 | 34.2 | 40.6 | 28.3 | 60.1 |
| Displacement(m³/h) | 3200 | 5500 | 8500 | 10800 | 3200 | 5500 | 7800 | 8500 | 5500 | 8500 |
| Fan quantity | 4 | 6 | 3 | 3 | 4 | 6 | 6 | 3 | 6 | 3 |
| Electric heater | ||||||||||
| Heating capacity(KW) | 3 | 3 | 6 | 6 | 3 | 3 | 3 | 6 | 6 | 3 |
| Humidifier | ||||||||||
| Humidify capacity(kg/h) | 3 | |||||||||
| Pipe dimension | ||||||||||
| Liquid pipe(mm) | 12 | 16 | 19 | 19 | 12 | 16 | 16 | 19 | DN32 | DN40 |
| Gas pipe(mm) | 16 | 22 | 22 | 22 | 16 | 22 | 22 | 22 | DN32 | DN40 |
| Humidifier inlet pipes (mother screw) | G3/4 | |||||||||
| condensing pump drain pipes inner diameter | 25 | |||||||||
| Width*Depth*Height(mm) | 300*1200*2000 | 600*1200*2000 | 300*1200*2000 | 600*1200*2000 | 300*1200*2000 | 600*1200*2000 | ||||
| Weight(kg) | 115 | 155 | 340 | 380 | 115 | 155 | 245 | 340 | 165 | 370 |
| Max workinh current of condensing unit(A) | ||||||||||
| Single cooling | 12.2 | 19.1 | 31.8 | 35.6 | 12.2 | 19.1 | 24.4 | 31.8 | 3.6 | 6.2 |
| Single cooling+Humidity | 15.7 | 21.8 | 35.9 | 39.8 | 15.7 | 21.8 | 28.4 | 35.9 | 6.9 | 9.7 |
| Recommended air swith and cables sizes | ||||||||||
| Single cooling | 32 | 50 | 32 | 32 | 50 | 50 | / | |||
| 6 | 10 | 6 | 6 | 10 | 10 | |||||
| Single cooling+Humidity | 32 | 50 | 32 | 32 | 50 | 50 | ||||
| 6 | 10 | 6 | 6 | 10 | 10 | |||||

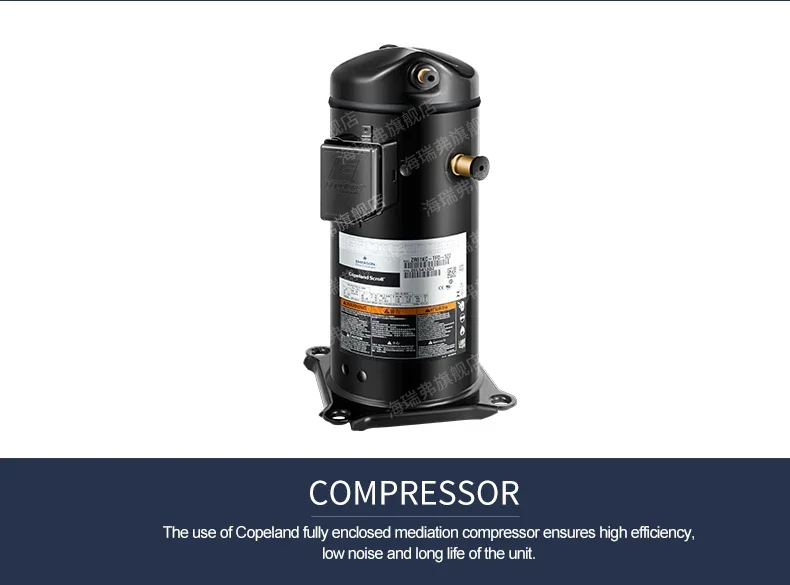

1.Scroll Compressor
The core power of the unit is from Copeland hermetic scroll compressor that guarantees the high efficiency, low noise and the long life of the unit.

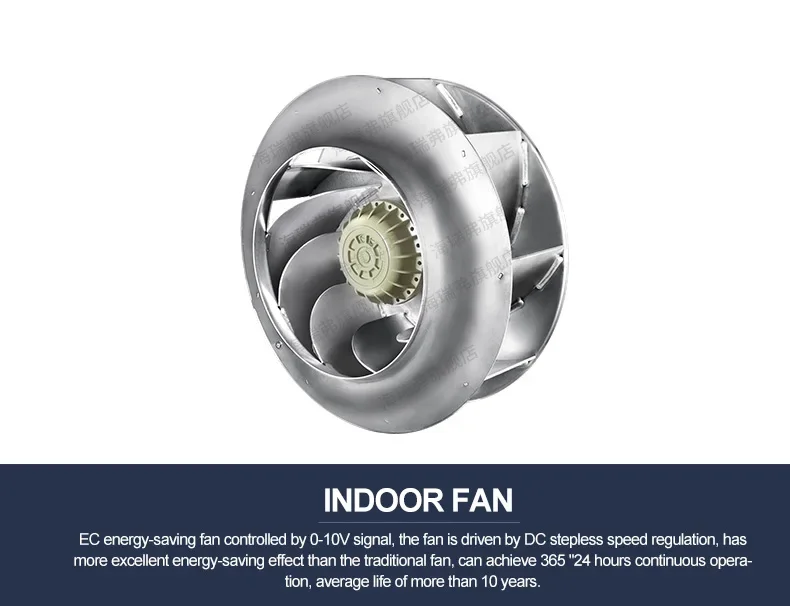

2.Indoor fan
A blow fan adopts direct drive centrifugal fan with backward curved blades, the range of static pressure can be adjusted from 0 to 400pa, realizing the continuous operation of 365 days* 24 hours, 10 years’ average life. (Brand:ZIEHL-ABEGG)

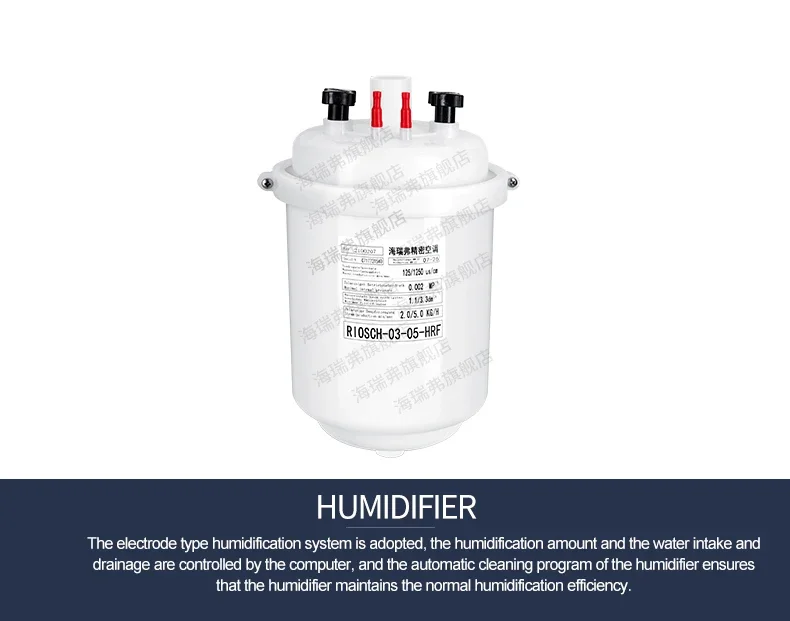

3.Humidifier
An internationally advanced electrode steam humidification system under which the amount of humidification and water inflow and outflow are all controlled by computer, the auto cleaning program for the humidifier cylinder ensure normal humidification efficiency of the cylinder.

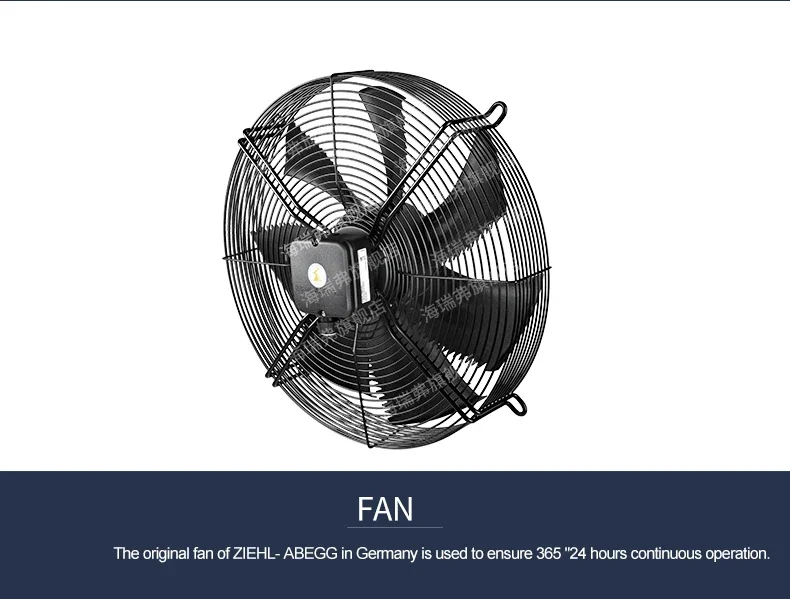

4.Fan
The original fan of ZIEHL-ABEGG in Germany is used to insure 7*24*365hours continuous operation.

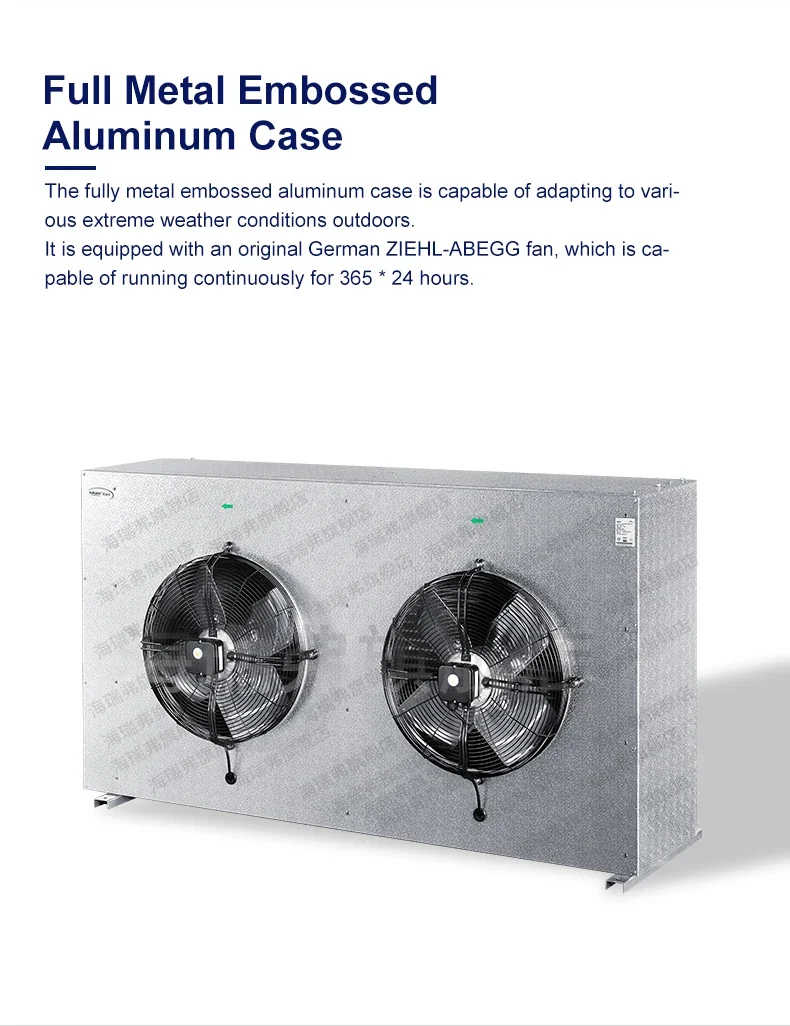

5.Condenser
With an enclosure of anti-corrosion alloy that ensures service life and appearance of the is elaborately designed and able to satisfy the environmental protection requirements on noise, and a fan speed regulator that controls the rotating speed under different temperature and ensures sound operating effect and energy saving.

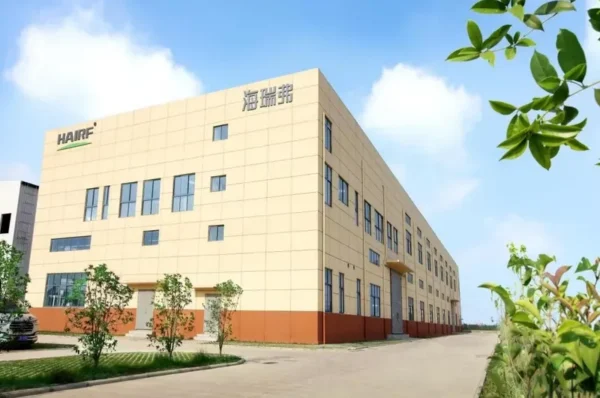

1. who are we?
We are based in Jiangxi, China, start from 2005 and have over 20years experience for data center cooling system,UPS and so on.Our cooperated clients are from Italy, America, South America, Mexico, Pakistan, China, Philippines, Singapore, Kazakhstan, Russia, Spain etc over 50 countries.
2. how can we guarantee quality?
Always final Inspection before shipment.
One year free warranty and lifelong technical support will be offered
3.what can you buy from us?
Precision Air Conditioner, Uninterruptible Power Supply, Modular Data Center
4. why should you buy from us not from other suppliers?
For customers to provide professional power solutions Professional agent for customers with low price Reliable after-sale and sustainable supply of spot products
5. what services can we provide?
Accepted Delivery Terms: FOB,EXW;
Accepted Payment Currency:USD,CNY,EUR;
Accepted Payment Type: T/T
Yalene Song
Wechat: snowy21210606
Mob/Whatsapp: +86-15579890515
E-m a i l: Yalene@ hairf.com.cn
Official website: www.hairf.com
Ordering and Pricing
- Minimum order quantity: 1 set
- Volume pricing:
- 1–2 set: US $5998 / set
- 3–4 set: US $3998 / set
- 5+ set: US $2998 / set
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this precision air conditioner?
The standard minimum order quantity is 1 set. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
