Refrigerated cabinet evaporator — material Copper, Aluminum Alloy, type Evaporator. The complete factory specification follows. Made by Zhengzhou Changdi Electric Appliance Co., Ltd. (3 years on the platform, typical reply ≤2h). For a binding price and lead time, send the volume you need and where it ships to.

Key Features of This Refrigerated Cabinet Evaporator

• Material: Copper, Aluminum Alloy
• Case Material: Galvanized Steel/Aluminum plate
• Tube Material: Seamless Copper Tube

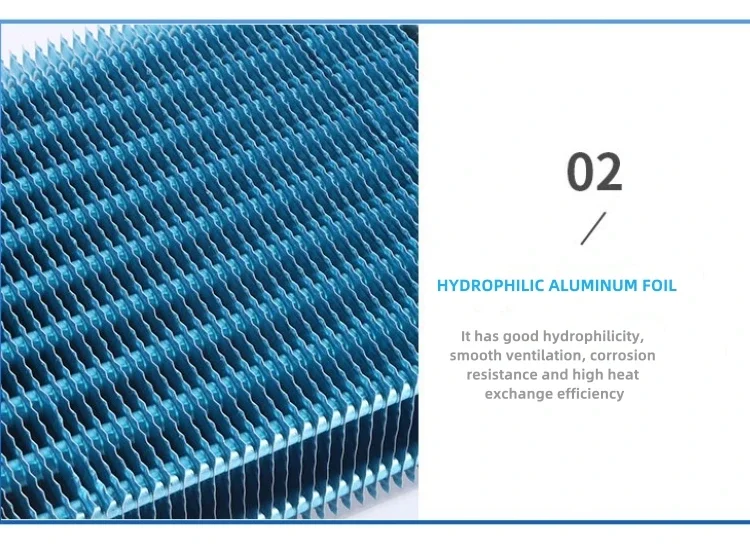

• Fin Material: Aluminum Fin/Hydrophilic aluminum foil
• Warranty: 1 Year
• Place Of Origin: Henan, China

Technical Specifications

Product Details

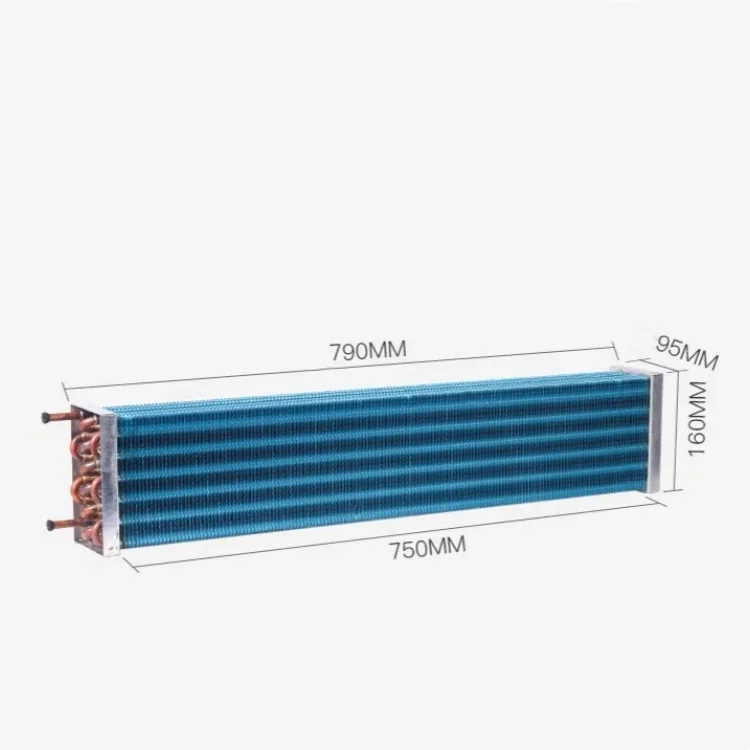

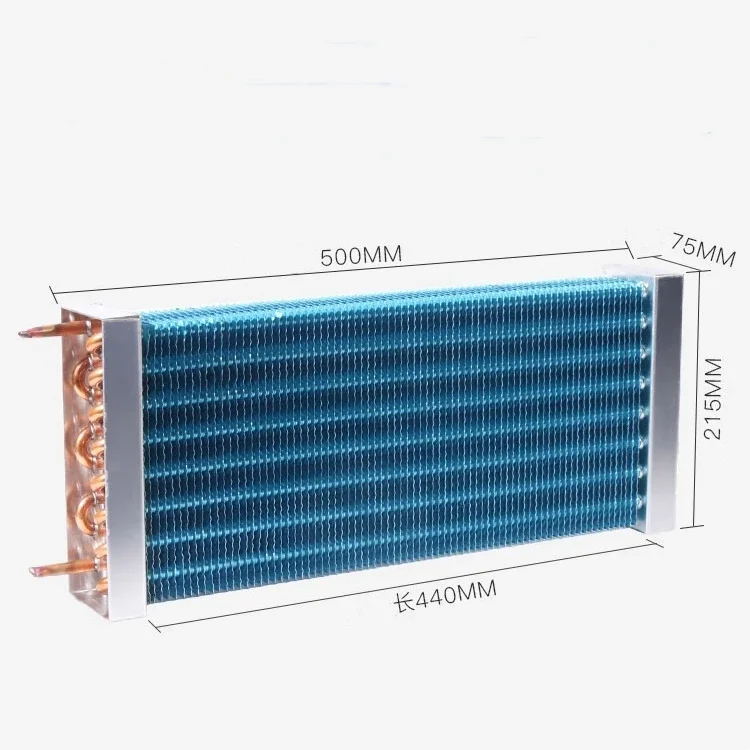

Refrigerated Cabinet Evaporator Coil Custom Air Cooled Fin Type Copper Tube Heat Exchanger for Commercial Fridge Display

Model: 2x4x205

Tube Diameter:9.52mm

Number of tubes: 8

Fin spacing: 5mm

Model: 2x6x240mm

Tube Diameter:9.52mm

Number of tubes: 12

Fin spacing: 5mm

Model: 2x8x270mm

Tube Diameter:9.52mm

Number of tubes: 16

Fin spacing: 5mm

Model: 3x8x335mm

Tube Diameter:9.52mm

Number of tubes: 24

Fin spacing: 5mm

Model: 3x8x495mm

Tube Diameter:9.52mm

Number of tubes: 24

Fin spacing: 5mm

Model: 3x8x440mm

Tube Diameter:9.52mm

Number of tubes: 24

Fin spacing: 5mm

Model: 3x9x315mm

Tube Diameter:9.52mm

Number of tubes: 27

Fin spacing: 5mm

Model: 3x9x300mm

Tube Diameter:9.52mm

Number of tubes: 27

Fin spacing: 5mm

Model:4x5x475mm

Tube Diameter:9.52mm
Number of tubes: 20
Fin spacing: 5mm

Model: 4x6x520mm

Tube Diameter:9.52mm
Number of tubes: 24
Fin spacing: 5mm

Model:4x6x650mm

Tube Diameter:9.52mm
Number of tubes: 24
Fin spacing: 5mm

Model:4x6x750mm

Tube Diameter:9.52mm
Number of tubes: 24
Fin spacing: 5mm

Model:4x6x850mm

Tube Diameter:9.52mm
Number of tubes: 24
Fin spacing: 5mm

Model:4x6x950mm

Tube Diameter:9.52mm
Number of tubes: 24
Fin spacing: 5mm

Customized products, pictures are for reference only. Please contact the customer for the specific price. Thank you!

Dimensions:
1. Length between end plates? 2.Wide? 3.Height? 4. Pipe diameter? 5.Fin Wide? 6.Fin Height? 7. Fin spacing?

Materials:
1. Tube: copper or aluminum 2. Fin: hydrophilic foil or aluminum foil 3. Shell: aluminum plate, galvanized plate, stainless steel
PlateDesign:
1. Drawings 2. Samples 3. Photos (please provide three photos, both sides of the copper pipe layout and the front photo)

NO.	OD(mm)	Hole(mm)	Row(mm)	Fin spcaing(mm)
1	Ф5	21	18.2	1.5-4
2	Ф7	19.1	16	1.5-2.5
3	Ф7	21	12.7	1.5-2.5
4	Ф7	20.8	20	2.2-4
5	Ф7	17	14	2.5
6	Ф7.9	25	21.65	2.2-5.5
7	Ф9	25	21.65	2.2-5.5
8	Ф9.52	25	21.65	2.2-8
9	Ф9.52	25.4	22	1.8-2
10	Ф9.52	25	25	3.5-4.5
11	Ф12	38	32.91	5-8.5
12	Ф12.7	35	35	5-8
12A	Ф12.7	31.75	27.5	3-7
14	Ф15.88	38	32.91	4.5-8
15	Ф15.88	55	27.5	5-7.5

Mainly sells： Condenser, Evaporator, Heat exchanger Suitable for： supermarket freezer, vending machine, dehumidifier, drying equipment, medical, industrial, cold storage, refrigerator, air conditioning, automobile, etc. Material : copper tube aluminum fin, copper tube copper fin, stainless steel tube evaporator, aluminum tube aluminum fin and so on. They are widely used in refrigeration equipment and HVAC equipment, its surface cooler, finned evaporator, condenser, air radiator, drying equipment heat exchanger and mechanical radiator and other refrigeration accessories are its leading products.

Q1：Whether sample service is supported？
A1:Yes.

Q2:How long is your production schedule?
A2:The normal construction period is 7-15 working days after the arrival of the payment, and it will be postponed under special circumstances

Q3：What is your logistics packaging method?
A3: Express or air: carton + stuffing Shipping: Wooden case or carton + base

Q4:Price description
A4:All products in this link are customized products for manufacturers, all pictures are sample layout, not for sale; All prices are for the convenience of payment, not the actual price of the product, please do not place orders directly

Q5：Pressure leakage

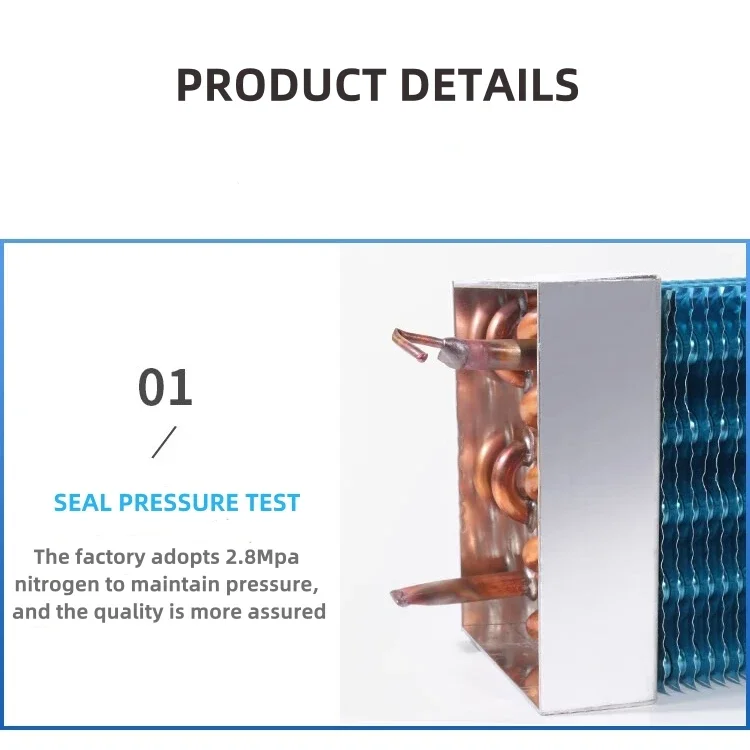

A5:1. Before leaving the factory, we will carry out nitrogen pressure protection for the product (except for special welded
joints), please check when receiving the goods. If you find pressure leakage after receiving the goods, please inform us as soon as possible.

Q6:Transport causes the fin to deform
A6.:Please contact the logistics party for claim immediately after receiving the goods.The fin texture is soft, bump in
transportation may cause the fin to overwhelm the deformation, (Fin deformation is a normal phenomenon, you can contact the customer service to inform the solution, if there is no damage, it does not affect the use, non-product quality problems, do not support return and replacement, thank you)
