The ring blower listed here carries 220 V, airflow 318(m3/h), documented exactly as the manufacturer publishes it. Made by Dongguan Mingkai Electromechanical Co., Ltd. (9 years on the platform, factory-assessed). Quantity and destination market determine the final price — tell us both for a firm quote.
Key Features of This Ring Blower
- Model Number: 2MV 710 H16
- Power Source: Electric
- Rated Voltage: 220 V
- Voltage: 220V-380V Three phase
- AirFlow: 318(m3/h)
- Blade Material: Stainless Steel
Technical Specifications
| Application | Air Blower |
|---|---|
| Power Source | Electric |
| Rated Voltage | 220 V |
| Electric Current Type | alternating current |
| Blade Material | Stainless Steel |
| Pressure | High Pressure |
| Warranty | 1 years |
| Customized Support | OEM |
| Place Of Origin | Guangdong, China |
| Brand Name | MANVAC |
| Model Number | 2MV 710 H16 |
| Product Name | 2.2KW |
| AirFlow | 318(m3/h) |
| Material | Aluminum Alloy |
| Frequency | 50/60 Hz |
| Voltage | 220V-380V Three phase |
| Color | Silver |
| Usage | High Pressure Blowing |
| Weight | 30Kg |
| Size | 630*580*530(mm) |
| Selling Units | Single item |
| Single Package Size | 63X58X53 cm |
| Single Gross Weight | 38.0 kg |
Product Details
Dependable performance 3.0KW Electric Turbine Vortex Ring Blower for Agriculture machine
Technical Paramaters
  | Model No. | 2MV 710 H16 | |
| Phase | 3 | ||
| Stage | Single | ||
| Frequency | 50HZ | 60HZ | |
| power | 2.2KW | 2.55KW | |
| Voltage | 220V-240V | ||
| Current | 9.7A | 10.3A | |
| Max Airflow | 318m3/h | 376m/3h | |
| Max Vacuum | -270mbar | -250mbar | |
| Max pressure | 200mbar | 230mbar | |
| Net weight | 44Kg | ||
| Rotation | 2850RPM | 3450RPM | |
| Sound | 69db | 72db | |
| Level of protection | IP55 | ||
| Insulation class | F | ||
High pressure Blower Functional Features:
1. Light weight high pressure big volume low noise.
2. Aluminum alloy material, greatly reduce weight, achieve the goal of lightweight.
3. Design ( 1 HP motor for I . E. C above ) , full close outer fan type aluminum frame,
motor axis of special design, can be suitable for long time use.
4. Special blade design, high pressure, big air volume, low noise, long service life.
5. Special air damper, air volume control stability is high, easy to operate (CX) TB) HTB applicable.
| Model | Phase | Frequency (Hz) | Power (KW) | Voltage (V) | Max airflow (m3/h) | Max pressure (mbar) | Max vacuum (mbar) | Weight (KG) |
| three phase blower | ||||||||
| 2MV 210 H16 | 3 | 50 | 0.4 | 220-240 | 80 | 130 | -120 | 18 |
| 60 | 0.5 | 220-240 | 98 | 160 | -150 | |||
| 2MV 310 H16 | 3 | 50 | 0.75 | 220-240 | 100 | 150 | -150 | 20 |
| 60 | 0.83 | 220-240 | 120 | 140 | -140 | |||
| 2MV 410 H26 | 3 | 50 | 1.3 | 220-240 | 145 | 200 | -170 | 25 |
| 60 | 1.5 | 220-275 | 175 | 220 | -210 | |||
| 2MV 510 H16 | 3 | 50 | 1.3 | 200-240 | 210 | 170 | -170 | 30 |
| 60 | 1.5 | 220-275 | 255 | 140 | -150 | |||
| 2MV 510 H26 | 3 | 50 | 1.6 | 200-240 | 210 | 190 | -200 | 31 |
| 60 | 2.05 | 220-275 | 255 | 210 | -220 | |||
| 2MV 510 H36 | 3 | 50 | 2.2 | 200-240 | 210 | 270 | -220 | 32 |
| 60 | 2.55 | 220-275 | 255 | 290 | -260 | |||
| 2MV 710 H06 | 3 | 50 | 1.6 | 200-240 | 318 | 150 | -160 | 35 |
| 60 | 2.05 | 220-275 | 376 | 150 | -160 | |||
| 2MV 710 H16 | 3 | 50 | 2.2 | 200-240 | 318 | 200 | -210 | 38 |
| 60 | 2.55 | 220-275 | 376 | 200 | -210 | |||
| 2MV 710 H26 | 3 | 50 | 3.0 | 200-240 | 318 | 290 | -270 | 44 |
| 60 | 3.45 | 220-275 | 376 | 230 | -250 | |||
| 2MV 710 H37 | 3 | 50 | 4.0 | 345-415 | 318 | 330 | -290 | 48 |
| 60 | 4.6 | 380-480 | 376 | 330 | -230 | |||
We have many other models for you choose, please contact with me if you have any further demands.
Performance curves:
Dimensions:
Accessories :
We also have some parts for your application, if you need, welcome to tell me.

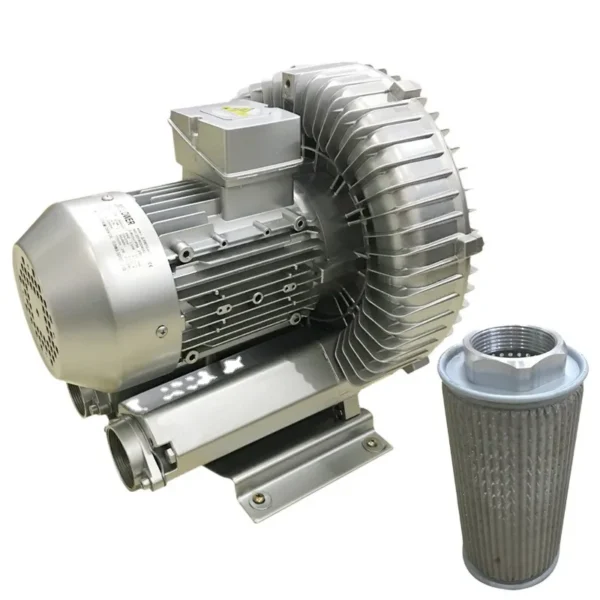

Air filter: Filter the dust particles, apply to a bad environment.
Pressure relief valve: Control gas pressure, prevent excessive pressure, damage the machine.
Silencer: reduce blower noise 5-10db, apply to a quiet environment.
Varies Blower Applications:
1. Printing Machines
2. Burning Machines
3. Plastic Extruders, Laminating, Film Making Machines
4. Uniform Temperature Equipment
5. Household Machines
6. Dust Collectors
7. Textile Machines
8. Pollution Machines
9. Hot Air Blowers
10. Dryers Machines
11. Incinerators
12. Machinery for the Food and Beverage Industries
13. Machinery for Cooling
14. Woodworking Machines
15. Grain Elevators
Certificates:
24 hours service online.
you can touch us by email, skype , wechat,what's app,telephone QQ etc
1. What is the warranty of your machine?
R: 1 years, any product itself question,you can contact with us.
2. What is the material of your machine , is oil free?
R: our machine is aluminum alloy, motor is 100% copper coil , of course, we are oil free.
3. How to operate your machine?
R: Connect with wire, and turn on the power, so you can use it directly, about the wiring method, we will tell you how to do according to your voltage, so at first , you need to tell us your voltage and phase,its important.
4. You are trading company or manufacture?
R: We are manufacture, we can provide long-term supply with fast speed.
5. How to contact with you?
R: You can send messages to me directly by alibaba trade manager, or add me like below
Ordering and Pricing
- Minimum order quantity: 1 set
- Volume pricing:
- 1–9 set: US $228 / set
- 10+ set: US $220 / set
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this ring blower?
The standard minimum order quantity is 1 set. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 1 years warranty. Spare parts and technical support remain available after the warranty period.
Can the ring blower be supplied for my local voltage?
The standard configuration is 220 V. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
