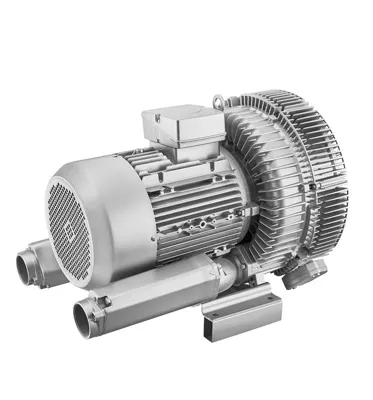

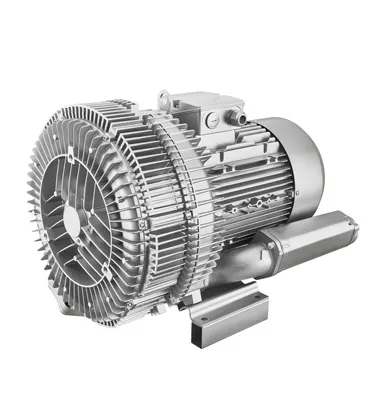

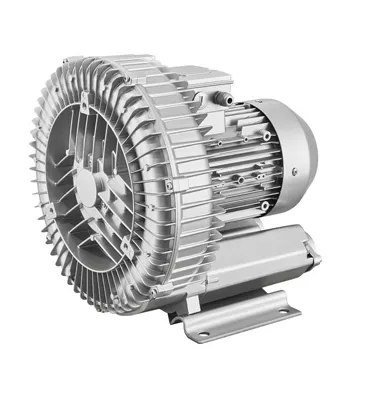

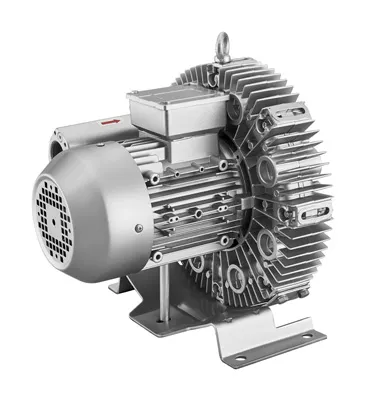

Ring Blower, 2.2kw, 220v

Ring blower — 220V, type Pool. The complete factory specification follows. Made by Jiangmen Topguy Electromechanical Equipment Co., Ltd. (8 years on the platform, typical reply ≤9h). Send your target quantity and destination for a firm quotation with current lead times.

Key Features of This Ring Blower

• Model Number: AB-2
• Rated Power: 3HP
• Voltage: 220V
• Warranty: 1 Year
• Certifications: CCC/CE
• Type: Pool

Technical Specifications

Product Details

Guess You Like

Product Details

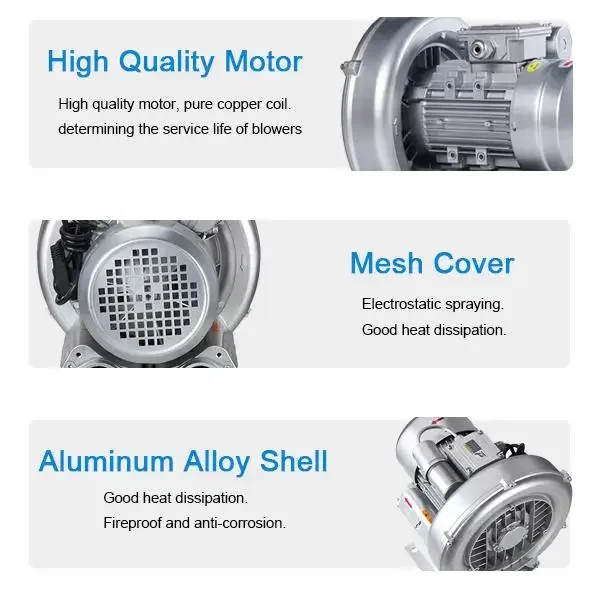

1. 100% oil-free, no water compression, all of the air ring vacuum pump motors are IP55 protection grade, class F insulation; 2. dual freguency (50/60Hz) and wide voltage can meet almost all regions of the world the voltage level, the external design of the bearing, can bear high working temperature, improves the reliability and service life;

3. the introduction of variable frequency drive new concept, than the maximum performance can be driven by a common motor is improved to 300%, impeller and pump body seal forms the unique reduced pressure gas pressure loss in the process of compression;

4. pump casing, impeller die-casting molding, sturdiness and durability, excellent heat dissipation, imported Japan Germany, precision machine tool cutting, ensure the accuracy and quality, air pump through the surface of protective paint processing;

5. products through the strict mechanical, electrical performance test, simulation demonstrate the use of PROE, UG, CAD and other computer aided design software and motion.

ATTENTION!!!

Operation: 1、During operation, if the rated current of the motor is exceeded, the voltage and frequency of the power supply 2、should be checked and compared with the rated data of the unit. 3、Some blowers cannot be operated within the entire performance curve range. 4、Motor overload may be caused by excessive system back pressure. In applications where overpressure conditions may occur, a safety valve must be installed. 5、The blower must not be subjected to shock or vibration loads.

Maintenance: 1、The blower operates without contact and generally does not require maintenance. 2、Wear parts are subject to recommended maintenance intervals and form an integral part of the applicable warranty claim. 3、The service life of bearing parts depends on operating time, load and other influencing factors such as temperature and working pressure.

Installation: A. Transport Inspect all components for damage during transport.

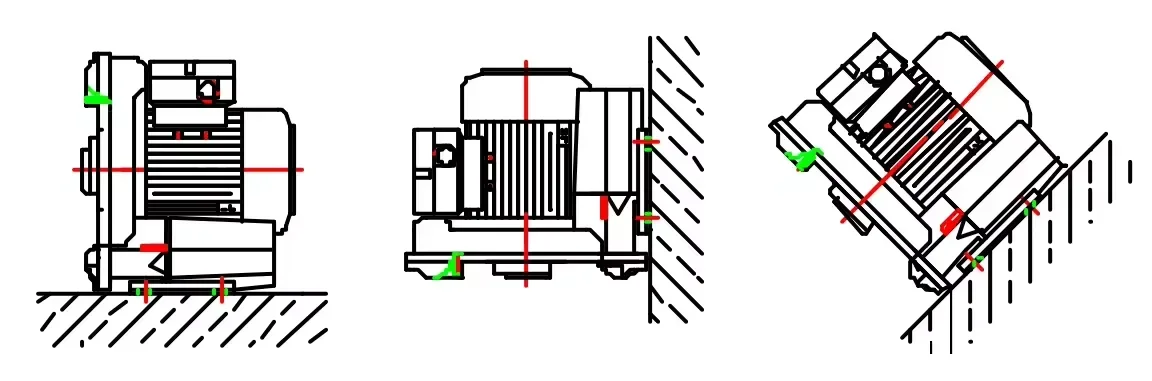

B. Installing components 1、The blower should be installed in a weather-protected place and must not be stored outdoors in an unprotected place. When installing the blower outdoors, it must be covered. 2、Water ring compressors can be installed horizontally or vertically, but do not subject them to vibration or shock. Blowers with bases should be fastened to a solid, level ground.

C. Electrical connection Attention! The work described here must be performed by a qualified electrician. Connect the motor according to the wiring diagram in the terminal box. The blower is equipped with a single-phase or three-phase motor, as described on the motor plate. The motor should be protected with an overload switch.

D. Control the direction of rotation Start the blower for a short time and check the direction of rotation. The direction of rotation on the impeller must match the direction of the arrow on the motor. If the wrong direction of rotation is encountered, check the wiring circuit in the terminal box.

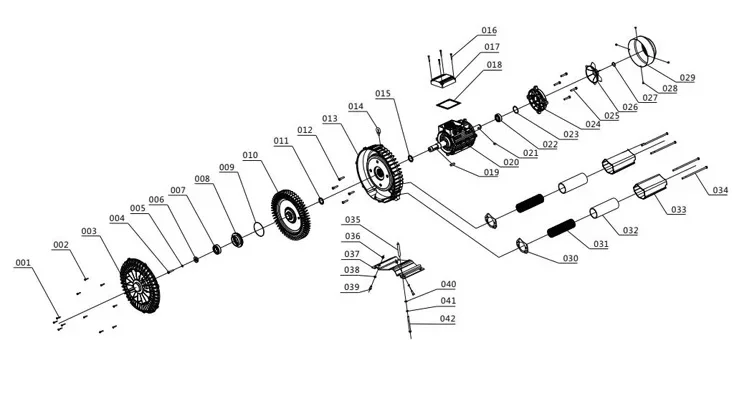

Structure Diagram

No.	Part Name	No.	Part Name	No.	Part Name	No.	Part Name
001	screw	002	screw	003	pump cover	004	screw
005	washer	006	pressure-plate	007	bearing	008	fixing base
009	o-ring	010	impeller	011	impeller shutter	012	screw-pumpcasing
013	pumpcasing	014	handring	015	oilseal	016	screw
017	themotor boxcover	018	rubber washer	019	flatkey	020	motor
021	fatkey	022	bearing	023	ware washer	024	motor cover
025	screw	026	fan	027	circlip	028	screw
029	fan cover	030	paper pad	031	mesh enclosure	032	soundproof sponge
033	muffe tube	034	screw	035	support tube	036	screw
037	mounting plate	038	lockwasher	039	screw	040	washer
041	lockwasher	042	screw

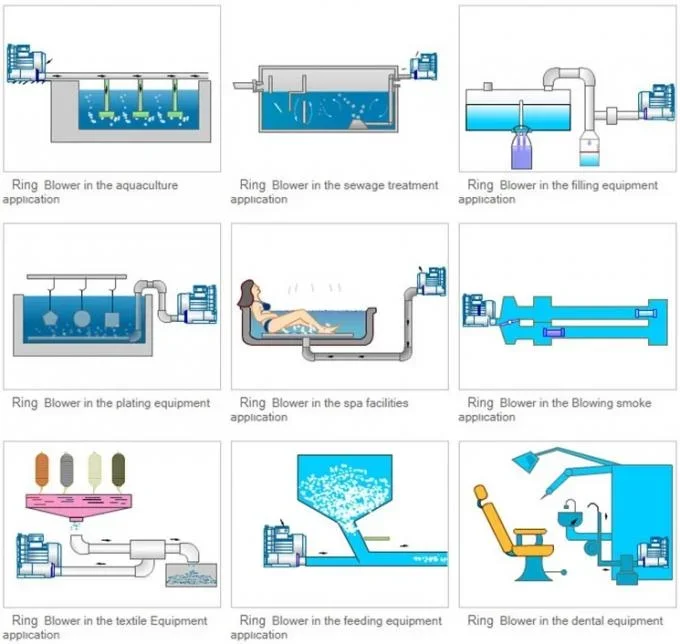

Product Application

About us

Packing & Delivery

Packing Details : Standard exported carton , 1 pcs/carton
Delivery Details : 15-20 days after comfirm the order

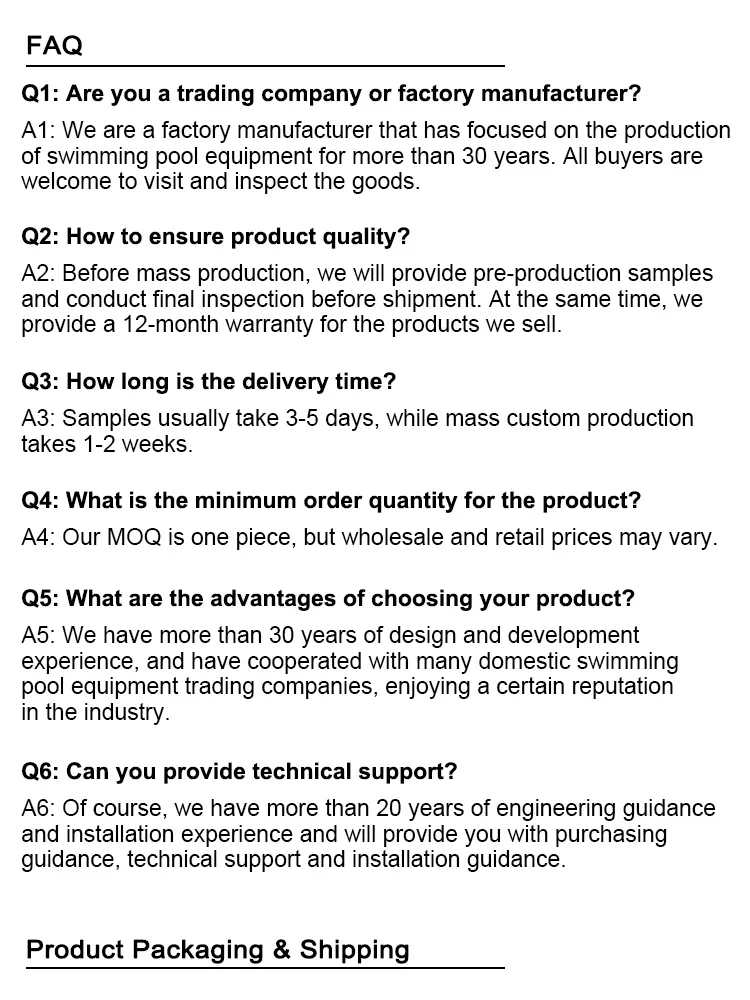

FAQ

Ordering and Pricing

• Minimum order quantity: 2 set
• Volume pricing:
  • 2–499 set: US $225 / set
  • 500+ set: US $220 / set
• Ships from: China
• Customization: OEM and ODM accepted on qualifying volumes.

Frequently Asked Questions

What is the minimum order quantity for this ring blower?

The standard minimum order quantity is 2 set. Trial orders can usually be arranged for buyers evaluating the product before a full production run.

What warranty is provided?

The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.

Which certifications does this ring blower carry?

It is supplied with CCC/CE documentation, which covers the requirements of most import markets. Additional test reports can be issued on request.

Can the ring blower be supplied for my local voltage?

The standard configuration is 220V. Alternative voltage and frequency builds are available when specified at the time of order.

Do you accept OEM or custom branding?

Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.

How long does production and delivery take?

In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.

About the Manufacturer

This product is produced by Jiangmen Topguy Electromechanical Equipment Co., Ltd., based in China. The company 8 years as a verified Alibaba.com supplier, operates its own manufacturing. Browse the full Jiangmen Topguy Electromechanical Equipment Co., Ltd. range on HVACR Nexus.
