Key specification for this shell and tube heat exchanger: voltage –, refrigerant R22/R134a/R407c/R410a. Everything below is reproduced from the factory data sheet. Made by Et Heat Exchanger Co., Ltd. (8 years on the platform, typical reply ≤7h). For a binding price and lead time, send the volume you need and where it ships to.
Key Features of This Shell And Tube Heat Exchanger
- Voltage: —
- Tube Material: High efficient copper tube
- Shell Material: Carbon Stainless
- Refrigerant: R22/R134a/R407c/R410a
- Warranty: 1 Year
- Place Of Origin: Guangdong, China
Technical Specifications
| Working Temperature Range | -50~150℃ |
|---|---|
| Voltage | — |
| Machinery Test Report | Provided |
| Warranty | 1 Year |
| Video Outgoing-Inspection | Provided |
| Key Selling Points | High Productivity |
| Place Of Origin | Guangdong, China |
| Brand Name | ET |
| Maximum Working Pressure | 5.2MPa |
| Dimension(L*W*H) | Custom |

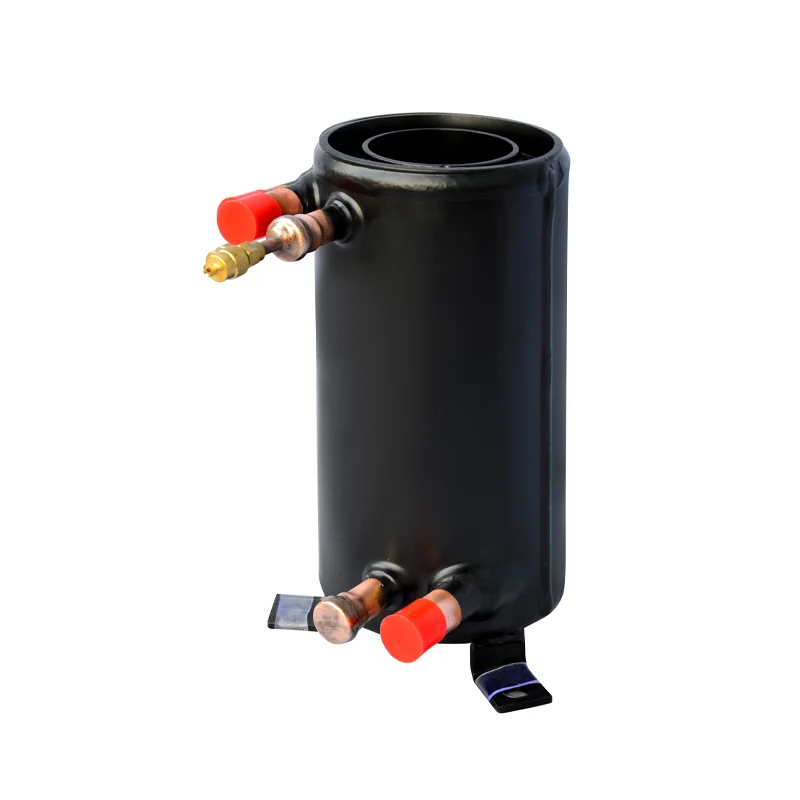

| Product Name | Tube and shell heat exchanger |
| Tube Material | High efficient copper tube |
| Shell Material | Carbon Stainless |
| Brand | ET |
| Color | spray black antirust paint |
| Refrigerant | R22/R134a/R407c/R410a |
| Design Pressure | 5.2MPa |
| Heating Capcity | 11.2KW |
| Water Flow | 2M3/h |
| Water Let | 25.4mm |
| Packaging Details | Packing in wooden cases. If you want to customize the packing, please contact us |
| Port Of Dispatch | Guangzhou part |
| Selling Units | Single item |
| Single Package Size | 25X25X40 cm |
| Single Gross Weight | 8.0 kg |
| Supply Ability | 10000 pieces per Month |
Product Details
|

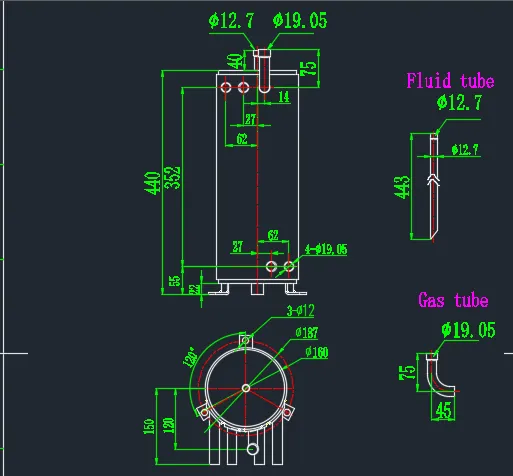

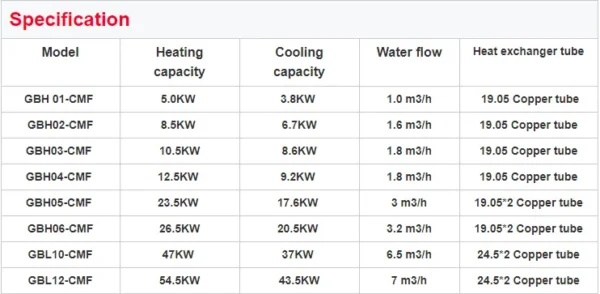

Model
|
GBL05-CMF
|
|
Heating capcity
|
11.2KW
|
|
Water flow
|
2m3/h
|
|
Liquid nozzie
|
19.05mm
|
|
Gas nozzie
|
19.05mm
|
|
Water let
|
25.4mm
|
|
Refrigerant side(outside of tube)
|
Water side (in the tube)
|
||||
|
Max.pressure
|
5.2MPa
|
3.2Mpa
|
|||
|
Temp.range
|
-50~150℃
|
-30~90℃(Must be higher than the freezing point)
|
|||
|
Refrigerant tybe
|
R22,R134a,R407c,R410aEtc.
|
Nature water,sea water,antifreeze(glycol water)
|
|||
|
Remarks
|
Keep the water clean,recommend to use filter and clean regularly. |
||||
Direction for use
-
-
-
-

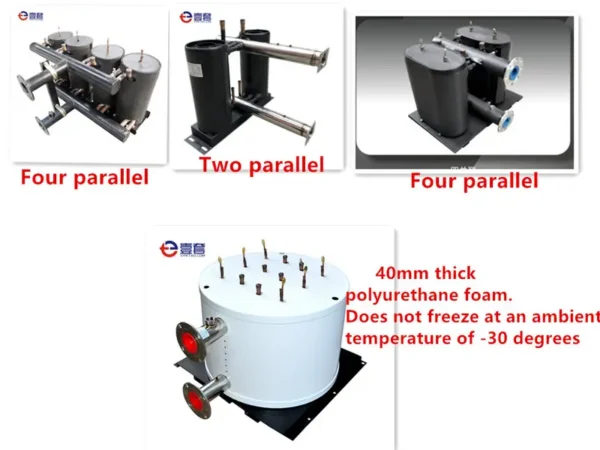

* Products can be customized according to customer size requirements

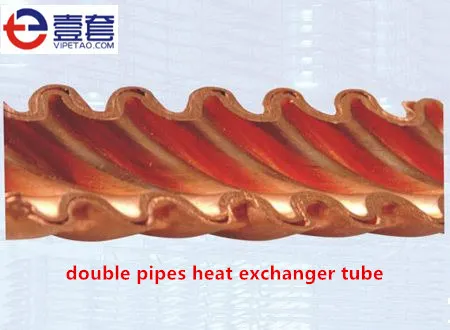

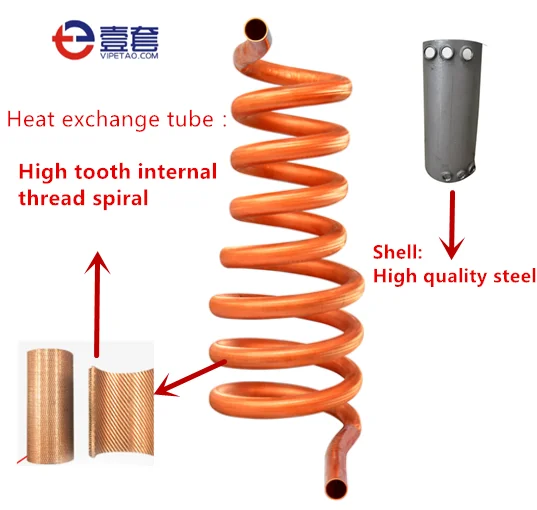

1. Using high efficiency rifle tube ,heat exchanger area is 3.6time than the smooth type.
2. Fins inside & outside tube induce turbulence flow of freon and water .It's one cause of high efficiency.

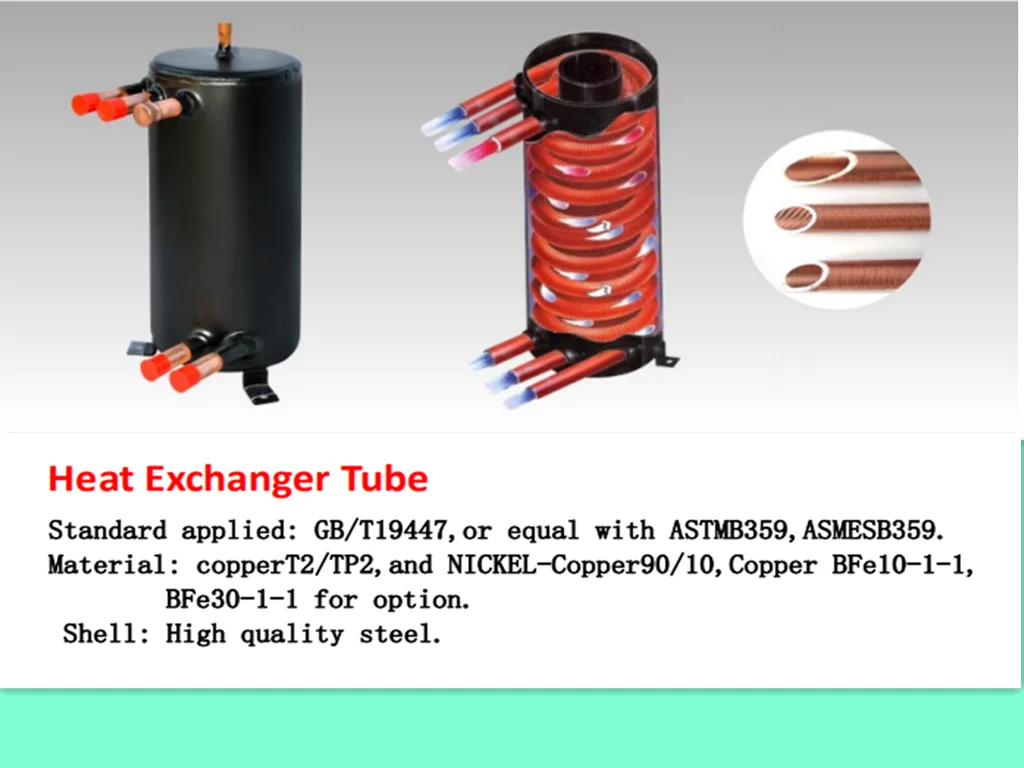

3. The compact helix structure of the coil ensures sufficient heat exchanger between the gas and water. Safety:
1) Whole tube inside shell has no internal jionts ,That' means no welding bug.
2) The copper is fully shaped and then installed into the shell thus free from curedamage.
3) There is not block on water loop and the water flow is smooth ,thus keep it free from ice and dirty.
4) The drain is on the lowest poin of the heat exchanger and easy for drainage in cold season.
Compact size is helpful to save the space for the heat pump and thus reduce the volume of the unit.
If you need customized packaging, please contact us.
Afer sales service:
After-sales service is one year.Provide video installation services
Quality Policy and Objectives
Business philosophy:Quality-oriented,service-available,credibility-first.
The price is negotiable.It can be changed according to your quantity or package.Please let us know the quantity you require when
you make an inquiry.
The sample is free of charge, but the air freight is to be paid by you, otherwise you need to pay in advance.
The moq is 100 pieces;We have some products in stock.The moq is 20 pieces.
we have confidence in our products and our packing is good, so normally you will receive your order in good condition.Any quality
problem will be dealt with immediately.
Ordering and Pricing
- Minimum order quantity: 1 piece
- Volume pricing:
- 1–99 piece: US $110 / piece
- 100–499 piece: US $105 / piece
- 500+ piece: US $100 / piece
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this shell and tube heat exchanger?
The standard minimum order quantity is 1 piece. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.
Can the shell and tube heat exchanger be supplied for my local voltage?
The standard configuration is –. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
