The shell and tube heat exchanger listed here carries voltage oem, material Titanium, documented exactly as the manufacturer publishes it. Made by Foshan Yongchengze Technology Co., Ltd. (1 year on the platform, typical reply ≤3h). Send your target quantity and destination for a firm quotation with current lead times.
Key Features of This Shell And Tube Heat Exchanger
- Voltage: oem
- Material: Titanium
- Warranty: 1 Year
- Place Of Origin: Guangdong, China
- Heat Exchanger Type: Tube Heat Exchanger
- Weight (Kg): 2
Technical Specifications
| Heat Exchanger Type | Tube Heat Exchanger |
|---|---|
| Material | Titanium |
| Voltage | oem |
| Core Components | Motor, Pressure Vessel, Pump |
| Warranty | 1 Year |
| Machinery Test Report | Provided |
| Video Outgoing-Inspection | Provided |
| Key Selling Points | High Productivity |
| Working Temperature Range | oem |
| Place Of Origin | Guangdong, China |
| Weight (Kg) | 2 |
| Brand Name | OEM |
| Liquid Flow Rate | oem |
| Maximum Pressure Rating | 4.5Mpa |
| Dimension(L*W*H) | oem |
| Selling Units | Single item |
| Single Volume | 0 cm³ |
| Single Gross Weight | 0.0 kg |
Product Details

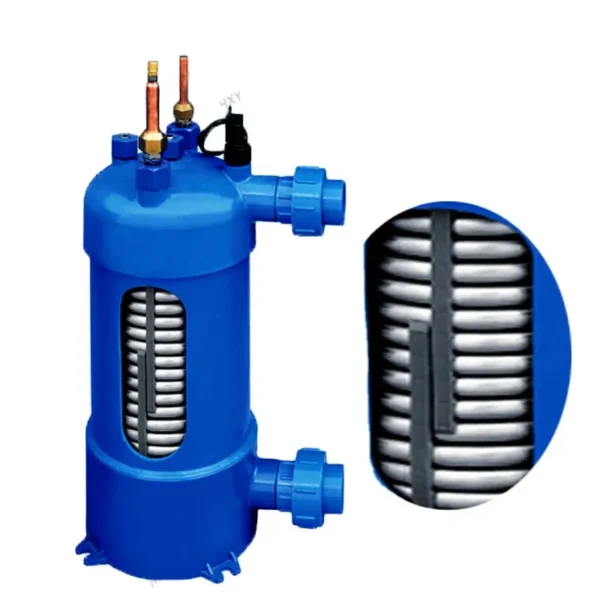

For Heat pump Version:
Specification for all heat pump Hxs:
| Size | titanium tube | water inlet and outlet | titanium tube working prssure | PVC shell working pressure | each VOL |
| (CBM) | |||||
| 1/3HP/1/2HP | OD16*0.6mm*L3.3M | 32mm | 3.0Mpa | 0.5Mpa | 0.016 |
| 3/4HP/1HP | OD16*0.6mm*L5.3M | 40mm | 3.0Mpa | 0.5Mpa | 0.028 |
| 1.5HP/2HP | OD16*0.6mm*L9M | 50mm | 3.0Mpa | 0.5Mpa | 0.043 |
| 1HP | OD12.7*0.6mm*L5M | 50mm | 3.5Mpa | 0.4Mpa | 0.016 |
| 1.5HP | OD12.7*0.6mm*L7.5M | 50mm | 3.5Mpa | 0.4Mpa | 0.017 |
| 2HP | OD12.7*0.6mm*L11M | 50mm | 3.5Mpa | 0.4Mpa | 0.017 |
| 3HP | OD12.7*0.6mm*L15.5M | 50mm | 3.5Mpa | 0.4Mpa | 0.021 |
| 5HP | OD19*0.6mm*L20M | 50mm | 3.5Mpa | 0.4Mpa | 0.088 |
| 10HP | OD19*0.6mm*L40M | 50mm | 3.5Mpa | 0.4Mpa | 0.098 |
| 15HP | OD19*1.0mm*L60M | 50mm | 3.5Mpa | 0.4Mpa | 0.199 |
| 20HP | OD19*1.0mm*L80M | 50mm | 3.5Mpa | 0.4Mpa | 0.186 |
| 30HP | OD19*0.55mm*L120M | 50mm | 3.5Mpa | 0.4Mpa | 0.271 |
Remark:1HP=3.5KW 1Mpa=10bar
certification:RoHs
Refrigerant:R22 /R134/R407/R41OA .
For Aquarium Version/Sea food pool/fish pool
| size | Diameter(mm) | Height(mm) | Refrigerant gas inlet and outlet(mm) | Water inlet and outlet(mm) |
| Horizon | ||||
| 1HP | 200 | 500 | Φ12.7 | 50/40/32 |
| 1.5HP | 200 | 580 | Φ12.7 | 50/40/32 |
| 2HP | 200 | 530 | Φ12.7 | 50/40/32 |
| 3HP | 200 | 700 | Φ12.7 Φ19 | 50/40/32 |
| 5HP | 200 | 850 | Φ12.7 Φ19 | 50/40/32 |
| Vertical | ||||
| 1HP | 200 | 350 | Φ12.7 | 50/40/32 |
| 1.5HP | 200 | 350 | Φ12.7 | 50/40/32 |
| 2HP | 200 | 350 | Φ12.7 | 50/40/32 |
| 3HP | 200 | 420 | Φ12.7 Φ19 | 50/40/32 |
| 5HP | 200 | 550 | Φ12.7 Φ19 | 50/40/32 |
For sea water Version
| size | Diameter(mm) | coils | Refrigerant gas inlet and outlet(mm) |
| 1HP | 150 | 4.5 | Φ19 |
| 1.5HP | 150 | 6.5 | Φ19 |
| 2HP | 150 | 10.5 | Φ19 |
| 3HP | 150 | 13.5 | Φ19 |
| 5HP | 150 | 18.5 | Φ19 |

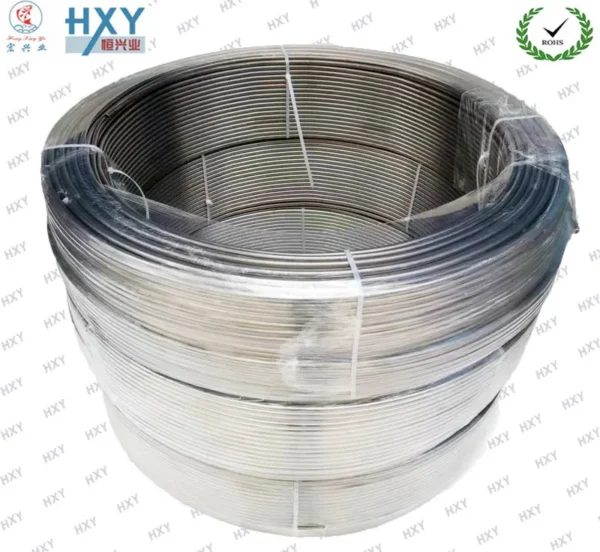

Titanium tube specification:
Titanium tube:
| Product detail | |
| inside: titanium coil | |
| titanium tube material | seamless tube–TA1 |
| titanium tube diameter | 12.7mm—-30mm(normal use) |
| titanium tube thickness | 0.55mm—-3.0mm(normal use) |
| outside: PVC case | |
| PVC cover material | enviromental protection |
| PVC tube diameter | OD110mm—-OD400mm |
| PVC tube thickness | 2.7mm—-15.3mm |
| connection | |
| gas inlet and outlet | titanium thread and copper nut/tube |
| water inlet and outlet | plastic piston |
| testing/others | |
| water pressure | 0.25—-1.0Mpa(2.5—10bar) |
| gas pressure | 3.5Mpa |
| PVC temperature | ≤45°C |
| shell leakage | no |
| tube leakage | no |
| pack | 0.6mm thick gray sponge |
| corrosive or not | anti-corrosion |
| use | pool /heat pump/ air conditioner/chillar etc |
Other Version
Packaging:
1,For PVC shell with Sponge insulation
2,Carton with EVA gasket to protection
3,Also can be with plywood box to package
4,With standard pallet for client request
Shipping:
2–5days:DHL.FedEx.UPS.etc.
5–10days:EMS.Airport cargo
10-60days:sea cargo
1,factory visiting
2.24 hours on call
3.15 months free repair
4.titanium tube offer other accessories available
4.ODM:For client's own request/own drawing
5.OEM:Logo design.Retail Gift box design.carton design
Foshan Hengxingye Hardware Co.,Ltd is located in Foshan, as one of the earliest heat exchanger enterprises with pool heat exchanger titanium tube.pool evaporator in China. it provides professional service and best products for international market. HXY factory covers an area of 3000 square meters. more than 150 staff members in manfactory, 10 staff members in quality control department. 5 staff members in research and development department. From the raw material purchasing to production, inspection, packaging and distribution, each proceess is strictly checking by computer controll system.
1.Q:What's your delivery time?
A: for samples: within 5days
below 50pcs:within 7days
50–100pcs:15days
100-500pcs:20days
500-1000pcs:40days
Notice:Above time just for reference.please communicate with your sales to confirm
2.Q:.How to buy your company products?
A:24hours contact us:
mobile phone/whatsapp/viber: 0086 13531447796
trade manager: fshxy
skype: lvlinfeng88
wechat: sunnylv12
payment terms:
L/C at sight .T/T.Western Union
Ordering and Pricing
- Minimum order quantity: 3 piece
- Volume pricing:
- 3+ piece: US $135.88 / piece
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this shell and tube heat exchanger?
The standard minimum order quantity is 3 piece. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.
Can the shell and tube heat exchanger be supplied for my local voltage?
The standard configuration is oem. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
About the Manufacturer
This product is produced by Foshan Yongchengze Technology Co., Ltd., based in China. The company 1 years as a verified Alibaba.com supplier, operates its own manufacturing. Browse the full Foshan Yongchengze Technology Co., Ltd. range on HVACR Nexus.
