Key specification for this shutter poultry exhaust fan: 380V, power source Electric. Everything below is reproduced from the factory data sheet. Made by Zhejiang Larissa Mechanical Electric Technology Co., Ltd. (9 years on the platform, factory-assessed). Quantity and destination market determine the final price — tell us both for a firm quote.

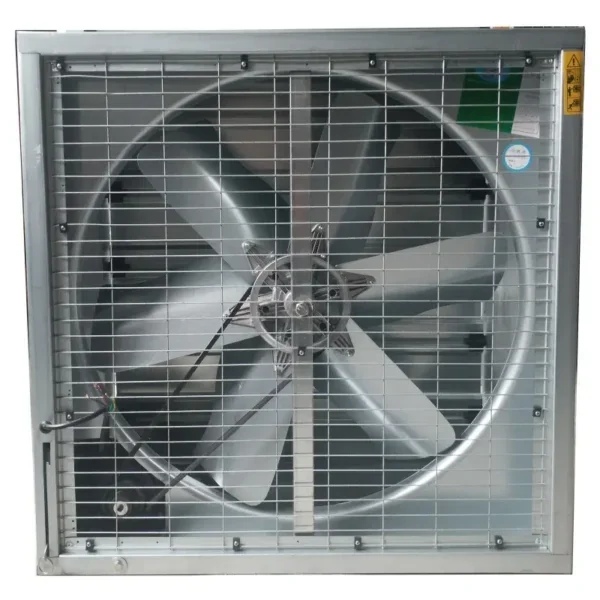

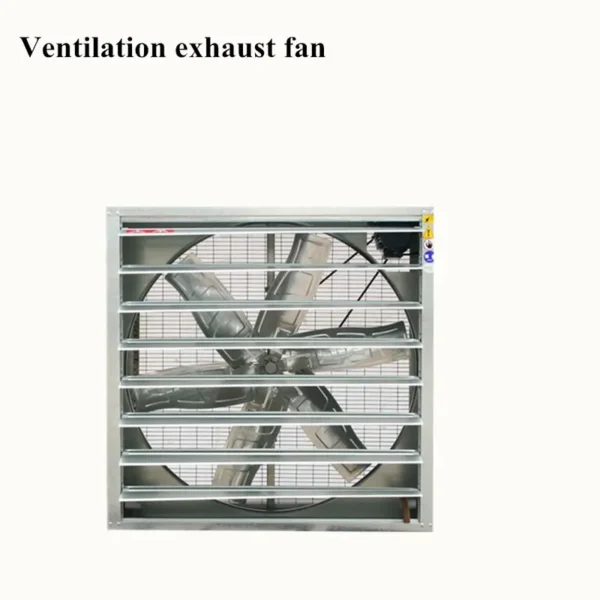

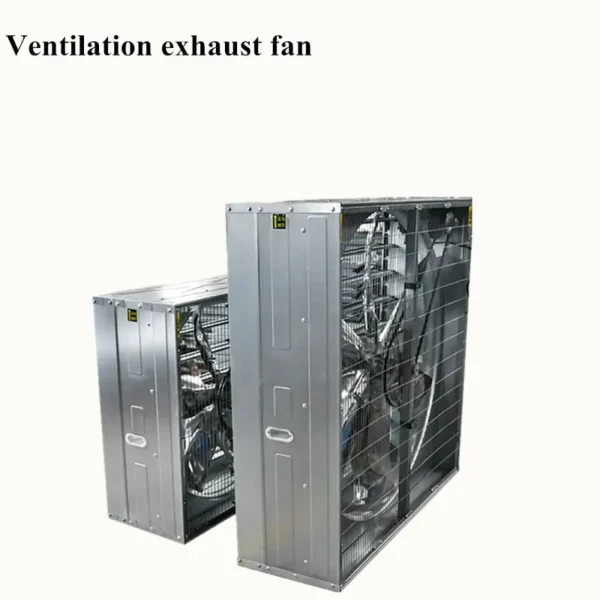

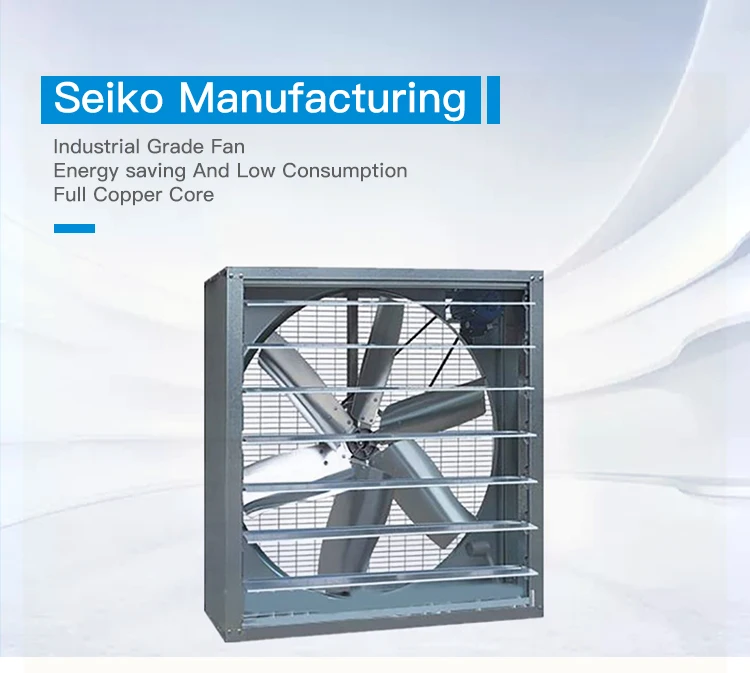

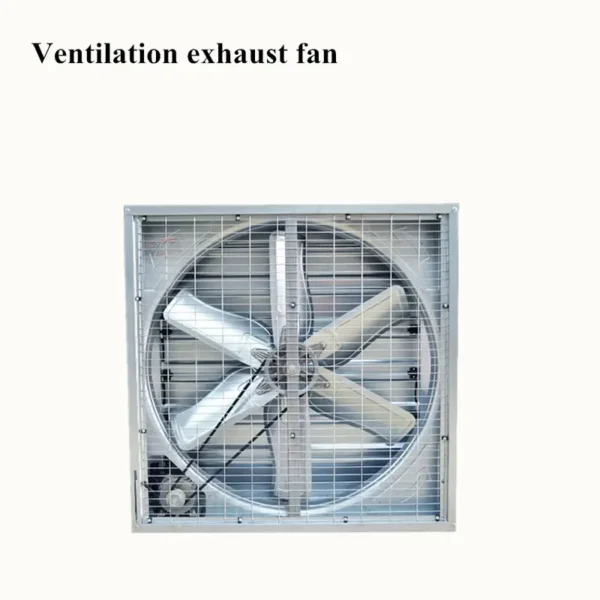

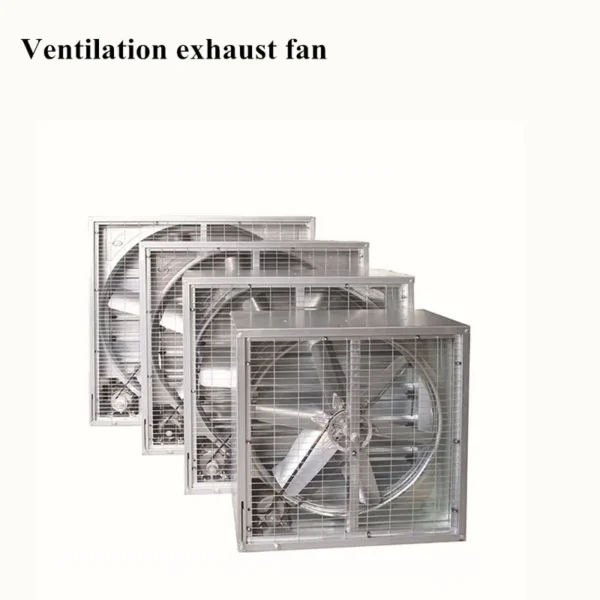

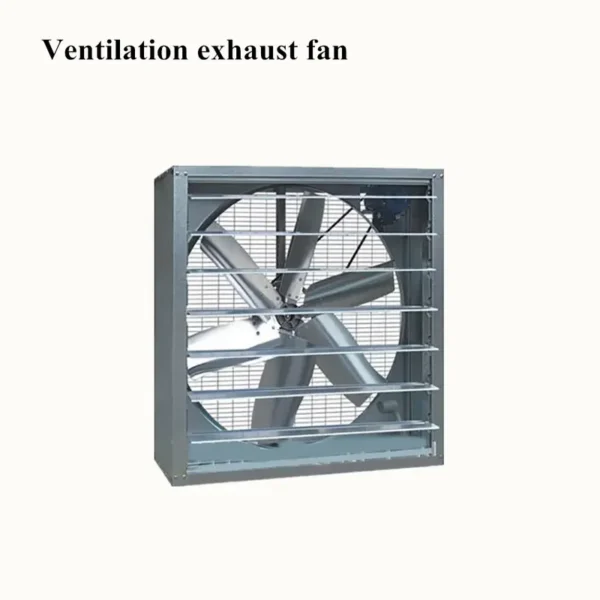

Key Features of This Shutter Poultry Exhaust Fan
- Model Number: SP-F-1220
- Power Source: Electric
- Voltage: 380V
- Blade Material: Stainless Steel
- Material: Stainless Steel
- Speed: 1350RPM
Technical Specifications
| Voltage | 380V |
|---|---|
| Speed | 1350RPM |
| Type | Wall-Mounted Axial Fan |
| Blade Material | Stainless Steel |
| Mounting Type | Wall Fan |
| Bearing Type | Ball Bearing |
| Power Source | Electric |
| Warranty | 1 Year |
| After-Sales Service Provided | Online support |
| Customized Support | OEM, ODM |
| Place Of Origin | Zhejiang, China |
| Brand Name | LARISSA |
| Model Number | SP-F-1220 |
| Product Name | Outdoor shutter 3 phase 48 inches poultry exhaust fan |
| Material | Stainless Steel |
| Frequency | 50HZ |
| Size | 12000*1200*400 |
| Application | greenhouses,Factory,workshop |
| Pressure | 160Pa |
| Noise | 65dB(A) |
| Effective Area | 800-100㎡ |
| Usage | Industry Greenhouse |
| Selling Units | Single item |
| Single Package Size | 110X110X40 cm |
| Single Gross Weight | 10.0 kg |
Product Details
Portable Explosion Proof Axial Flow Exhaust Ventilation Blower Fan
| NO. | Drive | Blades Diameter mm | Air Flow m³/h | Watts w | Noise Decibles dB | Power Parameter | SIZE (L*W*H) mm |
| SP-F-680 | Direct | 500 | 4000 | 200 | 54 | 220V/50HZ 380V/50HZ | 680*680*370 |
| SP-F-800 | Belt | 580 | 8000 | 370 | 65 | 220V/50HZ 380V/50HZ | 800*800*370 |
| SP-F-900 | Belt | 790 | 28000 | 370 | 55 | 220V/50HZ 380V/50HZ | 900*900*370 |
| SP-F-1050 | Belt | 950 | 32000 | 550 | 60 | 220V 50HZ 380V/50HZ | 1060*1060*400 |
| SP-F-1220 | Belt | 1100 | 37000 | 750 | 65 | 220V/50HZ 380V/50HZ | 1200*1200*400 |
| SP-F-1380 | Belt | 1200 | 44500 | 1100 | 72 | 220V/50HZ 380V/50HZ | 1380*1380*400 |
| SP-F-1530 | Belt | 1400 | 55000 | 1500 | 80 | 220V/50HZ 380V/50HZ | 1530*1530*400 |
Ordering and Pricing
- Minimum order quantity: 1 set
- Volume pricing:
- 1+ set: US $165 / set
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this shutter poultry exhaust fan?
The standard minimum order quantity is 1 set. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.
Can the shutter poultry exhaust fan be supplied for my local voltage?
The standard configuration is 380V. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
About the Manufacturer
This product is produced by Zhejiang Larissa Mechanical Electric Technology Co., Ltd., based in China. The company 9 years as a verified Alibaba.com supplier, operates its own manufacturing, passed third-party supplier assessment. Browse the full Zhejiang Larissa Mechanical Electric Technology Co., Ltd. range on HVACR Nexus.
