Key specification for this side channel air blower: max air flow 210(m3/h), 255(m3/h), power source Electric. Everything below is reproduced from the factory data sheet. Made by Taizhou Rexchip Mechanical And Electrical Co., Ltd. (10 years on the platform, typical reply ≤2h). Send your target quantity and destination for a firm quotation with current lead times.
Key Features of This Side Channel Air Blower
- Model Number: 2HB510H16
- Power Source: Electric
- Battery Capacity: Electric
- Max Air Flow: 210(m3/h), 255(m3/h)
- Airflow: 210(m3/h), 255(m3/h)
- Material: Aluminum Alloy
Technical Specifications
| Grade | Industrial |
|---|---|
| Application | Industrial |
| Function | blower/vacuum |
| Power Source | Electric |
| Max Air Flow | 210(m3/h), 255(m3/h) |
| Max Air Speed | 210(m3/h), 255(m3/h) |
| Motor Type | Brushless Motor |
| Material | Aluminum Alloy |
| Noise Level | ≤ 75 dB(A) |
| Product Size | 334*314*337 |
| Blower Type | Corded |
| Fuel | Electric |
| Customized Support | OEM |
| Battery Capacity | Electric |
| Warranty | 1 year |
| Place Of Origin | Zhejiang, China |
| Brand Name | REXCHIP |
| Model Number | 2HB510H16 |
| Product Total Weight | 22kg |
| Airflow | 210(m3/h), 255(m3/h) |
| Phase | Three |
| Stage | Single |
| Product Name | Ring Blower |
| Pressure | High |
| Usage | Air Compressor |
| Color | Silver |
| Selling Units | Single item |
| Single Package Size | 36.5X39X39.4 cm |
| Single Gross Weight | 25.0 kg |
Product Details
We are the manufacturer for side channel blowers(also called regenerative blower, ring blower), located in Wenling, Zhejiang, China, We've been focus and professional on blower manufacturing for 15 years experience .Because of good quality now we have been the biggest supplier of this blower in domestic market, and export big quantity to Europe and America each month. and we help lots of customers to find the most suitable blower for their equipment.
Specification
| Model | Stage | Frequency | Power | Voltage | Current | Airflow | Vaccum | Compress | Noise | Weight | |
| Hz | kW | V | A | m3/h | mbar | mbar | dB(A) | kg | |||
| 2HB 510 H16 | Single | 50 | 1.30 | 200-240Δ | 345-415Y | 6.6Δ/3.8Y | 210 | -170 | 170 | 64 | 22 |
| 60 | 1.50 | 220-275Δ | 380-480Y | 6.9Δ/4.0Y | 255 | -180 | 190 | 70 | |||
The advantages of Rexchip blowers:
1. 100% oil free, Insulation class is F, Protection class is IP55.
2. Dual frequency 50HZ and 60HZ are available
3. Made of die cast aluminum ADC12.
4. Dual usage: compressor and vacuum (suction and blow).
5. Virtually maintenance free, with sealed long life bearings.
6. Smart design and low noise
7. ATEX explosion proof motor is available for all the blowers.
8. IE2 and IE3 motor are available for some blowers.
9. Good quality and competitive prices.
10. Quick delivery date.
Our blowers are widely used in the following applications
1. Aquaculture (fish and prawn pong aeration)
2. Waste water treatment, sewage treatment system.
3. Pneumatic conveying systems.
4.Pharmaceutical machinery
5.Garment machinery
6.Wood working machinery
7.Plastic machinery
8.Printing machinery
9.Textile machinery
10.Packaging machinery
11.Clay bricks for manufacturing
12.Paper processing.
13. Industrial cleaning machinery
14. Air knives
15. Dental suction equipment

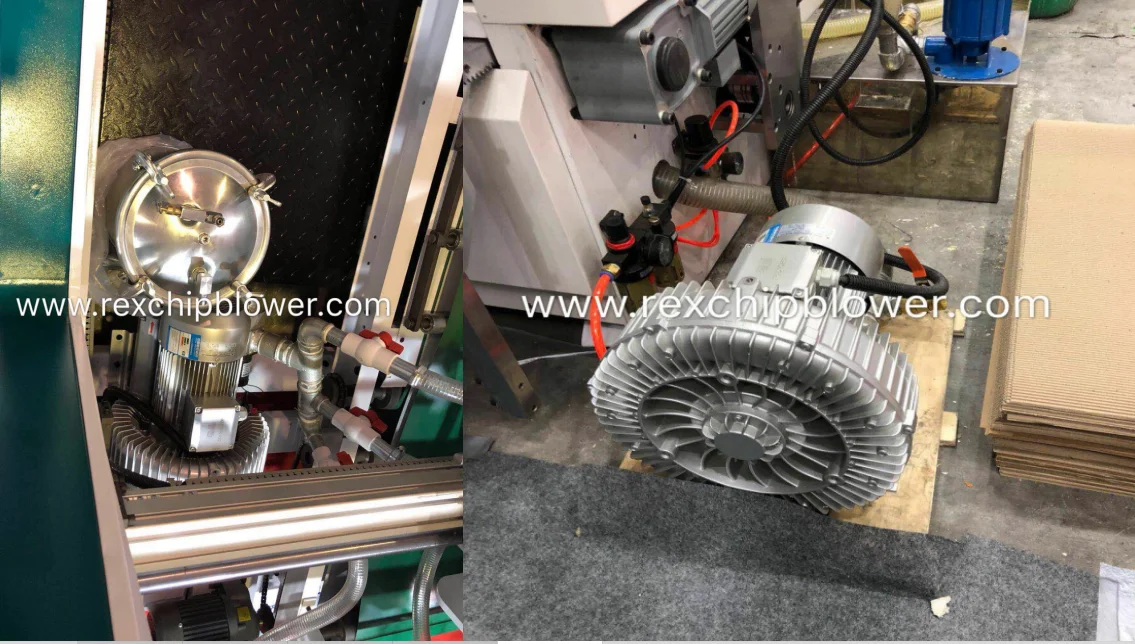

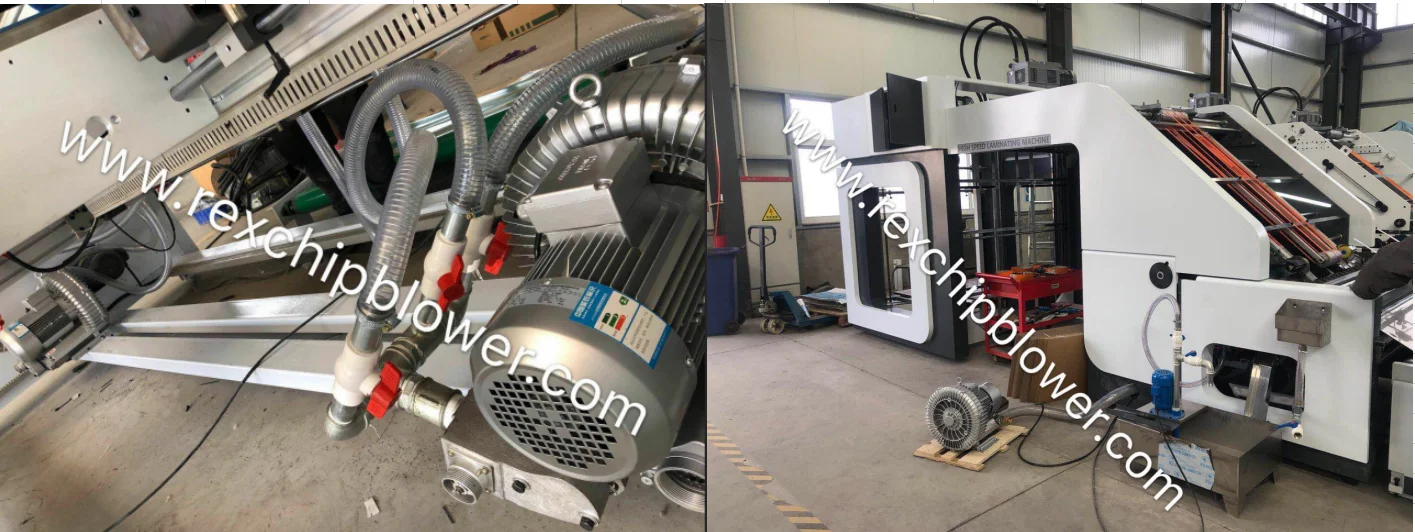

Application scenarios:
Our certification: (CE, ISO & CCC)
Our exhibition:

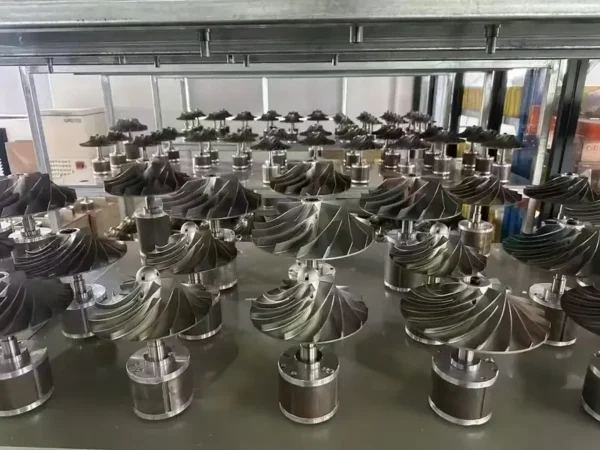

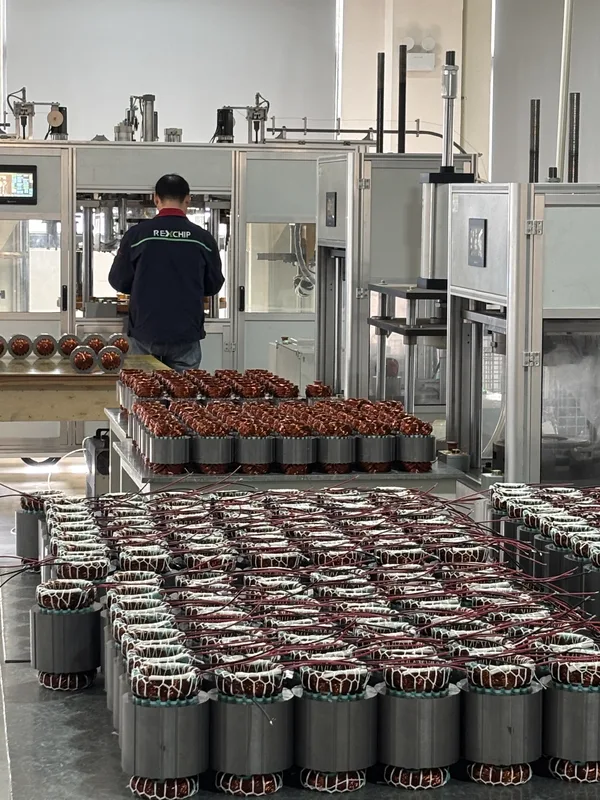

Our workshop
The instruction for Rexchip blowers:
The team of Rexchip has focused on this kind of blower for more than 15 years. We only produce side channel blowers, it's also called ring blower, regenerative blower, air blower, vacuum pump etc.. We also supply belt drive blowers and all the parts for this kind of blower. The range of the power for our blowers is from 0.12kw to 30kw.
Each production procedure is operated in our own workshop, tooling making, die casting, stamping, high precision machining, assembling and automatic spraying, so we could control the quality, cost and delivery date better.
Please do not hesitate to consult for free if you have any questions
Ordering and Pricing
- Minimum order quantity: 1 piece
- Volume pricing:
- 1–49 piece: US $142 / piece
- 50+ piece: US $131 / piece
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this side channel air blower?
The standard minimum order quantity is 1 piece. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 1 year warranty. Spare parts and technical support remain available after the warranty period.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
About the Manufacturer
This product is produced by Taizhou Rexchip Mechanical And Electrical Co., Ltd., based in China. The company 10 years as a verified Alibaba.com supplier, operates its own manufacturing. Browse the full Taizhou Rexchip Mechanical And Electrical Co., Ltd. range on HVACR Nexus.
