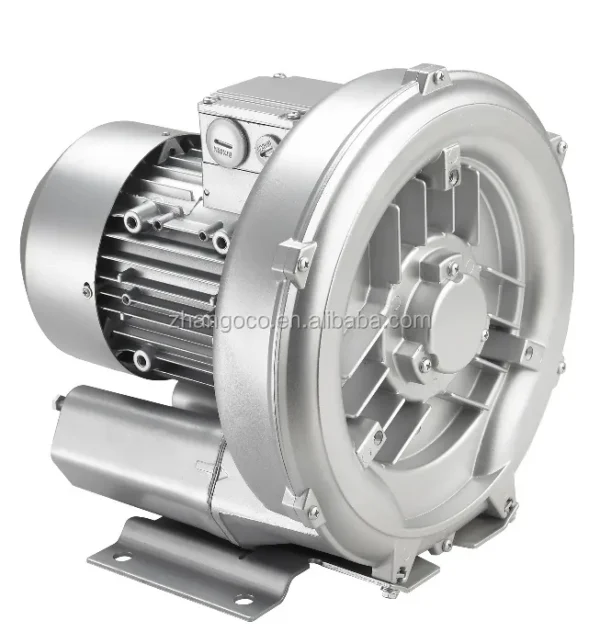

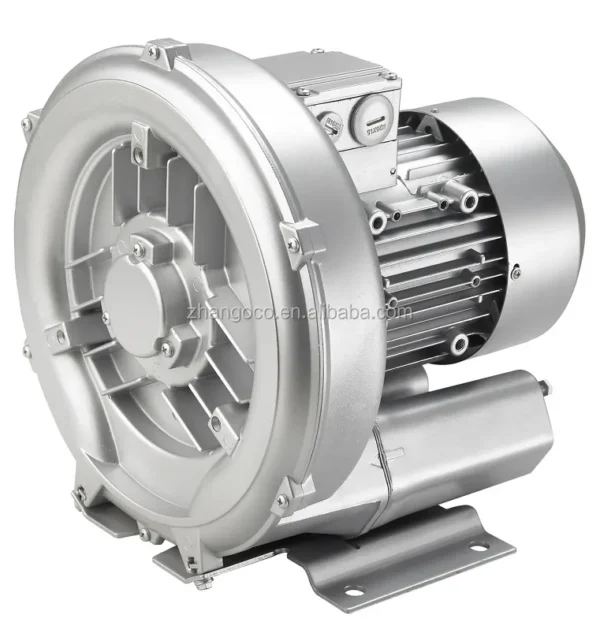

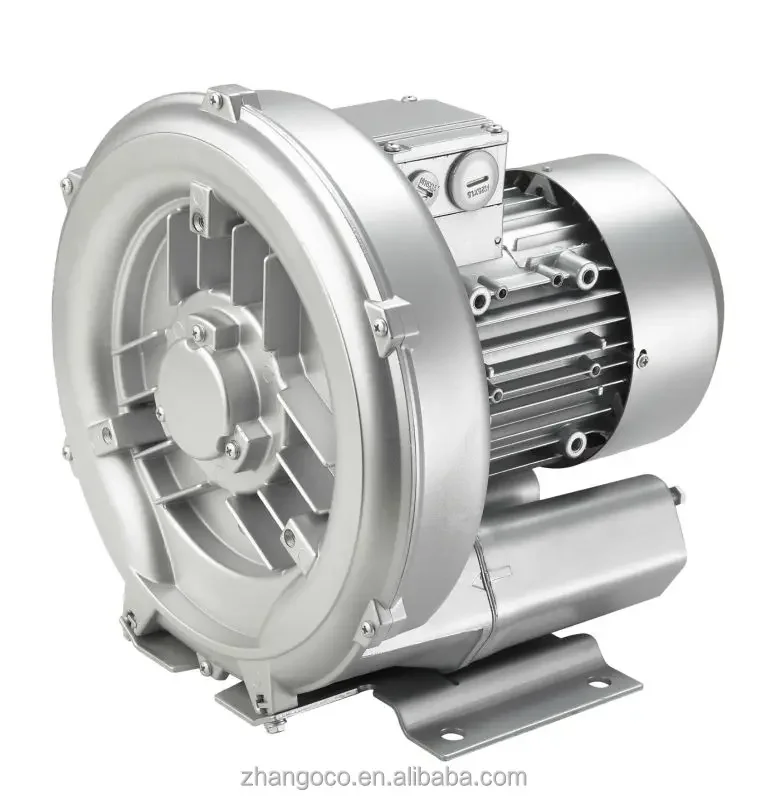

Side channel blower — rated voltage 200-240/345-415Y, power source Electric Blower. The complete factory specification follows. Made by Shanghai Zhangoco Electric Appliances Co., Ltd. (13 years on the platform, typical reply ≤13h). Quantity and destination market determine the final price — tell us both for a firm quote.
Key Features of This Side Channel Blower
- Model Number: 2RB 210-H16
- Power Source: Electric Blower
- Rated Voltage: 200-240/345-415Y
- Material: Aluminum Alloy
- Warranty: One year
- Place Of Origin: Zhejiang, China
Technical Specifications
| Application | Air Blower |
|---|---|
| Power Source | Electric Blower |
| Rated Voltage | 200-240/345-415Y |
| Pressure | High Pressure |
| Warranty | One year |
| Customized Support | OEM |
| Place Of Origin | Zhejiang, China |
| Brand Name | ZHANGOCO |
| Model Number | 2RB 210-H16 |
| Product Name | Side channel blower |
| Material | Aluminum Alloy |
| Motor | Copper Wire |
| Model | 2RB 220-H26 |
| MOQ | 1 Piece |
| Max Flow | 88/103m3/h |
| Frequency | 50Hz /60 Hz |
| OEM | Availiable |
| Selling Units | Single item |
| Single Package Size | 25X26X25 cm |
| Single Gross Weight | 28.0 kg |

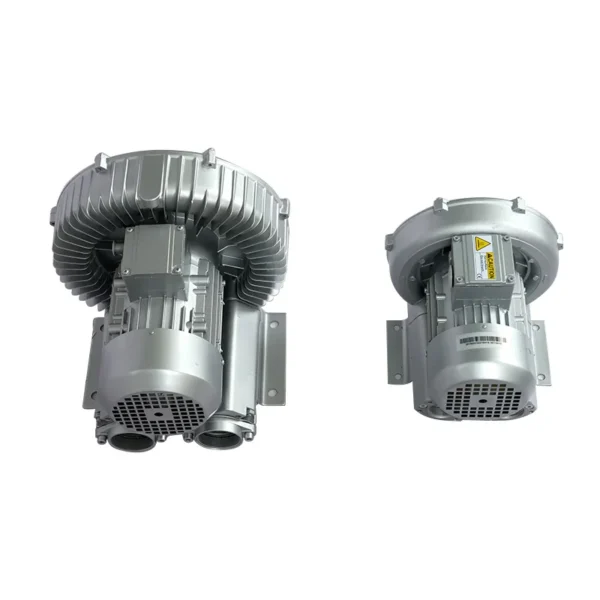

Product Details
Air pumps/ Air Blower/Side Channel blower / Ring Blower/ Regenerative Blower /Vacuum Pump
Advantage:
- CE approved, IP54, insulation class F air suction pump
- One year warranty time air suction pump
- Maintenance free air suction pump
- Handles vacuum or pressure applications air suction pump
- Operate quietly air suction pump
- Cooler running outboard bearing
- Increase service life-24*7, 10000 hours air suction pump
- Ideal alternative to standard rotary
- Oil Free air suction pump
- Compact light weight design air suction pump
- Various applications: air suction pump, vacuum pump for milking machine, air pump for pond, fish farms, water treatment, vacuum conveying, etc
Certification:
Detailed specifiation:
| 2RB 3 Series Three Phase Ring Blower | |||||||||||
| No. | Model | Single or double grade | Frequency | Rating | Output voltage | Rating | Max. | Max.Inlet | Max.Outlet | Noise | Weight |
| Power | Current | Air flow | Pressure | Pressure | |||||||
| HZ | KW | V | A | m3/h | mbar | mbar | dB(A) | Kg | |||
| 3 | 2RB 210 H06 | Single | 50 | 0.25 | 200-240Δ 345-415Y | 2.1Δ/1.2Y | 80 | -100 | 110 | 53 | 8 |
| 60 | 0.29 | 220-275Δ 380-480Y | 2.0Δ/1.15Y | 98 | -110 | 110 | 56 | ||||
| 4 | ·2RB 210 H16 | Single | 50 | 0.4 | 200-240Δ 345-415Y | 2.6Δ/1.5Y | 80 | -120 | 130 | 53 | 10 |
| 60 | 0.5 | 220-275Δ 380-480Y | 2.6Δ/1.5Y | 98 | -150 | 160 | 56 | ||||
| 5 | 2RB 230 H06 | Single | 50 | 0.25 | 200-240Δ 345-415Y | 2.1Δ/1.2Y | 105 | -70 | 80 | 54 | 10 |
| 60 | 0.29 | 220-275Δ 380-480Y | 1.7Δ/1.0Y | 120 | -80 | 80 | 57 | ||||
| 6 | 2RB 230 H16 | Single | 50 | 0.4 | 200-240Δ 345-415Y | 2.6Δ/1.5Y | 105 | -120 | 130 | 54 | 11 |
| 60 | 0.5 | 220-275Δ 380-480Y | 2.6Δ/1.5Y | 120 | -150 | 150 | 57 | ||||
| 7 | 2RB 230 H26 | Single | 50 | 0.7 | 200-240Δ 345-415Y | 3.8Δ/2.2Y | 105 | -120 | 130 | 54 | 12 |
| 60 | 0.83 | 220-275Δ 380-480Y | 3.75Δ/2.15Y | 120 | -150 | 180 | 57 | ||||

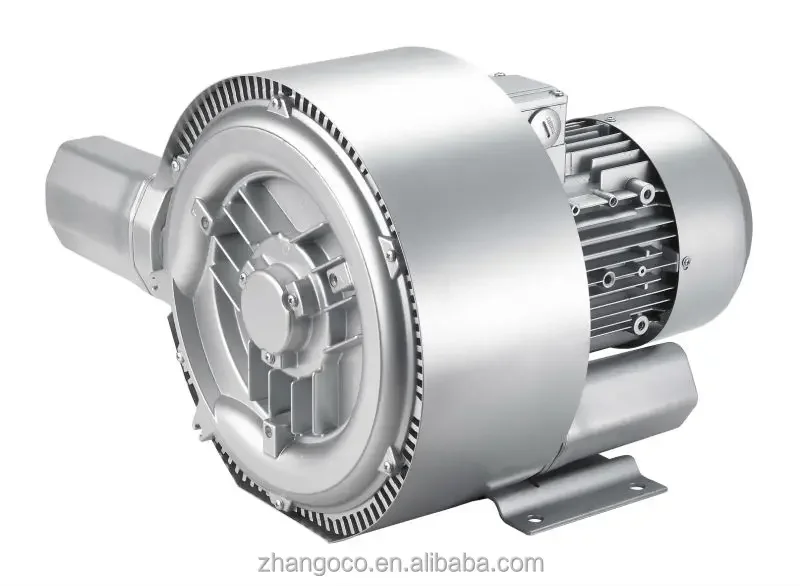

| 8 | ·2RB 220 H26 | Double | 50 | 0.7 | 200-240Δ 345-415Y | 3.8Δ/2.2Y | 88 | -210 | 240 | 55 | 14 |
| 60 | 0.83 | 220-275Δ 380-480Y | 3.75Δ/2.15Y | 103 | -250 | 250 | 61 | ||||
For Right Models of Air Suction Pumps and Vacuum Pump Prices, Pls Feel Free to Contact with Us By E-mail!

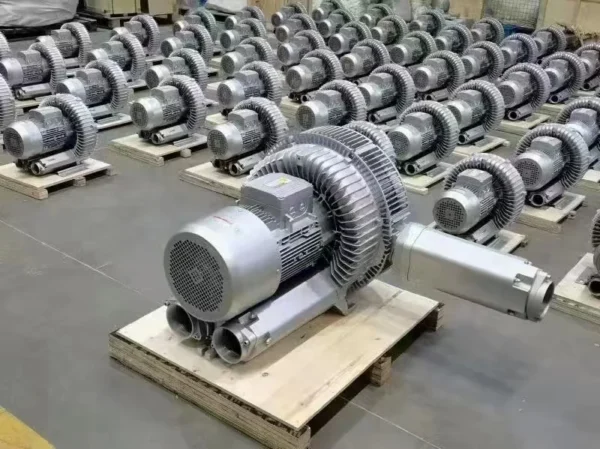

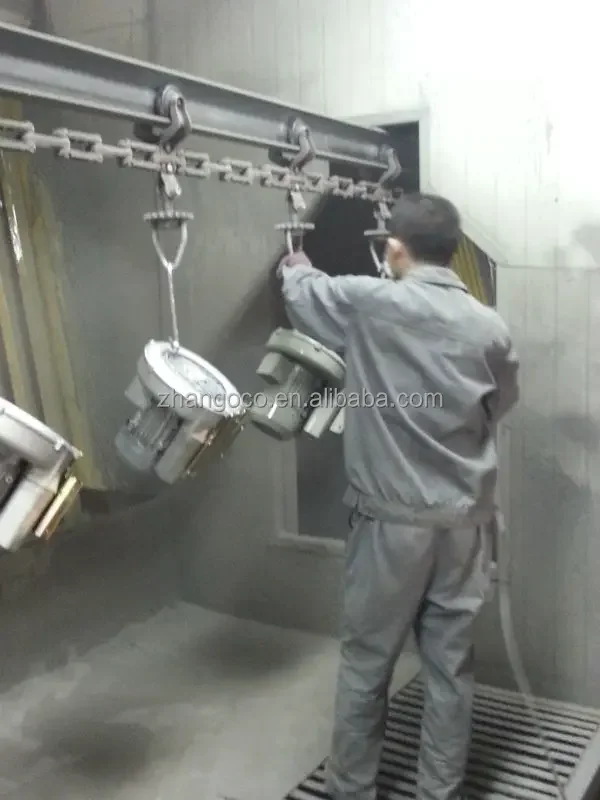

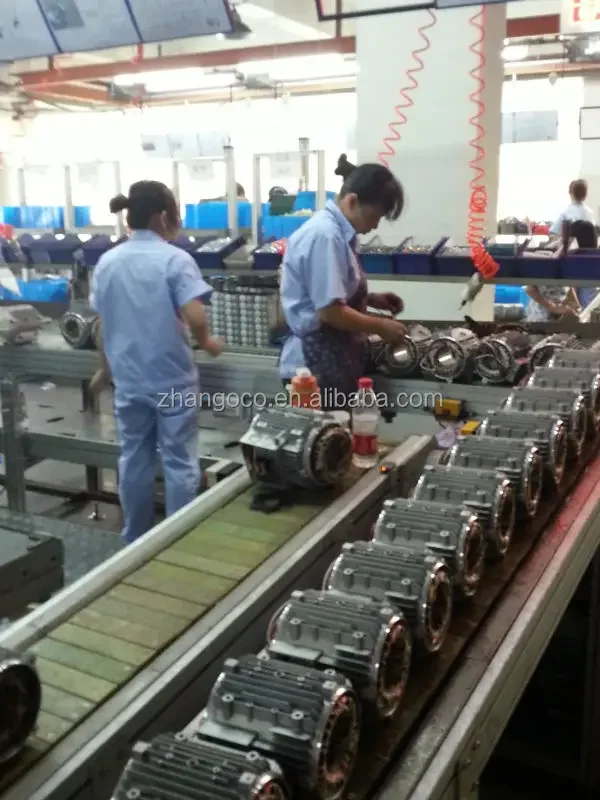

Production Line:

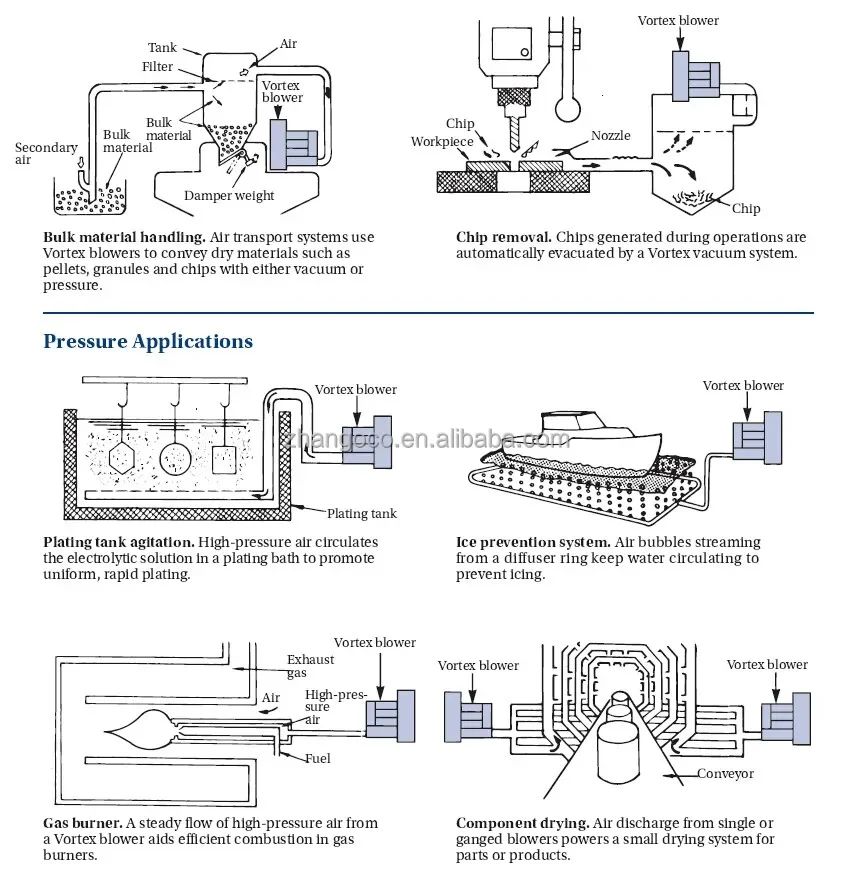

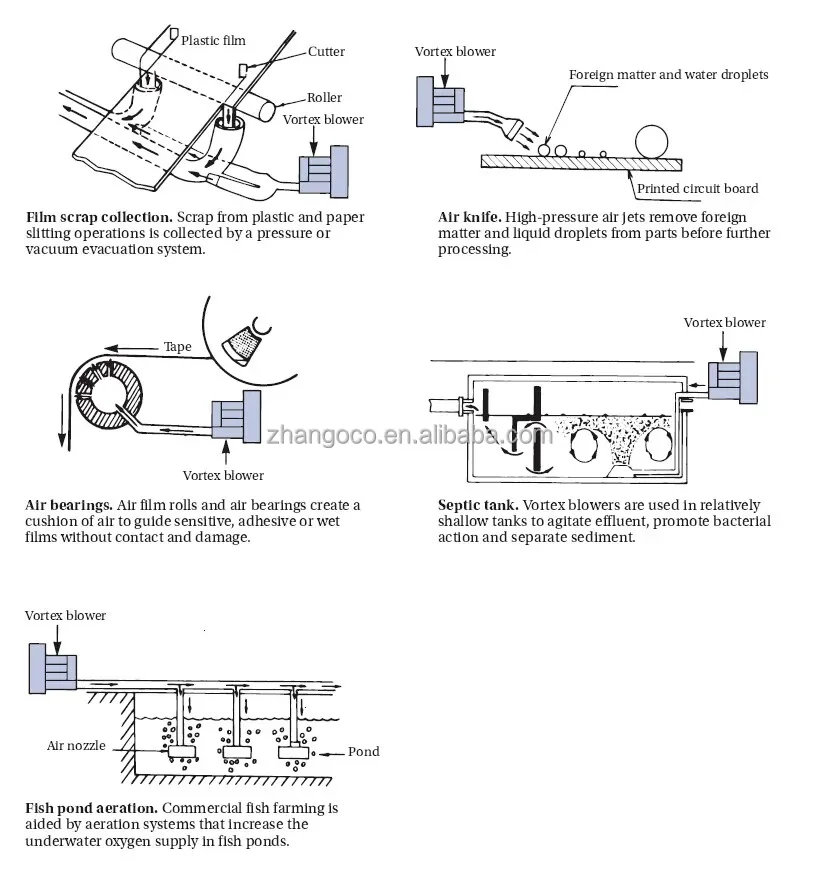

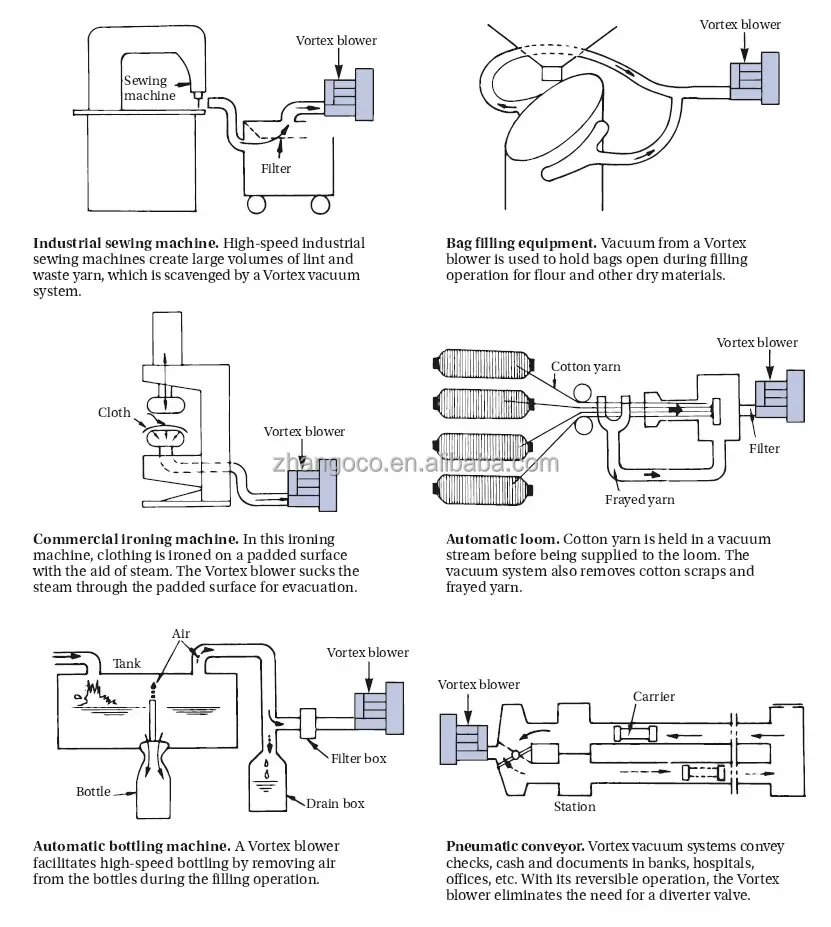

Application:

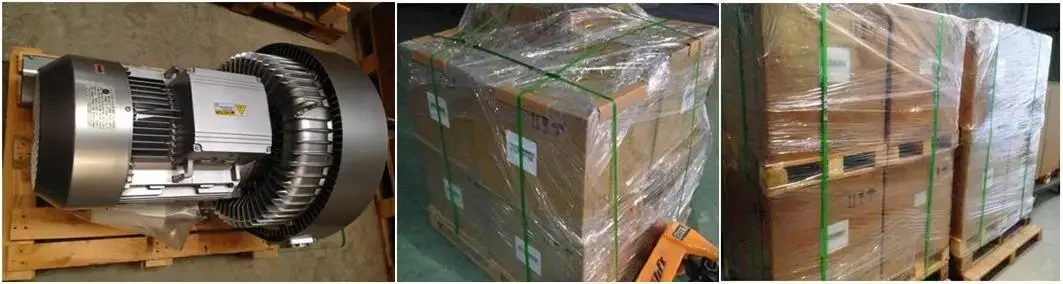

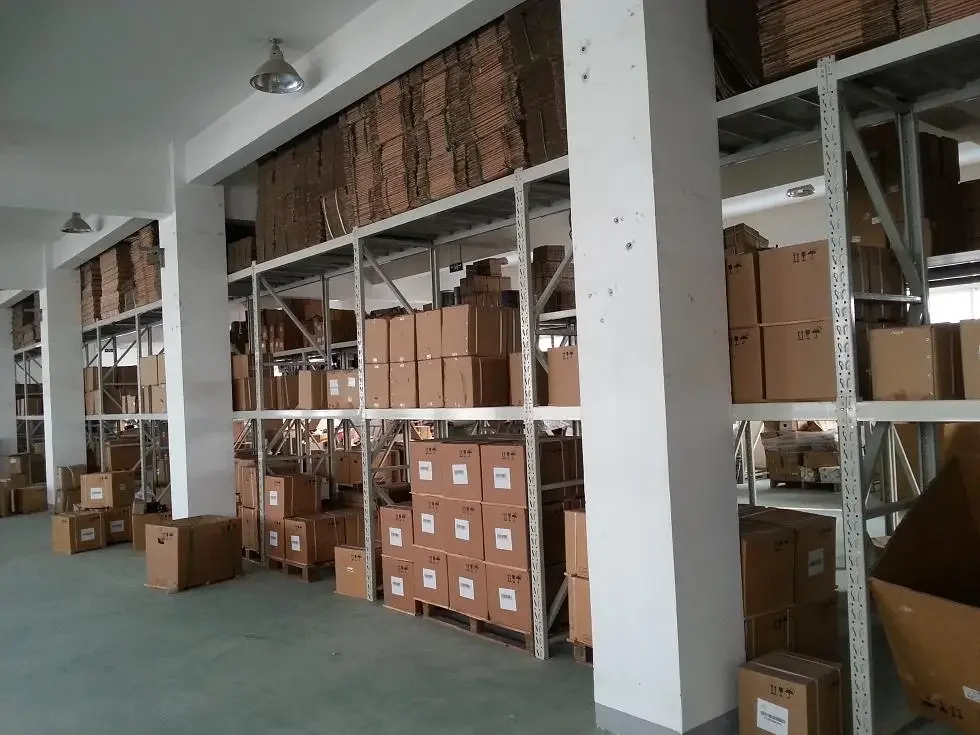

Packing & Storage:

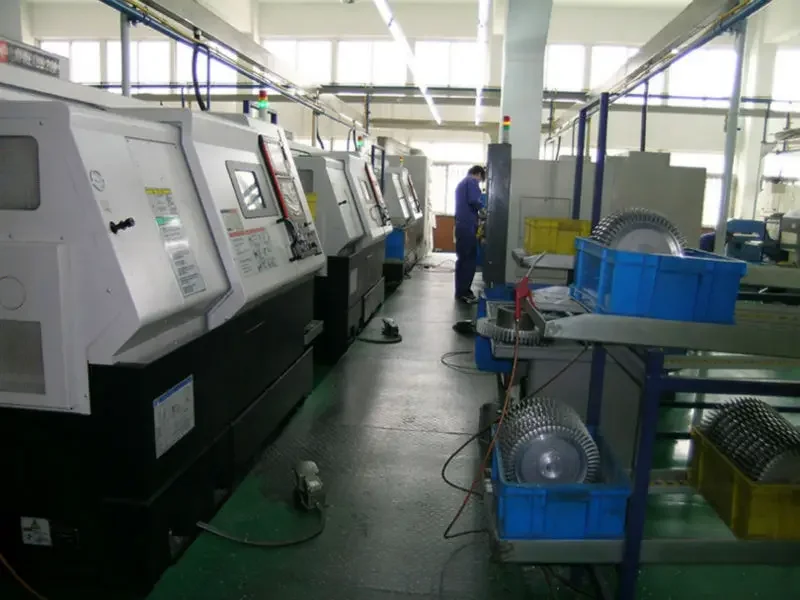

Workshop:
1.Founded in 2004
2.Mainly engaged in air fluid equipment (compression, vacuum)
3.Three plants (covering the total floor area of more than 108,000m2) in Zhejiang,China.
4.Strong R&D technologies and advanced processing equipment and more than 300 pieces of production equipment of various types, including more than 10 die-casting machines, more than 80 pieces of processing equipment imported from Germany and Japan, as well as more than 70 precision inspection instruments, inspection equipment and testing equipment of various types.
5.Approved CE.
6.Mainly customer is from Germany, UK,Serbia, Tunisia, Sweden, Italy,etc.
In order to recommend the suitable product to you, please help confirm the following information:
1.The application of the blower.
2.The technical parameter requirement.
3.Order quantity
Ordering and Pricing
- Minimum order quantity: 1 piece
- Volume pricing:
- 1–11 piece: US $85 / piece
- 12+ piece: US $70 / piece
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this side channel blower?
The standard minimum order quantity is 1 piece. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a One year warranty. Spare parts and technical support remain available after the warranty period.
Can the side channel blower be supplied for my local voltage?
The standard configuration is 200-240/345-415Y. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
About the Manufacturer
This product is produced by Shanghai Zhangoco Electric Appliances Co., Ltd., based in China. The company 13 years as a verified Alibaba.com supplier, operates its own manufacturing. Browse the full Shanghai Zhangoco Electric Appliances Co., Ltd. range on HVACR Nexus.
