Key specification for this speed air handling unit: voltage-phase-hz 208/230V / 1Ph / 60Hz, cooling capacity 24000-60000Btu. Everything below is reproduced from the factory data sheet. Made by Poseidon Intelligent Technology Co., Ltd. Zhuhai (1 year on the platform, typical reply ≤3h). Send your target quantity and destination for a firm quotation with current lead times.

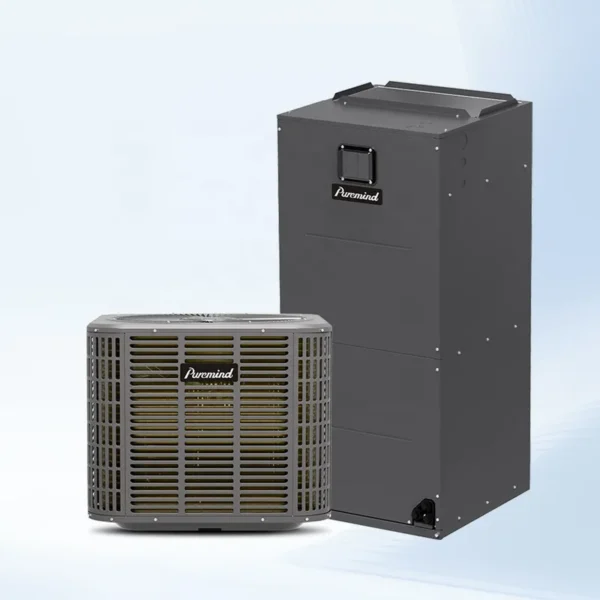

Key Features of This Speed Air Handling Unit
- Model Number: PMDT50W6-18BCH
- Voltage-Phase-Hz: 208/230V / 1Ph / 60Hz
- Cooling Capacity: 24000-60000Btu
- Indoor Fan Air Flow: 850-1700 CFM
- Refrigerant: R-32
- Indoor Noise Level: 57-62 dB(A)
Technical Specifications
| Type | Air Handling Unit |
|---|---|
| Refrigerant | R-32 |
| Mounting Type | Floor Standing |
| Compressor Brand | GMCC, HIGHLY |
| Fan Motors Type | DC |
| Motor Type | DC Motor |
| Filter Type | Regular Filter |
| Application | Hospital, Hotel, Home, School, Plant, Warehouse, Office, Apartment, Mall |
| Key Selling Points | Eco-Friendly, High-Accuracy, Competitive Price, Easy To Operate, Low Maintenance Cost, Famous Brand Low Voltage Components, Long Service Life, Energy Saving, Low Noise Level, Famous Brand Motor, Famous Brand PLC, Accurate Temperature Control |
| Warranty | 5 year |
| Machinery Test Report | Provided |
| Video Outgoing-Inspection | Provided |
| Core Components | Motor, Compressor |
| Place Of Origin | Guangdong, China |
| Weight (Kg) | 142 |
| Brand Name | Puremind |
| Model Number | PMDT50W6-18BCH |

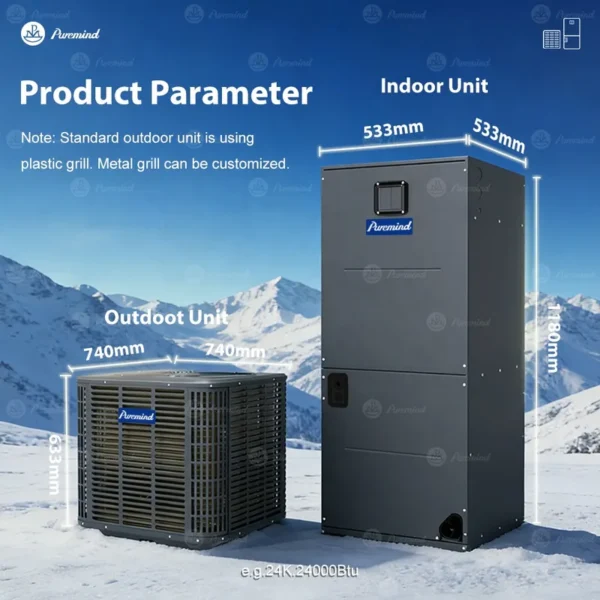

| Dimension(L*W*H) | 533x1180x533mm |
| Certification | ETL / UL / AHRI/RoHS / CE / LVD |
| Voltage-Phase-Hz | 208/230V / 1Ph / 60Hz |
| Function | Cooling Only |
| Cooling Capacity | 24000-60000Btu |
| Indoor Noise Level | 57-62 dB(A) |
| Indoor Fan Air Flow | 850-1700 CFM |
| SEER2 | 16 |
| Compressor Type | Variable Rotary |
| Ambient Temperature Range | -15–52℃/20–27℃ |
| Selling Units | Single item |
| Single Package Size | 146X113X86 cm |
| Single Gross Weight | 172.0 kg |
Ordering and Pricing
- Minimum order quantity: 1 set
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this speed air handling unit?
The standard minimum order quantity is 1 set. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 5 year warranty. Spare parts and technical support remain available after the warranty period.
Which certifications does this speed air handling unit carry?
It is supplied with ETL / UL / AHRI/RoHS / CE / LVD documentation, which covers the requirements of most import markets. Additional test reports can be issued on request.
Can the speed air handling unit be supplied for my local voltage?
The standard configuration is 208/230V / 1Ph / 60Hz. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
About the Manufacturer
This product is produced by Poseidon Intelligent Technology Co., Ltd. Zhuhai, based in China. The company 1 years as a verified Alibaba.com supplier, operates its own manufacturing. Browse the full Poseidon Intelligent Technology Co., Ltd. Zhuhai range on HVACR Nexus.
