Key specification for this split air conditioner: voltage 110-240V, 9000BTU-24000BTU. Everything below is reproduced from the factory data sheet. Made by Ningbo Keycool Electric Appliance Co., Ltd. (9 years on the platform, factory-assessed). Send your target quantity and destination for a firm quotation with current lead times.
Key Features of This Split Air Conditioner
- Model Number: AC-A61
- Power Type: AC
- Power Source: Electric
- Power (W): 2640W-7000W
- Power Supply: 110-220V
- Voltage (V): 110-240V
Technical Specifications
| Type | Split Wall Mounted Air Conditioners |
|---|---|
| Capacity (Btu) | 9000BTU-24000BTU |
| Cooling/Heating | Cooling/Heating |
| Application | Hotel, Household |
| EER | 2.8-2.9 |
| Fixed Frequency/Variable Frequency | Variable Frequency |
| Power Type | AC |
| Power Source | Electric |
| App-Controlled | Yes |
| Remote Control | Yes |
| Power (W) | 2640W-7000W |
| Warranty | 1 Year |
| After-Sales Service Provided | Free Spare Parts |
| Private Mold | Yes |
| Place Of Origin | Zhejiang, China |
| Voltage (V) | 110-240V |
| Brand Name | OEM |
| Cop | 3.1-3.2 |
| Maximum Airflow Rate | 550-900 m3/h |
| Model Number | AC-A61 |
| Keyword | air conditioner 12000 |
| Feature | LED Display |
| Refrigerant | R22 / R410a / R32 |
| Air Flow Volume | 550-900 m3/h |
| Noise Level (Indoor) | 18-450dB(A) |
| Noise Level (Outdoor) | 48-58 dB(A) |
| Piping Size | 6.00mm (liquid) /12mm (gas) |
| Power Supply | 110-220V |
| HS Code | 8415102100 |
| Packaging Details | Wholesale Price 12000Btu 1Ton 1.5P T3 Tropical Split Air Conditioner 12000 Double Paper Standard for Export Packing Carton |
| Port Of Dispatch | Ningbo |
| Selling Units | Single item |
| Supply Ability | 10000 pieces per Day split air conditioner |
Product Details

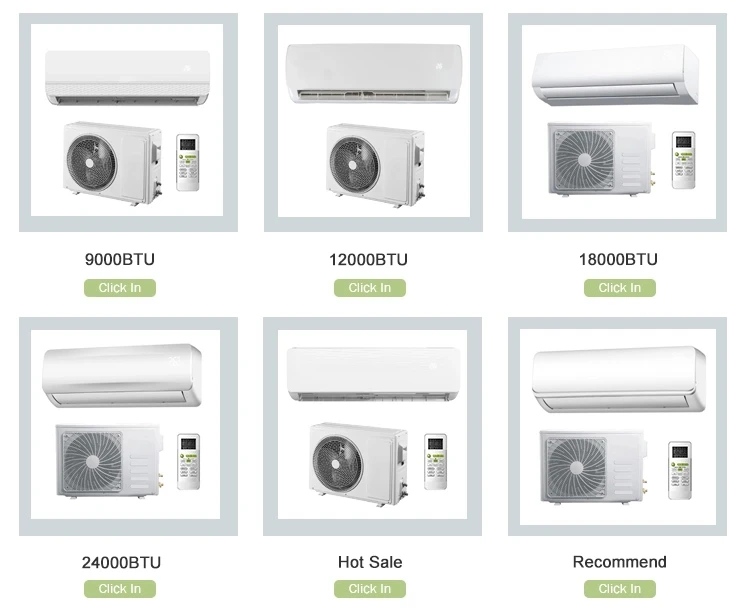

Capacity | 9000Btu;12000Btu;18000Btu;24000Btu;30000Btu |
Capacity | Heat & Cool ; Cooling only |
Power saving | Inveter Air Conditioner;No Inveter Air Conditioner |
Temperature | T1 (38℃-43℃);T3 (43℃-53℃) |
Temperature display | Digital display;Internal transparent display |
Air Flow | 2D;4D |
Color | White |
Noise level | 18dB-45dB |
Voltage | 220V/50Hz |
EER | 2.7~3.2 |
COP | 3.0~3.5 |
Air Flow Volume | 500 m³/h ~ 900 m³/h |
Certificate | CB;CE;SASO; ETL ect. |
Logo | Custom Logo / OEM |
WIFI | Available |
Remote Control | Available |
Auto Clean | Available |
Compressor | RECHI;GMCC;SUMSUNG;HIGHLY etc |
refrigerant | R22 / R410 / R32 |
Copper Pipe | 3m / 4m / 5m |
Bracket | Provide internal machine support, external machine support need additional purchase |
MOQ | 1*40HQ (For each model) |
Ordering and Pricing
- Minimum order quantity: 152 set
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this split air conditioner?
The standard minimum order quantity is 152 set. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.
Can the split air conditioner be supplied for my local voltage?
The standard configuration is 110-240V. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
About the Manufacturer
This product is produced by Ningbo Keycool Electric Appliance Co., Ltd., based in China. The company 9 years as a verified Alibaba.com supplier, operates its own manufacturing, passed third-party supplier assessment. Browse the full Ningbo Keycool Electric Appliance Co., Ltd. range on HVACR Nexus.
