The split air conditioner listed here carries power supply 208-230V / 50-60Hz / 1ph, capacity 9000-42000, documented exactly as the manufacturer publishes it. For a binding price and lead time, send the volume you need and where it ships to.
Key Features of This Split Air Conditioner
- Power Type: AC
- Power Source: Electric
- Power Supply: 208-230V / 50-60Hz / 1ph
- Capacity (Btu): 9000-42000
- Cooling Capacity: 18-42 kW
- Heating Capacity: 18-42 kW
Technical Specifications
| Application | Hotel, Commercial, Household, Outdoor |
|---|---|
| Capacity (Btu) | 9000-42000 |
| Cooling/Heating | Cooling/Heating |
| Refrigerant | R410A |
| Energy Efficiency Rating | 20+ SEER |
| Fixed Frequency/Variable Frequency | Variable Frequency |
| Recommended Room Size（Square Feet） | 1000 |
| Eer | 4.1-6 |

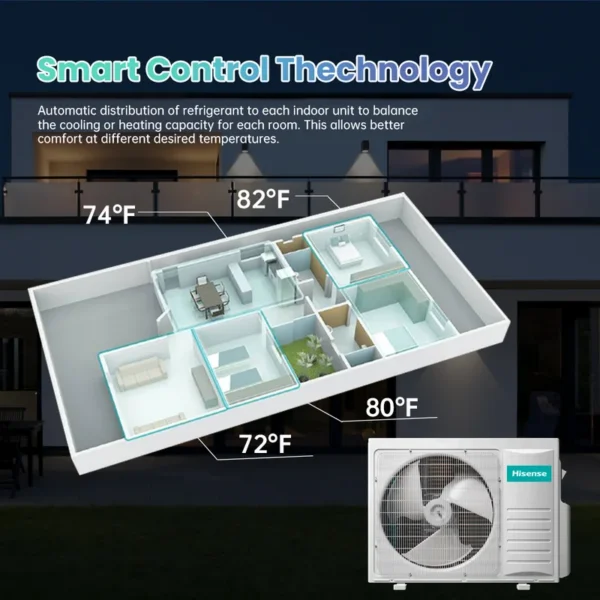

| Feature | Smart Control Logic |
| Warranty | 1 Year |
| After-Sales Service Provided | Free Spare Parts, Return and Replacement |
| Power Type | AC |
| App-Controlled | Yes |
| Remote Control | Yes |
| Timer | Yes |
| Operating Language | English |
| Private Mold | No |
| Power Source | Electric |
| Packaging Types | Corrugated Box |
| Place Of Origin | Guangdong, China |
| Brand Name | Hisense |
| Maximum Airflow Rate | 1200 m3/h(42377.60ft3/h) |

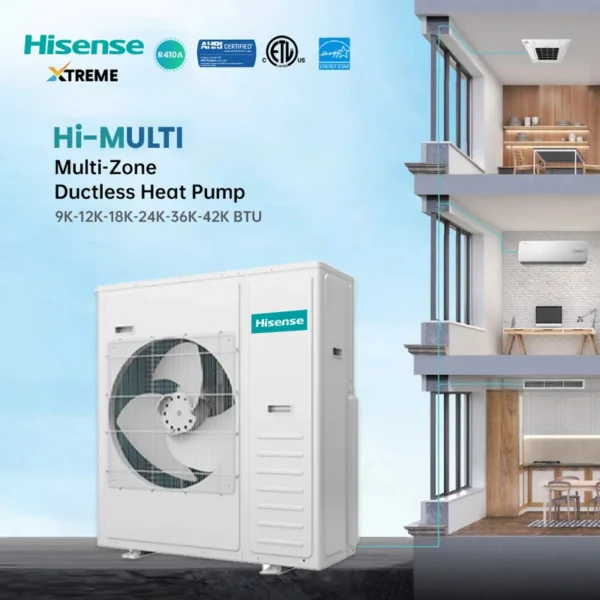

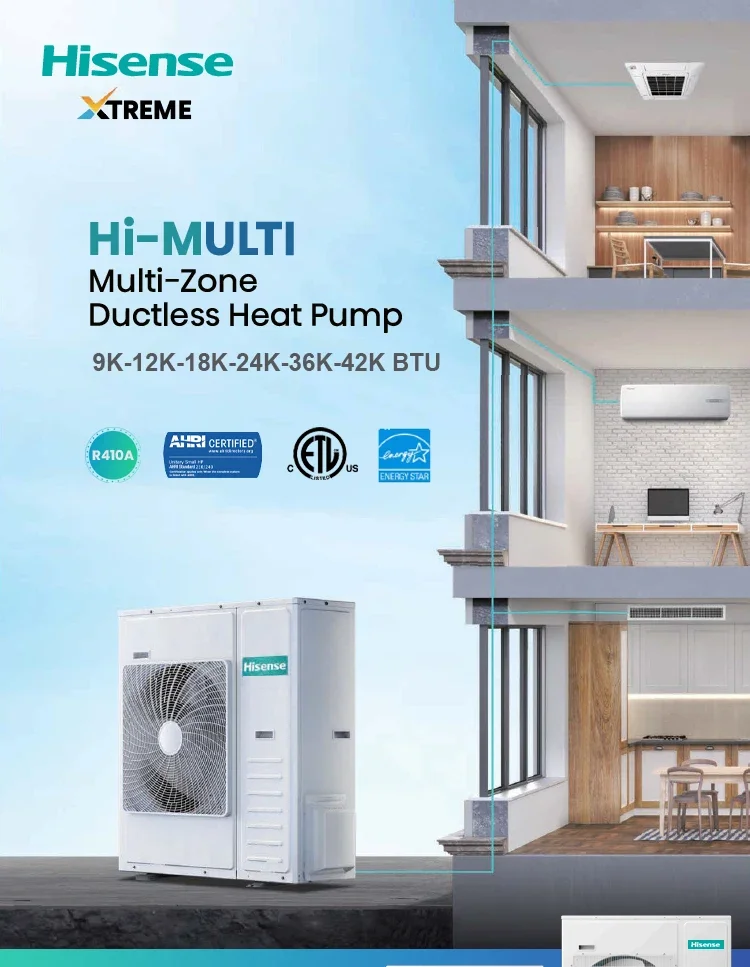

| Product Name | Hisense Multi-zone split type air conditioner |
| Cooling Capacity | 18-42 kW |
| Heating Capacity | 18-42 kW |
| NOISE LEVEL | 55 DB |
| Function | CoolingHeating |
| Use | Room |
| Certification | AHRI, ETL, NEEP |
| Power Supply | 208-230V / 50-60Hz / 1ph |
| Selling Units | Single item |
| Single Package Size | XX cm |
| Single Gross Weight | 0.0 kg |
Product Details
Multi Zone Outdoor | up to 2 indoor units | up to 3 indoor units | up to 4 indoor units | up to 5 indoor units | ||||
Power Supply | V, Hz, Ph | 208-230/50-60/1 | 208-230/50-60/1 | 208-230/50-60/1 | 208-230/50-60/1 | |||
Cooling Capacity (95°F) | Btu/h | 18000 (7500-24000) | 24000 (8000-30200) | 32000 (12000-42000) | 42000 (9000-50000) | |||
Heating Capacity (47°F) | Btu/h | 18000 (5800-28700) | 24000 (5200-37000) | 36000 (8000-52000) | 42000 (9000-52000) | |||
Maximum Hecting Capacity (5 °F) | Btu/h | 18000 | 24000 | 36000 | 42000 | |||
SEER2 | Btu/W.h | 21 | 22 | 21 | 20 | |||
HSPF2 | Btu/W.h | 9.5 | 9.05 | 9 | 8.95 | |||
Compressor | Type | DC Inverter Rotary | ||||||

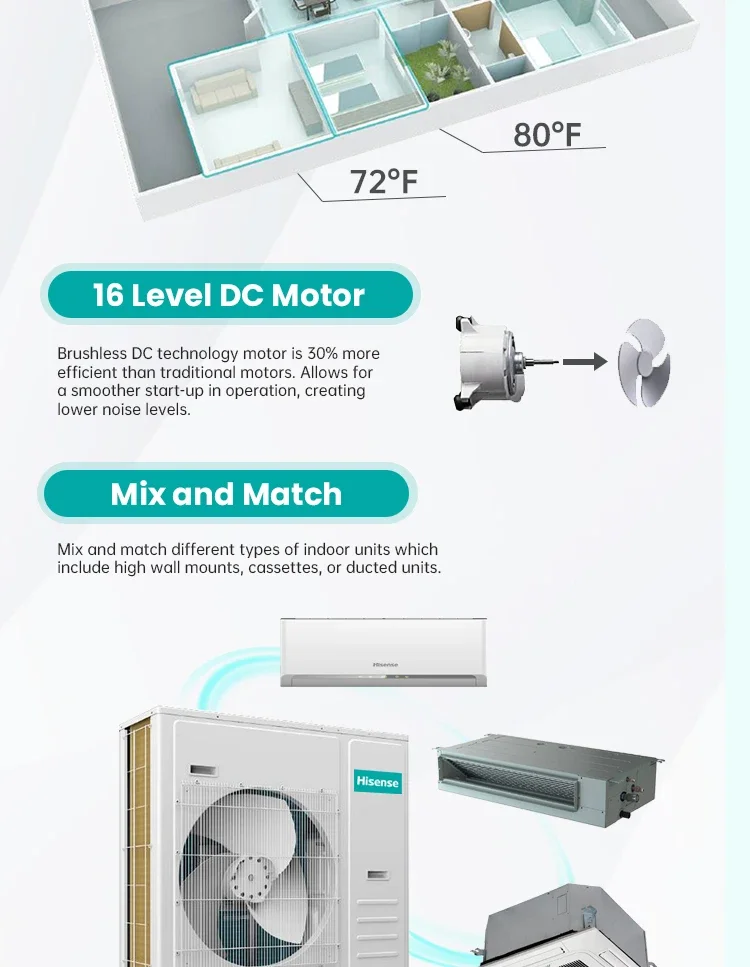

Fan Motor | Type | DC | ||||||
Outdoor Noise Level | dB(A) | 55 | 59 | 59 | 63 | |||
Net Dimensions(WxHxD) | mm | 860x670x310 | 950x840x340 | 950x1050x340 | x340950x1050 | |||
inch | 33-7/8×26-3/8×12-1/4 | 37-3/8x33x13-3/8 | 37-3/8×41-3/8×13-3/8 | 37-3/8-41-3/8×13-3/8 | ||||
Net Weight | kg | 53 | 72 | 85.5 | 90 | |||
lbs | 116.8 | 158.7 | 188.5 | 198.4 | ||||
Package Dimensions(WxHxD) | mm | 990x450x730 | 1110x460x920 | 1110x460x1200 | 1110x460x1200 | |||
inch | 39×17-3/4×28-3/4 | 43-3/4×18-1/8×36-1/4 | 43-3/4×18-1/8×47-1/4 | 43-3/4×18-1/8×47-1/4 | ||||
Gross Weight(WxHxD) | kg | 57 | 77 | 100 | 102 | |||
lbs | 125.6 | 169.5 | 220.5 | 224.5 | ||||
Loading Capacity | 20'/40'/40HQ(set) | 90/186/186 | 52/106/106 | 26/53/106 | 26/53/106 | |||
A: Yes, we always provide our customer with a upgraded OEM quality control solution, also we are able to help marketing your brand better by better product package and displays.
Q: What kind of delivery for the product?
A: We can arrange the shipping by sea or by air.
Q: How is your after-sales service?
A:Our after-sales customer service is online 24 hours a day. If there is a problem with the air conditioner, you can tell us at
the first time. If it can be solved remotely, we can help you at any time. If there is a hardware problem, then we need to report to the factory and send new spare parts to you.
Q:How can I get some samples?
A: We welcome sample order to test and check quality. we can't offer free sample please pay the sample and express fee.
Q: How about the packing?
A:Packed in carton, can customized different logo according to customers'requirements.
Q:How can I trust your company?
A:We are one of the best professional HVAC solution suppliers in China with more than 10years experience, also we are authorized agent for some reputed brands.
Ordering and Pricing
- Minimum order quantity: 1 unit
- Volume pricing:
- 1–19 unit: US $558 / unit
- 20–49 unit: US $538 / unit
- 50–199 unit: US $518 / unit
- 200+ unit: US $499 / unit
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this split air conditioner?
The standard minimum order quantity is 1 unit. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.
Which certifications does this split air conditioner carry?
It is supplied with AHRI, ETL, NEEP documentation, which covers the requirements of most import markets. Additional test reports can be issued on request.
Can the split air conditioner be supplied for my local voltage?
The standard configuration is 208-230V / 50-60Hz / 1ph. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
About the Manufacturer
This product is produced by Moyu Technology Co., Ltd. Zhuhai, based in China. The company 6 years as a verified Alibaba.com supplier, operates its own manufacturing, passed third-party supplier assessment. Browse the full Moyu Technology Co., Ltd. Zhuhai range on HVACR Nexus.
