Key specification for this split air conditioners: power supply 380-415V 3N~50/60Hz, 66 HP. Everything below is reproduced from the factory data sheet. Made by Henan Hualeng Trading Co., Ltd. (2 years on the platform, typical reply ≤4h). For a binding price and lead time, send the volume you need and where it ships to.
Key Features of These Split Air Conditioners

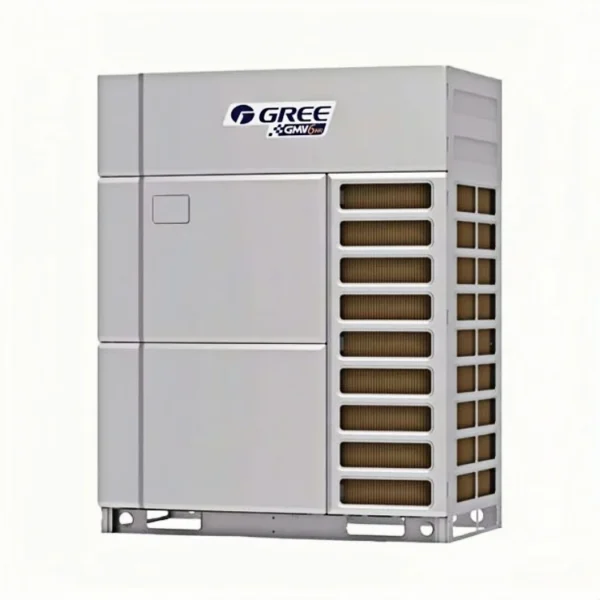

- Model Number: GMV-VQ1845WM/C-X
- Power Supply: 380-415V 3N~50/60Hz
- Capacity Range: 66 HP
- Cooling Capacity: 184.5 kW
- Heating Capacity: 207 kW
- Refrigerant: R-410A
Technical Specifications
| Type | VRF Air Conditioning System |
|---|---|
| Refrigerant | R-410A |
| Mounting Type | Ceiling Mount |
| Compressor Brand | LANDA |
| Fan Motors Type | DC |
| Motor Type | DC Motor |
| Filter Type | High-Efficiency Particulate Air Filter |
| Key Selling Points | Eco-Friendly, Automatic, Competitive Price, Low Maintenance Cost, Easy To Operate, High Safety Level, High Productivity, Long Service Life, Remote Control, Patented Product, Energy Saving, Low Noise Level, Accurate Temperature Control, R410A |
| Warranty | 5 year |
| Machinery Test Report | Provided |
| Video Outgoing-Inspection | Provided |
| Core Components | Motor |
| Place Of Origin | Guangdong, China |
| Weight (Kg) | 1155 |
| Brand Name | Gree |
| Model Number | GMV-VQ1845WM/C-X |
| Dimension(L*W*H) | (1340 x 775 x 1690) x 3 |
| Application | Hotel, Flat, Office, Villa, Shop, Hospital, School, Apartment |
| Power Supply | 380-415V 3N~50/60Hz |
| Capacity Range | 66 HP |
| Cooling Capacity | 184.5 kW |
| Heating Capacity | 207 kW |
| ESP | 110 Pa |
| Min. Circuit Current | 49 + 49 + 49 A |
| Max. Fuse Current | 50 + 50 + 50 A |
| Function | Cooling Heating |
| After-Sales Service Provided | Yes |
| Selling Units | Single item |
| Single Volume | 0 cm³ |
| Single Gross Weight | 0.0 kg |
Product Details
Products Description
VRF is a powerful system for your next HVAC project if you are looking for cost-effective solutions.
In a large open space (such as an office), there may be different demands for cooling and heating due to locations, personal preferences, or special requirements (for example, the living area requires heating while the storage room requires constant cooling). The heat recovery system can set up cooling and heating simultaneously in different areas of the same system based on user demands.
We provide a one-stop service, including VRF drawing design, model selection, installation material calculation, start-up guidance, etc., equipment, and supplying installation material and other parts directly for your project, which makes your VRF projects easier.

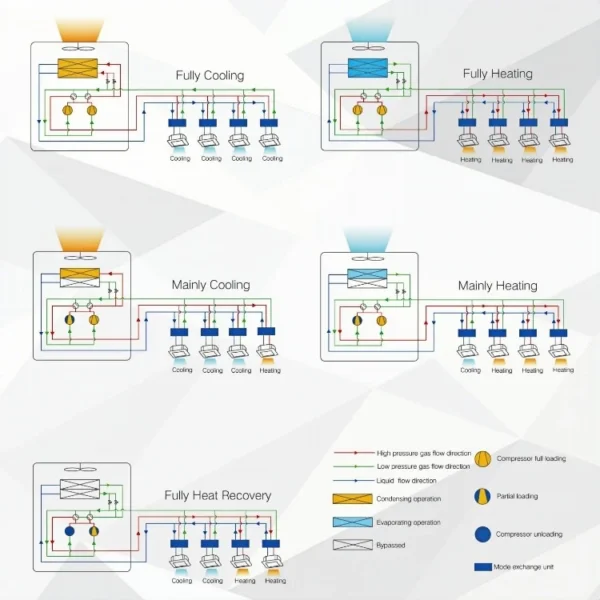

Five Operating Modes.
GMV6 heat recovery system enables multiple operation modes for meeting various needs of users. Among them, mainly cooling, mainly heating and fully heat recovery modes include heat recovery function. Under the heat recovery mode, the system can directly offer the cooling capacity absorbed at the heating side to the cooling side for reducing outdoor unit's capacity output to greatly improve the energy-saving effect.
Wide Capacity Range.
Basic modules are designed with large capacity. The maximum capacity is further improved, which can satisfy various engineering needs and increase the construction efficiency.

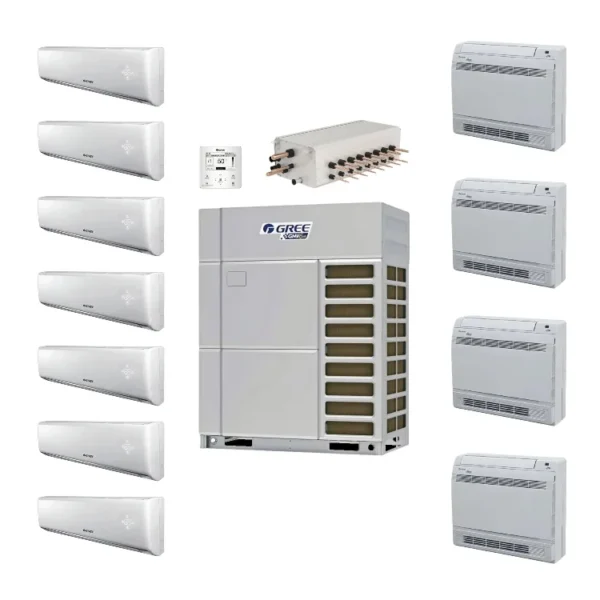

Related Indoor Units
Application
Product packaging
Why Choose Us
1. Experience
With more than 50 years of overseas HVAC project experience, we have successfully completed hundreds of large-scale HVAC projects and have a deep understanding of global HVAC projects.
2. Professional design
Our professional design team is ready to provide you with an AC plan drawing based on your architectural blueprint. In this case, you do not need to find an engineering advisor to design the HVAC layout. Save both time & money for you.
3.Professional selectoion
Based on our diversified commercial air conditioning system, we can select the most suitable model for your project according to the drawings.
4.Providing One-Stop Solution of HVAC System
One-stop service helps save cost and time. Generally including air conditioning Indoor units and outdoor units, control systems, installing accessories (refrigerant copper pipe, UPVC pipes, rubber insulation, hoists, brackets, communication wires, etc.), refrigerant tools (vacuum pumps, cutters, expansion tools, etc.), ventilation grills & diffuser, etc.
5.Technical Support
HVAC commissioning service can be provided accordingly. Air conditioner project engineers can guide and supervise product installation on-site.
We have a global after-sales system with expert service. Ensure your after-sales are worry-free.
We have a global after-sales system with expert service. Ensure your after-sales are worry-free.
Company Profile
Henan Hualeng Trading Co., Ltd.
A professional HVAC&R solution provider, with products covering many types of commercial and residential air conditioners, as well as a variety of commonly used fans, fan coils, air diffusers, air grills, air outlets, air ducts, silencers, and other equipment related to ventilation systems.
Additionally, we are also a leading supplier of central air conditioning and ventilation system products. Specializing in the design, sale, and installation of central air conditioning and ventilation system products, we have a wide range of products to meet various application scenarios and provide customers with complete central air conditioning and ventilation system solutions.
Ordering and Pricing
- Minimum order quantity: 1 set
- Volume pricing:
- 1–9 set: US $1945 / set
- 10+ set: US $1845 / set
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this split air conditioners?
The standard minimum order quantity is 1 set. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 5 year warranty. Spare parts and technical support remain available after the warranty period.
Can the split air conditioners be supplied for my local voltage?
The standard configuration is 380-415V 3N~50/60Hz. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
