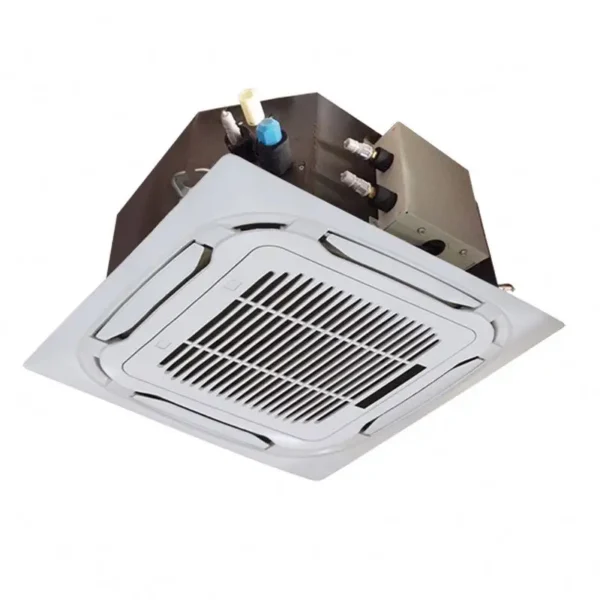

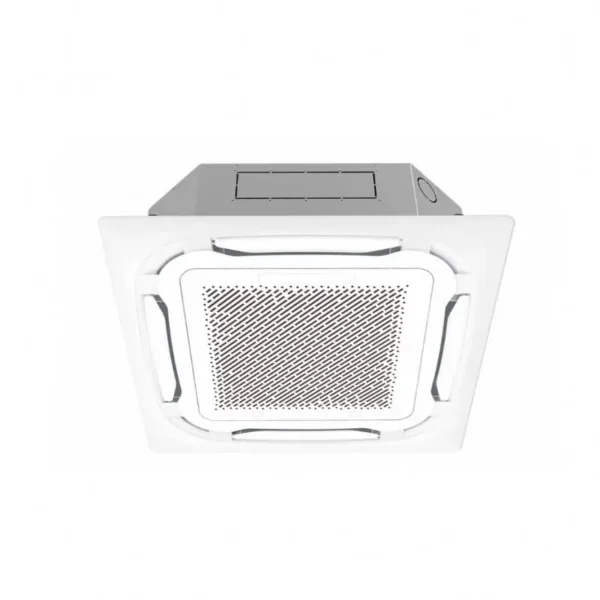

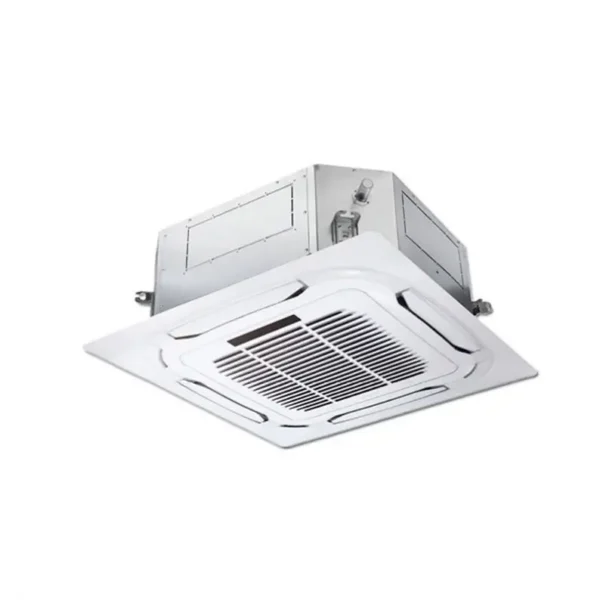

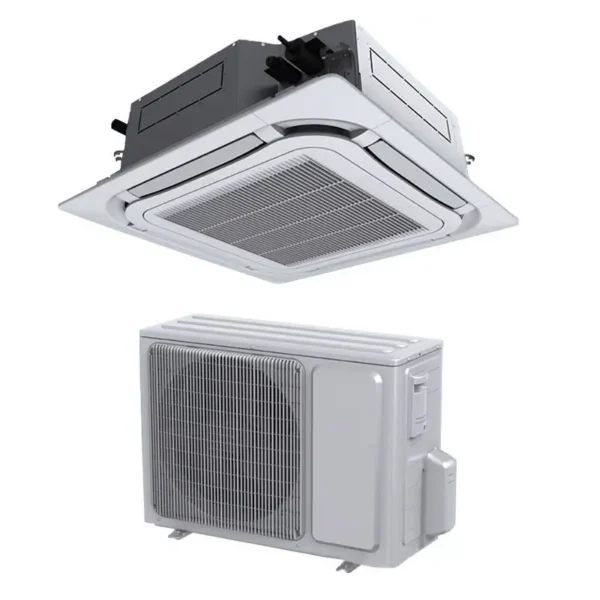

Split cassette indoor unit — voltage 220, 12000btu~55000btu. The complete factory specification follows. Made by Ningbo Airbrisk Technology Co., Ltd. (8 years on the platform, factory-assessed). Quantity and destination market determine the final price — tell us both for a firm quote.
Key Features of This Split Cassette Indoor Unit
- Model Number: CAD1255
- Power Source: Electrical
- Voltage (V): 220
- Capacity (Btu): 12000btu~55000btu
- Capacity: 3.6KW;5KW;7KW;10.55KW,12.1KW,14KW;16KW etc
- Refrigerant: R32; R410a etc
Technical Specifications
| Type | Ceiling |
|---|---|
| Application | Hotel, Commercial, Household |
| Cooling/Heating | Cooling/Heating |
| Capacity (Btu) | 12000btu~55000btu |
| Eer | 6.1~6.5 |
| Power Source | Electrical |
| Warranty | 1 Year |
| After-Sales Service Provided | Free Spare Parts |
| App-Controlled | Yes |
| Private Mold | Yes |
| Place Of Origin | Zhejiang, China |
| Voltage (V) | 220 |
| Brand | Airbrisk / OEM |
| Cop | 4.0~4.1 |
| Model Number | CAD1255 |
| Keyword | air conditioner cassette ceiling |
| Capacity | 3.6KW;5KW;7KW;10.55KW,12.1KW,14KW;16KW etc |
| SEER | 6.1~6.5 |
| SCOP | 4.0~4.1 |
| Application Area | 15~107m2 |
| Noise | 36~54dB(A) |
| Refrigerant | R32; R410a etc |
| EER Energy Efficiency Class | A++ / A+ |
| LOGO | Accept customized logo |
| Packaging Details | 32000Btu 36000Btu Factory Direct Sales Multi Split Cassette Indoor Unit Air Conditioner Cassette Ceiling Double Paper Standard for Export Packing Carton |
| Port Of Dispatch | Ningbo |
| Selling Units | Single item |
| Single Volume | 0 cm³ |
| Single Gross Weight | 0.0 kg |
| Supply Ability | 10000 pieces per Month |
Product Details

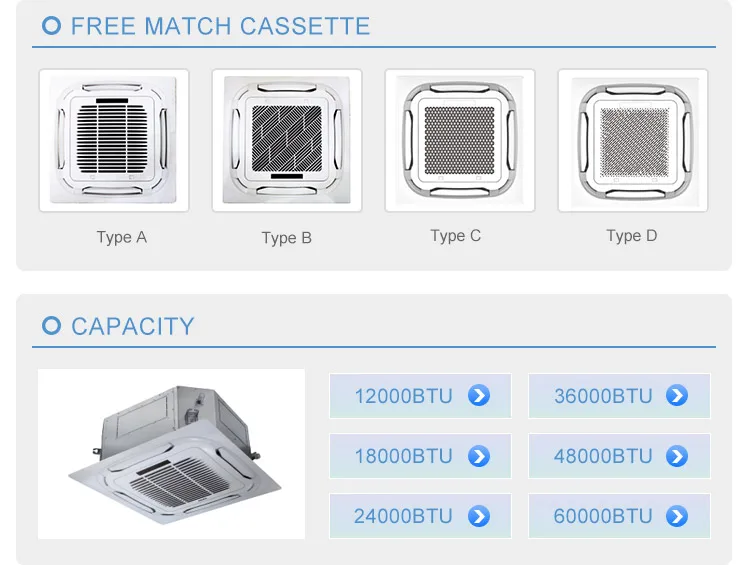

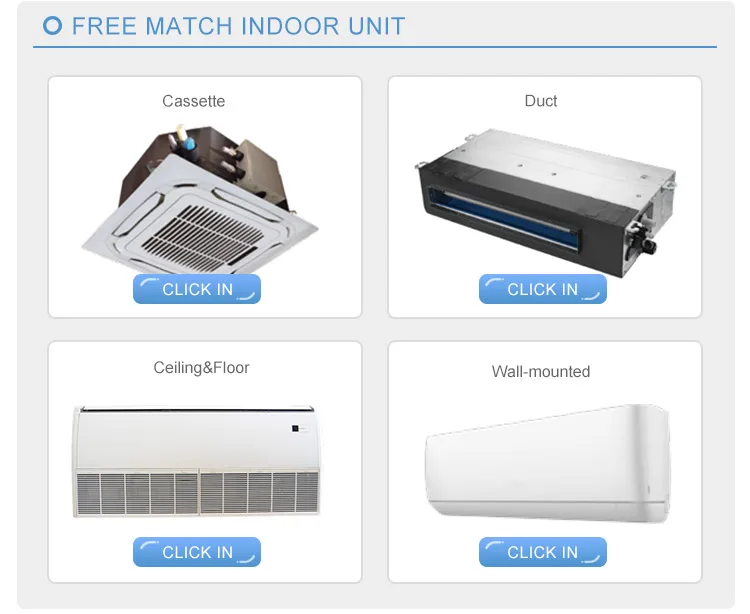

Free Match
Specification
Capacity (BTU) | 12000 | 18000 | 24000 | 36000 | 42000 | 48000 | 55000 | ||||||
Capacity (KW) | 3.6 | 5.0 | 7.0 | 10.55 | 12.1 | 14.0 | 16.0 | ||||||
SEER/SCOP (W/W) | 6.2/4.1 | 6.3/4.0 | 6.6/4.5 | 6.1/4.0 | 6.2/4.0 | 6.2/4.1 | 6.2/4.0 | ||||||
EER energy efficiency class | A++ /A+ | ||||||||||||
Air Flow Volume (m³/h) | 700/600/530 | 1500/1350/1200 | 1950/1700/1600 | 2000/1700/1600 | |||||||||
Sound pressure noise level (dB) | 36~45 | 36~45 | 44~49 | 48~52 | 48~52 | 48~52 | 48~52 | ||||||
Sound power noise level(dB) | 56 | 56 | 56 | 60 | 64 | 63 | 65 | ||||||

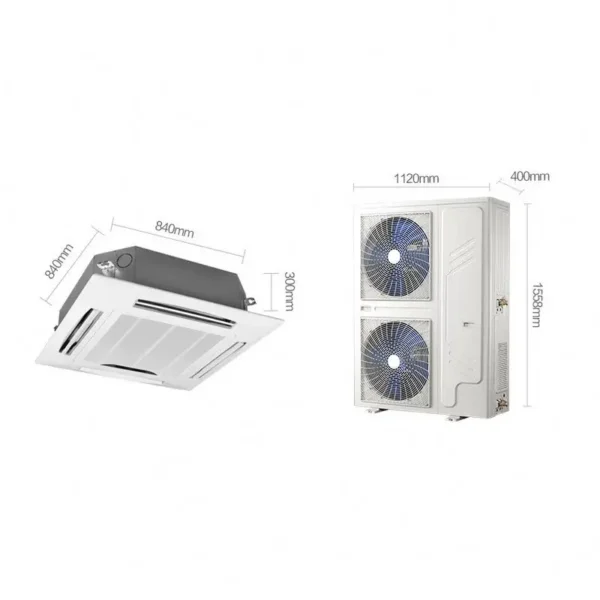

Net dimension (mm) | 570*570*260 | 840*840*288 | |||||||||||
Packing dimension (mm) | 720*650*290 | 940*910*350 | |||||||||||
Weight Net/Gross (kg) | 15.5/18 | 15.5/18 | 26/30 | 28/33 | 30/35 | 30/35 | 30/35 | ||||||
Applicable area(m²) | 15-32 | 21-35 | 28-47 | 56-93 | 56-93 | 64-107 | 64-107 | ||||||
Suffing Quality (40HQ) | 180 | 180 | 95 | 74 | 74 | 55 | 55 | ||||||
For more different capacity, please click the button to contact us ! Send inquiry
Product details
Why Choose Us
ABOUT US
As the leader and pioneer of the air appliances revolution, we focuses on "Small Appliances & Big Health", and drives the "air appliances return to nature" corporate strategy, which fully responds toand promotes the development of the global healthcare air appliances industry,and helps the global health indexand social civilization progress.
For more information,please click the button to contact us Send inquiry
Certifications
FAQ
Q1:Are you manufacturer or trading company?
We are a professional manufacturer, and we will do our best to show you the best quality, fastest delivery and highest credit to you, looking forward to cooperating with you!
Q2: What indoor unit do you provide for VRF air conditioner?

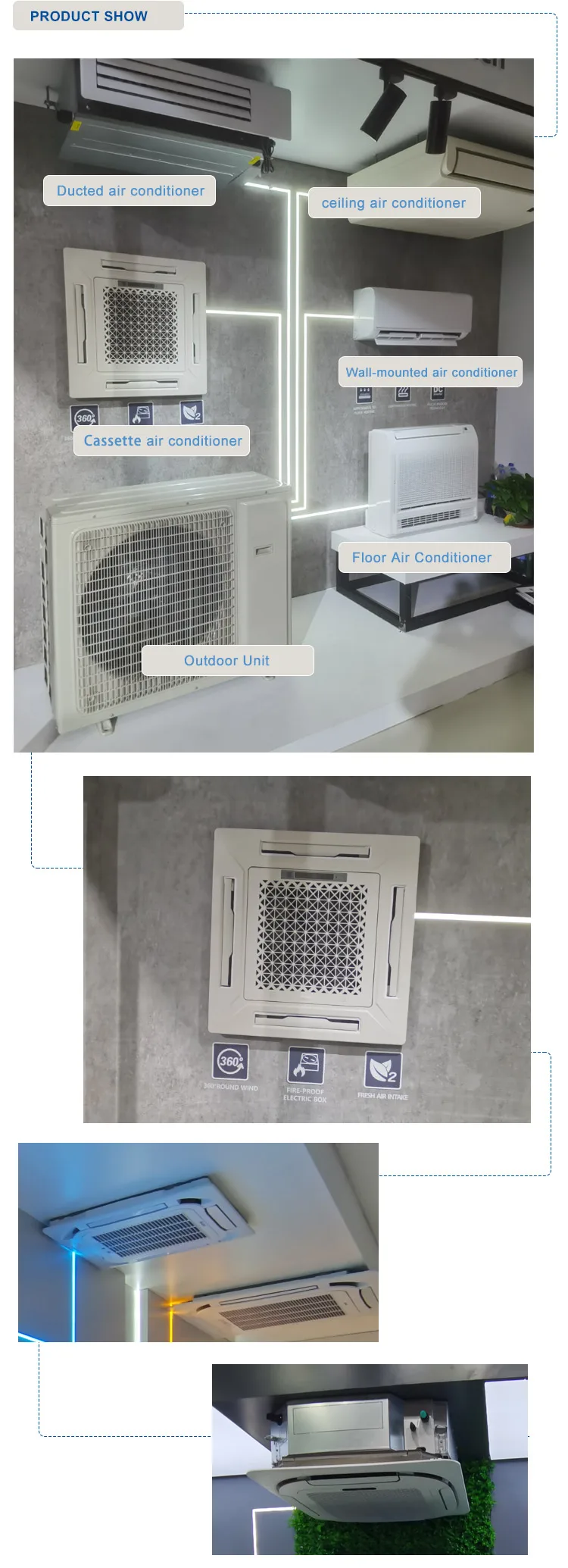

We supply wall mounted split air conditioner, duct air conditioner, cassette air conditioner and floor & ceiling air conditioner indoor unit for VRF air conditioner.
Q3: What capacity do you provide for cassette air conditioner?
We provide 12000BTU; 18000BTU; 24000BTU; 36000BTU; 42000BTU; 48000BTU; 55000BTUetc for cassette air conditioner.

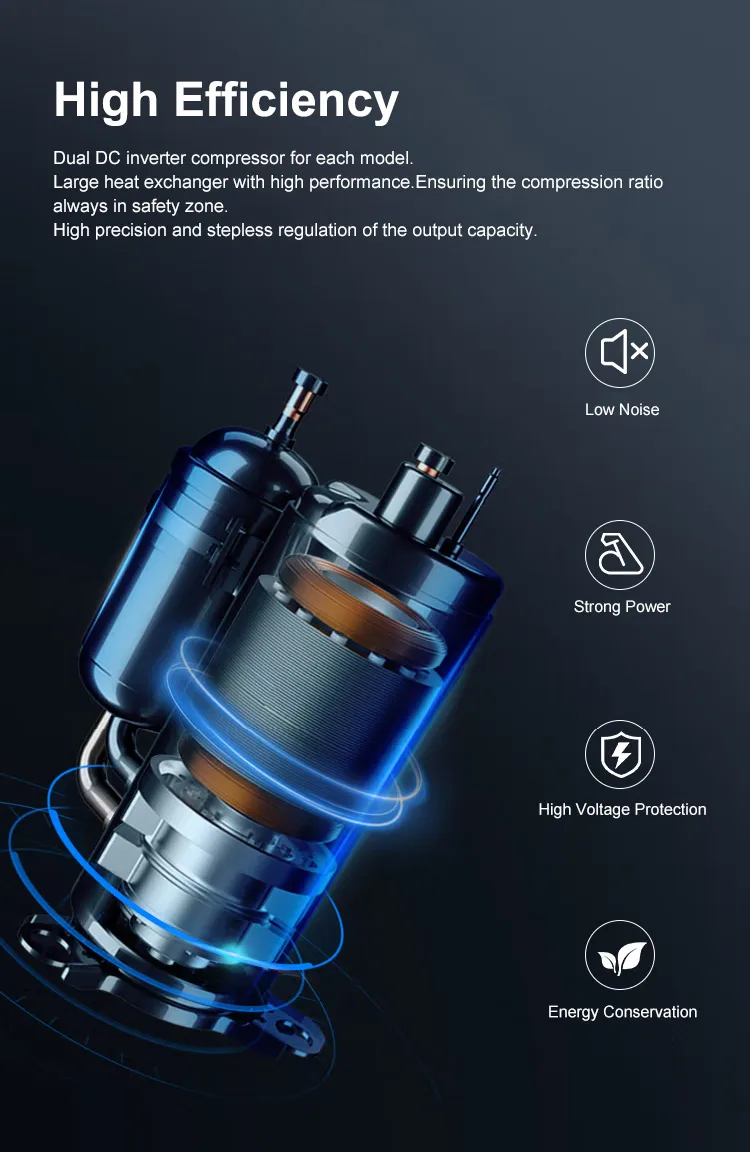

Q4: What compressors are provided?
We provide RECHI;GREE;LG;GMCC;SUMSUNG compressors.
Q5: What difference between R22, R410A and R32 refrigerant?R22 is made of CHCLF2 (chlorodifuoromethane ), it will destroy ozonosphere. R410A is a new environmentally friendly refrigerant, does not destroy the ozonosphere, the working pressure for the ordinary R22 air conditioning about 1.6 times, cooling (warm) high efficiency, do not destroy the ozonosphere. R32, is made of CH2F2 (difluoromethane). It is non-explosive, non-toxic, flammable, but still a safe refrigerant. R32's energy-saving, green, and ozone-free layer has become one of the new stars of modern refrigerants. Q6:How do you ensure the quality products?
We produce high quality products, we are strictly follow QC term.First our raw material supplier not only supply us, they also supply to other famous brand. So good quality raw material make sure we can produce high quality products.Then,we have our own test LAB which approved by SGS,TUV, each our product should received 52 testing equipment test before production. It need test from noise, performance, energy, vibration, chemical proper, function, durabilty, packing and trans-portation etc.All goods are 100% inspected before shipping. We do at least 3 tests, including in-coming raw material test, sample test then bulk production.
Q7: Can you provide sample?
Yes, we can provide sample but customer should pay cost of sample and freight charge.
Q8: How about the delivery time?
Q8: How about the delivery time?
It depends on your quantity. Generally, it takes 35-50 days after receiving your deposit.
Q9: Can you provide SKD or CKD? Can you help us buid a air conditioner factory?
Q9: Can you provide SKD or CKD? Can you help us buid a air conditioner factory?
Yes, we can offer SKD and CKD, we also can provide air conditioner production equipment assembly line and testing equipment.Please contact for more information.
Q10: Can we do our OEM logo?
Q10: Can we do our OEM logo?
Yes,we can do OEM logo for you.FOR FREE.You just provide LOGO design to us.
Q11:How about your quality warranty ? And do you supply spare parts?
Yes, we provide 1 year warranty, and 3 years for compressor, and we always provide 1% spare parts For Free.
Q12: How about the after-sales service?
We have a big after-sales team, if you have any problems, please tell us directly and we will try our best to solve all of your problems.
Contact US
Ordering and Pricing
- Minimum order quantity: 55 set
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this split cassette indoor unit?
The standard minimum order quantity is 55 set. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.
Can the split cassette indoor unit be supplied for my local voltage?
The standard configuration is 220. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
