Stainless steel duct fan — voltage 115, 230V, power source type Corded Electric. The complete factory specification follows. Made by LIANG HERNG ELEC MACH CO., LTD. (21 years on the platform, typical reply ≤5h). Send your target quantity and destination for a firm quotation with current lead times.

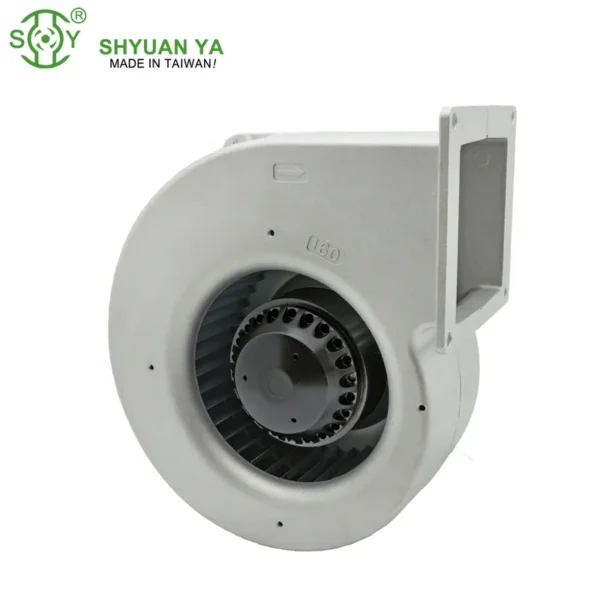

Key Features of This Stainless Steel Duct Fan
- Model Number: CA160-100T
- Power Source Type: Corded Electric
- Voltage: 115, 230V
- Blade Material: Stainless Steel
- Noise Level: 76/77DB
- Speed: 2350/2450RPM
Technical Specifications
| Mounting | Duct Fan |
|---|---|
| Voltage | 115, 230V |
| Motor Type | Capacitor-Run Induction and External Rotor Motor |
| Speed | 2350/2450RPM |
| Blade Material | Stainless Steel |
| Power Source Type | Corded Electric |
| Warranty | 1 Year |
| After-Sales Service Provided | Online support |
| Customized Support | OEM, ODM |
| Noise Level | 76/77DB |
| Place Of Origin | Taiwan, China |
| Brand Name | SHYUAN YA |
| Model Number | CA160-100T |
| Impeller | Die-cast Aluminum Housing Galvanized Sheet Steel Impeller |
| Motor | Capacitor-Run Induction and External Rotor Motor |
| Rotor | Black Paint |
| Bearing | Dual Ball Bearing, Permanently Lubricated |
| Lead Wire | 450mm AWG# 18 |
| Insulation | Class B or F |
| Safety | Thermally Protected (Auto Restart) |
| Operating Temperature | -20°C to +50°C |
| Selling Units | Single item |
| Single Package Size | 16X16X10 cm |
| Single Gross Weight | 3.7 kg |
Product Details
Specification | ||
Air Flow | 337 ~ 406 CFM | |
Impeller | Galvanized Sheet Steel Impeller | |
Motor | External Rotor Motor | |
Rotor | Black Paint | |
Bearing | Dual Ball Bearing | |
Lead Wire | 450mm AWG# 20 | |
Insulation | Class “B” or “F” | |
Safety | Thermally Protected (Auto Restart) | |
Operating Temperature | -20°C to +50°C | |
Certification | ce, RoHS | |
Product Name | CENTRIFUGAL BLOWER CA120-98T | CENTRIFUGAL BLOWER CA140-100T-1C | CENTRIFUGAL BLOWER CA140-100T-2/3C | ||
Air Flow | 100 ~ 164 CFM | 286 ~ 297 CFM | 217 ~ 250 CFM | ||
Impeller | Die-cast Aluminum Housing Galvanized Sheet Stell Impeller | ||||
Motor | Capacitor-Run Induction and External Rotor Motor | ||||
Insulation | Class “B” or “F” | ||||
Operating Voltage Range | 85VAC to 125VAC for 115V Type / 185VAC to 245VAC for 230V Type | ||||
Operating Temperature | -20°C to +60°C | 1V→ -20°C to +60°C 2V→ -20°C to +40°C | 2C→ -20°C to +60°C 3C → -20°C to +70°C | ||
Product Name | CENTRIFUGAL BLOWER CA146-100T | CENTRIFUGAL BLOWER CA160-100T | |
Air Flow | 255 ~ 325 CFM | 286 ~ 297 CFM | |
Impeller | Die-cast Aluminum Housing Galvanized Sheet Stell Impeller | ||
Motor | Capacitor-Run Induction and External Rotor Motor | ||
Insulation | Class “B” or “F” | ||
Operating Voltage Range | 85VAC to 125VAC for 115V Type / 185VAC to 245VAC for 230V Type | ||
Operating Temperature | -20°C to +60°C | 1V→ -20°C to +60°C 2V→ -20°C to +40°C | |
Questions & Answers
Ordering and Pricing
- Minimum order quantity: 6 piece
- Ships from: TW
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this stainless steel duct fan?
The standard minimum order quantity is 6 piece. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.
Can the stainless steel duct fan be supplied for my local voltage?
The standard configuration is 115, 230V. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
About the Manufacturer
This product is produced by LIANG HERNG ELEC MACH CO., LTD.. The company 21 years as a verified Alibaba.com supplier, operates its own manufacturing. Browse the full LIANG HERNG ELEC MACH CO., LTD. range on HVACR Nexus.
