This steel cone exhaust fan is published with the manufacturer’s full specification — 380V, power source Electric. Made by Qingzhou Ventimax Equipment Co., Ltd. (12 years on the platform, typical reply ≤3h). For a binding price and lead time, send the volume you need and where it ships to.
Key Features of This Steel Cone Exhaust Fan
- Model Number: HYBF-1060, 1060*1060*550
- Power Source: Electric
- Voltage: 380V
- Blade Material: Stainless Steel
- Warranty: 1 Year
- Place Of Origin: Shandong, China
Technical Specifications
| Blade Diameter | 36 in |
|---|---|
| Voltage | 380V |
| Type | exhaust fan |
| Blade Material | Stainless Steel |
| Mounting Type | Wall Fan |
| Bearing Type | TWO BALL BEARING |
| Power Source | Electric |
| Warranty | 1 Year |
| After-Sales Service Provided | Online support |
| Customized Support | OEM, ODM, OBM |
| Place Of Origin | Shandong, China |
| Brand Name | Ventimax |
| Model Number | HYBF-1060, 1060*1060*550 |
| Application | Industrial Equipment |
| Usage | Air Cooling System |
| Feature | High Efficiency |
| Selling Units | Single item |
| Single Package Size | 100X100X100 cm |
| Single Gross Weight | 1000.0 kg |
Product Details
WHY CHOOSE US
Our Production Lines
Supporting 120 employees, our 20,000 square meter factory is top-notch, Minxin Industrial equipped itself with all the production equipment processes in house for better control of the quality and delivery time:
1. Steel coil sliding and cutting line, steel pipe cutting line
2. Aluminum Die Cast Tooling & Casting
3. Plastic Molding & Injection workshop
4. Metal Stamping & Laser Cutting
5. Motor Copper Coil Winding Line
6. Motor Assembly Workshop
7. Exhaust Fan Assembly Workshop
8. Water Air Cooler Assembly Workshop
Assembled Exhaust Fans
Pre-Sales Service
* Inquiry and consulting support. * Sample testing support.
* Visit our Factory.
After-Sales Service
* Online training on use and installation
* Engineers are available to service machinery online.
Free installation Training , Free Tecnical support , 24 hours on-line service
Click to consult to enjoy 40% discount now
Products Description
Performance Characteristics
1) Reasonable cone designing with big air volume ,low noise. 2) Imported bearing,high -strength ,low noise and long service life. 3) Shutter are made of high strength fiber glass sheet,antioxidant, light weight and no distortions. 4) High strength dabber aluminium-magnesium alloy wheel,high strength and long service life; 5) Mirror designed and injection moulding stainless steel blade,with big air volume,never distortion and broken.
Model | Blade Diameter (mm) | Air Flow (m³/h) | Power (W) | Voltage (V) | Dimension (mm ) |
HYBF-850 | 650 | 13000 | 370 | 380 | 850*850*480 |
HYBF-1060 | 900 | 28000 | 550 | 380 | 1060*1060*550 |
HYBF-1260 | 1070 | 40000 | 750 | 380 | 1260*1260*560 |
HYBF-1460 | 1220 | 44000 | 1100 | 380 | 1460*1460*600 |
Details Images
Main Features

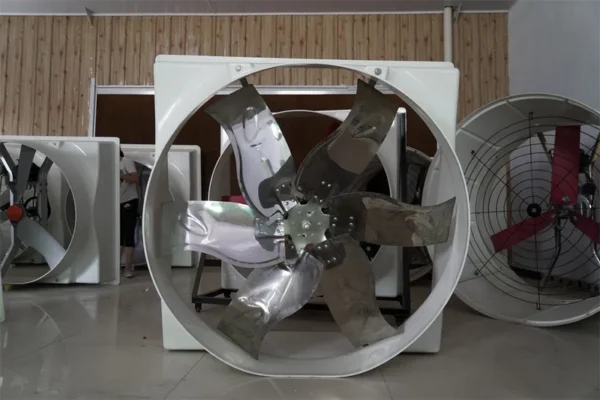

1) 3PC Aluminum fan blades are corrosion resistant and have a long service life.
2) Reasonable cone designing with big air volume,low noise.
3) FRP material is corrosion resistant and has a long service life.
2) Reasonable cone designing with big air volume,low noise.
3) FRP material is corrosion resistant and has a long service life.
Fan Blades
Applications
Product Application

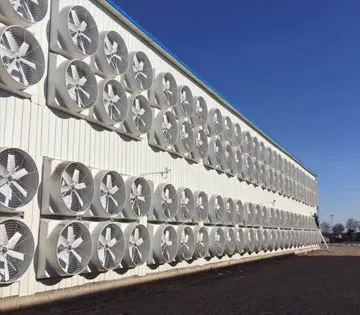

1) Suitable for high temperature & smelly workshop: such as heat treatment plant, casting plant, plastics plant, aluminum.
factories, shoe factories, leather factory, electroplating plants, a variety of chemical plants.
2) Suitable for labor-intensive enterprises: such as garment factories, all kinds of assembly workshops, cafes.
3) Suitable for greenhouse, livestock farms, poultry house.
4) Especially for the need to cool down and need some humidity locations. Such as cotton mills, woolen mills, jute mills, weaving plants, chemical plants, knitting factory, silk factory, hosiery and other textile mill.
5) Suitable for warehousing logistics.
factories, shoe factories, leather factory, electroplating plants, a variety of chemical plants.
2) Suitable for labor-intensive enterprises: such as garment factories, all kinds of assembly workshops, cafes.
3) Suitable for greenhouse, livestock farms, poultry house.
4) Especially for the need to cool down and need some humidity locations. Such as cotton mills, woolen mills, jute mills, weaving plants, chemical plants, knitting factory, silk factory, hosiery and other textile mill.
5) Suitable for warehousing logistics.
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
Certifications
Ventimax Products have passed "CE Certificate ", "CCC Certificate" and "Quality Management System Certificate"
Company Profile
Qingzhou Ventimax Equipment Co.,Ltd.
It is a high-tech enterprise engages in researching, designing and manufacturing products for
livestock and poultry husbandry, industry and advanced agriculture. Besides producing and offering ventilating and cooling system,feed system, nipple drinking system, environment control system and battery cages system, it also engages in the project design of modernized farms as well as green houses and workshops.In order to realize your project in shortest time, we offer one-stop material procurement and personalized solutions.
Ventimax is always pursuing the best. With the development of enterprise, Hengyuan passed ISO 9001 international quality Certification, CE certification and realized the unity of international and domestic standards. Good quality, prompt delivery and timely after sales service gain the trust of customers. The domestic customers covers more then 30 provinces and oversea customers are from Europe, America, Canada, Australia, Asia, Middle East, Africa and other countries.
livestock and poultry husbandry, industry and advanced agriculture. Besides producing and offering ventilating and cooling system,feed system, nipple drinking system, environment control system and battery cages system, it also engages in the project design of modernized farms as well as green houses and workshops.In order to realize your project in shortest time, we offer one-stop material procurement and personalized solutions.
Ventimax is always pursuing the best. With the development of enterprise, Hengyuan passed ISO 9001 international quality Certification, CE certification and realized the unity of international and domestic standards. Good quality, prompt delivery and timely after sales service gain the trust of customers. The domestic customers covers more then 30 provinces and oversea customers are from Europe, America, Canada, Australia, Asia, Middle East, Africa and other countries.
FAQ
Ordering and Pricing
- Minimum order quantity: 1 set
- Volume pricing:
- 1–1999 set: US $199 / set
- 2000+ set: US $99 / set
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this steel cone exhaust fan?
The standard minimum order quantity is 1 set. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.
Can the steel cone exhaust fan be supplied for my local voltage?
The standard configuration is 380V. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
