Key specification for this suction medical air blower: rated voltage 24 Vdc, 57 m3/h. Everything below is reproduced from the factory data sheet. Made by Ningbo Wonsmart Motor Fan Co., Ltd. (17 years on the platform, factory-assessed). Quantity and destination market determine the final price — tell us both for a firm quote.
Key Features of This Suction Medical Air Blower
- Model Number: WS9250-24-240-X200
- Power Source: Electric
- Rated Voltage: 24 Vdc
- Voltage: 24 Vdc
- Max Airflow: 57 m3/h
- Blade Material: Stainless Steel
Technical Specifications
| Application | Air Blower |
|---|---|
| Power Source | Electric |
| Rated Voltage | 24 Vdc |
| Electric Current Type | DC |
| Speed | 57m3/h(2012.94ft3/h), 33.54CFM |
| Blade Material | Stainless Steel |
| Pressure | High Pressure |
| Warranty | 1 year |
| Customized Support | OEM, ODM |
| Place Of Origin | Zhejiang, China |
| Brand Name | WONSMART |
| Model Number | WS9250-24-240-X200 |
| After-Sales Service Provided | online support |

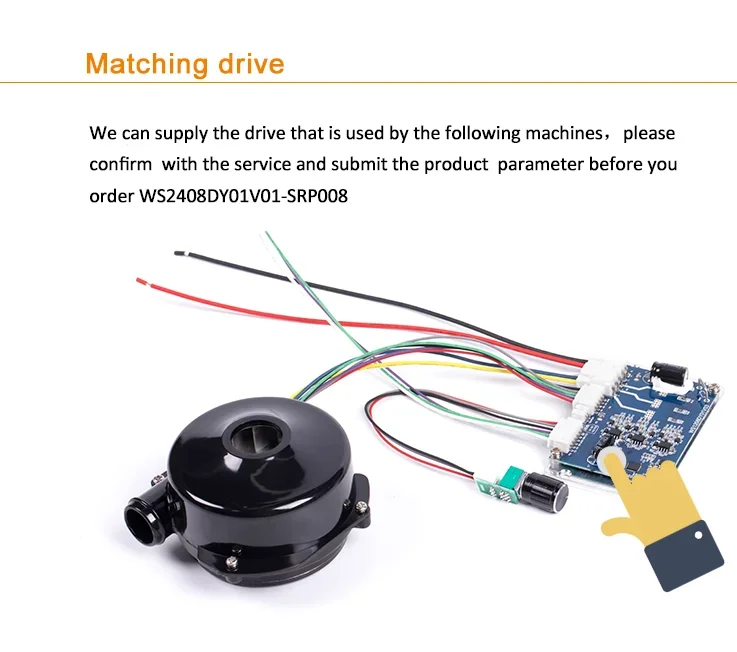

| Driver | External driver,WS2408DY01V01-SRP008 |
| Bearing | NMB ball bearing |
| Product Name | 24v High efficiency DC brushless sputum suction medical air blower |
| Life Time | >20000hours |
| Weight | 0.5KGS |
| Max Airflow | 57 m3/h |
| Voltage | 24 Vdc |
| MOQ | 1PC |
| Selling Units | Single item |
| Single Package Size | 19X16X11 cm |
| Single Gross Weight | 2.0 kg |
Product Details
Product Description

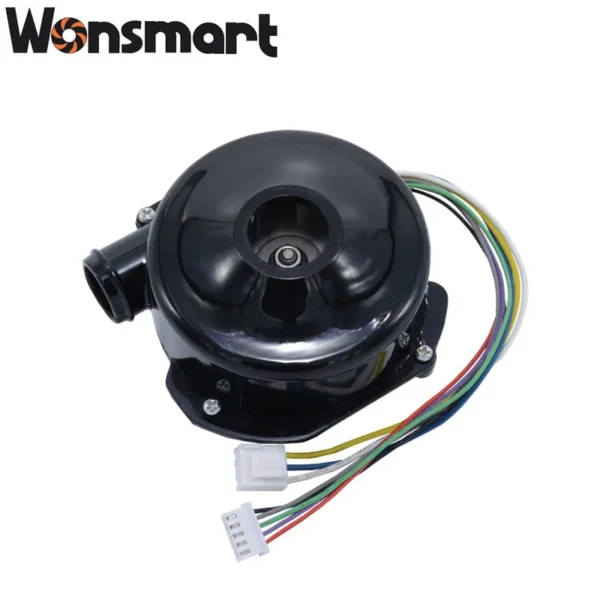

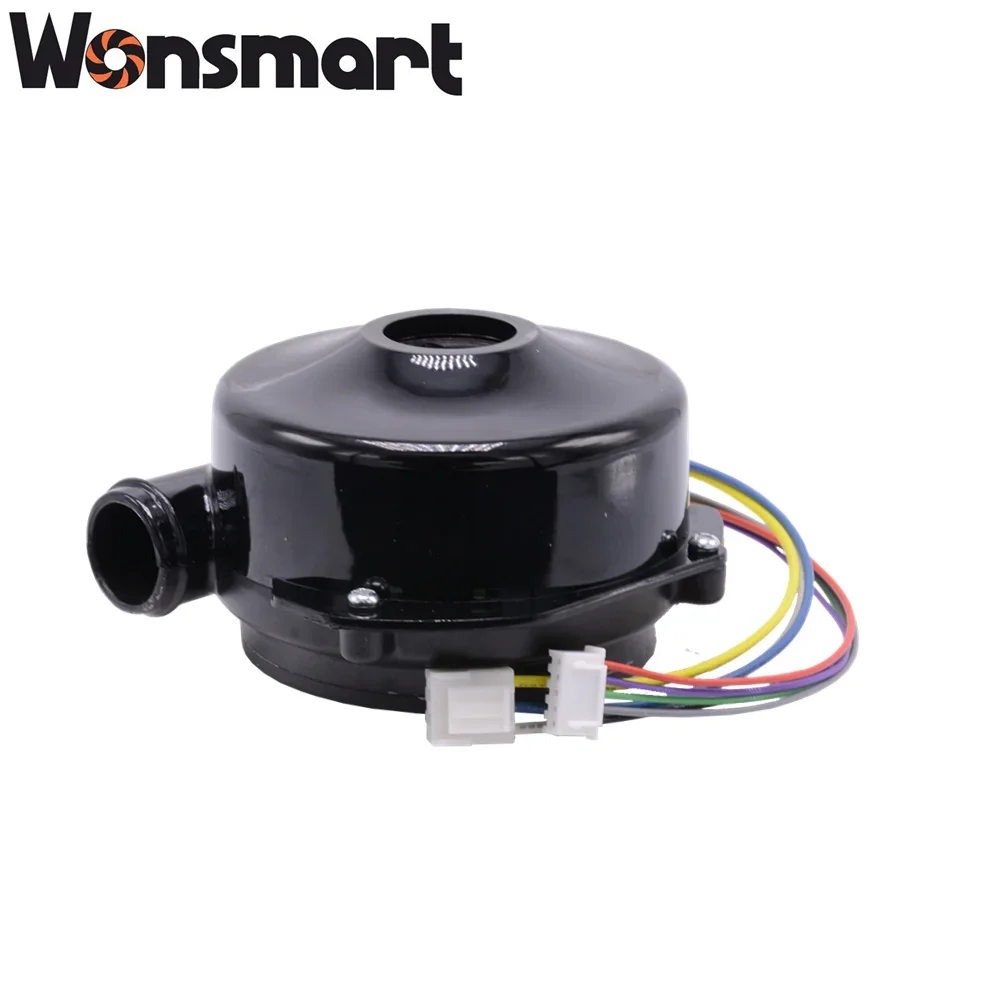

High Efficiency DC Brushless Sputum Suction Medical Air Blower Electric Blower 80mm Mini Sized 8.5kpa High Pressure 24v 57 M3/h
Suitable for air cushion machine/fuel cell/medical equipment and inflatables.
Part Name | medical air blower |
Part No | WS9250-24-240-X200 |
Rated votlage | 24VDC |
Max power consumption | 140W |
Life time(MTTF) | >20,000hours |
Unit weight | 0.5kgs |
Bearing | NMB Ball bearing |
Insulation class | Class F |
Driver board | External |
Speed control | PWM or 0~5V |
@Free blowing | @working point | @static pressure | ||||||||||||||
Speed | Current | Airflow | Speed | Current | Airflow | Pressure | Speed | Current | Pressure | |||||||
[rpm] | [A] | [m3/h] | [rpm] | [A] | [m3/h] | [kPa] | [rpm] | [A] | [kPa] | |||||||
24,000 | 7.2 | 57 | 27,000 | 5.8 | 30 | 6 | 31,000 | 3.5 | 8.5 | |||||||

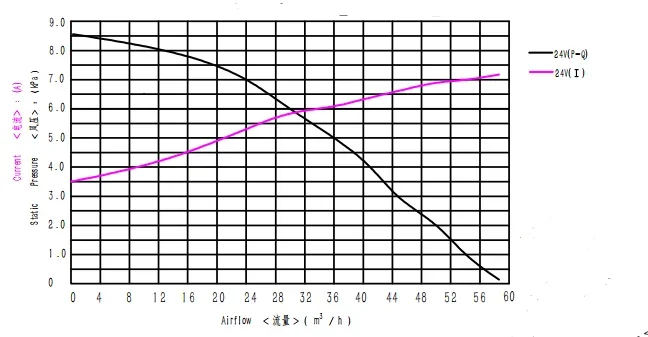

WS9250-24-240-X200 blower fan airflow against air pressure performance curve as left chart
right picture.
Size Information

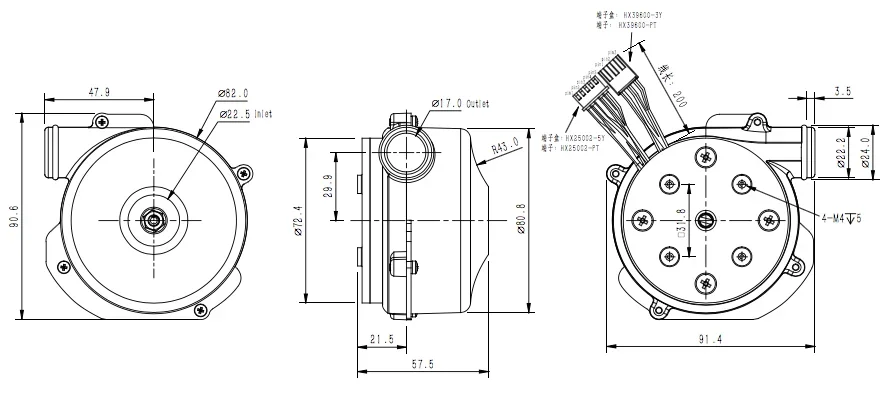

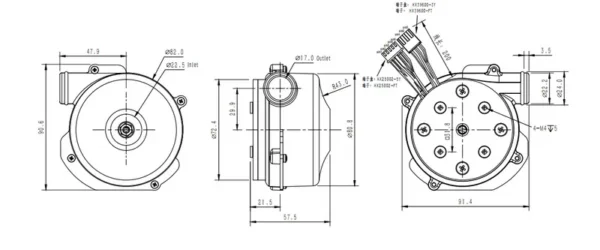

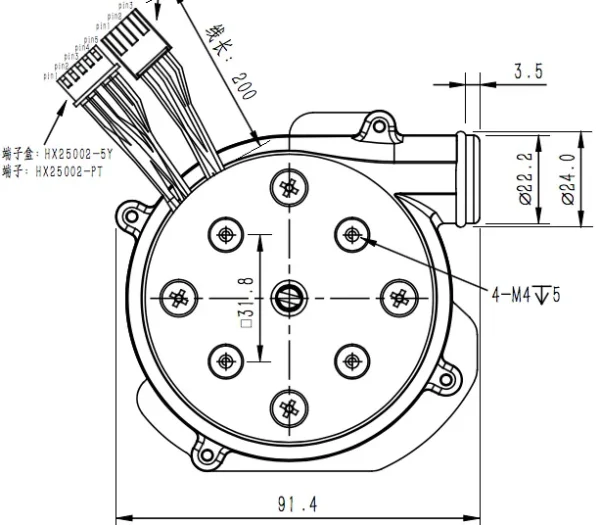

Product drawing as below:
Related Products

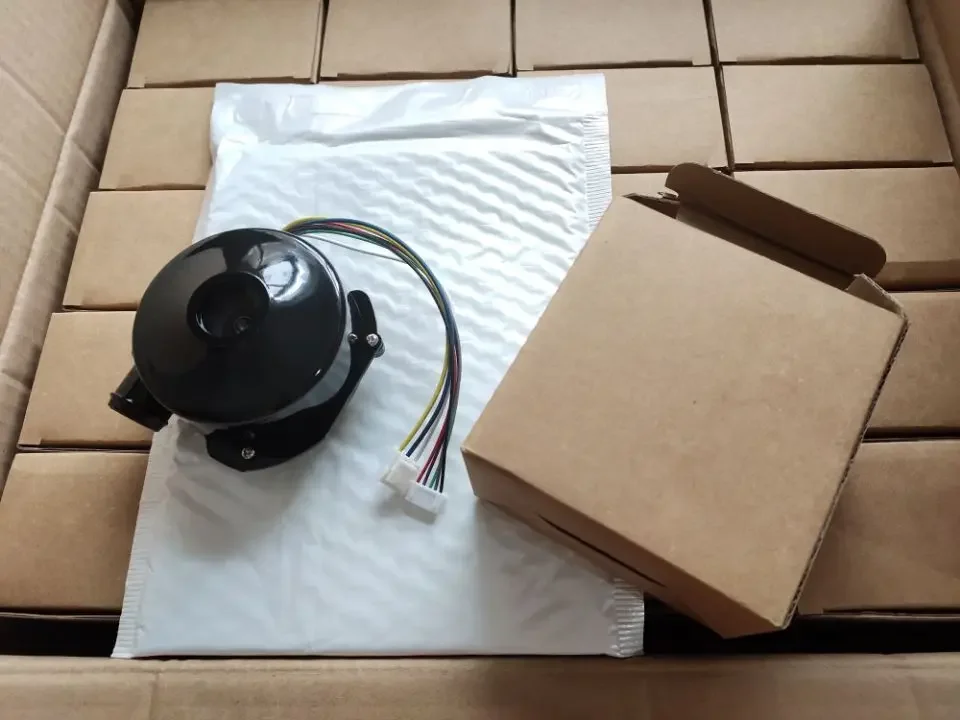

Packing&Shipping
Qty per Ctn: 40pc;
Ctn size:435*335*230mm;
G.W.: 15.5KGS;
N.W.:15KGS;
G.W.: 15.5KGS;
N.W.:15KGS;
Company Introduction
Ningbo Wonsmart Motor Fan Company is a professional manufacturer with a focus on small sized brushless dc motors and brushless dcblowers. Our blower’s max airflow reaches 200 cubic meter per hour and a max pressure
of 30kpa. With our high quality parts and precise manufacturing process, WONSMART motors and blowers can
serve more than 20,000 hours.
Founded in 2009, Wonsmart has had a rapid growth rate of 30 % yearly and our products are widely used in Air cushion machines,Environment condition analyzers, Medical and other revolutionary Industrial equipment.
Wonsmart production and inspection equipment include auto winding machines, balancing machines, and CNC machines. We also have airflow and pressure testing equipment and motor performance testing equipment. All products are 100% inspected before delivery to guarantee all the products arrive at the customers with satisfied quality.
Wonsmart is certificated by I S O 9 0 0 1 and I S O 1 3 4 8 5,we have paid attention to product quality and customer service. Our professional and spry team hold the same goal of being one of the best brushless motor and blower supplier.
With ETL,CE, ROHS, REACH certification, 60% of Wonsmart’s products are exported to North America, EU, Japan
Founded in 2009, Wonsmart has had a rapid growth rate of 30 % yearly and our products are widely used in Air cushion machines,Environment condition analyzers, Medical and other revolutionary Industrial equipment.
Wonsmart production and inspection equipment include auto winding machines, balancing machines, and CNC machines. We also have airflow and pressure testing equipment and motor performance testing equipment. All products are 100% inspected before delivery to guarantee all the products arrive at the customers with satisfied quality.
Wonsmart is certificated by I S O 9 0 0 1 and I S O 1 3 4 8 5,we have paid attention to product quality and customer service. Our professional and spry team hold the same goal of being one of the best brushless motor and blower supplier.
With ETL,CE, ROHS, REACH certification, 60% of Wonsmart’s products are exported to North America, EU, Japan
and Korea. Customers from these countries are very satisfied with Wonsmart’s stable quality, fast delivery and reasonable price.
We also accept ODM and OEM projects and customized specification.
Please feel free to contact us.
We also accept ODM and OEM projects and customized specification.
Please feel free to contact us.
Our Services & Strength
We also accept ODM and OEM projects and customized specification.We also accept ODM and OEM projects and customized specification.
FAQ
Are you factory or trading company?
We are factory with 4,000 square meters and we have been focus on high pressure BLDC
blowers for more than 10 years
Can you design a new blower fan if we give you target performance?
Yes, we offer ODM service for both blower fan and controller board
Can we connect this centrifugal air blower directly onto power source?
We are factory with 4,000 square meters and we have been focus on high pressure BLDC
blowers for more than 10 years
Can you design a new blower fan if we give you target performance?
Yes, we offer ODM service for both blower fan and controller board
Can we connect this centrifugal air blower directly onto power source?
This blower fan is with BLDC motor inside and it needs a controller board to run.
What kind of power source shall we use to drive this blower fan?
Generally, our customers use 24vdc switching power supply or Li-on battery.

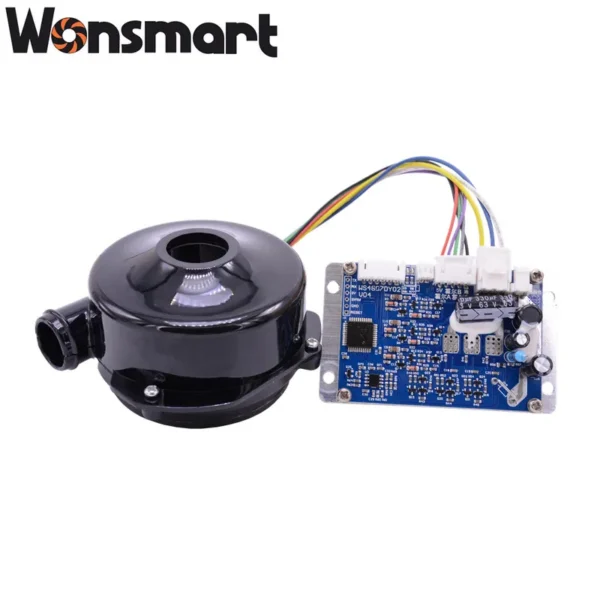

Do you also sell controller board for this blower fan?
Yes, we can supply adapted controller board for this blower fan.
How to change impeller speed if we use your controller board?
You can use 0~5v or PWM to change speed. Our standard controller board is also with a
potentiometer to change speed conveniently.
What is the MTTF of this centrifugal air blower?
MTTF of this centrifugal air blower is 20,000+ hours under 25 C degree.
Can we use this centrifugal air blower to suct water?
This blower fan can not be used to suck water. If you need to suck water, you can ask us to
choose proper item for this special working condition.
Can we use this centrifugal air blower to suck dust directly?
This blower fan can not be used to suck dust directly.If you need to suck dust, you can ask
us to choose proper item for this special working condition.
What can do if the working condition is dirty?
A filter is strongly recommended to assemble onto the the inlet of the blower fan
How to decrease the noise of the blower?
Many of our customers use foam, silicone to fill between blower fan and machine to insulate
the blower noise.
What kind of power source shall we use to drive this blower fan?
Generally, our customers use 24vdc switching power supply or Li-on battery.
Do you also sell controller board for this blower fan?
Yes, we can supply adapted controller board for this blower fan.
How to change impeller speed if we use your controller board?
You can use 0~5v or PWM to change speed. Our standard controller board is also with a
potentiometer to change speed conveniently.
What is the MTTF of this centrifugal air blower?
MTTF of this centrifugal air blower is 20,000+ hours under 25 C degree.
Can we use this centrifugal air blower to suct water?
This blower fan can not be used to suck water. If you need to suck water, you can ask us to
choose proper item for this special working condition.
Can we use this centrifugal air blower to suck dust directly?
This blower fan can not be used to suck dust directly.If you need to suck dust, you can ask
us to choose proper item for this special working condition.
What can do if the working condition is dirty?
A filter is strongly recommended to assemble onto the the inlet of the blower fan
How to decrease the noise of the blower?
Many of our customers use foam, silicone to fill between blower fan and machine to insulate
the blower noise.
Ordering and Pricing
- Minimum order quantity: 1 piece
- Volume pricing:
- 1–10 piece: US $38.5 / piece
- 11–49 piece: US $32.9 / piece
- 50–99 piece: US $29.9 / piece
- 100+ piece: US $28.9 / piece
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this suction medical air blower?
The standard minimum order quantity is 1 piece. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 1 year warranty. Spare parts and technical support remain available after the warranty period.
Can the suction medical air blower be supplied for my local voltage?
The standard configuration is 24 Vdc. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
