Key specification for this swimming pool heat pump: heating capacity From 7kW to 35kW, power source Electric. Everything below is reproduced from the factory data sheet. Made by Jiangsu Sunrain Solar Energy Co., Ltd. (22 years on the platform, factory-assessed). Send your target quantity and destination for a firm quotation with current lead times.
Key Features of This Swimming Pool Heat Pump
- Model Number: BYC-021TV1
- Power Source: Electric
- Power Supply: 220-240/1/50 (V/Ph/Hz)/380-415/3/50(V/Ph/Hz))
- Heating Capacity: From 7kW to 35kW
- Air Flow Direction: vertical
- Housing Material: Metal
Technical Specifications
| Type | Air Source Heat Pump |
|---|---|
| Heating Capacity | From 7kW to 35kW |
| Energy Efficiency Rating | Class A++ |
| Application | Outdoor, Hotel, Commercial, Household, Swimming Pool |
| Refrigerant | R32 |
| Storage / Tankless | Instant / Tankless |
| Compressor | Mitsubishi Full DC Inverter Compressor |
| Installation | Freestanding |
| App-Controlled | Yes |
| Housing Material | Metal |
| Feature | Easy Installation, Easy Operation, High Efficiency, Eco-Friendly |
| Power Source | Electric |
| Warranty | 2 Years |
| After-Sales Service Provided | Free Spare Parts, Return and Replacement, Field Maintenance and Repair Service |
| Operating Language | English, German, French, Dutch, Spanish |
| Private Mold | No |
| Logo/Graphic Design | 3D Printing, UV printing, Silk Screen Printing, Laser Printing, Inkjet Printing, Hot Stamping, Heat-Transfer Printing |
| Packaging Types | Corrugated Box |
| Place Of Origin | Guangdong, China |
| Brand | Sunrain/OEM |
| Model Number | BYC-021TV1 |
| Function | Swimming Pool Heating Cooling |
| Certification | CE, CB, RoHS |
| Working Ambient Temperature | -15℃ to 43℃ |
| Heat Exchanger | Titanium Heat Exchanger |
| Noise At 1 M | 37 – 50 dB(A) |
| Air Flow Direction | vertical |
| Water Proof Level | IPX4 |
| Power Supply | 220-240/1/50 (V/Ph/Hz)/380-415/3/50(V/Ph/Hz)) |
| Color | Black |
| Fan Motor | DC Fan Motor |
| Selling Units | Single item |
| Single Package Size | 56X60X78 cm |
| Single Gross Weight | 440.0 kg |
Product Details
· High-end Mitsubishi compressor

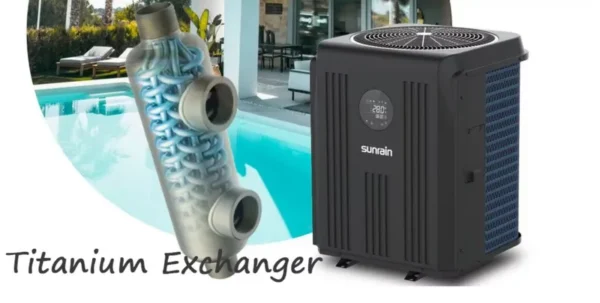

· Titanium heat exchanger
· Premium touch screen display
· Heating, Cooling & Automatic mode
· Built-in WiFi function
· Top discharge air outlet
· Multi-protection for safe operation
The system also has an electronic expansion valve that provides a COP index 20% higher than conventional expansion systems.
Model | BYC-007TV1 | BYC-010TV1 | BYC-013TV1 | BYC-017TV1 |
Max Power Input(kw) | 1.45 | 1.75 | 2.2 | 2.5 |
Max Current(A) | 7.1 | 8.3 | 10.2 | 11.9 |
Water Flow Volume(m³/h) | 2.5 | 3.5 | 4.5 | 5.5 |
Ordering and Pricing
- Minimum order quantity: 1 set
- Volume pricing:
- 1–99 set: US $472 / set
- 100+ set: US $462 / set
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this swimming pool heat pump?
The standard minimum order quantity is 1 set. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 2 Years warranty. Spare parts and technical support remain available after the warranty period.
Which certifications does this swimming pool heat pump carry?
It is supplied with CE, CB, RoHS documentation, which covers the requirements of most import markets. Additional test reports can be issued on request.
Can the swimming pool heat pump be supplied for my local voltage?
The standard configuration is 220-240/1/50 (V/Ph/Hz)/380-415/3/50(V/Ph/Hz)). Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
About the Manufacturer
This product is produced by Jiangsu Sunrain Solar Energy Co., Ltd., based in China. The company 22 years as a verified Alibaba.com supplier, operates its own manufacturing, passed third-party supplier assessment. Browse the full Jiangsu Sunrain Solar Energy Co., Ltd. range on HVACR Nexus.
