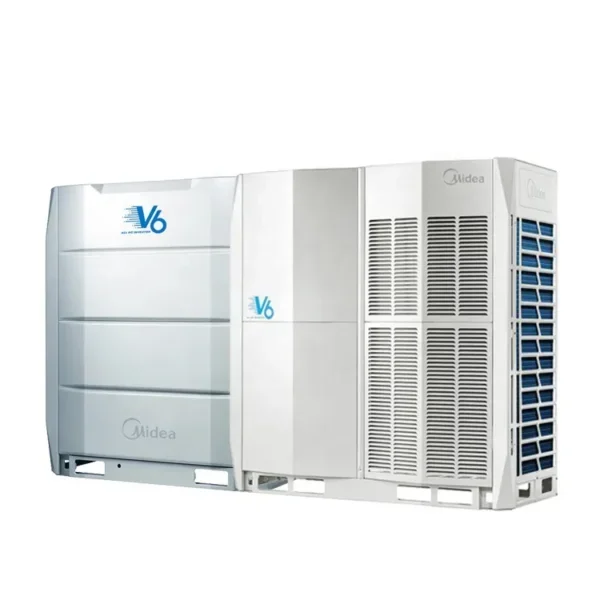

System multi air conditioner — voltage 380, capacity 307000. The complete factory specification follows. Made by Dongying Qinghua Trading Co., Ltd. (9 years on the platform, factory-assessed). Send your target quantity and destination for a firm quotation with current lead times.
Key Features of This System Multi Air Conditioner
- Model Number: MV6-900WV2GN1-E
- Power Type: AC
- Power Source: Electric
- Power (W): 90000
- Voltage (V): 380
- Capacity (Btu): 307000
Technical Specifications
| Type | Central Air Conditioners |
|---|---|
| Capacity (Btu) | 307000 |
| Cooling/Heating | Cooling/Heating |
| Application | Hotel, Commercial, Household |
| EER | 2.9 |
| Fixed Frequency/Variable Frequency | Variable Frequency |
| Power Type | AC |
| Power Source | Electric |
| App-Controlled | Yes |
| Remote Control | Yes |
| Power (W) | 90000 |
| Warranty | 3 Years |
| After-Sales Service Provided | Free Spare Parts |
| Private Mold | Yes |
| Place Of Origin | China |
| Recommended Room Size（Square Feet） | 15000 |
| Voltage (V) | 380 |
| Brand Name | Midea |
| Cop | 3.5 |
| Model Number | MV6-900WV2GN1-E |
| Total Capacity | 50-130% of outdoor unit capacity |
| Product Name | Vrf System |

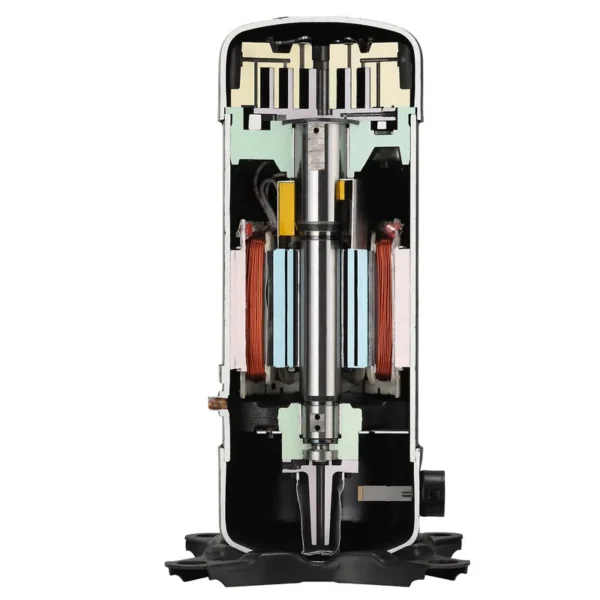

| Compressors Type | DC inverter |
| Refrigerant | R410A |
| Keyword | Vrf Air Conditioning |
| Function | CoolingHeating |
| Feature | High Efficiency |
| Ambient Temp Operating Range(Cooling) | -25 to 55℃ |
| Packaging Details | school air condition Packed in a regular carton, the interior is filled with foam, and the outside of the carton is bound with a wooden frame. |
| Port Of Dispatch | BEIJIAO |
| Selling Units | Single item |
| Single Volume | 0 cm³ |
| Single Gross Weight | 0.0 kg |
| Supply Ability | 2000 pieces per Month |
Product Details
Product parameters
Capacity | Hp | 32 | |||
Model number | MV6-900WV2GN1 | ||||
Power supply | V/Ph/Hz | 380-415/3/50 | |||
Cooling | Capacity | kW | 90.0 | ||
Power input | kW | 31.0 | |||
Heating | Capacity | kW | 90.0 | ||
Power input | kW | 25.7 | |||
Refrigerant | Type | R410A | |||
Sound level | dB（A） | 68 | |||
Packed size（W×H×D） | mm | 1800×2100×910 | |||
Gross weight | kg | 507 | |||
The factors of choosing VRF system
Brand Reliability Energy saving Comfort Quiet
● 200+ countries
● 15 manufacturing bases
● The Fortune Global 500, 312th
● Total revenue 2019, 39.47 Billion USD
● Employees, 150,000+
● Energy Management System (EMS)

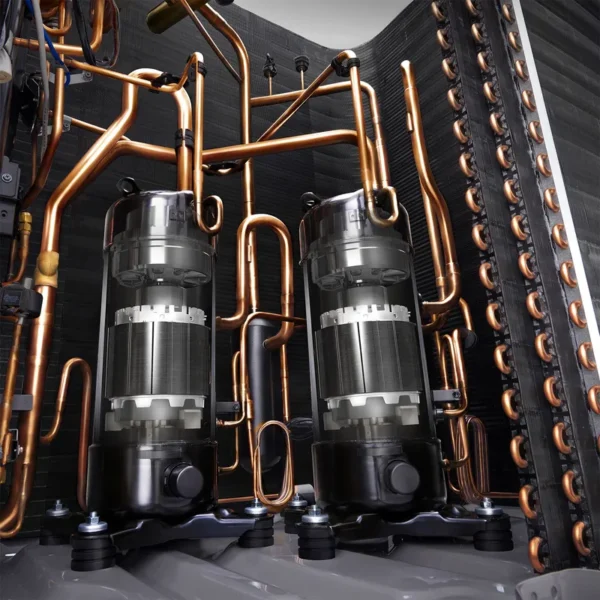

● Enhanced Vapor Injection (EVI) Compressor
● Triple Configurations
High Efficiency
● Plate Heat Exchanger (PHE) Subcooling
● High Efficiency G-Type Heat Exchanger

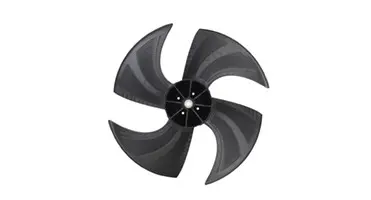

● Super big size fan
Wide Capacity Range
● 8-96 Hp
Wide Operation Range
● -25-48℃
Long Piping Capability
● Total piping length: 1000m
●Longest piping length – actual (equivalent): 175m
●Longest piping length after first branch: 40/90m
●Level difference between IDUs and ODU – ODU above (below): 90m (110m)
●Level difference between IDUs: 30m
● 8-96 Hp
Wide Operation Range
● -25-48℃
Long Piping Capability
● Total piping length: 1000m
●Longest piping length – actual (equivalent): 175m
●Longest piping length after first branch: 40/90m
●Level difference between IDUs and ODU – ODU above (below): 90m (110m)
●Level difference between IDUs: 30m
High Reliability
● Duty Cycling● Precise Oil Control Technology
● Backup Operation
● UL Anti-Corrosion Certificate, 27years
● Refrigerant Cooling PCB
● Real-time Refrigerant Amount Monitoring
● Auto Snow-blowing Function
● Dust-clean function
Powerful
● Night Silent Mode● Enhanced Heating Capacity
● Intelligent Defrosting Technology
● Auto Addressing
● Automatic Refrigerant Charging/Recycling Function

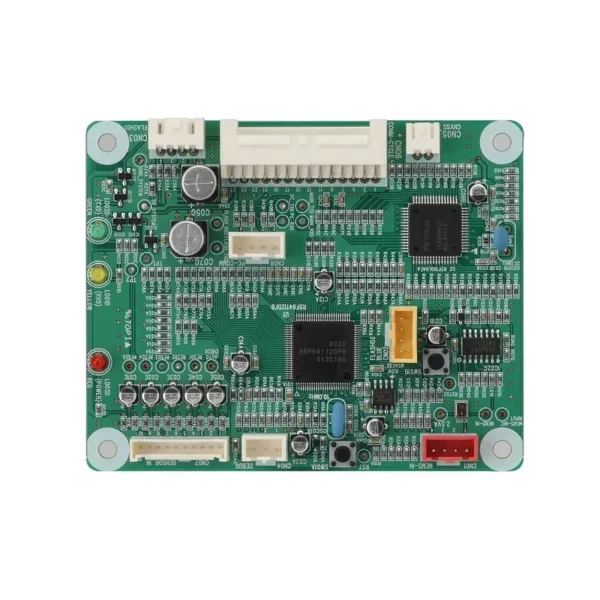

● Optional Multifunctional PCB
The factors of choosing VRF system supplier
Professional Experience Warmly service Authorized One step supply Turnkey service Certification
Professional
● Engineer and designer team
● Air conditioning system sale engineer
● Professional supply chain
● Project evaluation and management
● Air conditioning system sale engineer
● Professional supply chain
● Project evaluation and management
Experience
● 20+ years of central air conditioning
● 400+ projects all over the world
● 100 million USD total project cost
● 5 million sqm
● 400+ projects all over the world
● 100 million USD total project cost
● 5 million sqm
Warmly Service
● Customer-oriented
● 24 hours on line
● 365 days, all year around
● 1 to 1 service
● 24 hours on line
● 365 days, all year around
● 1 to 1 service
Authorized
● Directly agent of Midea group
● Authorized by Midea brand
● Designated distributor
● Import & Export of AC system
● Authorized by Midea brand
● Designated distributor
● Import & Export of AC system
One step supply

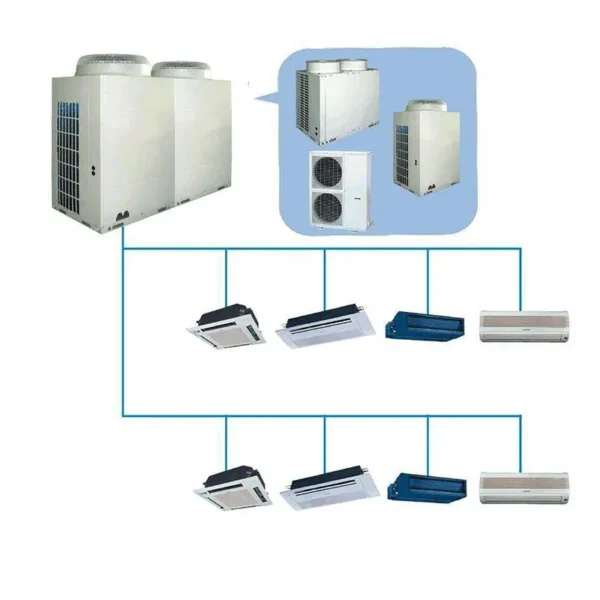

● Indoor units and outdoor units
● Control system
● Installing accessories, 50+ kinds
● Tools and materials
● Control system
● Installing accessories, 50+ kinds
● Tools and materials
Turnkey service
● Skilled and experienced engineer
● The price advantage
● Save 80% buying time
● Direct after sale service of Midea
● The price advantage
● Save 80% buying time
● Direct after sale service of Midea
Certification
● CE certification
● CCC, CCCS, ISO
The price instruction
When you buy the VRF system locally, there are many stages can add profit and increase the final price
When you buy from us, there is no middle man, and only the extra freight cost
How many kinds of buildings can use this kind of VRF system ?
Hotel, restaurant, holiday village
CBD, office building, apartment building
Gym, library, theater
Supper market, city center
School, hospital, villa
Air port, station,
How to place an order of VRF system after you sending the enquiry?
What information can help us to make a good plan for your building ?
● The accurate address of the building
● The application of the building● The size of the building, such as the height of each floor?
● The drawing of the building
● The environment condition of the building, such as highest temperature in summer
● The working condition of the outdoor units
● The function of each room
● Which rooms need indoor units
● Is it an old building or new building
● If it is still not decorated
● Which kind of indoor units do you prefer according to the catalog
● What is the local power supply for your building
You May Also Like
Q&A
Q: What is the most important factors for a VRF supplier ?
A: Professional technology and experience !
Q: Why do I have to choose a professional company ?
A: Because the VRF system does not allow the trial and error process, if you install the VRF system according to a not very
professional design, when you found the wrong points, it will cost much more money and cost to change it.
Q: Can I choose other payment term ?
A: Yes, such as LC is allowed.
Q: Why do I have to tell you the address of the project ?
A: Because our price can influence the local market of your country, it is the rule of Midea group.
Q: Need I buy all accessories and materials of a VRF system from you ?
A: No, We will give you a price list of the accessories and materials, you decide which need we buy or do not need we buy after comparing the price to local.
Q: Do you provide the installing service ?
A: Yes, we have professional installing teams and project managers of VRF system. However it is not free, you only need pay the salary, fares and the accommodation .
A: Professional technology and experience !
Q: Why do I have to choose a professional company ?
A: Because the VRF system does not allow the trial and error process, if you install the VRF system according to a not very
professional design, when you found the wrong points, it will cost much more money and cost to change it.
Q: Can I choose other payment term ?
A: Yes, such as LC is allowed.
Q: Why do I have to tell you the address of the project ?
A: Because our price can influence the local market of your country, it is the rule of Midea group.
Q: Need I buy all accessories and materials of a VRF system from you ?
A: No, We will give you a price list of the accessories and materials, you decide which need we buy or do not need we buy after comparing the price to local.
Q: Do you provide the installing service ?
A: Yes, we have professional installing teams and project managers of VRF system. However it is not free, you only need pay the salary, fares and the accommodation .
Ordering and Pricing
- Minimum order quantity: 2 piece
- Volume pricing:
- 2–4 piece: US $2999 / piece
- 5+ piece: US $2500 / piece
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this system multi air conditioner?
The standard minimum order quantity is 2 piece. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 3 Years warranty. Spare parts and technical support remain available after the warranty period.
Can the system multi air conditioner be supplied for my local voltage?
The standard configuration is 380. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
About the Manufacturer
This product is produced by Dongying Qinghua Trading Co., Ltd., based in China. The company 9 years as a verified Alibaba.com supplier, Trading Company, passed third-party supplier assessment. Browse the full Dongying Qinghua Trading Co., Ltd. range on HVACR Nexus.
