Tailored Ductless Fan, Fan Coil Unit

This tailored ductless fan is published with the manufacturer’s full specification — type Fan Coil Unit. Made by Hebei Langri Heating And Cooling Equipment Co., Ltd. (3 years on the platform, typical reply ≤1h). Send your target quantity and destination for a firm quotation with current lead times.

Key Features of This Tailored Ductless Fan

• INPUT POWER: 16w
• Warranty: 1 Year
• Place Of Origin: Hebei, China
• Type: Fan Coil Unit
• Mounting Type: Floor Standing
• Single Package Size: 95X70X30 cm

Technical Specifications

Product Details

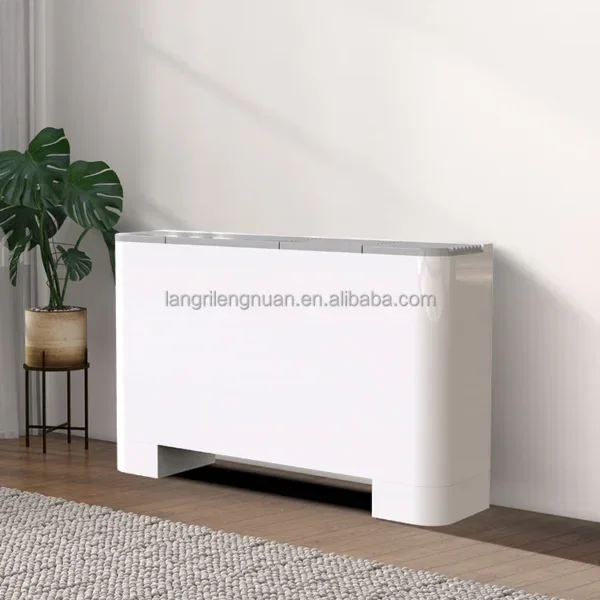

Universal exposed Fan Coil Unit

1.Two types of return air methods and multiple installation methods.

2.Adjust according to the required environment.

3.Beautiful and elegant appearance,Replace radiators

4.The product requires less water and heats up quickly.

5.Easy to install, convenient, and detachable, saving you valuable space.

Surface cooler

Hydrophilic aluminum foil,

with a thickness of 0.105MM.

Multiple inlet and outlet collection heads can accelerate water circulation and increase water flow.

Efficient heat transfer with a spacing of 1.6-1.8mm.

Copper water head

Pure brass collector head with high corrosion resistance

and pressure resistance,

0.3mm thick copper tube,

7mm diameter for optimal heat transfer efficiency

Motor

Yong'an DC brushless motor.

In terms of noise life efficiency,

it is superior to AC motors.

Fixed position upgrade and

strengthened board.

Wind wheel

Using ABS material for the wind wheel.

Compared to iron wind wheel,

it has lower noise,

corrosion resistance,

longer lifespan, and higher efficiency.

Water tray

The steel water tray adopts high gloss spray coating,

with a smooth surface that does not stick to dust and is corrosion-resistant.

It is equipped with insulation cotton to isolate condensed water.

Thermostat

Thermostat, temperature and wind speed control, optional button and touchscreen styles

Manufacturing Technique

1.Fin stamping

2.Fin collection

3.Copper pipe cutting

4.Copper tube bending

5.Copper tube expansion link fins

6.Welding water inlet

7.Air pressure and water leakage testing

8.Collect and stack

9.Laser cutting shell

10.Machine bending shell

11.Assemble the outer shell and inner unit

12.Power on test

13.Airflow testing

14.Packaged products

15.Warehouse shipment

Product Paramenters

Model	FP-136	FP-170	FP-204	FP-238
Air volume m³/h	1360	1700	2040	2380
Cooling capacity W	7200	9000	10800	12600
Heating capacity W	11520	14400	17280	20160
Input power	156	174	212	253
Noise DB (A)	44	45	48	52
Water resistance KPa	40	40	40	50
Usage area	40m²	50m²	60m²	70-80m²
Water flow rate	1325	1545	1900	2200
Motor power	40W*16W	40W*2	50W*2	60W*2
Dimensions	1360*480*245	1660*480*245	1860*480*245	2060*480*245
Evaporator size	1100*210*40	1360*210*40	1560*210*40	1760*210*40
Air outlet size	1150*135	1410*135	1610*135	1810*135
Hanging hole spacing (mm)	1130	1390	1590	1790
Weight without return air box (KG)	27	32	35	37
Weight with return air box (KG)	31	37	42	44
Vertical	1408*640*240	1678*640*240	1868*640*240	2028*640*240
Horizontal	1408*560*240	1678*560*240	1868*560*240	2028*560*240

Model	FP-34	FP-51	FP-68	FP-85	FP-102
Air volume m³/h	340	510	680	850	1020
Cooling capacity W	1980	2730	3600	4500	5450
Heating capacity W	3160	4360	5760	7200	8720
Input power	44	59	72	87	108
Noise DB (A)	35	38	41	41	44
Water resistance KPa	10	20	30	30	30
Usage area	10m²	15m²	20m²	25m²	30m²
Water flow rate	302	454	605	756	907
Motor power	16W	20W	25W	30W	40W
Dimensions	760*480*245	860*480*245	960*480*245	1060*480*245	1160*480*245
Evaporator size	460*210*40	580*210*40	650*210*40	780*210*40	900*210*40
Air outlet size	510*135	630*135	700*135	830*135	950*135
Hanging hole spacing (mm)	490	610	680	810	930
Weight without return air box (KG)	13	15	16	18	20
Weight with return air box (KG)	17	19	20	22	25
Vertical	788*640*240	938*640*240	978*640*240	1098*640*240	1258*640*240
Horizontal	788*560*240	938*560*240	978*560*240	1098*560*240	1258*560*240

Customer Photos

Company Profile

Hebei Langri Heating And Cooling Equipment Co., Ltd

Hebei Langri Heating and Cooling Equipment Co., Ltd. is a manufacturer that integrates design, manufacturing, production and sales. Our company mainly provides fresh air exchange units, fan coil units, ventilation equipment, water air conditioning and other heating and cooling equipment. During this period, we have been focusing on the development of the heat pump industry and continuously absorbing advanced technologies from various regions, as well as representative cases of various projects.

Why Choose Us

Experienced and professional HVAC solution provider

Floor plan piping design

Floor plan piping design

One-stop service. we could not only provide the unit, but also all installation materials

We could send out our engineer to you if needed

24*7 online service

Deep and strong connection with Gree which ensures us a competitve factory price for you

Certifications

Q:Are you a manufacturer or a distributor? A:I'm Langri, a manufacturer.

Q:What is your price term? A:Ex-factory, FOB, CIF

Q:What is the minimum order quantity? A:The MOQ is 5pcs/model, We accept lpc as sample order for testing.

Q:What is the term of payment?

A:T/T or L/C. Also, we accept the order to be placed via Alibaba

Q:How long is the lead time? A:25-30 days for sample order For smaller models under 8KW, 25 days for containerorder For models 9KW and above, 35 days for container order, We have stocks for popluarmodels,which can be dellvered at once.

Q:How long warranty does Langri provide?

A:24 months since delivery date warranty for every heat pump, and 18 months sincedelivery date warranty for every water tank For agency/distributor or any other kind oflong-term cooperation, we can offer longer and better warranty as discussed and con-firmed by both sides.

Q:lf we have a new design of a heat pump, can Langri produce for us? What is the MOQ? A:Yes of course, we offer OEM service for customers, You only need to provide us the technical nformation. Our engineers will design the whole heat pump according to the techni.cal information you provide, and at the same time control the cost and the price. As to the MOQ, it depends on how difficult the OEM project, as well as the possibility this OEMheat pump would be promising.

Ordering and Pricing

• Minimum order quantity: 1 piece
• Volume pricing:
  • 1–99 piece: US $110.41 / piece
  • 100–499 piece: US $98.8 / piece
  • 500+ piece: US $92.3 / piece
• Ships from: China
• Customization: OEM and ODM accepted on qualifying volumes.

Frequently Asked Questions

What is the minimum order quantity for this tailored ductless fan?

The standard minimum order quantity is 1 piece. Trial orders can usually be arranged for buyers evaluating the product before a full production run.

What warranty is provided?

The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.

Do you accept OEM or custom branding?

Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.

How long does production and delivery take?

In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.

About the Manufacturer

This product is produced by Hebei Langri Heating And Cooling Equipment Co., Ltd., based in China. The company 3 years as a verified Alibaba.com supplier, operates its own manufacturing. Browse the full Hebei Langri Heating And Cooling Equipment Co., Ltd. range on HVACR Nexus.
