This cross flow fan is listed with the manufacturer’s full published specification — voltage 12V, blade material aluminum, model number DFE25160. It is produced by ACTIVA INC.. Pricing shown is indicative at standard quantities; send your target volume and destination market for a firm quotation with current lead times.
Key Features of This Cross Flow Fan
- Model Number: DFE25160
- Voltage: 12V
- Blade Material: aluminum
- Warranty: 1 Year
- Certification: CE
- Place Of Origin: Taiwan, China
Technical Specifications
| Blade Material | aluminum |
|---|---|
| Mounting | Industrial Equipment |
| Electric Current Type | DC |
| Place Of Origin | Taiwan, China |
| Voltage | 12V |
| Brand Name | SYMBANG |
| Model Number | DFE25160 |
| Warranty | 1 Year |
| After-Sales Service Provided | Online support |
| Size | 25*160mm |
| Series | Cross Flow Fan |
| Certification | CE |
| Port Of Dispatch | kaohsiung |
| Selling Units | Single item |
Product descriptions from the supplier

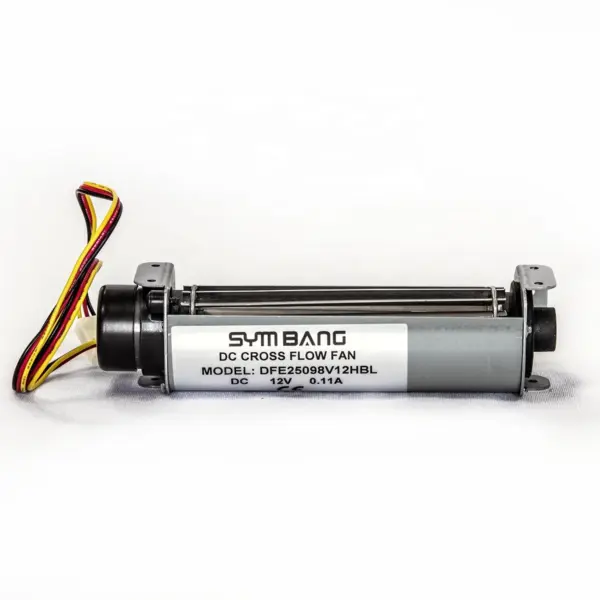

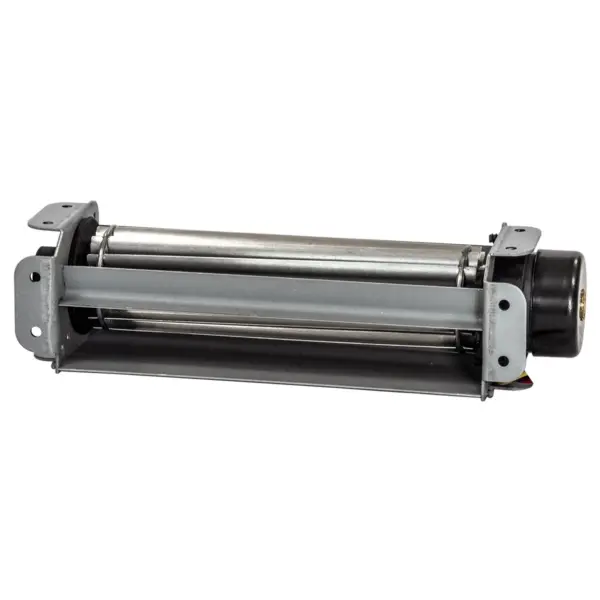

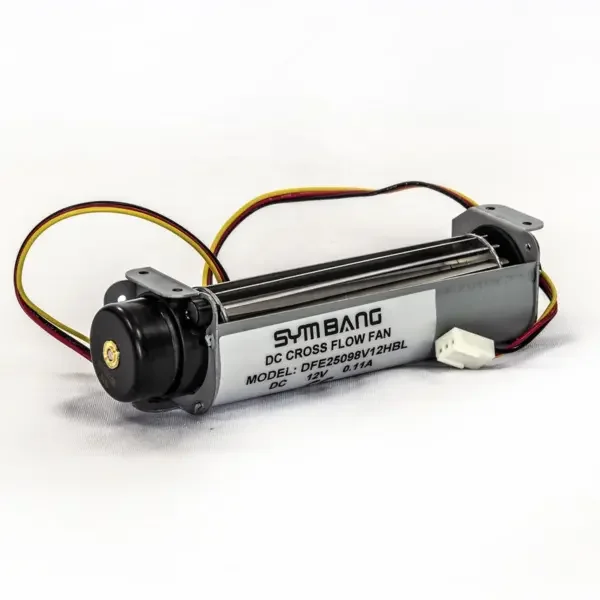

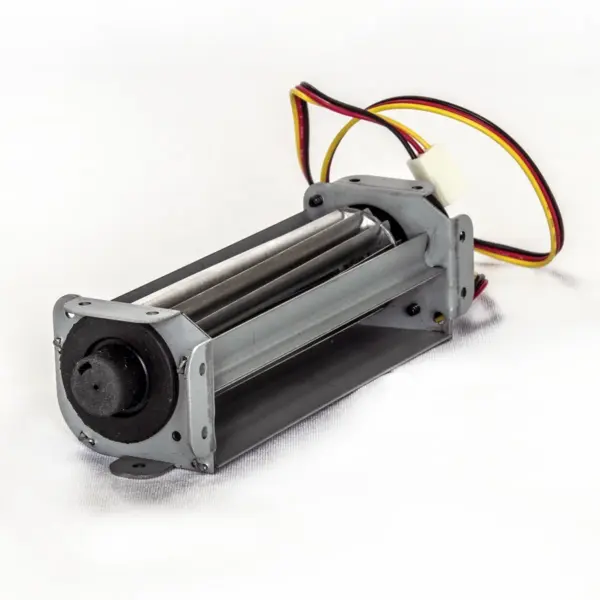

DFE25160 25mm 12V Small Cross Flow Fan
| HOUSING | Metal/Aluminum |
| IMPELLER | Aluminum,Ø25mm |
| BEARING | Ball |
| OPERATING TEMPERATURE | 0°C to + 45°C |
| DIELECTRIC STRENGTH | 5mA Max. at 500 VAC for 1 minute |
| INSULATION RESISTANCE | 10MΩ min. @500 VDC |
| MOTOR TYPE | DC Brushless Motor |
| ROHS COMPLIANCE | Yes |
| IP LEVEL | IP21 (Special IP Rating On Request) |
|
Model No.
|
RATED VOLTAGE (V) |
RATED CURRENT (A) |
INPUT POWER (W) |
SPEED (RPM) |
MAX. AIR PRESSURE | MAX. AIR FLOW | NOISE dB(A)@1M | ||
| inchH2O | mmH2O | CFM | m3/min | ||||||
| DFE25098V12H | 12 | 0.11 | 1.32 | 3100 | 0.06 | 1.6 | 11 | 0.31 | 32 |
| DFE25160V12H | 12 | 0.13 | 1.56 | 2700 | 0.06 | 1.4 | 16 | 0.45 | 29 |
| DFE25198V12H | 12 | 0.14 | 1.68 | 2500 | 0.05 | 1.3 | 18 | 0.51 | 28 |
| DFE25250V12H | 12 | 0.2 | 2.4 | 2600 | 0.07 | 1.8 | 25 | 0.71 | 32 |
| DFE25298V12H | 12 | 0.21 | 2.52 | 2500 | 0.06 | 1.6 | 30 | 0.85 | 33 |

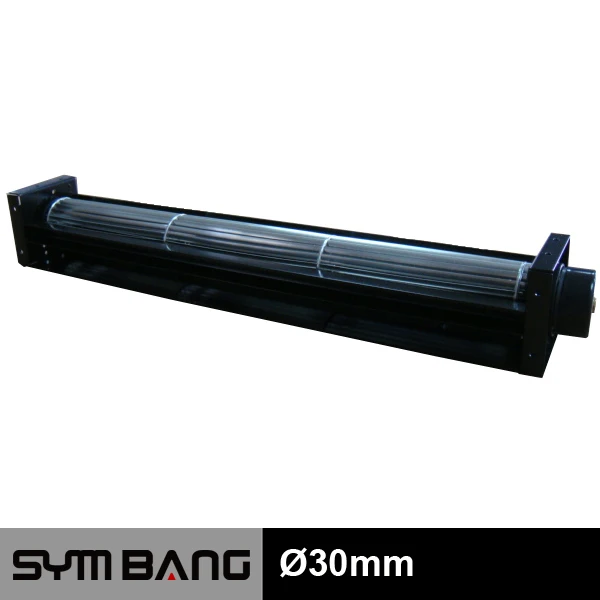

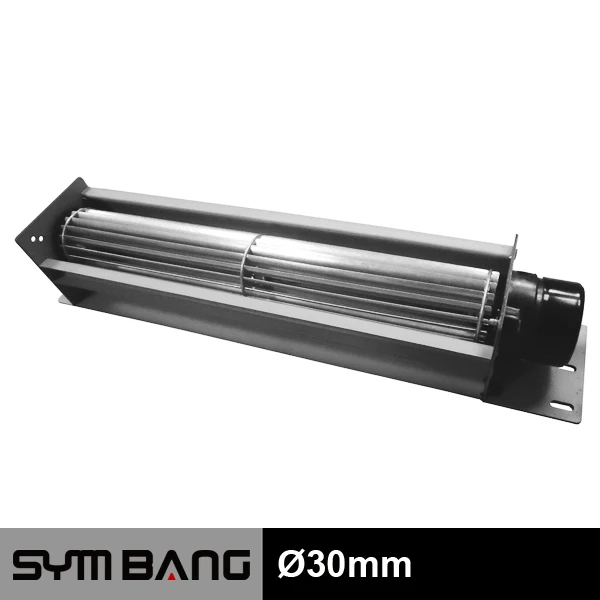

Similar product:
Applications:
- Power Supply Units
- Measuring Instruments
- Electronic Switch Systems
- Automatic Vending Machines
- Air-conditioning & Heating Apparatus
- Computers(CPU, Peripheral & Terminal Equipment)
- Medical Equipment
- Acoustic Equipment
- Flight Instrumentation
- Numerical Control(NC)Units
- Data Communications Terminal Equipment
- Office Machinery Appliances & Copying Machines
Activa Inc. is committed to the research & development of cooling fans & motors. Based on more than 20 years of experience in mold and component plastic injection manufacturing, SYM BANG has become a specialist manufacturer of exhaust fan through its advanced technology and full line of ventilation system.
We provide following products:

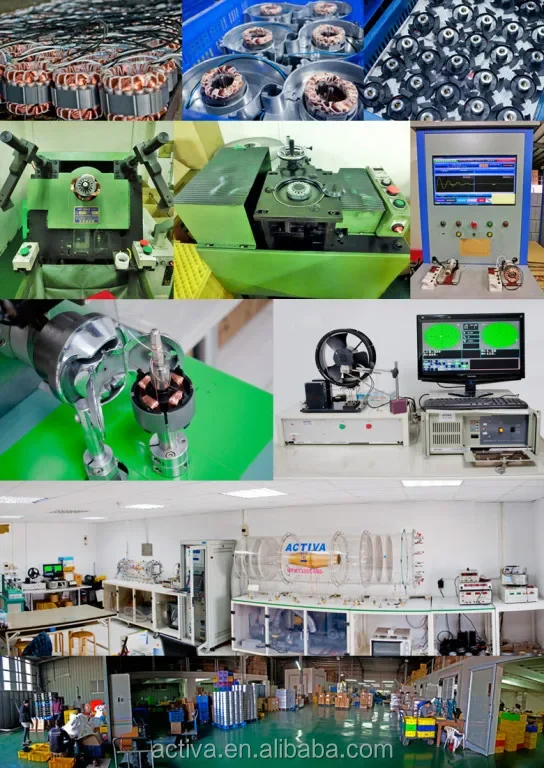

Our factory:

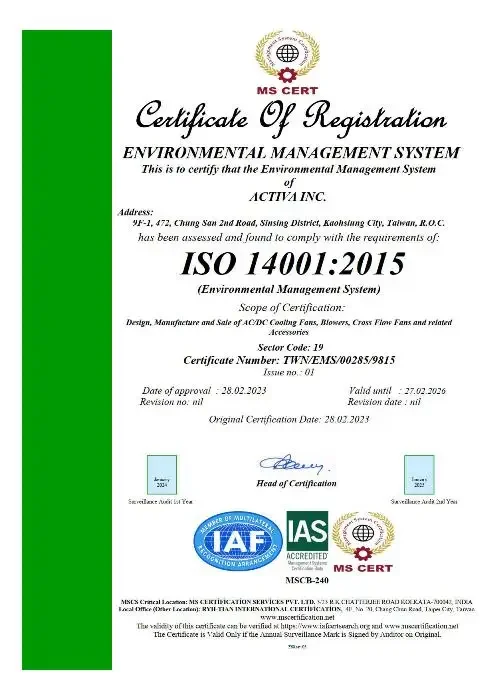

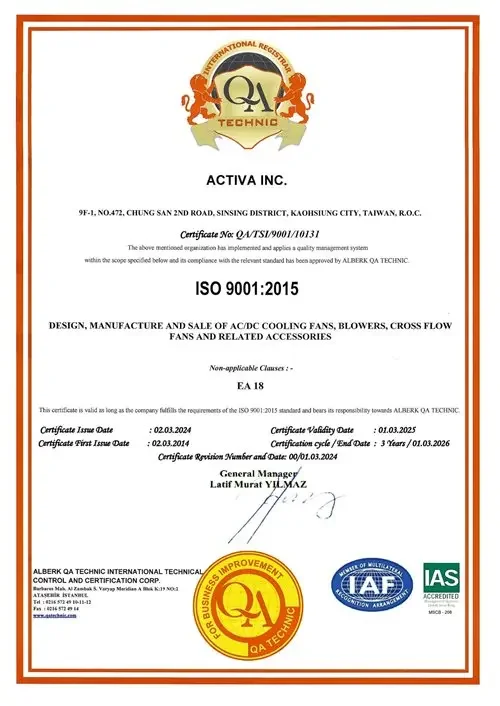

Our certificate:
Frequently Asked Questions
What is the minimum order quantity for this cross flow fan?
Minimum order quantity is set per configuration and trial quantities can usually be arranged. Send your target volume with an enquiry and a quotation will follow with current lead times.
What warranty covers this cross flow fan?
A 1 Year warranty is supplied as standard. Spare parts and technical support remain available beyond the warranty period.
Which certifications are available?
CE documentation is supplied with the product. Additional test reports can be issued on request for specific import markets.
Can it be built for my local voltage?
The standard specification is 12V. Alternative voltage and frequency builds are available when confirmed at order stage.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying volumes. Supply your artwork and technical requirements with the enquiry.
How long is production and delivery?
Stocked configurations normally ship in 7-15 days. Customised or high-volume orders are typically produced in 25-35 days, confirmed at order.
About the Manufacturer
This cross flow fan is produced by ACTIVA INC.. Browse the full ACTIVA INC. range on HVACR Nexus.
