This centrifugal fan is listed with the manufacturer’s full published specification — voltage 48 V, material Plastic, type Centrifugal Fan. It is produced by ACTIVA INC.. Pricing shown is indicative at standard quantities; send your target volume and destination market for a firm quotation with current lead times.
Key Features of This Centrifugal Fan
- Model Number: DCF13391V24HB-B
- Voltage: 48 V
- Material: Plastic
- Blade Material: Plastic
- Speed: 4000 RPM
- Warranty: 1 Year
Technical Specifications
| Mounting | Industrial Equipment |
|---|---|
| Voltage | 48 V |
| Material | Plastic |
| Speed | 4000 RPM |
| Blade Material | Plastic |
| Customized Support | OEM, ODM |
| Warranty | 1 Year |
| After-Sales Service Provided | Online support |
| Model Number | DCF13391V24HB-B |
| Place Of Origin | Taiwan, China |
| Brand Name | SYMBANG |
| Type | Centrifugal Fan |
| Selling Units | Single item |
| Single Package Size | 16X16X12 cm |
| Single Gross Weight | 1.000 kg |
Product descriptions from the supplier

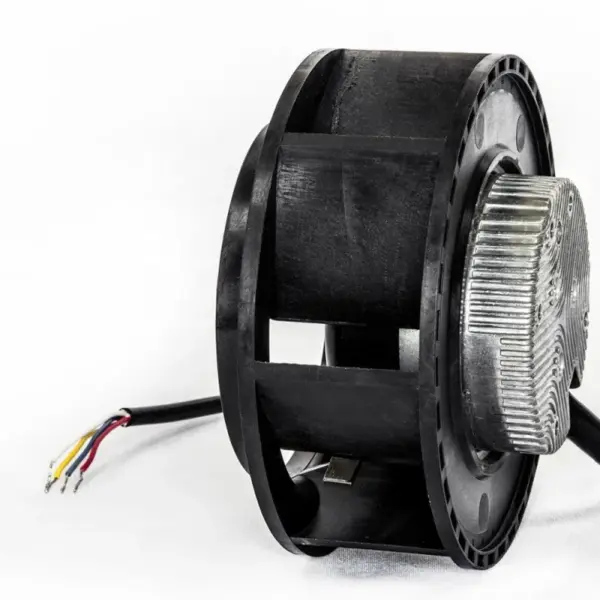

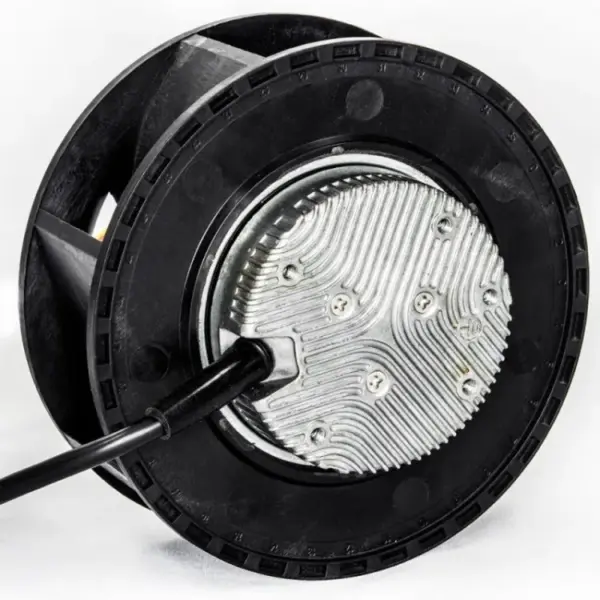

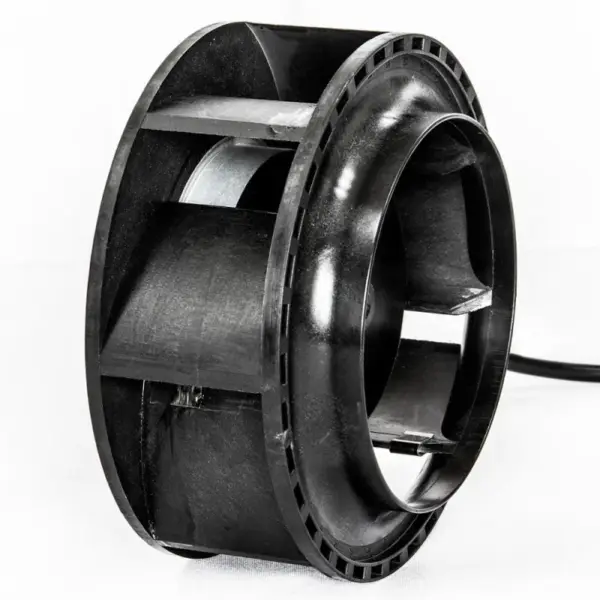

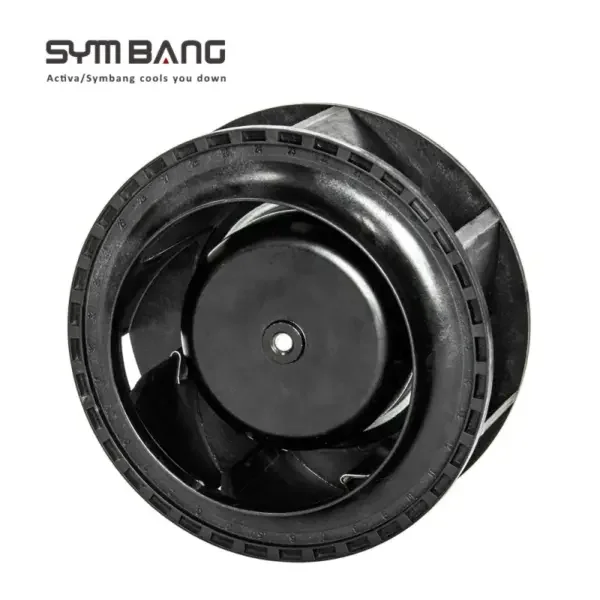

48V DC Mini Backward Curved Centrifugal Fan (DCF13391V48HB-B)

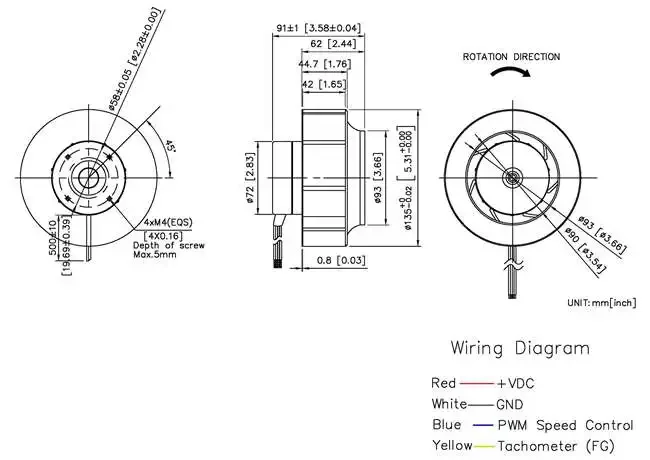

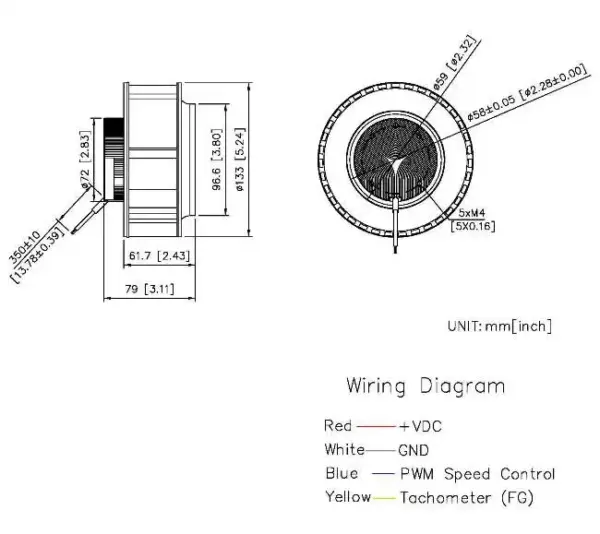

| MOTOR | Outer rotor motor Ø72mm |
| IMPELLER | Plastic Impeller, Metal Plate |
| BEARING | Ball |
| INSULATION | Class A |
| OPERATING TEMPERATURE | -25°C to + 65°C |
| INSULATION RESISTANCE | 10M Ω min. @500 VDC |
| DIELECTRIC STRENGTH | 5mA Max. at 500 VAC for 1 minute |
| WEIGHT | 740 g |
| ROHS COMPLIANCE | Yes |
| IP LEVEL | IP42 (Special IP Rating On Request) |
|

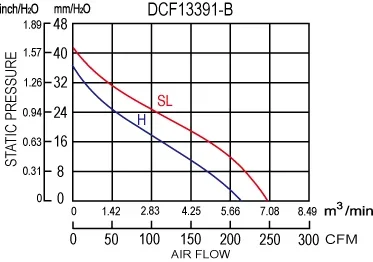

Model No.
|
RATED VOLTAGE (V) |
RATED CURRENT (A) |
INPUT POWER(W) |

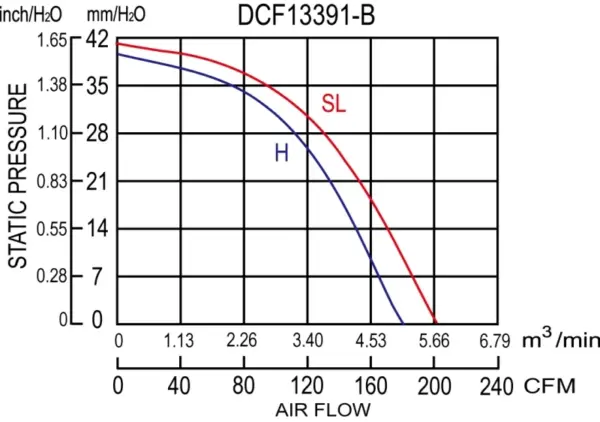

SPEED(RPM) | MAX. AIR PRESSURE | MAX. AIR FLOW | NOISE dB(A)@1M | ||
| inchH2O | mmH2O | CFM | m3/min | ||||||
| DCF13391V24HB-B | 24 | 2.0 | 48 | 4500 | 1.77 | 45 | 202 | 5.72 |
63 |
| DCF13391V24HB-B | 24 | 1.4 | 34 | 4000 | 1.57 | 40 | 182 | 5.15 |
60 |
| DCF13391V48SLB-B | 48 | 1.0 | 48 | 4500 | 1.77 | 45 | 202 | 5.72 | 63 |
|
DCF13391V48HB-B |
48 | 0.7 | 34 | 4000 | 1.57 | 40 | 182 | 5.15 | 60 |
Activa Inc. is committed to the research & development of cooling fans & motors. Based on more than 20 years of experience in mold and component plastic injection manufacturing, SYM BANG has become a specialist manufacturer of exhaust fan through its advanced technology and full line of ventilation system.
We provide following products:

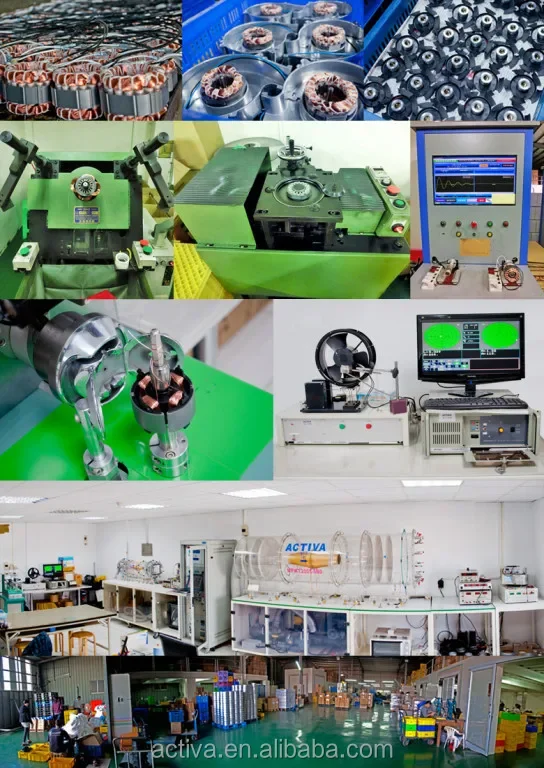

Our factory:
Our certificate:
Frequently Asked Questions
What is the minimum order quantity for this centrifugal fan?
Minimum order quantity is set per configuration and trial quantities can usually be arranged. Send your target volume with an enquiry and a quotation will follow with current lead times.
What warranty covers this centrifugal fan?
A 1 Year warranty is supplied as standard. Spare parts and technical support remain available beyond the warranty period.
Can it be built for my local voltage?
The standard specification is 48 V. Alternative voltage and frequency builds are available when confirmed at order stage.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying volumes. Supply your artwork and technical requirements with the enquiry.
How long is production and delivery?
Stocked configurations normally ship in 7-15 days. Customised or high-volume orders are typically produced in 25-35 days, confirmed at order.
