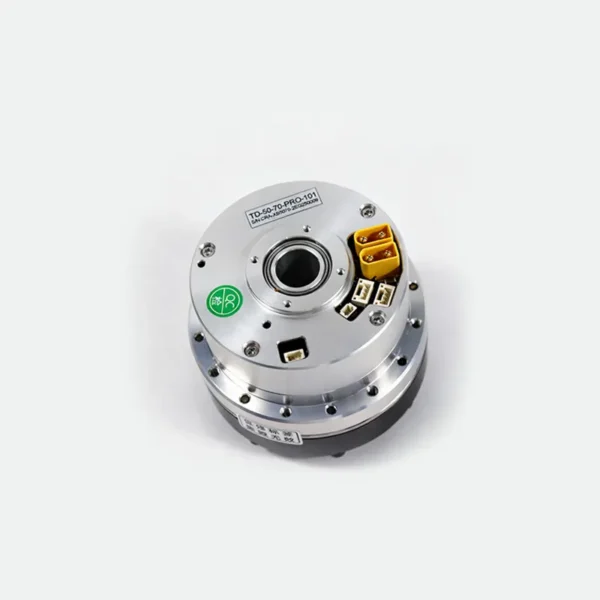

Td-50-70 ethercat motor — type Servo Motor, speed rpm 97 /61 /49. The complete factory specification follows. Made by Avatar Intelligent Equipment Co., Ltd. (3 years on the platform, typical reply ≤2h). Quantity and destination market determine the final price — tell us both for a firm quote.
Key Features of This Td-50-70 Ethercat Motor
- Model Number: TD-50-70-PRO-2E-EC
- Rated Power: 150w
- Speed Rpm: 97 /61 /49
- Speed(RPM): 75 /46 /37 Rpm
- Warranty: 1 year
- Place Of Origin: Henan, China
Technical Specifications
| Commutation | Brushless |
|---|---|
| Rated Power | 150w |
| Speed Rpm | 97 /61 /49 |
| Speed(RPM) | 75 /46 /37 Rpm |
| Efficiency | IE 4 |
| Type | Servo Motor |
| Construction | Permanent Magnet |
| Frame | 70 MM |
| Motor Mounting Type | Flange Mount |

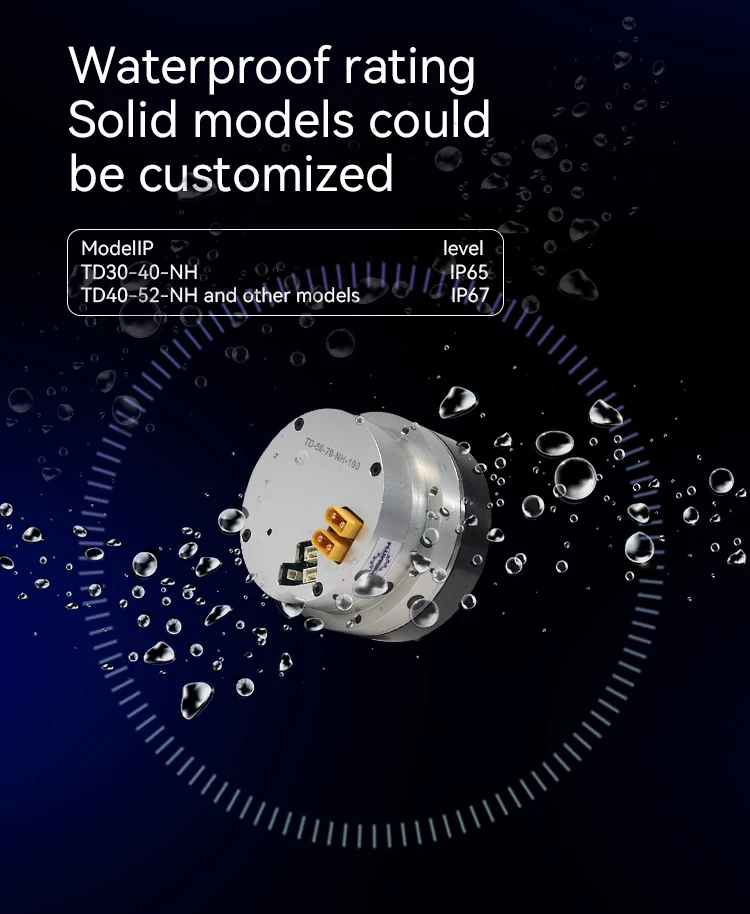

| Protect Feature | Waterproof |
| Usage | Robot Arm, Smart Home, Boat, Car, Electric Bicycle, Fan, Home Appliance, Cosmetic Instrument |
| Warranty | 1 year |
| Continuous Current(A) | 5 A |
| Model Number | TD-50-70-PRO-2E-EC |
| Torque | 6.6 /9.6 /9.6 NM |
| Place Of Origin | Henan, China |
| Brand Name | Avatar |
| Rated Ratio | 51 /81/ 101 |
| Start-Stop Peak Torque (N.M) | 23/ 29 /34 |
| Max. Allowable Torque (N.M) | 8.6 /13.5 /13.5 |
| Rated Torque At 2000rpm/ (N.M) | 6.6/ 9.6/ 9.6 |

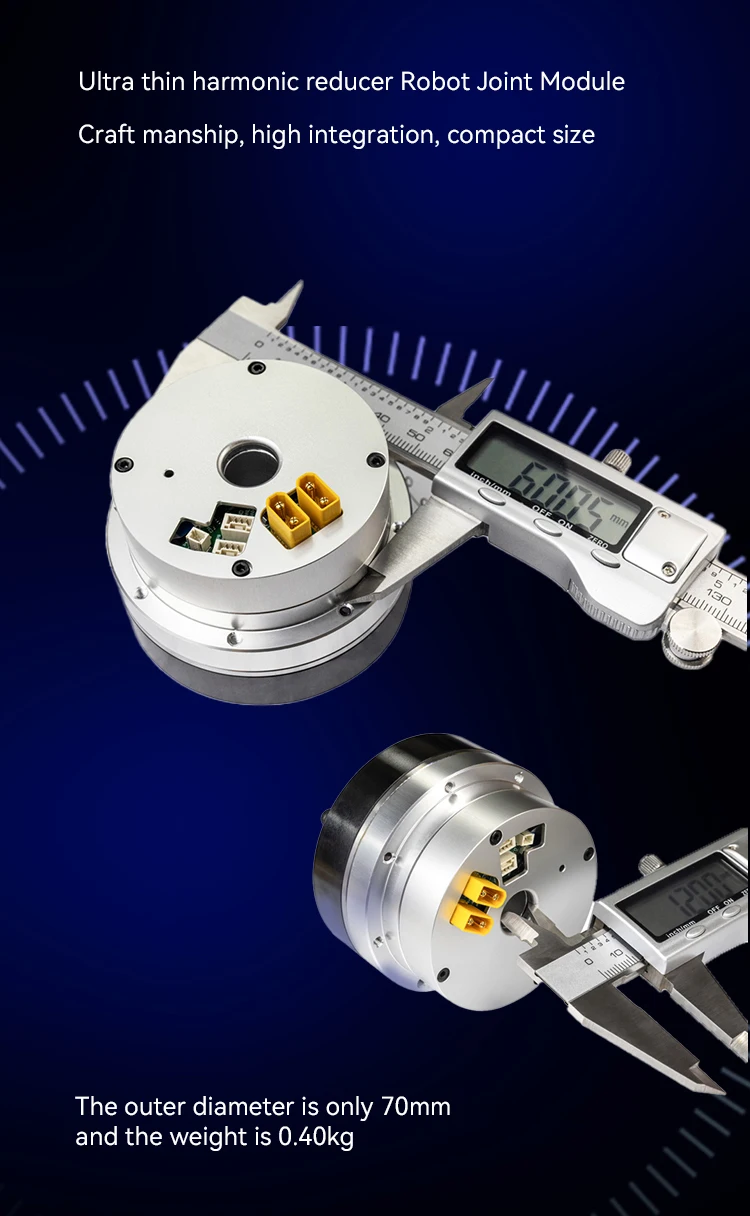

| Diameter(Mm) | 70 |
| Length(Mm) | 65.6±0.5 |
| Weght(Kg) | 0.63 |
| Through Hole(Mm) | 13 |
| Encoder Resolution (Bit) | 24+24/ 17 |
| Communication Bus | Ethercat /Canopen /Canbus |
| Selling Units | Single item |
| Single Package Size | 30X30X30 cm |
| Single Gross Weight | 2.000 kg |
Product Details
Model | TD-50-70-PRO-XX | TD-50-70-PRO-XXB |
Ratio | 51/81/101 | 51/81/101 |
Start-stop peak Torque (N.m) | 23/29/34 | 23/29/34 |
Max. allowable torque at average load (N.m) | 8.6/13.5/13.5 | 8.6/13.5/13.5 |
Rated torque at 2000rpm/ (reduction ratio) | 6.6/9.6/9.6 | 6.6/9.6/9.6 |
Output Peak Speed (RPM) | 97/61/49 | 97/61/49 |
Rated speed (RPM) | 75/46/37 | 75/46/37 |
Motor power (W) | 150 | 150 |
Supply voltage (V) | 24-48 | 24-48 |
Rated current (A) | 3.6 | 3.6 |
Max. continuous current(A) | 3.6 | 3.6 |
Encoder Resolution (Bit) | 17 | 17 |
Backlash (arcsec) | 20/20/10 | 20/20/10 |
communication bus | CAN | CAN |
Length(mm) | 60±0.5 | 81.7±0.5 |
Through hole(mm) | 12 | 10 |
Weight(kg) | 0.63 | 0.8 |
Torque constant | 0.089 | 0.089 |
Resistance(ohm) | 0.47 | 0.47 |
Inductance(mH) | 0.215 | 0.215 |
Number of pole-pairs | 10 | 10 |
Product performance description

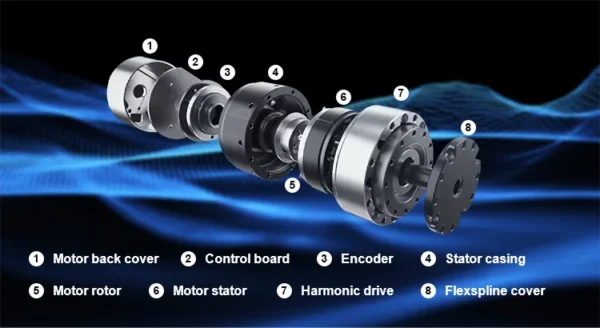

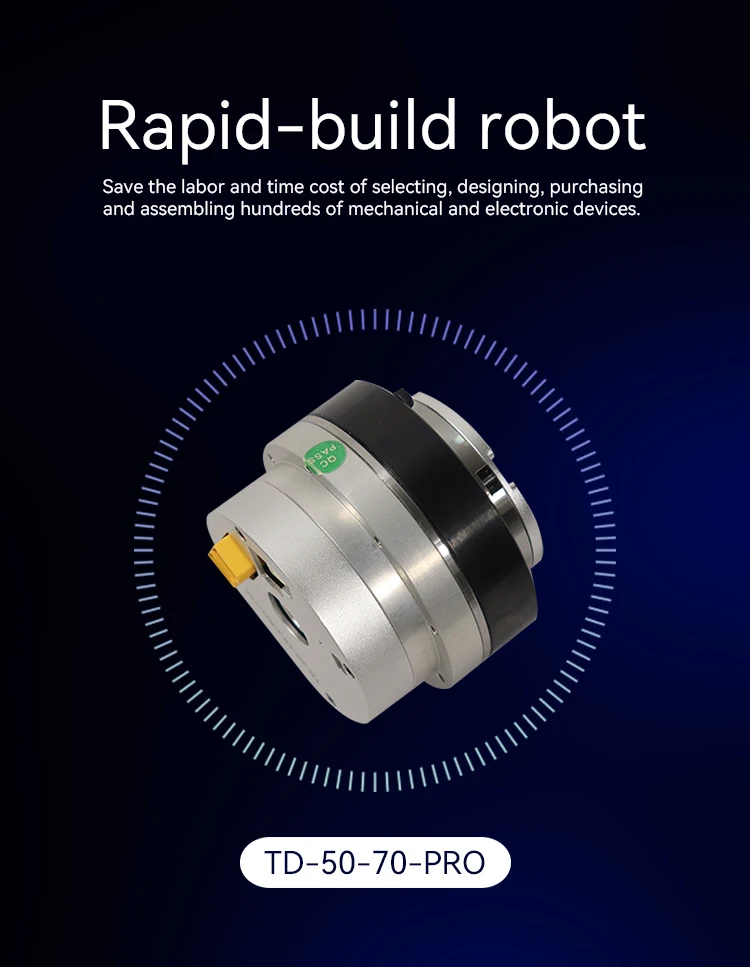

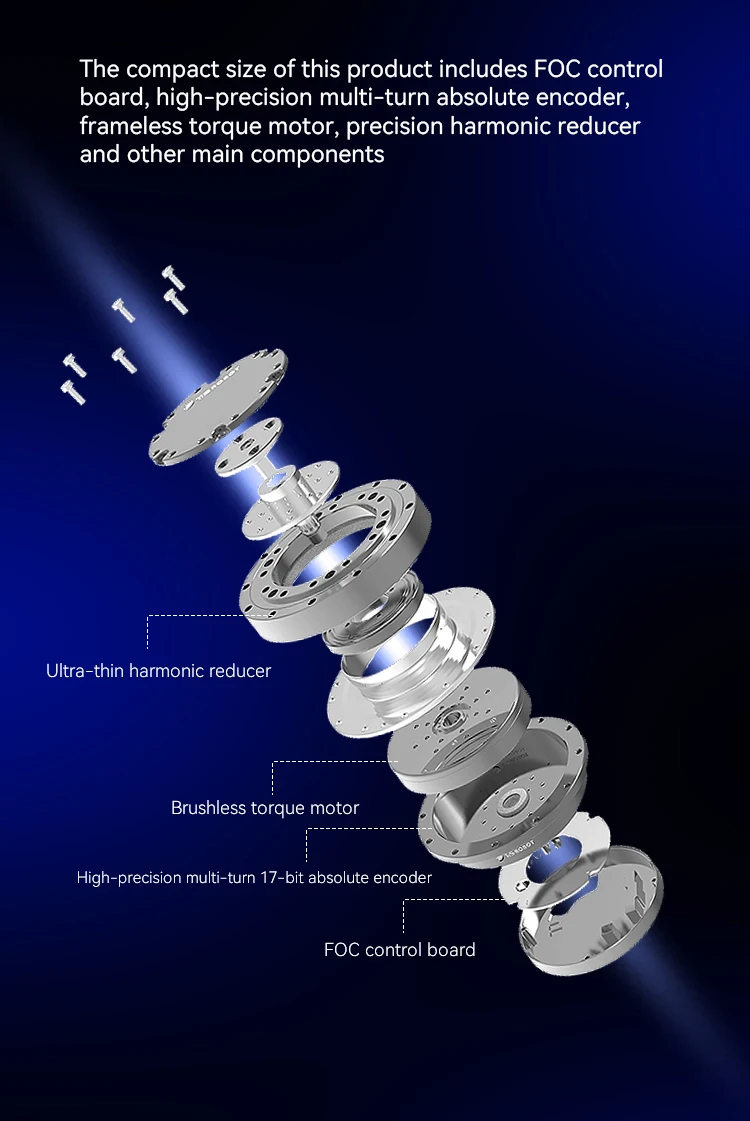

small size includes FOC control board, high-precision multi-turn absolute encoder, frameless torque motor, precision harmonic
reducer and other main components , saving customers the labor and time cost of selecting, designing, purchasing, and assembling
hundreds of mechanical and electronic components.
precision harmonic reducer and other main components.

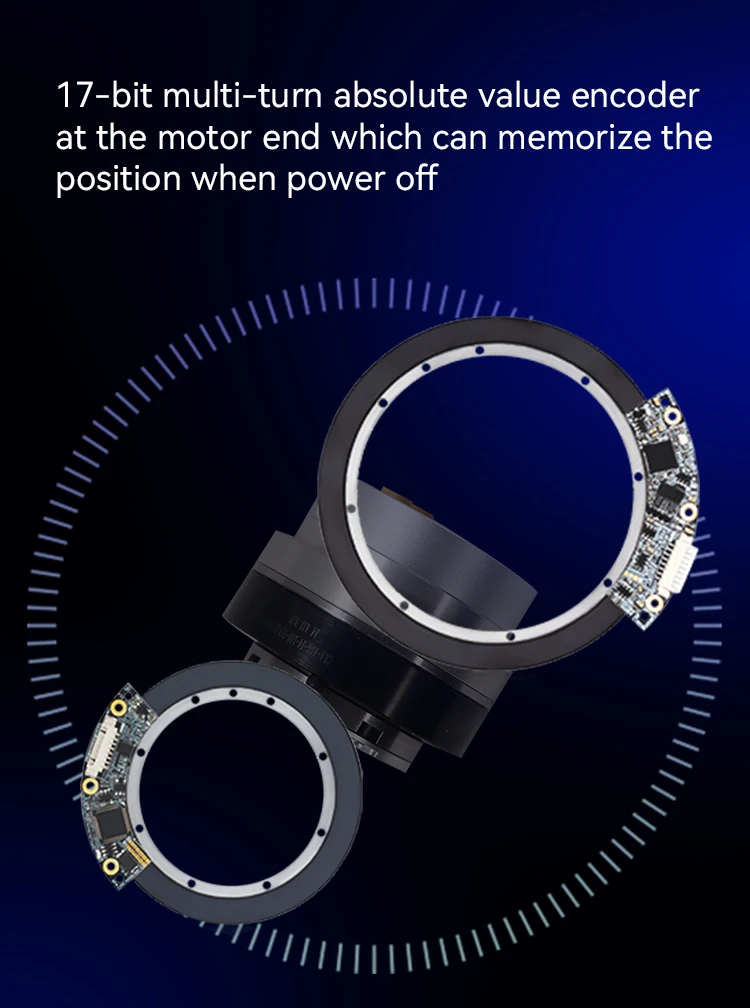

multi-turn power-off positions
and greatly shorten the development cycle.
A: We are manufacturer and trading company.
Q: Can I have a sample order?
A: Yes, we welcome sample order to test and check quality.
Q: How long is your delivery time?
A: Due to the complex process, production takes 8-10 working days. For customized goods, please check with us before order.
Q. How do you ship the goods and how long does it take to arrive?
A: Usually by express, like DHL, UPS, FedEx, EMS or TNT; By air and sea are also available.
Express takes 3-15 days to arrive.
Q: What is your terms of payment?
A: We accept Trade Assurance Order, TT, Paypal, West Union and L/C.
Ordering and Pricing
- Minimum order quantity: 2 piece
- Volume pricing:
- 2–49 piece: US $800 / piece
- 50–99 piece: US $754 / piece
- 100–199 piece: US $696 / piece
- 200+ piece: US $686 / piece
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this td-50-70 ethercat motor?
The standard minimum order quantity is 2 piece. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 1 year warranty. Spare parts and technical support remain available after the warranty period.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
About the Manufacturer
This product is produced by Avatar Intelligent Equipment Co., Ltd., based in China. The company 3 years as a verified Alibaba.com supplier, operates its own manufacturing. Browse the full Avatar Intelligent Equipment Co., Ltd. range on HVACR Nexus.
