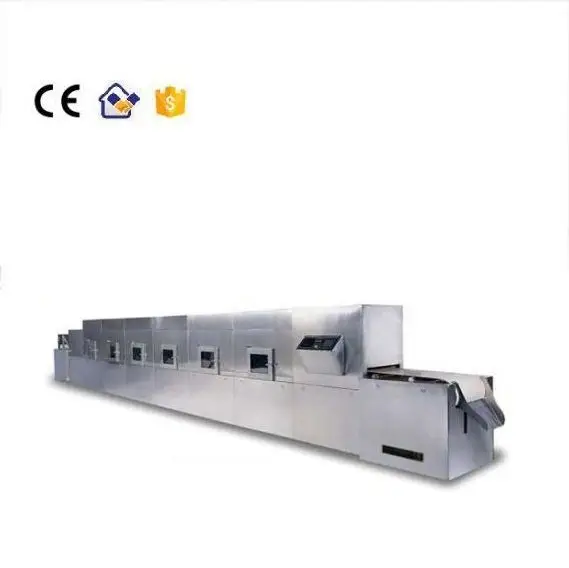

Thawing Equipment, 20~200kw, SS304#

Application Range of Tunnel type thawing machine:



Talin Tech offers a full range of equipment and components for microwave thawing applications(  microwave defrosting machine ). We will also custom design components for your needs. We can supply products for operation at 2450 MHz or 915 MHz in a variety of configurations.



We can also provide units for applications where the magnetron needs to be separate from the power supply and controls.  Microwave power which level from 10kW to 300kW are standard products.



Thawing system can be used in defrosting frozen food,for example,beef meat,pork,fish,poultry,dairy product ,fruit & vegetable and others. Adjustable temperature rising make the materials achieve the subsequent processing optimum temperature and the best structure state in a few minutes.







Traditional thawing Features:

The water-soluble thawing method and natural thawing method thaw, energy mainly be passed by heat conduction, due to first heated surface of thermal conduction is material surface, frozen material surface is easy to generate water after heated so that the thermal conductivity will be lower and slow thaw speed .



Microwave thawing features:

Adopts 915MHZ microwave source.While processing, microwave penetrate material inside and outside ,heat at the same time, don’t need heat conduction,it can be thawed with package, high speed, low energy consumption, environmental protection and health. Less operators needed while thawing, good working environment.



This equipment is used for defrosting frozen meat,aquatic products,meat products,seafood,poultry, egg products etc continuous processing system. Thawing time can be reduced to 3~5 minutes from several days, adjustable temperature rising make the materials achieve the subsequent processing optimum temperature and the best structure state in a few minutes.

Structure:

The whole machine consists of stainless steel, and it adopts the combined and removable assembly module in several parts:

A.The main body frame;

B.Conveying part;

C.Microwave generator parts;

D.Microwave heating cabinet parts;

E.Microwave preventing leakage parts etc.



Technical Parameters:

1.Equipment type: tunnel chain plate type

2.Microwave frequency: 2450±50 MHZ

3.Power output: 20-200KW

4.Conveyor speed: 0-10 m/min

5.Box Material: 304# stainless steel

6.Microwave leak:accord with a country GB10436-89 standards

7.Dimension(L*W*H): (6000-26000)*1100*2200mm
