The thawing equipment listed here carries voltage optional, 8kw, documented exactly as the manufacturer publishes it. Made by ZHEJIANG LEADTOP PHARMACEUTICAL MACHINERY CO.,LTD (14 years on the platform, factory-assessed). For a binding price and lead time, send the volume you need and where it ships to.
Key Features of This Thawing Equipment
- Power(W): 8kw
- Voltage: optional
- Material: SUS304, SUS304L, SUS316, SUS316L
- Warranty: 5 year
- Place Of Origin: Zhejiang, China
- Application: Chemicals Processing, Food Processing
Technical Specifications
| Type | Vacuum Drying Equipment |
|---|---|
| Voltage | optional |
| Heating Method | Steam Heating |
| Material | SUS304, SUS304L, SUS316, SUS316L |
| Power(W) | 8kw |
| Application | Chemicals Processing, Food Processing |
| Core Components | Bearing, Pump, Gear, Motor, Gearbox, Other, PLC, Engine, Pressure Vessel |
| Key Selling Points | High Productivity |
| Warranty | 5 year |
| Machinery Test Report | Provided |
| Video Outgoing-Inspection | Provided |
| Place Of Origin | Zhejiang, China |
| Weight (Kg) | 1200 |
| Brand Name | LTPM CHINA |
| Dimension(L*W*H) | 1600*860*2000mm |
| Weight | 1200kgs |
| Item Name | Freeze Dryer |
| Dry Area | 1.08 square meter |
| Tray Area | 1.02 square meter |
| The Total Volume Of Dehydration | 15 kg/batch |
| Shelf Spacing | 70 mm |
| Heating Mode | Conduction mode |
| Nominal Area | 1 square meter |
| Control System | PLC Control |
| Operation System | Touch Screen |
| Packaging Details | The Freeze Dryer is packed by wooden case |
| Port Of Dispatch | Ningbo City Or Shanghai City |
| Selling Units | Single item |
| Single Package Size | 1000X400X400 cm |
| Single Gross Weight | 1500.000 kg |
Product Details
The Marked Prices Of Our Products Are All Range Prices Of The Entire Product Series.
If You Need a Detailed Quotation, Please Send An Inquiry At The Bottom Of The Page.
Attention:
1 — All prices and parameters shown above are automatically generated by the system, if you want to know the exact information,please click "Contact Supplier" to send mail to us.
2 — Because of the time difference, we suggest that you can choose to send us an inquiry instead of online chat.
3 — When sending us an enquiry or message, please tell us your Email or WhatsApp/Wechat/Skype .etc, then our sales manager can contact you quickly.
1 — All prices and parameters shown above are automatically generated by the system, if you want to know the exact information,please click "Contact Supplier" to send mail to us.
2 — Because of the time difference, we suggest that you can choose to send us an inquiry instead of online chat.
3 — When sending us an enquiry or message, please tell us your Email or WhatsApp/Wechat/Skype .etc, then our sales manager can contact you quickly.

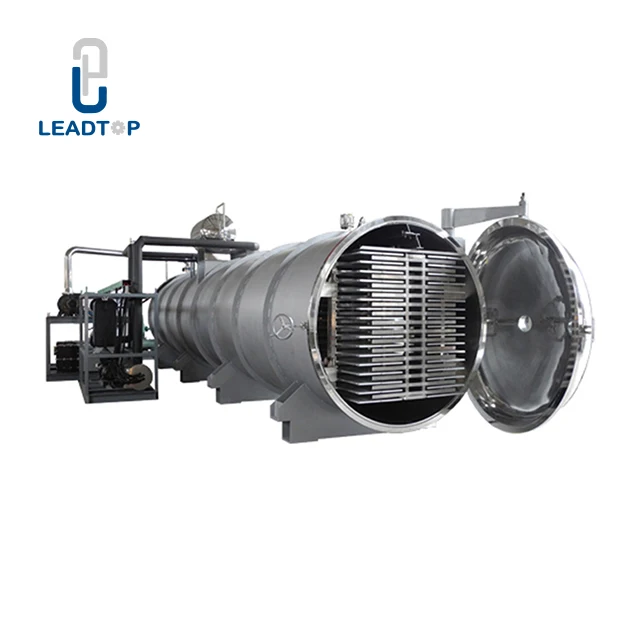

Product Description

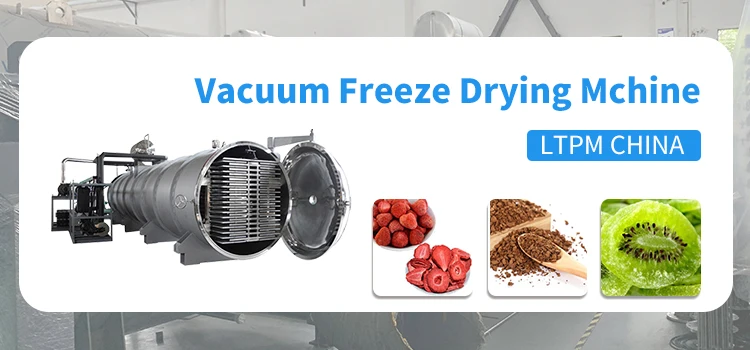

Freeze-Dry (Brief Named Freeze-Dry) Is a Stable Process Of Material Dried Which Will Put The Material Contained With Water To Freeze To Solid First, Then Make Among Them Of The Water Sublimate From Solid To Air Condition, Removing Water To Preserve Materials Products At Solution Stage Are Frozen Through Sublimation And Desorption, Then The Solvent Reduce To a Certain Extent, Thereby Preventing The Formation Of Micro-Organisms Or Chemical Reaction Between The Solute And Solvent That Products Can Be Preserved For a Long Time And Maintained Its Nature. Vacuum Freeze-Drying Method Is a Liquid → Solid → Gaseous Process. In Freeze-Drying Process, "Liquid Bridge" Between The Solution Particles Has Been Frozen Into "Solid Bridge". The Relative Position Of Particles Has Been Fixed And Does Not Exist Surface Tension On Gas-Liquid Interface Between The Two Particles. With The Continuous Distillation Of Solvent, "Solid Bridge" Continuously Decrease, But The The Relative Position Between Two Particles Will Not Longer Change Until The "Solid Bridge" Completely Disappear.
Technical Parameters
Power | 167Kw, 380V±10%,50HZ,3Phase,5Wire |
Vacuum function | 19.8kw |
Refrigeration function | 92kw |
Heating function | 55.5kw |
Compressed air | ≥40L/min（P=0.5~0.8Mpa） |
Cooling water Quantity | ≥50m3/h（T≤30℃、P=0.2-0.3Mpa） |
Defrost water Quantity | ≥4000kg（T≥30℃、P=0.1-0.2Mpa） |

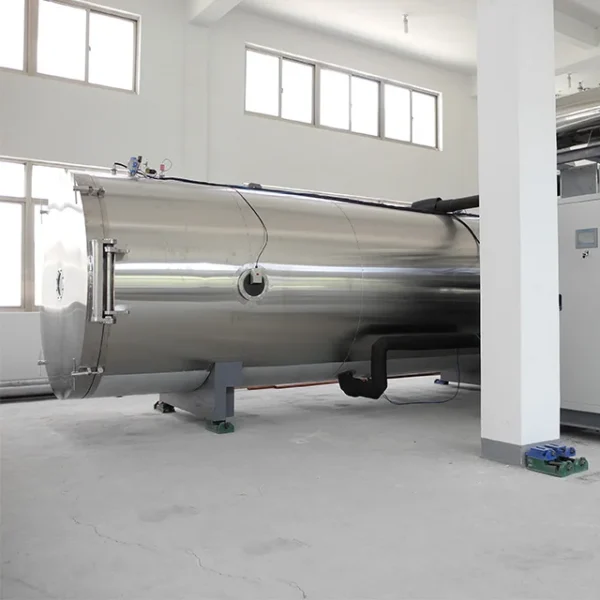

Whole volume(L×W×H) | Dry chamber and Condenser： D=φ2100mmL=6650mm Freeze system vacuum system control system： L=2600mm W=2200mm H=2000mm Final dimension based on design |
Structure | Split |
Total weight | 15T（Approx.） |
Technical Features | ||
1 | The JAPAN ULVAC vacuum pump has been stable operation ensure | |
2 | Vacuum pump check valve of high performance and vacuum pump can avoid backing due to the difference of atmospheric when pump stops | |
3 | Multi-stage vacuum setting function, you can achieve a degree of vacuum freeze-drying cycle to control of multiple variables | |
4 | Vacuum pump connected to the chamber isolated by electric vacuum solenoid valve he pump features an automatic isolating valve to hold the chamber pressure in the event of power failure or vacuum valve not reach as set point. | |
Product Highlights
FOOD GRADE MATERIAL PIPE
Seamless pipe,to achieve the best freezing effect

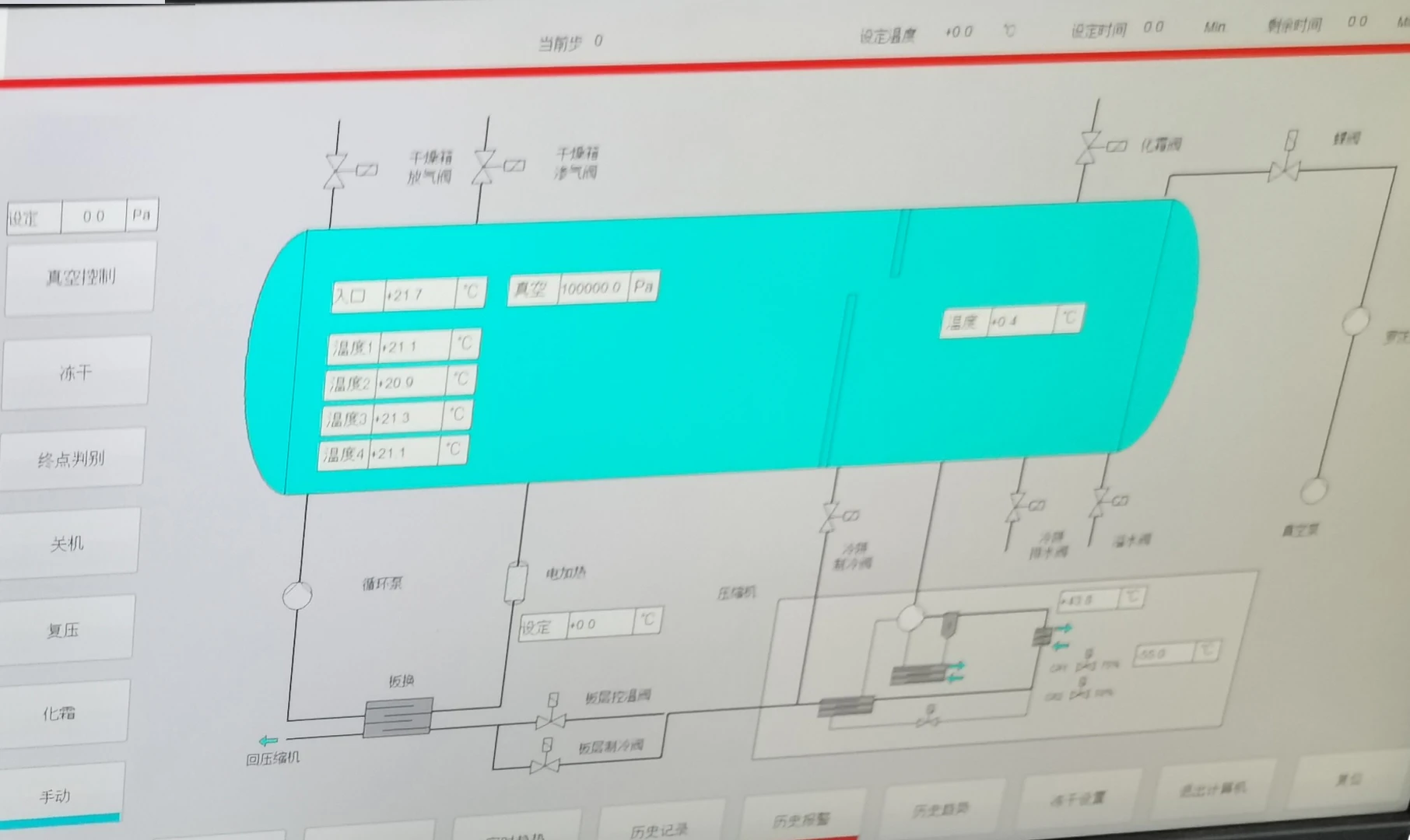

PLC CONTROL
Colour LCD Touch Screen Controller Authorized login with password protection History Paramater Curve Review Unattened operation without need of care by user

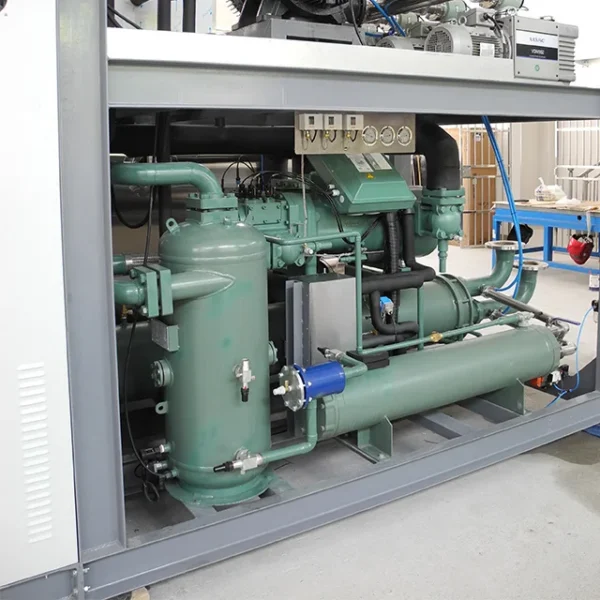

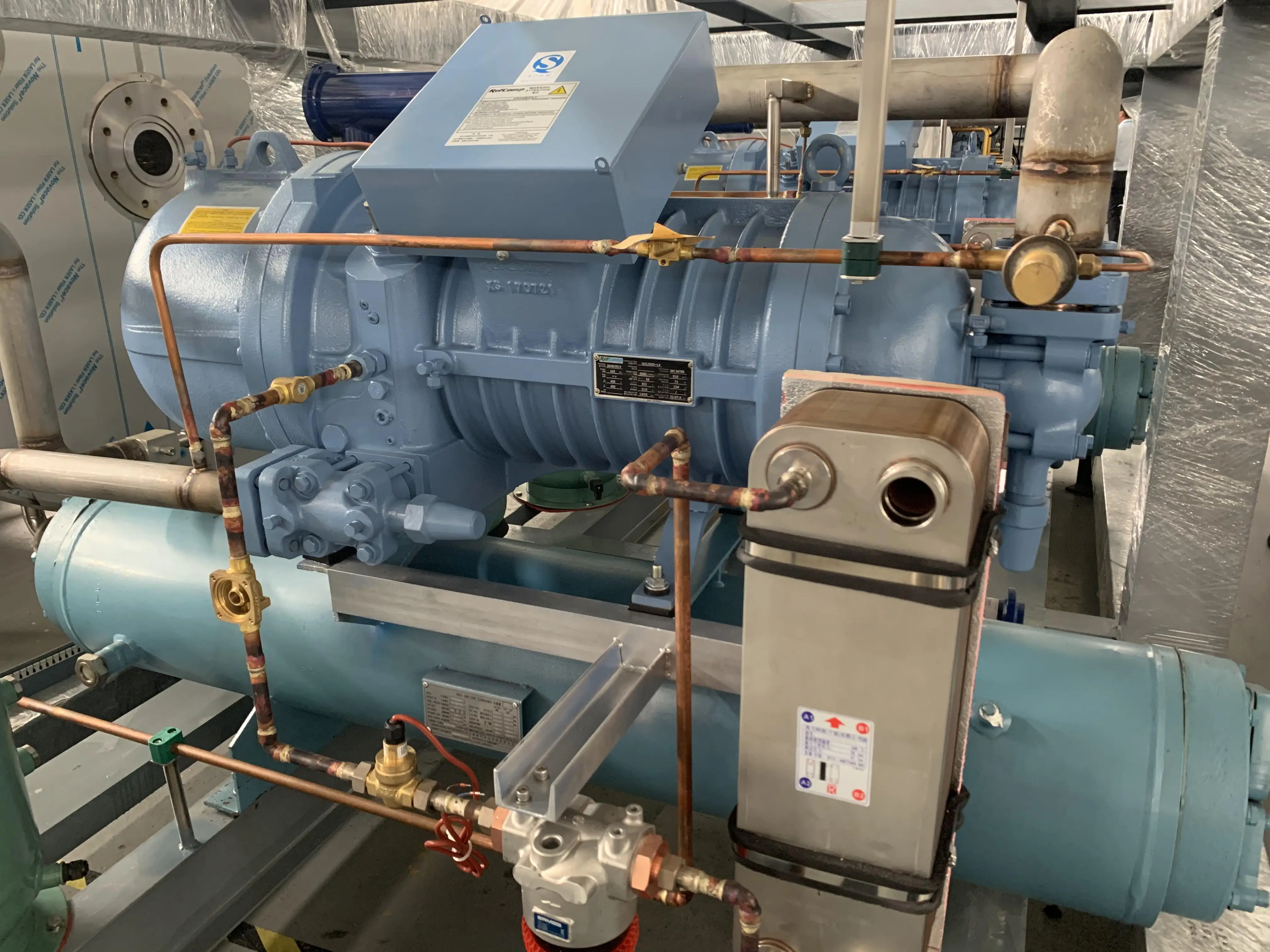

Freeze system
Advanced system,with low operating current andlow energy consumption

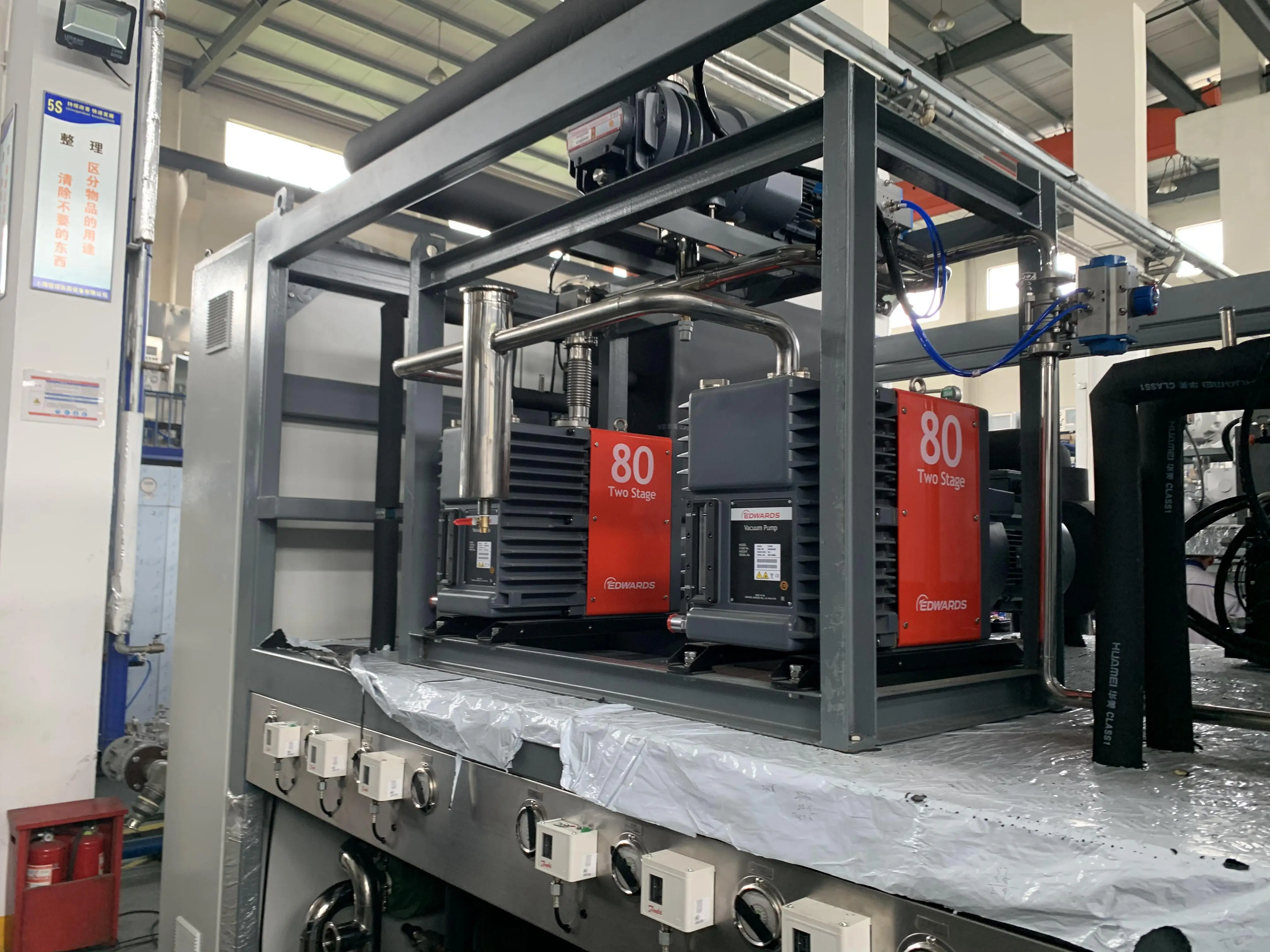

VACUUM PUMP
Oil-seal vaccum pump,to ensure high efficient operation with equal quality.

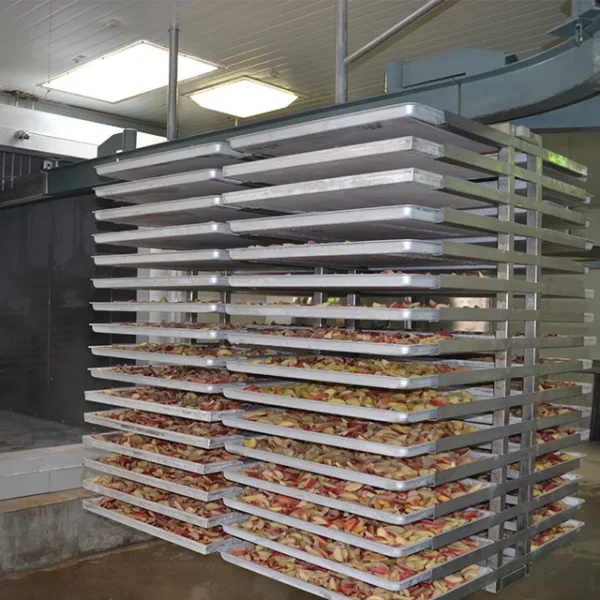

Final Product

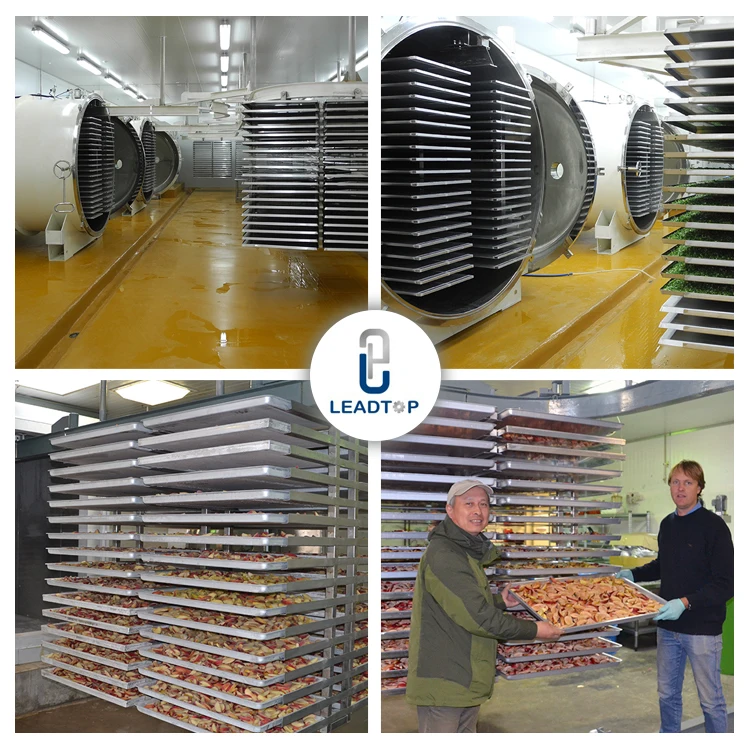

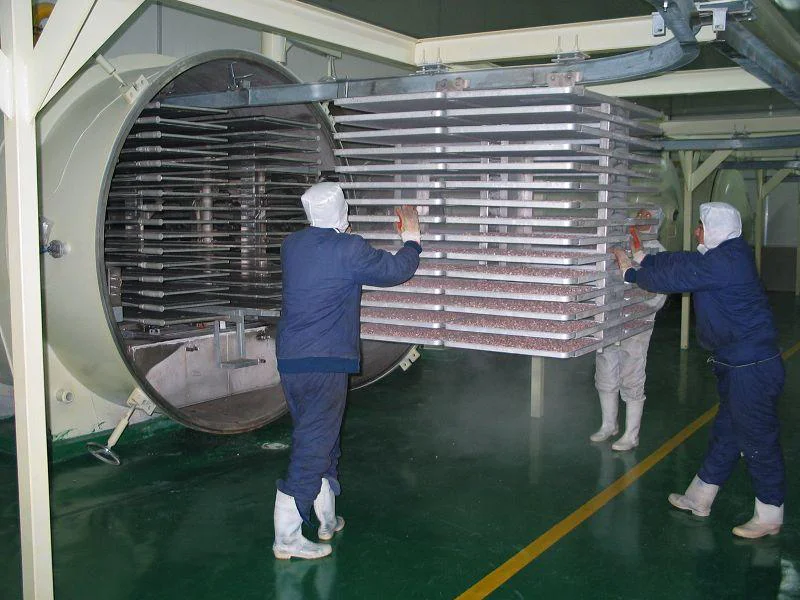

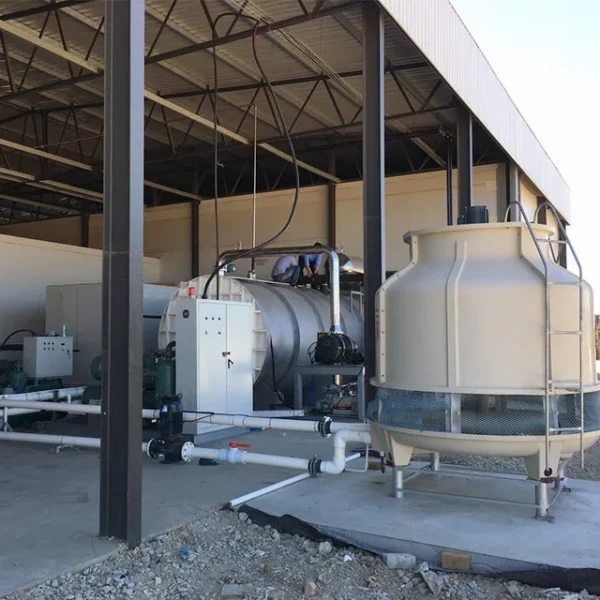

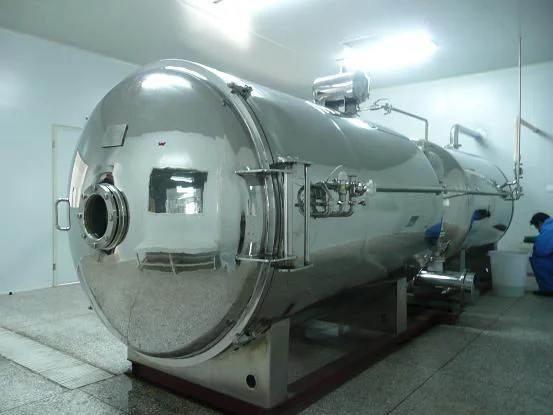

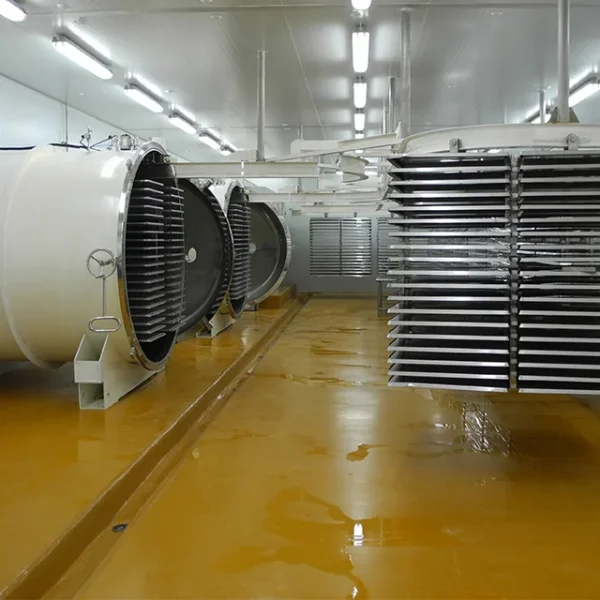

Project at Clients Site:
Related Products
Company Introduction

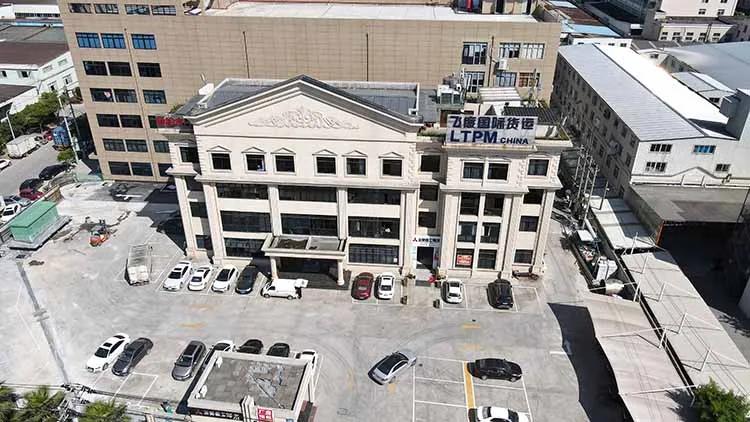

Our Company
LTPM CHINA Is Recognized As a Major Biotechnology Materials Science Biological Science Equipment Manufacturer And Supplier. Our Company Is Founded In Ruian, China, With a Base Of 18 Years Of Prior Experience In The Industry. This Has Allowed Us To Expand Our Business In A Well-Planned Manner. We Now Offer a Comprehensive Whole Production Line Of Quality Machines At Competitive Prices.

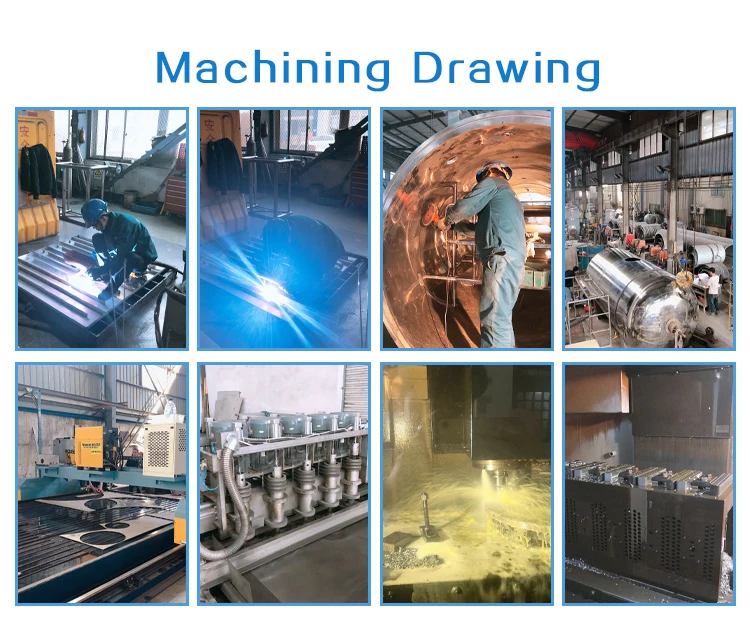

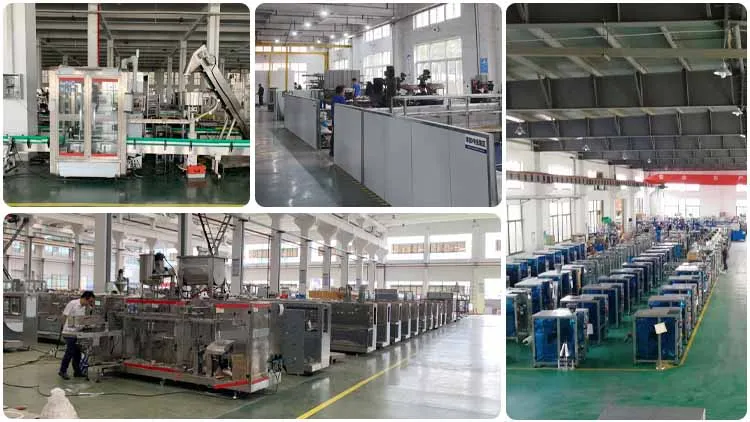

Our Machinery Manufacturing Workshop
Imported CNC Machining Centre Makes All Parts Process Accurate. Own R&D Team With More Than 20 Years Engineering Expereince, Can Customize The Equipment And Production Line To Your Satisfaction.
Professional Business Team
Warm, Professional Business Team, Careful Response To Your Inquiry, Timely Response Rate Of More Than 93%, Higher Than The Average Level Of The Industry.
Our Certificates
ISO, CE, SGS, BV Certified Company.
Packing & Shipping
All machine delivery with anti rust spray, film wrapping and Sea shipping affordable wooden box.
FAQ
Q: What Price Terms You Offer?
A: We Can Offer FOB, FCA, CFR, CIF, EXW And Other Price Terms Based On Your Request.
Q: What Payment Terms You Take? A: TT, LC, Other Terms Are Also Workable.
Q: Will You Help With Installation And Stuff Training? A: Yes, We Can Send Our Engineers To Your Place To Guide The Installation And Train Your Workers If You Need, But The Buyer Should Bear Our Technician's Round Tickets, Accomodation, Food And Subsidiary USD100/Day.
Q: How Can I Visit Your Factory? A: Our Factory Is Located In Ruian City Zhejiang Province. Just Let Us Know Your Schedule In Advance And We Will Arrange Everything For You!
Any Other Doubts About Our Machine, Please Feel Easy To Contact With Us.
Ordering and Pricing
- Minimum order quantity: 1 set
- Volume pricing:
- 1–1 set: US $30888 / set
- 2+ set: US $28000 / set
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this thawing equipment?
The standard minimum order quantity is 1 set. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 5 year warranty. Spare parts and technical support remain available after the warranty period.
Can the thawing equipment be supplied for my local voltage?
The standard configuration is optional. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
About the Manufacturer
This product is produced by ZHEJIANG LEADTOP PHARMACEUTICAL MACHINERY CO.,LTD, based in China. The company 14 years as a verified Alibaba.com supplier, Trading Company, passed third-party supplier assessment. Browse the full ZHEJIANG LEADTOP PHARMACEUTICAL MACHINERY CO.,LTD range on HVACR Nexus.
