Key specification for this thermostatic expansion valve: power solenoid, material brass. Everything below is reproduced from the factory data sheet. Made by Yantai New Way Environmental Technology Co., Ltd. (2 years on the platform, typical reply ≤3h). For a binding price and lead time, send the volume you need and where it ships to.
Key Features of This Thermostatic Expansion Valve
- Power: solenoid
- Material: brass
- Warranty: 1 Year
- Warranty Of Core Components: 1 Year
- Place Of Origin: Shandong, China
- Application: Manufacturing Plant
Technical Specifications
| Core Components | Other |
|---|---|
| Machinery Test Report | Provided |
| Warranty | 1 Year |
| Video Outgoing-Inspection | Provided |
| Weight (Kg) | 4500 |
| Place Of Origin | Shandong, China |
| Product Name | expansion valve |
| Material | brass |
| Cooling Method | cross flow |
| Connection Method | external thread |
| Power | solenoid |
| Condition | New |
| Applicable Industries | Food & Beverage Factory |
| Application | Manufacturing Plant |
| Warranty Of Core Components | 1 Year |
| Type | Condenser |
| Selling Units | Single item |
Product Details
Products Description

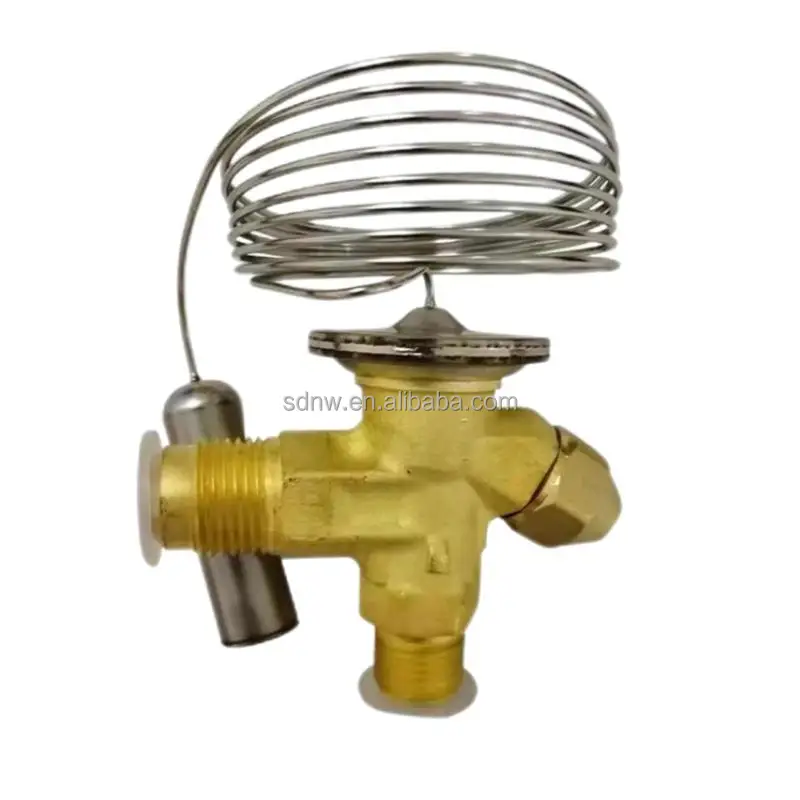

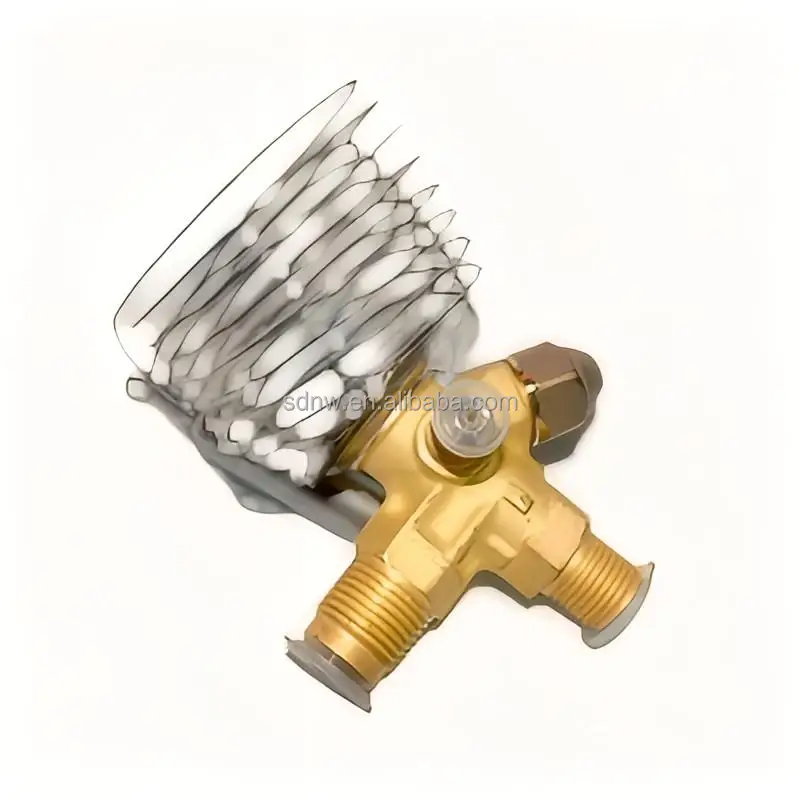

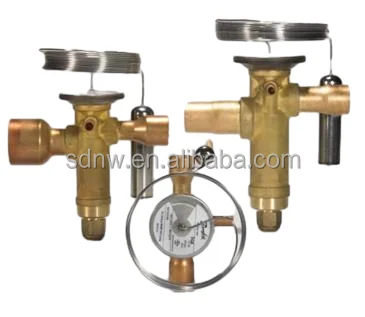

Our High-Capacity Thermostatic Expansion Valves are engineered to regulate theprecise injection of refrigerant liquid into
evaporators, ensuring optimal performance. Theinjection is meticulously controlled by the refrigerant superheat.
These valves are exceptionally suitable formanaging liquid injection in 'dry' evaporators, where the superheat at the evaporator outlet is directly proportional to the evaporator load, ensuring efficiency and reliability.

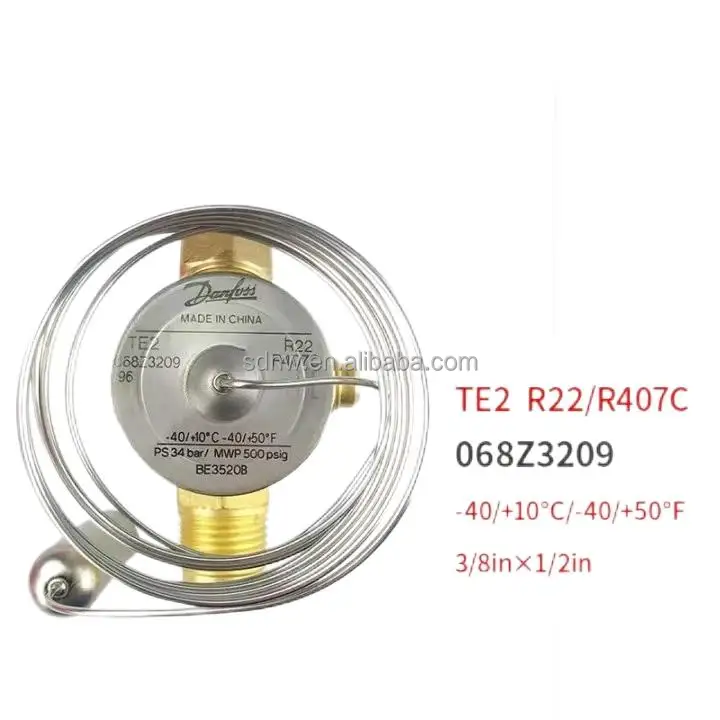

Introducing the advanced TE 2 version for CO2. This innovative solution pairs a manual TXV with a streamlined case controller,offering a unique opportunity to build a CO2 system with a lower initial investment while providing constant temperature data logging.
evaporators, ensuring optimal performance. Theinjection is meticulously controlled by the refrigerant superheat.
These valves are exceptionally suitable formanaging liquid injection in 'dry' evaporators, where the superheat at the evaporator outlet is directly proportional to the evaporator load, ensuring efficiency and reliability.
Introducing the advanced TE 2 version for CO2. This innovative solution pairs a manual TXV with a streamlined case controller,offering a unique opportunity to build a CO2 system with a lower initial investment while providing constant temperature data logging.
Product Characters
Wide temperature range
• Equally applicable in both Medium Temperature (MT) and Low Temperature (LT) applications, ensuring versatile performance across different environments.
• Comes supplied with a Maximum Operating Pressure (MOP) setting, enhancing safety and control.

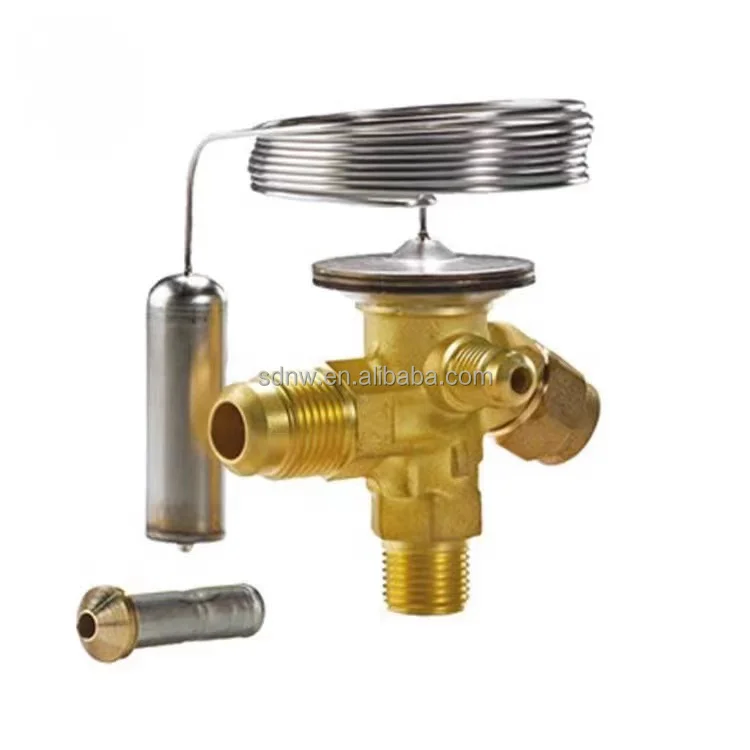

Interchangeable orifice assembly
• Facilitates easy storage, optimizing space and inventory management.
• Enables straightforward capacity matching, simplifying system adjustments.
• Improves serviceability, reducing downtime and maintenance efforts.
• Allows simple cleaning and replacement of the filter, ensuring sustained efficiency and performance.
Rated capacities range from 1 to 10.5 kW / 0.3 to 3.0 TR for CO2, catering to diverse cooling requirements.
Laser welded power element
• Guarantees the structural integrity of diaphragms, significantly increasing working life and reliability.
Laser engraving
• Provides durable and positive valve identification, eliminating the risk of labels peeling off over time.
Stainless steel capillary tube
• The flexible and lightweight capillary tube tolerates more bending, ensuring trouble-free installation and extended lifespan.
• Offers greater resistance to vibration during operation due to its low weight, enhancing operational stability.
• Fast and easy to install, reducing setup time and complexity.
• Ensures efficient temperature transfer from pipe to bulb, maintaining optimal system performance.
Design protected
Manufactured according to IATF 16949 standards, ensuring the highest quality and reliability.
To support capacities down to 1 kW / 0.3 TR R744, four new orifices (CZ, CY, CX, and C0) have been designed. These orifices will be used alongside existing ones to offer greater flexibility and precision.
• Equally applicable in both Medium Temperature (MT) and Low Temperature (LT) applications, ensuring versatile performance across different environments.
• Comes supplied with a Maximum Operating Pressure (MOP) setting, enhancing safety and control.
Interchangeable orifice assembly
• Facilitates easy storage, optimizing space and inventory management.
• Enables straightforward capacity matching, simplifying system adjustments.
• Improves serviceability, reducing downtime and maintenance efforts.
• Allows simple cleaning and replacement of the filter, ensuring sustained efficiency and performance.
Rated capacities range from 1 to 10.5 kW / 0.3 to 3.0 TR for CO2, catering to diverse cooling requirements.
Laser welded power element
• Guarantees the structural integrity of diaphragms, significantly increasing working life and reliability.
Laser engraving
• Provides durable and positive valve identification, eliminating the risk of labels peeling off over time.
Stainless steel capillary tube
• The flexible and lightweight capillary tube tolerates more bending, ensuring trouble-free installation and extended lifespan.
• Offers greater resistance to vibration during operation due to its low weight, enhancing operational stability.
• Fast and easy to install, reducing setup time and complexity.
• Ensures efficient temperature transfer from pipe to bulb, maintaining optimal system performance.
Design protected
Manufactured according to IATF 16949 standards, ensuring the highest quality and reliability.
To support capacities down to 1 kW / 0.3 TR R744, four new orifices (CZ, CY, CX, and C0) have been designed. These orifices will be used alongside existing ones to offer greater flexibility and precision.
Details Images

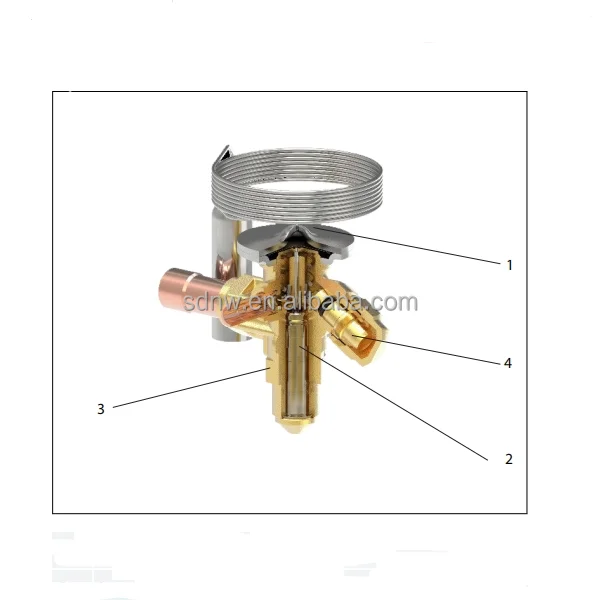

Product Paramenters

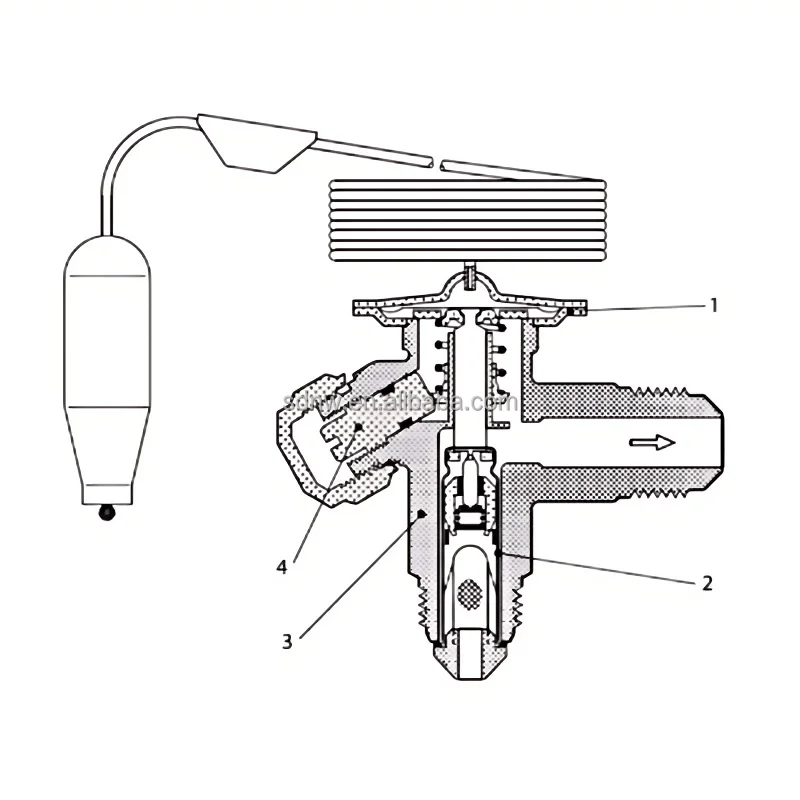

1.Thermostatic element (diaphragm)
2. Interchangeable orifice assembly3. Valve body
4. Superheat setting spindle (see instructions)
Thermostatic expansion valves are engineered to maintain a precise and constant superheat level at the evaporator outlet. These sophisticated devices regulate the amount of refrigerant injected into the evaporator, meticulously considering both evaporator load and ambient temperatures. This ensures optimal system efficiency and robust protection.
systems by preventing liquid refrigerant from entering the suction line, thereby averting potential compressor damage. Notably, when compared to systems utilizing capillary tubes, thermostatic expansion valves deliver substantial energy savings and enhanced performance.

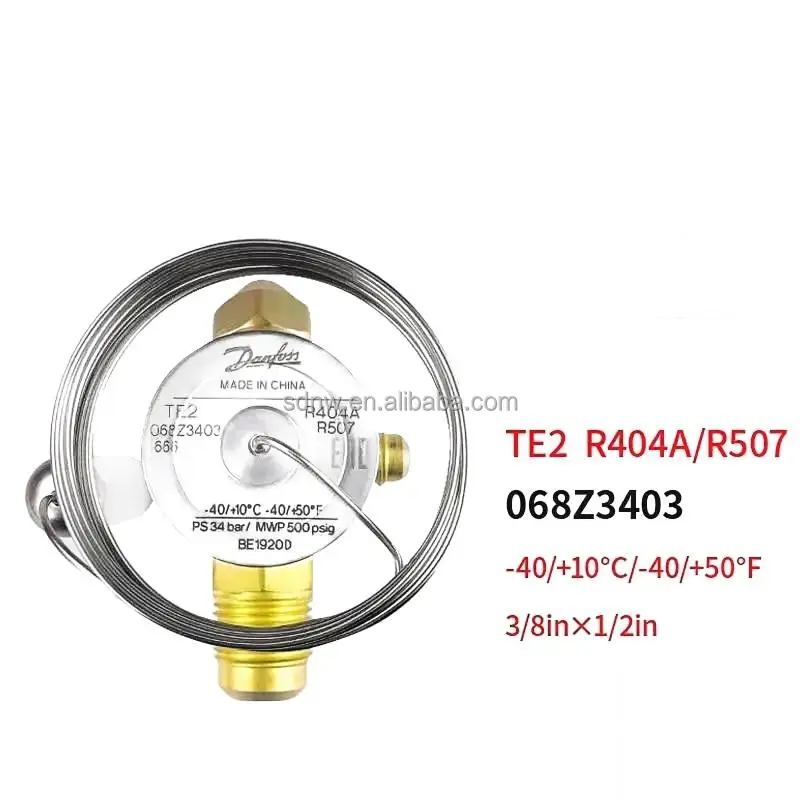

TE 2 valves for CO2 applications are designed exclusively for subcritical systems and will not feature internal pressure
equalization. These versions have been robustly upgraded to withstand an MWP of 90 bar.
TE2 valves boast an interchangeable orifice assembly, compatible with all versions of the valve body, refrigerants, and across all evaporating temperature ranges. Crafted from a specialized alloy, the valve cone and seat are designed for exceptional wear resistance, ensuring long-term reliability.
The thermostatic element charge is precisely matched to the refrigerant and evaporating temperature range, as indicated by laser engraving on the valve top.
The bulb provides rapid and accurate response to temperature variations in the evaporator. It is securely mounted using a patented bulb strap, ensuring efficient thermal contact with the suction tube for quick, easy, and reliable installation.
systems by preventing liquid refrigerant from entering the suction line, thereby averting potential compressor damage. Notably, when compared to systems utilizing capillary tubes, thermostatic expansion valves deliver substantial energy savings and enhanced performance.
TE 2 valves for CO2 applications are designed exclusively for subcritical systems and will not feature internal pressure
equalization. These versions have been robustly upgraded to withstand an MWP of 90 bar.
TE2 valves boast an interchangeable orifice assembly, compatible with all versions of the valve body, refrigerants, and across all evaporating temperature ranges. Crafted from a specialized alloy, the valve cone and seat are designed for exceptional wear resistance, ensuring long-term reliability.
The thermostatic element charge is precisely matched to the refrigerant and evaporating temperature range, as indicated by laser engraving on the valve top.
The bulb provides rapid and accurate response to temperature variations in the evaporator. It is securely mounted using a patented bulb strap, ensuring efficient thermal contact with the suction tube for quick, easy, and reliable installation.

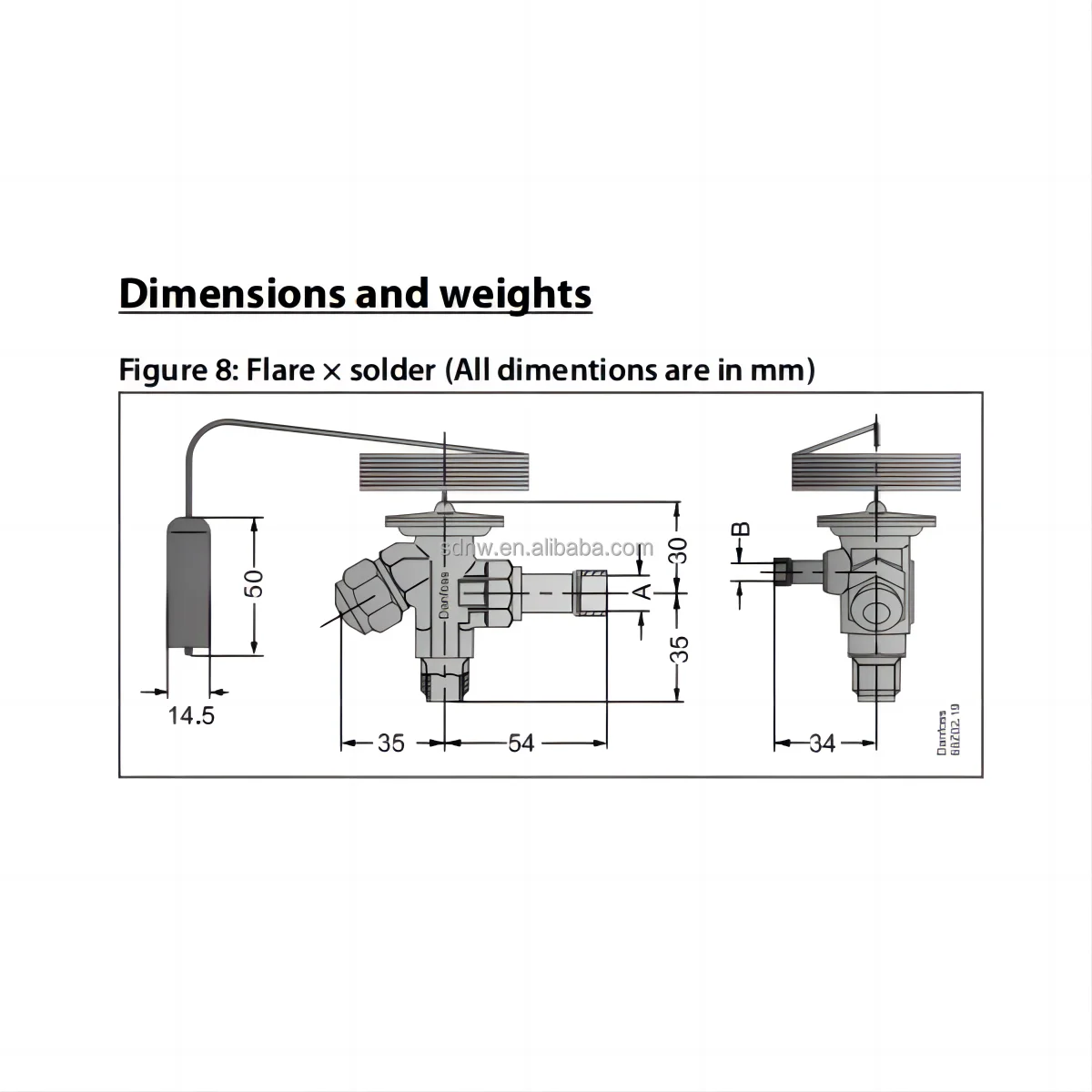

product drawing
Why Choose Us

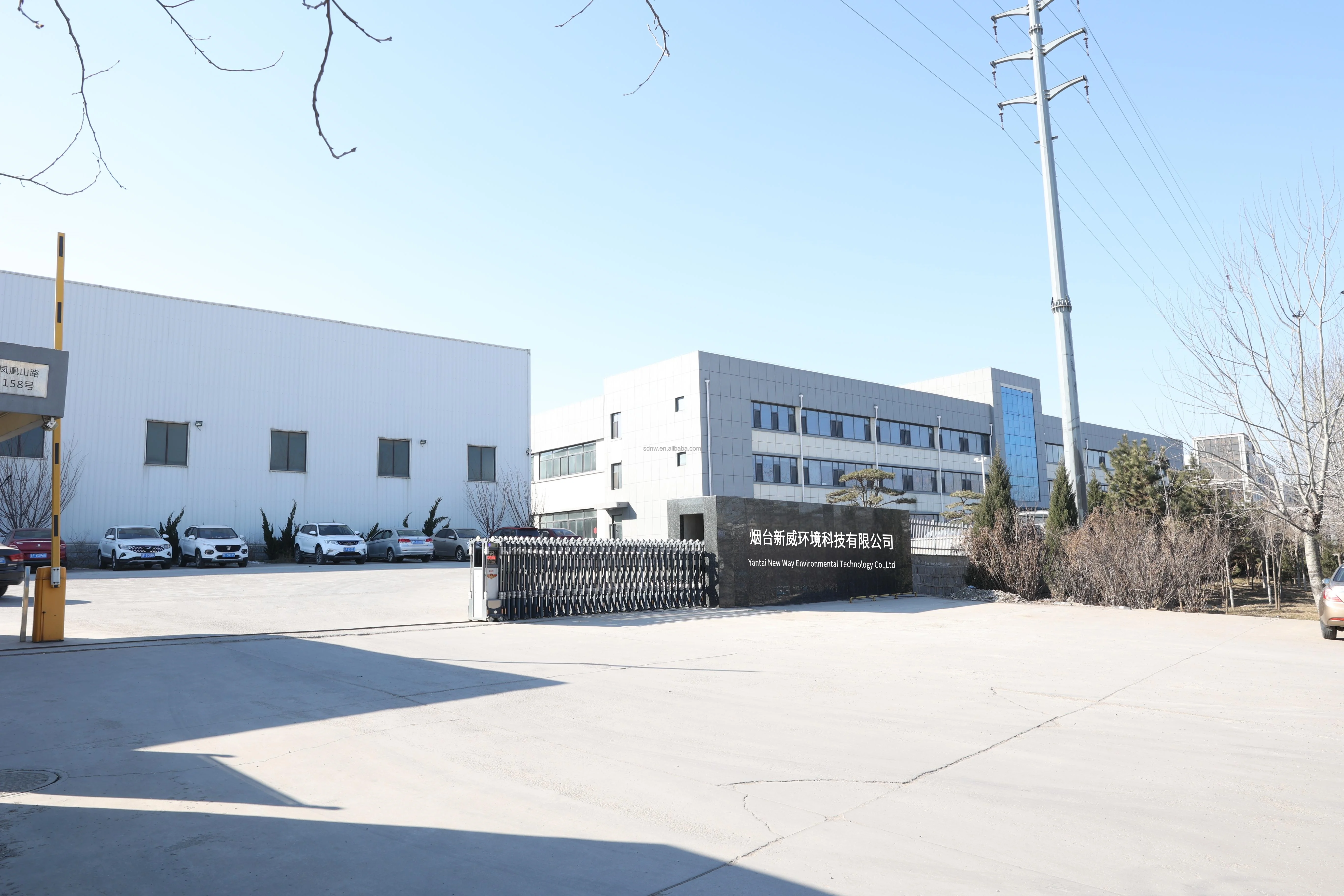

Yantai NewWay Environmental Technology Co., Ltd. is operates from Yantai, nestled in Shandong province, China.Distribution at the forefront of the refrigeration industry, we seamlessly integrate research, development, production, and sales into a cohesive operation. Armed with state-of-the-art processing equipment and a team of highly skilled technicians, we are dedicated to delivering products of the highest quality and offering superior services. Our esteemed product lineup features the highly efficient evaporative condenser, durable air cooler,advanced quick-freezing plate, and expansive quick-freezing warehouse.These cutting-edge solutions are extensively applied across diverse sectors, including aquatic products, medicinal materials, meat and poultry, and health products. Celebrated globally, NewWay's offerings reach regions such as Southeast Asia, the Middle East, Europe, Africa, and America, reinforcing our international acclaim and demonstrating our unwavering commitment to quality and excellence worldwide. As a comprehensive supplier in the realm of refrigeration system integration, NewWay offers an extensive array of valves, pipe fittings, instruments, filter elements, and other advanced refrigeration units. Each component is meticulously crafted to meet the varied needs of our clients, guaranteeing optimal performance and outstanding satisfaction in every application. Furthermore, we offer a complete suite of accessories for quick-freezing,evaporative cooling condensers, air coolers, refrigeration units, storage boards, and more. This ensures that we meet the diverse needs of our valued clients.
Product packaging
package size | 89*51*75 |
package gross net | 0.5KG |
lead time | 7 days (1 – 50 Pieces) To be negotiated ( > 50 Pieces) |
FAQ
1 .How is our delivery time? For RTS items , we can deliver it in 20days . For customized product,We can deliver the products as our indicated on the list for each different styles . 2. What is our MOQ? Usually, some styles which existed in stock with RTS services , so a minimum order of 1 piece is enough.If the products need to be customized, our minimum order quantity is depending on the yarn .Let's keep tight communication before order placed. 3.How long is the production cycle of our products? In the case of customization, the production cycle is usually 15-20 days basing on stock , but our own products are in stock and can be delivered immediately 4.What is the mode of transportation？ According to your needs; Express way, such as fedex. Air or sea, transportation cost depends on the mode of transportation/product weight and volume of your 5.Can I get a free sample? If your orders over 100 units at a time, we can send you a sample free, freight you pay here.
If you have any questions, please feel free to contact us. Thanks. |
Ordering and Pricing
- Minimum order quantity: 1 set
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this thermostatic expansion valve?
The standard minimum order quantity is 1 set. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
About the Manufacturer
This product is produced by Yantai New Way Environmental Technology Co., Ltd., based in China. The company 2 years as a verified Alibaba.com supplier, Trading Company. Browse the full Yantai New Way Environmental Technology Co., Ltd. range on HVACR Nexus.
See more in Refrigeration & Heat Exchange Parts on HVACR Nexus.
