This tmc5160-bob integrated stepper motor is published with the manufacturer’s full specification — model number 91756. Made by Shenzhen Youxin Electronic Technology Co., Ltd. (4 years on the platform, typical reply ≤5h). Send your target quantity and destination for a firm quotation with current lead times.
Key Features of This Tmc5160-Bob Integrated Stepper Motor
- Model Number: 91756
- Place Of Origin: Guangdong, China
- Functional Application: TMC5160 drive control module
- Single Package Size: 10X10X1 cm
- Single Gross Weight: 0.020 kg
- Brand Name: EC-Buying
Technical Specifications
| Functional Application | TMC5160 drive control module |
|---|---|
| Model Number | 91756 |
| Place Of Origin | Guangdong, China |
| Brand Name | EC-Buying |
| Selling Units | Single item |
| Single Package Size | 10X10X1 cm |
| Single Gross Weight | 0.020 kg |
Product Details
Product Description

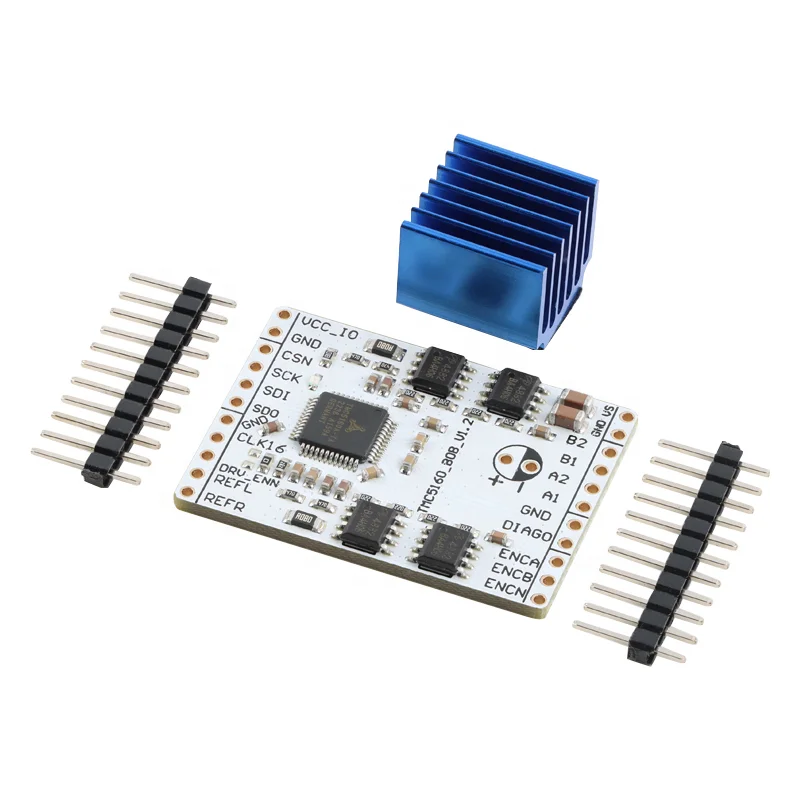

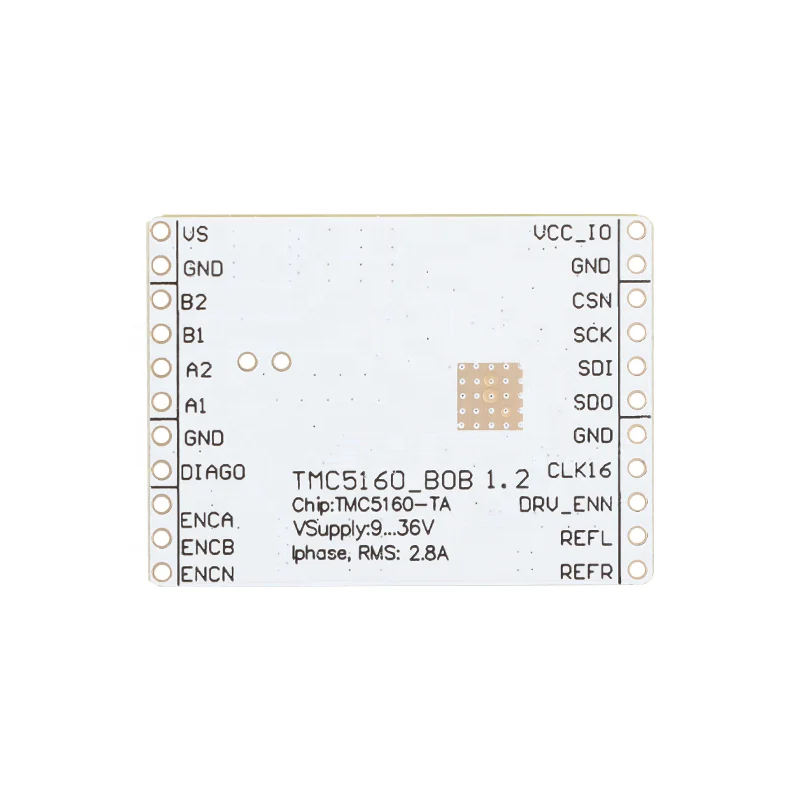

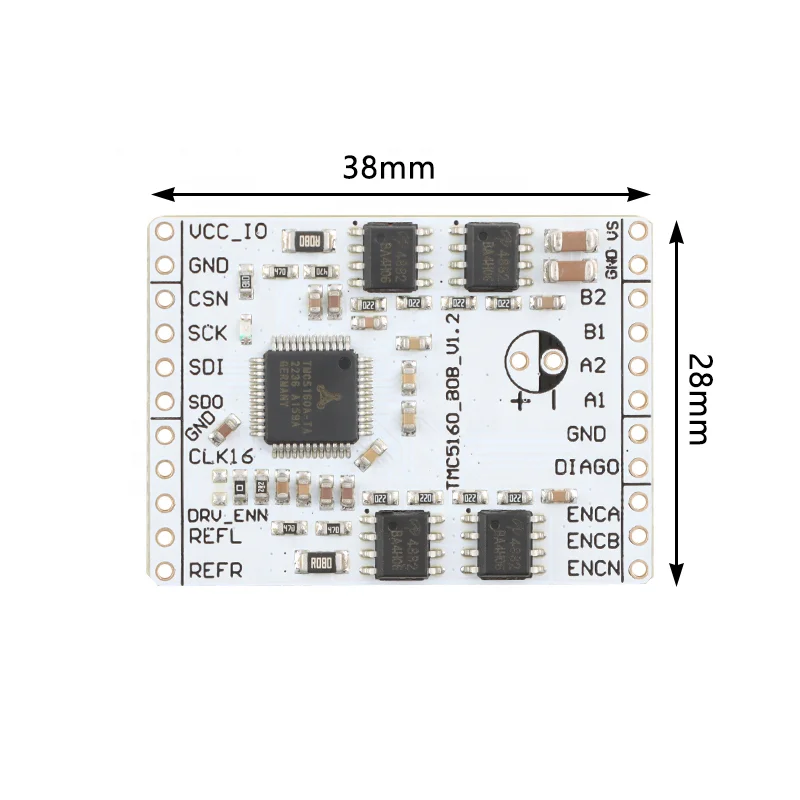

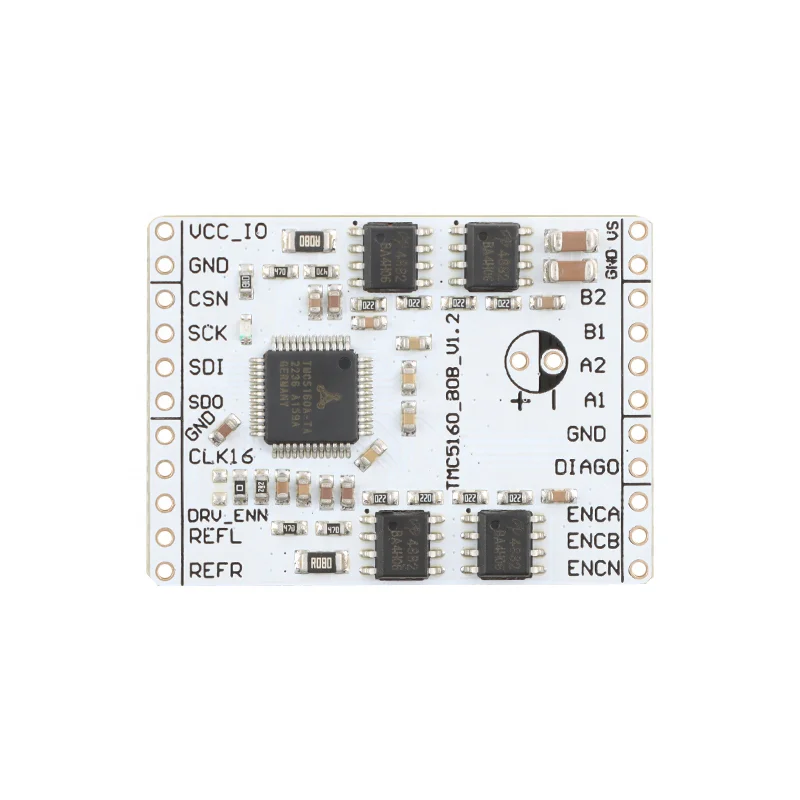

Shipping list: 1.TMC5160 drive control module*1 2.Heat sink*1 3.Pin header 11P*2 TMC5160 integrates powerful stepper motor driver and motion controller on a single chip, directly converting digital information into smooth, precise and reliable physical motion. With external N-channel MOSFETs, the motor current for each coil can reach 20A and the maximum voltage is 60V DC; it is very simple to use and only requires the target position. All stepper motor logic runs inside the TMC5160 – no software is required when driving NEMA17 to NEMA34 and larger motors. Connected to the host microcontroller via the industry-standard SPI or step/direction interface, the TMC5160 performs all real-time position and speed stepper motion calculations. And TMC5160 also supports ABN encoder input. Parameters *2-phase stepper motor drive MOSFETs external expansion maximum current can reach 20A *Motion control with SixPoint ramp generator *Step/Dir control signal input, maximum subdivision 256, with microPlay microstepping technology *Power supply range 8-60V DC *SPI and UART communication *With incremental encoder input and left and right limit inputs *Second-generation Stealth Chop silent drive technology and smooth operation control *SpreadCycle high-performance dynamic chopping control motion smoothness. Low noise, low vibration, low jitter *dcStep technology speed dynamically adjusts with load, the motor rotates as fast as possible without losing steps *Second generation StallGuard high-precision sensorless load detection function *Coolstep current dynamically adjusts with load, saving 75% energy *Complete diagnostic and protection functions Features: Drive capability up to 3A (RMS) continuous coil current Step/Dir interface with up to 256 microsteps SPI interface for configuration Motor supply voltage: 10——35V Logic supply voltage: 3.3——5V RSense: 0.075 Ohm stealthChop2 – for quiet operation and smooth motion spreadCycle – highly dynamic motor control chopper coolStep – current control for energy savings dcStep- load dependent speed control stallGuard 2- sensorless motor load detection About TMC5160: The TMC5160 is a high power stepper motor controller and driver IC with serial communication interfaces. It combines a flexible ramp generator for automatic target positioning with industries’ most advanced stepper motor driver. Using external transistors, highly dynamic, high torque drives can be realized. Based on Trinamic’s sophisticated SpreadCycle™ and StealthChop™ choppers, the driver ensures absolutely noiseless operation combined with maximum efficiency and best motor torque. High integration, high energy efficiency and a small form factor enable miniaturized and scalable systems for cost effective solutions. The complete solution reduces learning curve to a minimum while giving best performance in class. TMC5160-WA uses a wettable flank package to allow optical inspection of the soldering joints.
Specification
Place of Origin | China |
Guangdong | |
Brand Name | EC-Buying |
Functional Application | TMC5160 drive control module |
