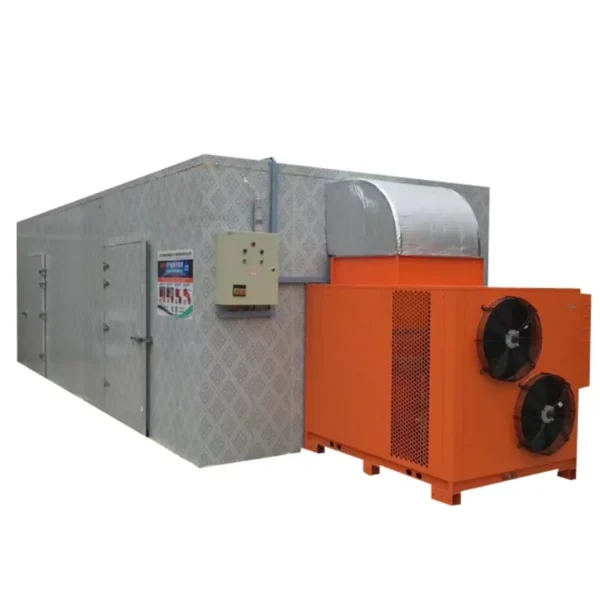

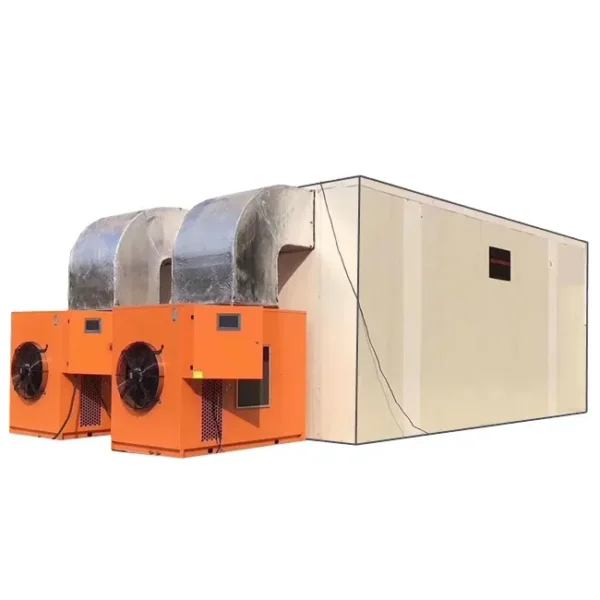

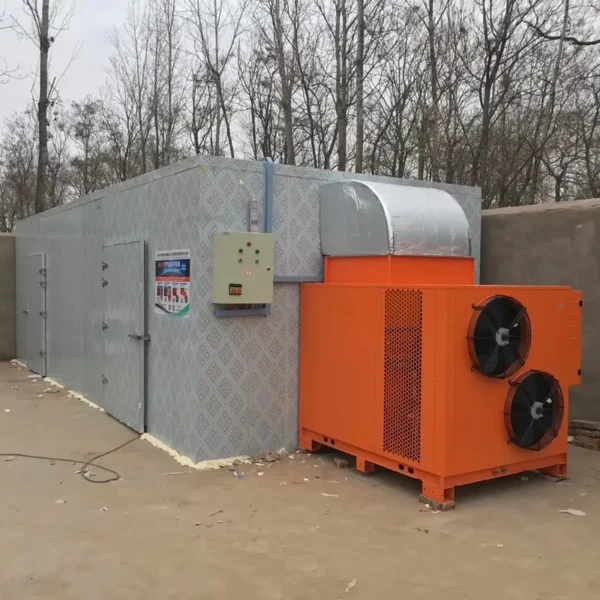

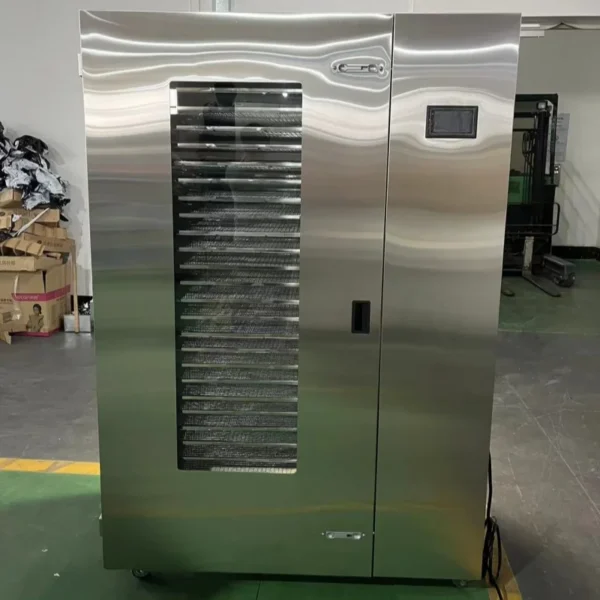

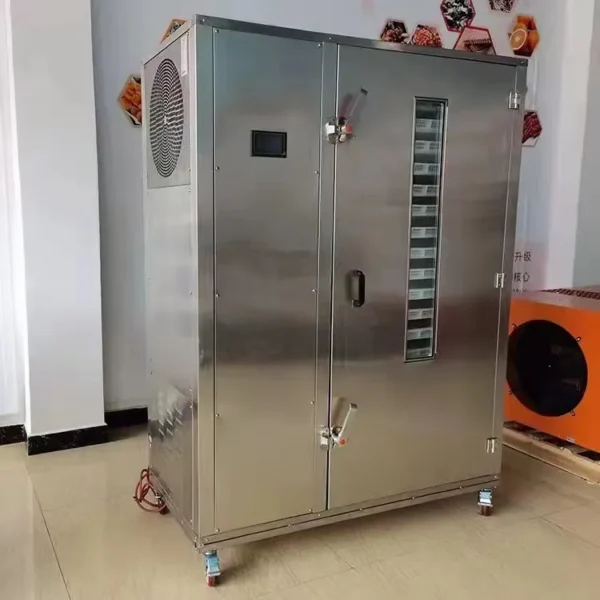

Tray Dehydrator Heat Pump, 11kw, SUS304

Tray dehydrator heat pump — 11kw, material SUS304, SUS304L, SUS316, SUS316L. The complete factory specification follows. Made by Changzhou Bravo Machinery Llc (4 years on the platform, typical reply ≤2h). For a binding price and lead time, send the volume you need and where it ships to.

Key Features of This Tray Dehydrator Heat Pump

• Power(W): 11kw
• Voltage: custom
• Material: SUS304, SUS304L, SUS316, SUS316L
• Raw Material: Multiple Material
• Warranty: 1 Year
• Place Of Origin: Jiangsu, China

Technical Specifications

Product Details

Products Description

The high-temperature heat pump drying unit mainly consists of four parts: fin evaporator (outdoor unit), compressor, fin condenser (internal unit) and expansion valve. By allowing the working medium to continuously complete evaporation (absorbing heat in the outdoor environment ) → compression → condensation (release heat in the indoor drying room) → throttling → re-evaporation thermal cycle process, thereby transferring the heat in the external low-temperature environment to the drying room, and the refrigerant flows through the system under the action of the compressor Internal circulation flow.

It completes the gas pressure and temperature rise process in the compressor (the temperature is as high as 100°C). It enters the indoor machine and releases high-temperature heat to heat the air in the drying room. At the same time, it is cooled and converted into a liquid state. When it runs to the outdoor machine Afterwards, the liquid quickly absorbs heat and evaporates and is converted into a gas again. At the same time, the temperature can drop to -20℃~-30℃. At this time, the air around the heat absorber will continuously transfer heat to the refrigerant. When the high-temperature heat pump drying unit is working, like ordinary air conditioners and heat pump units, it absorbs the energy in the low-temperature environmental medium in the evaporator QA: It consumes part of the energy itself, that is, the compressor power consumption QB: Through the working fluid circulation system, The condenser releases heat QC, QC=QA+QB, so the efficiency of the high-temperature heat pump drying unit is (QB+QC)/QB, and the heating efficiency of other heating equipment is less than 1, so the high-temperature heat pump drying unit heats The efficiency is much greater than that of other heating equipment. It can be seen that using a high-temperature heat pump drying unit as a drying device can save energy, while also reducing the emission of CO2 and other pollutants, achieving energy saving and emission reduction effects.

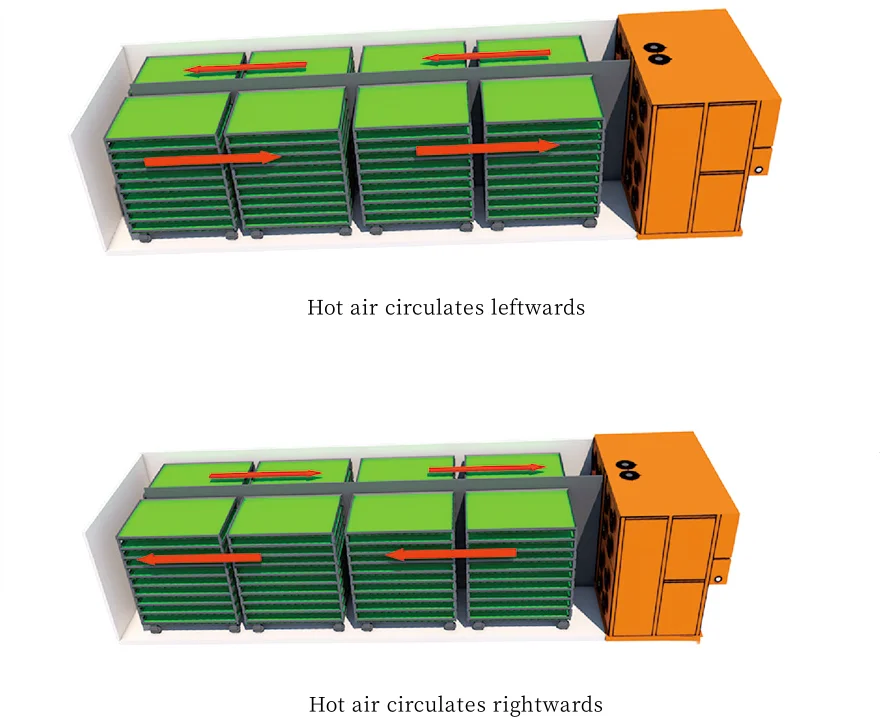

In order to solve the problem of uneven drying in large drying rooms, we designed a two-way circulation system. Through the control system, the circulation direction of the hot air, the drying time and the drying temperature can be freely set. The entire drying process is completed automatically without manual intervention or adjustment of the position of the drying vehicle, truly realizing automatic operation.

Technical Features

1. It can realize low-temperature air closed cycle drying and the material drying quality is good.

2. High efficiency and energy saving. The SMER of a heat pump dryer is usually 1.0 to 4.0kg/kWh, while the SMER of a traditional convection dryer is about 0.2 to 0.6kg/kWh.

3. Temperature and humidity control are convenient. When the material has high requirements on the temperature and humidity of the air entering the drying room (such as wood, etc.), the evaporation temperature and condensation temperature of the working fluid in the evaporator and condenser can be adjusted to meet the material's requirements on texture, appearance, etc. Require.

4. Useful volatile components in recyclable materials.

5. No pollution. In the heat pump drying device, the drying medium is circulated in a closed cycle, and there is no pollution caused by material dust, volatile substances and odors that are discharged to the environment along with the drying exhaust gas; the waste heat in the exhaust of the drying chamber is directly recovered by the heat pump to heat the cold dry air, without Thermal pollution caused by the unit to the environment.

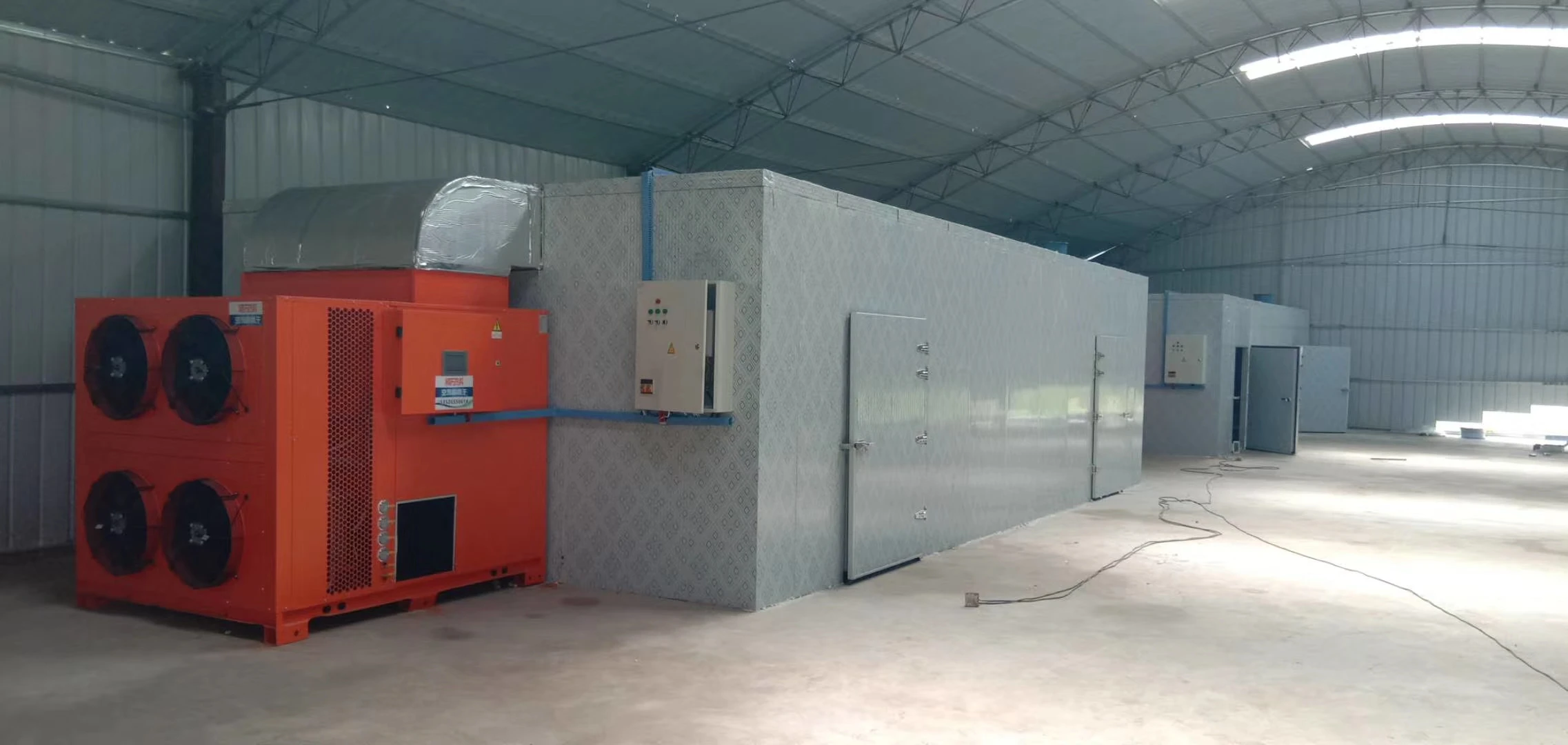

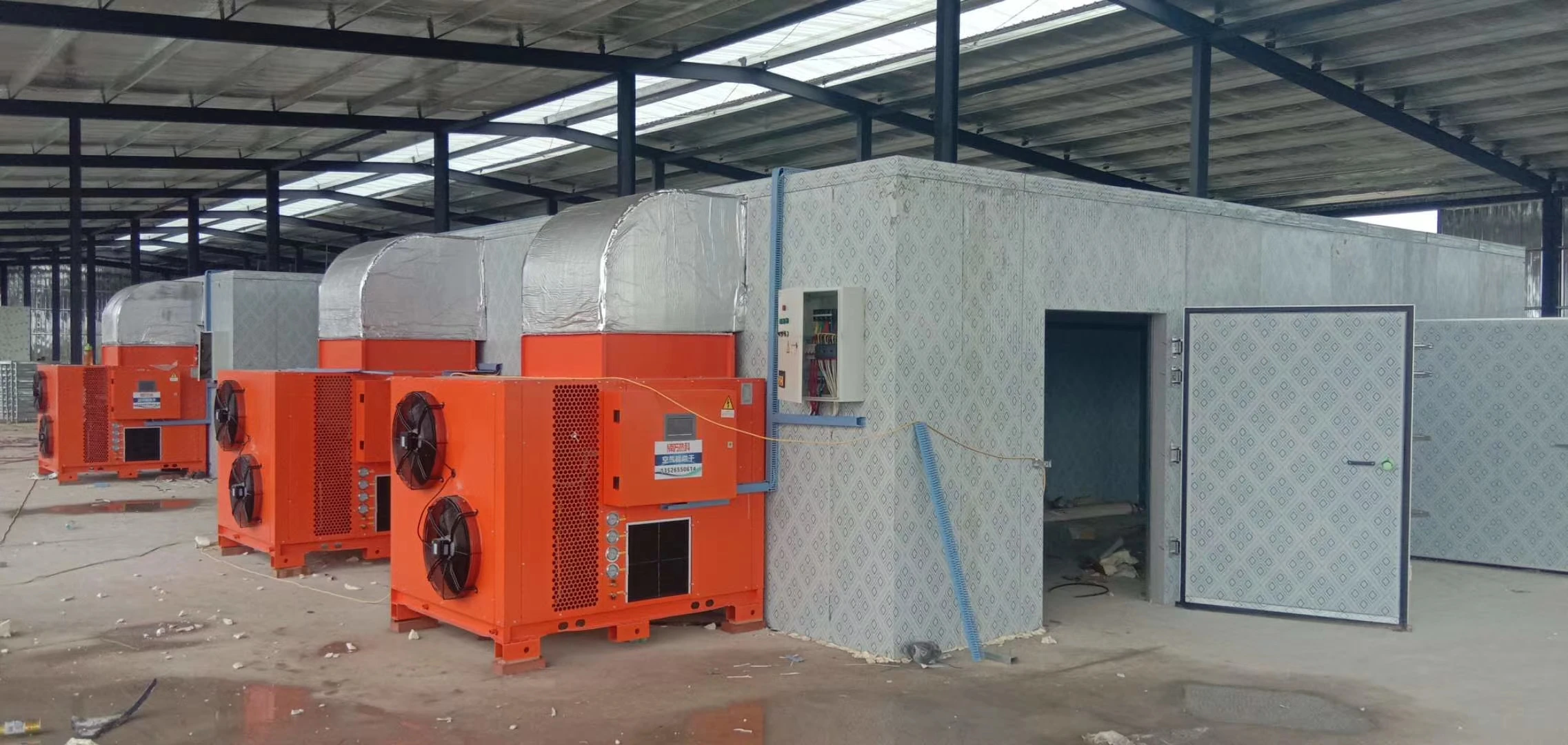

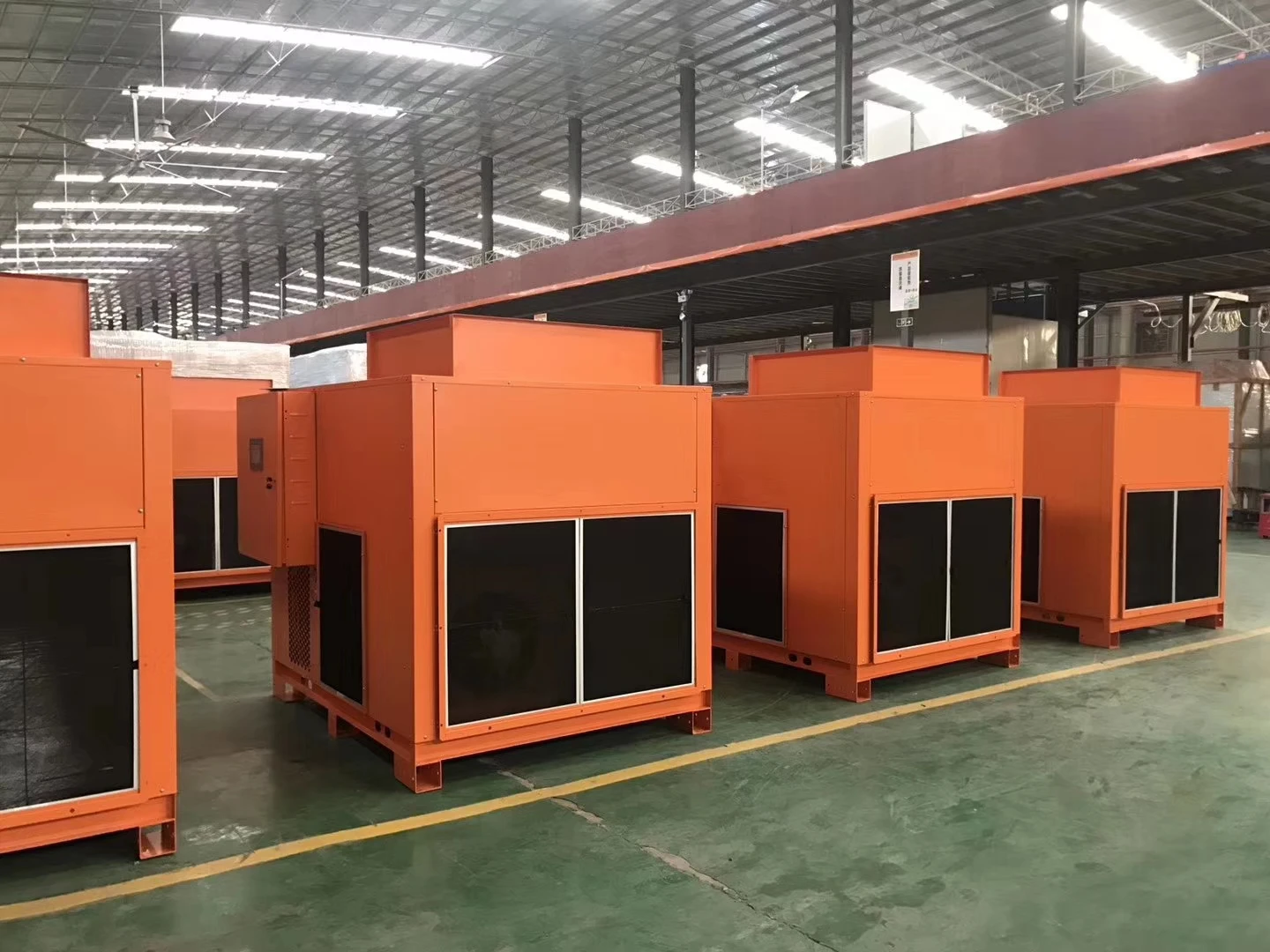

HEAT PUMP DRYER HOST

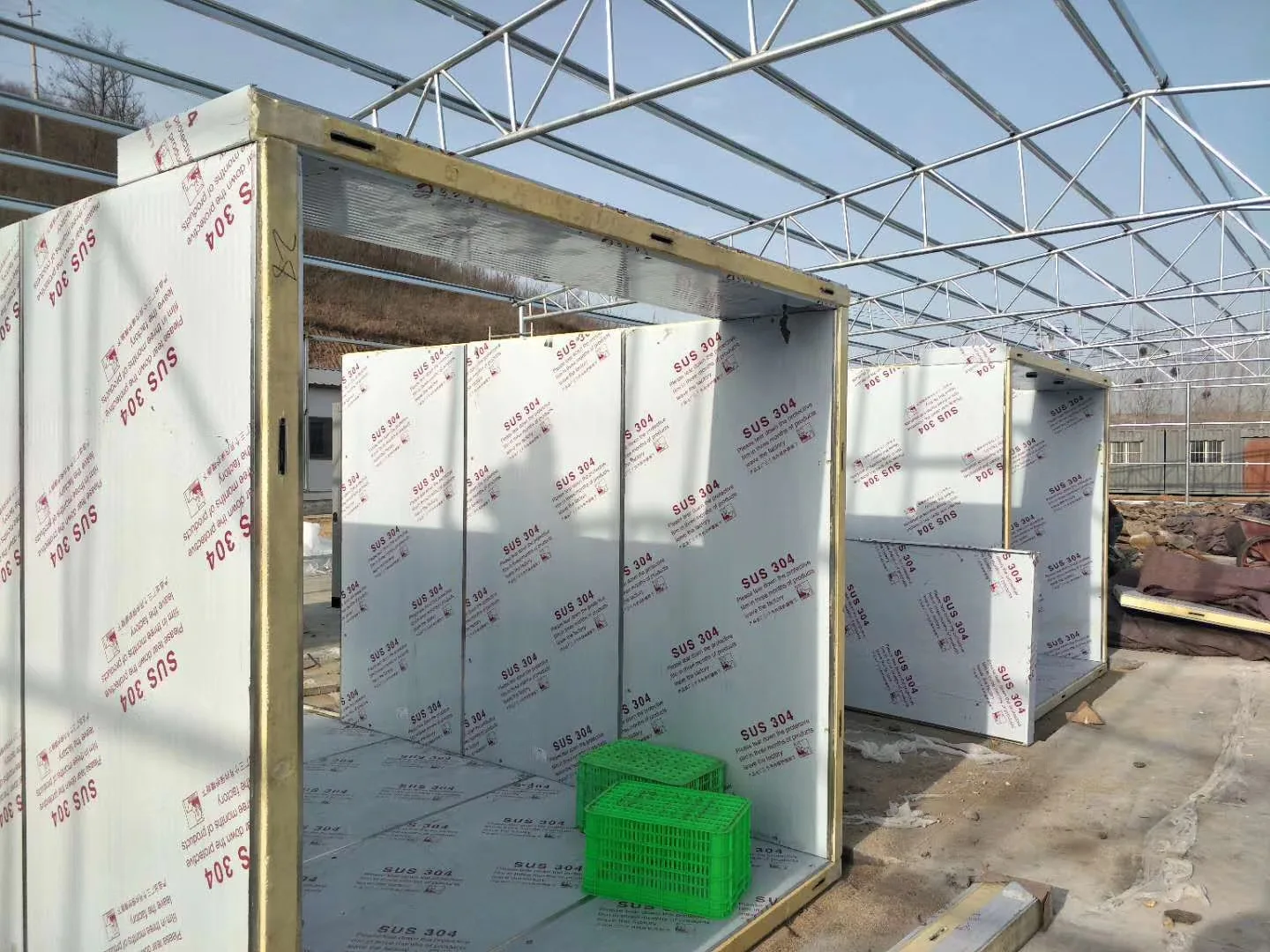

DRYING ROOM

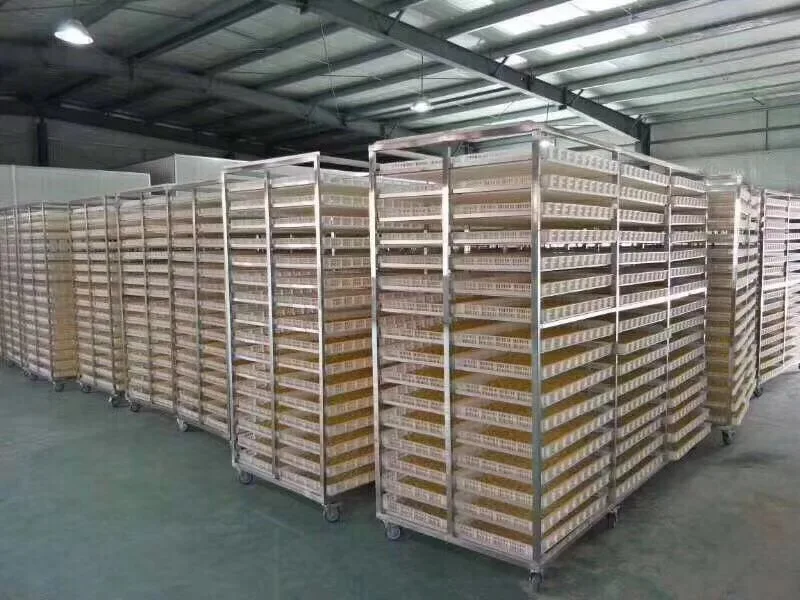

TROLLEY & TRAY

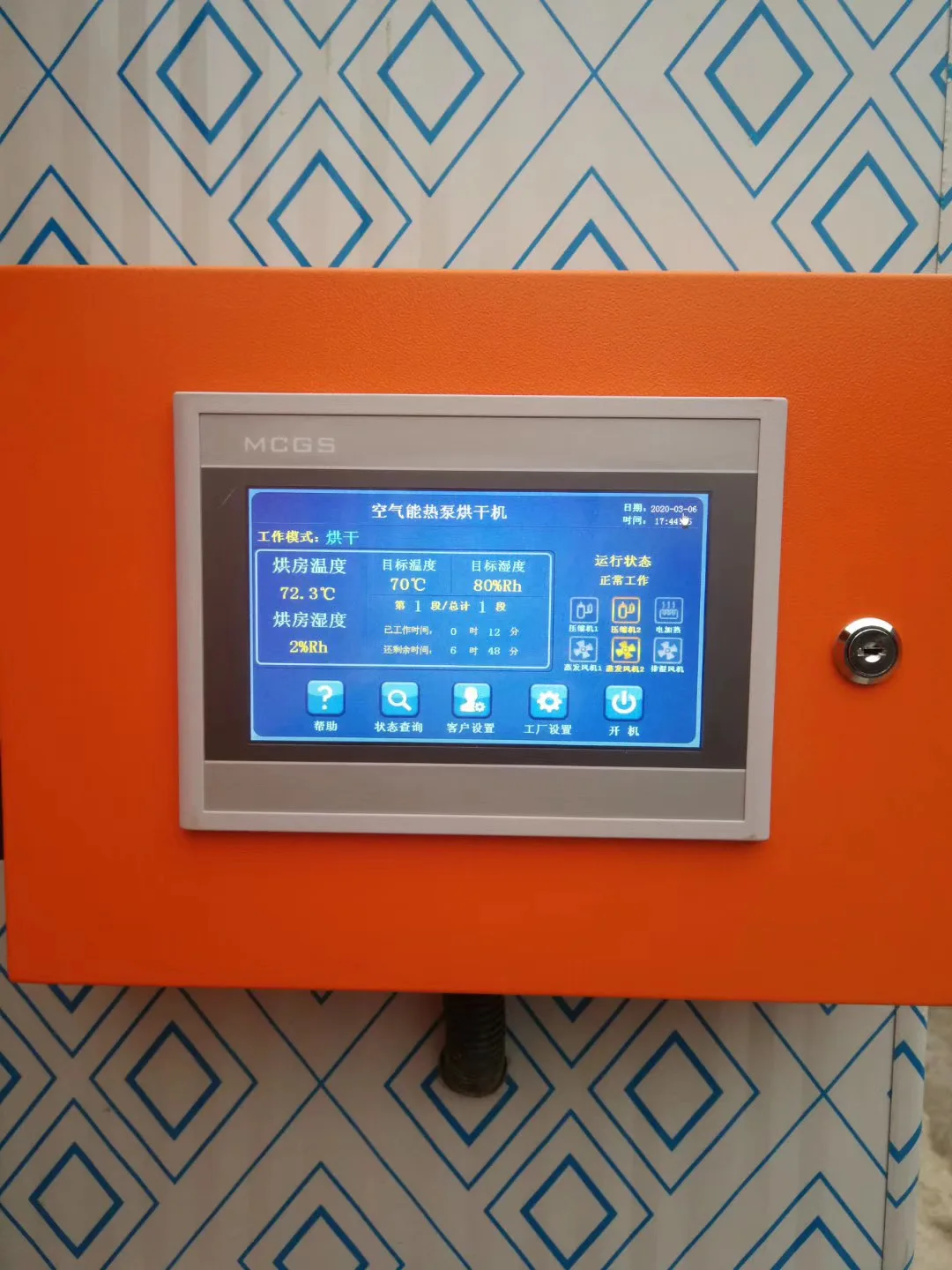

CONTROL SYSTEM

Product Application

The high-temperature heat pump drying unit is suitable for drying bedding in hotels, dehydrating seafood, vegetables, AD black fungus, melon seeds, peanuts, fruits and vegetables, meat products, casings, tobacco leaves, leather, mushrooms, wolfberries, dried fruits, mosquito coils, tribute Incense, cloth, clothing, grains, noodles, fertilizers, medicines, paper products, wood, seeds, sludge, gypsum, hardware products, metallurgical products, mining by-products, chemical products, flue gas desulfurization gypsum, clay, pulverized coal, coal Drying of mud, lignite, etc. In terms of industrial hot water, it can also meet the needs of constant temperature of electroplating solution in electroplating plants, heating and insulation of high-temperature hot water in slaughterhouses, supply of high-temperature hot water in hotels, and high-temperature hot water in industrial enterprises.

Mango

kratom

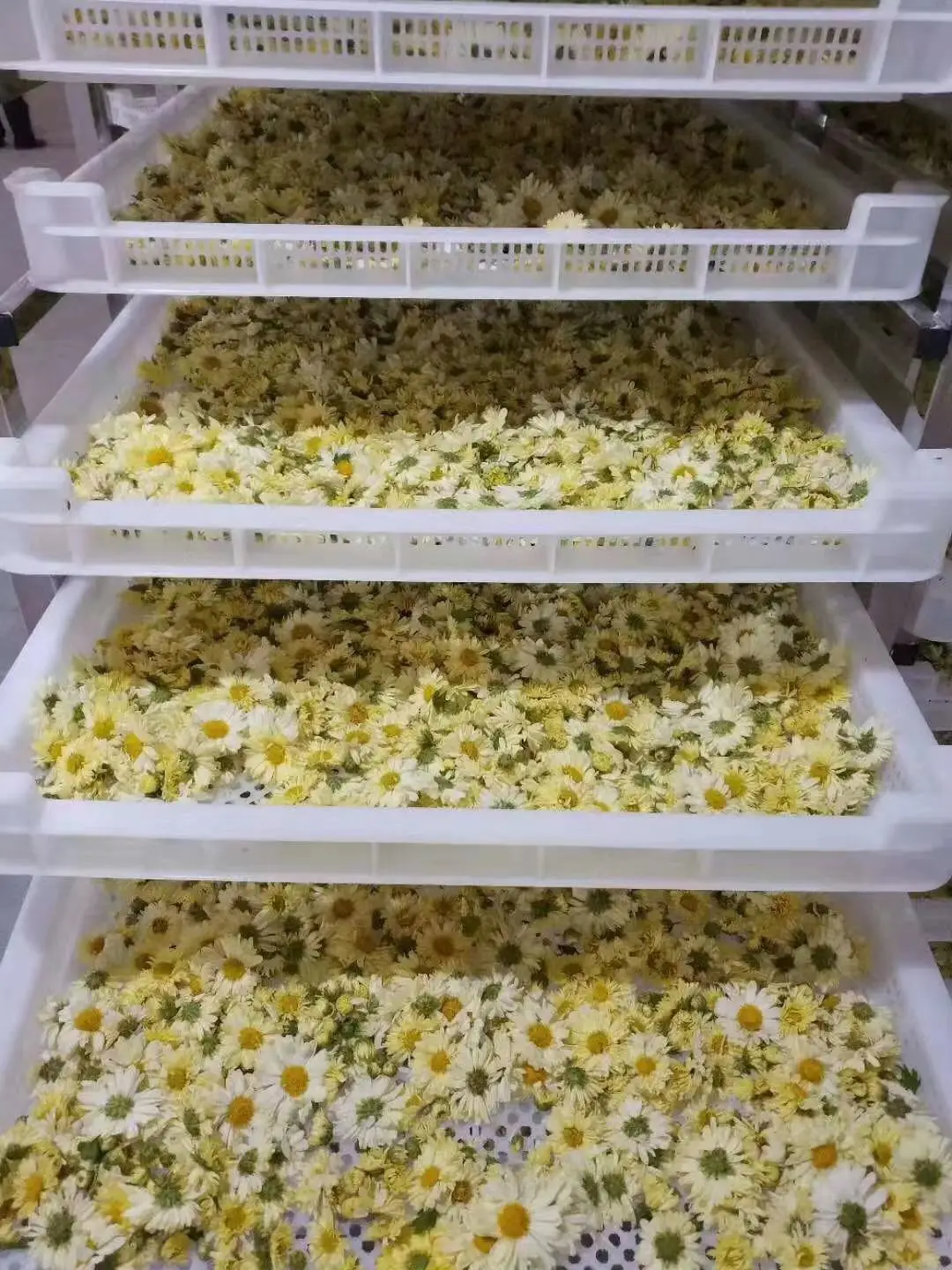

Flower tea

Chili spice

FAQ

Q:What information should be provided to obtain a professional and detailed quotation? A: we have to know the following information before quote: 1) What are you going to dry? 2) Moisture content of raw materials? 3) Moisture content of dried product? 4) Process capacity per batch? Q: What is the lead time? A: 15-25 working day. Q: How is the product packaged and delivered? A: The dryer is packed in wooden case for shipping Q: What standard models do you have? A: We have the following models:

Technical Parameters

Model	Unit	HPD-3	HPD-6	HPD-7	HPD-14
Power supply	kw	380V/50Hz	380V/50Hz	380V/50Hz	380V/50Hz
Rated power	kw	2.8	5.2	6	13.2
Rated current	A	5.5	10.8	13	28
Heating capacity	kw	11	22	28	48
Cooling capacity	kw	7.9	19	25	38
Dehumidification	L/H	15	26	30	50
Max. power	kw	3.5	6.6	7.2	14.3
Max. current	A	7.1	13.1	17	32
Heating temp.	℃	75	75	75	75
Ambient temp.	Mpa	0-43	0-43	0-43	0-43
Pressure	Mpa	≤3.0	≤3.0	≤3.0	≤3.0
Noise	dB(A)	≤65	≤70	≤70	≤75
Weight	kg	180	285	285	500
Dimension	mm	1675*860*1278	1760*1060*1278	1760*1060*1278	2100*1256*1590

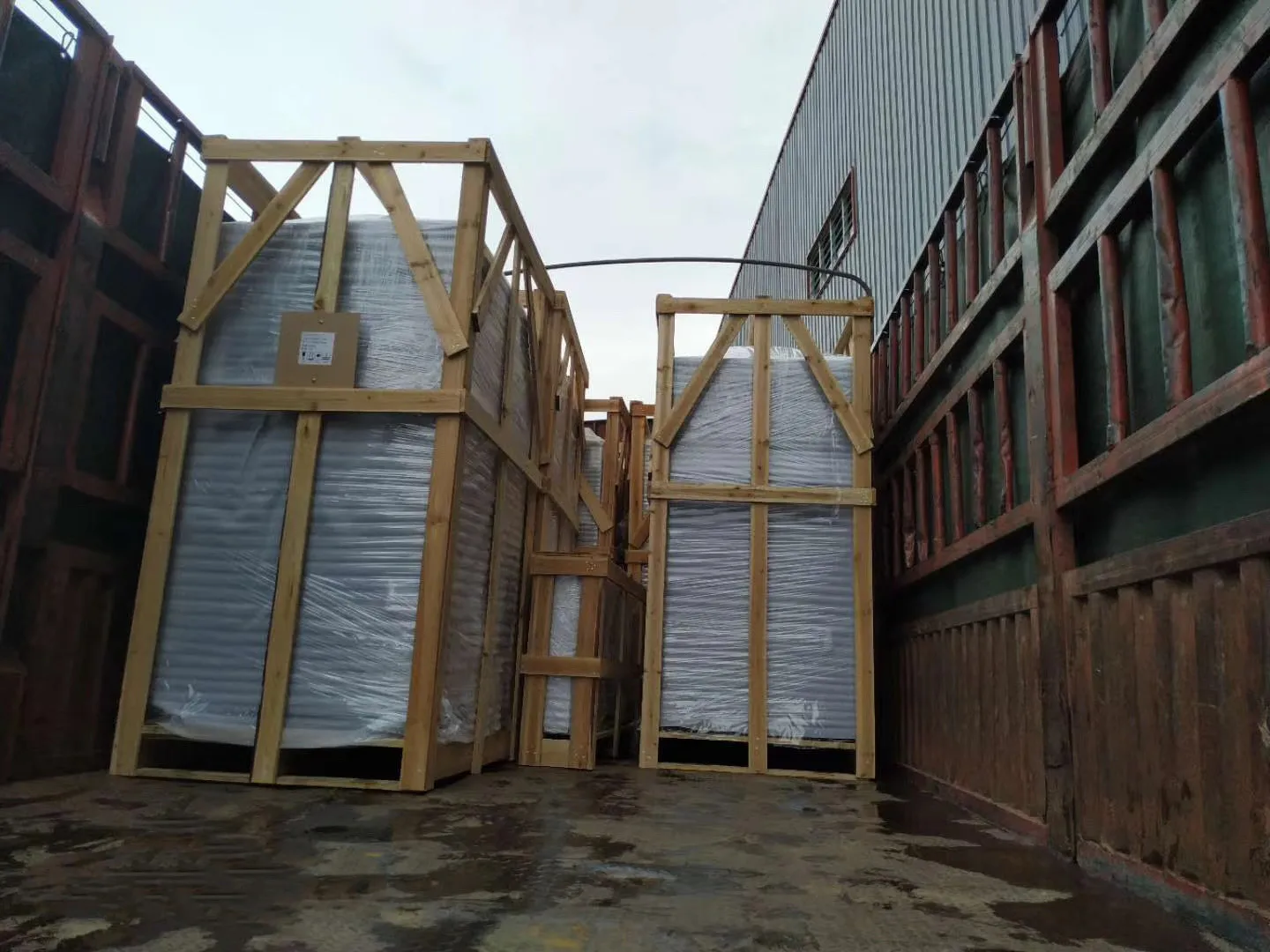

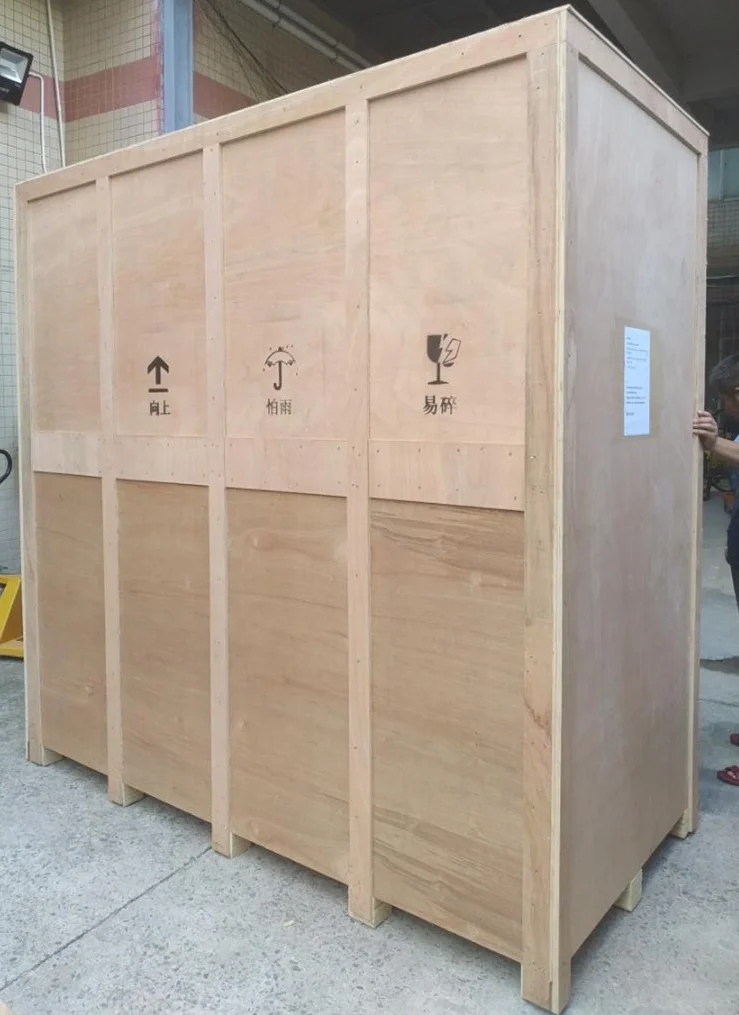

Packing & Shipping

Company Profile

CHANGZHOU BRAVO MACHINERY LLC has focused on the R&D, design and production of machinery and equipment for 30 years. It is one of China's advanced suppliers of non-standard equipment such as dryers, pulverizers, mixers, granulators and packaging machinery.

BRAVO MACHINERY understands the importance of details and real production data for industrial machinery manufacturing. Unique designs for specific materials are always based on actual production experience or test data.BRAVO Machinery has experienced technicians who have worked in this field for more than 30 years and a professional pilot plant, which can provide customers with free testing services and production process research.

The same goes for after-sales service. BRAVO MACHINERY has a skilled and experienced after-sales service team which provide customer with professional installation, debugging and training services.

BRAVO MACHINERY always keep in mind that quality is the cornerstone of BRAVO's survival and the reason why customers choose BRAVO.We accurately convey customer requirements and expectations to the entire BRAVO value chain and jointly build quality;

We respect rules and processes and do things right the first time; we unleash the potential of our employees and continue to improve;We work with our customers to balance opportunities and risks, respond quickly to customer needs. BRAVO is committed to providing customers with high-quality products, services and solutions, and continues to let customers experience our commitment to creating value for each customer.

BRAVO Machinery is willing to be your reliable machinery supplier.

Customer Photos

Ordering and Pricing

• Minimum order quantity: 1 set
• Ships from: China
• Customization: OEM and ODM accepted on qualifying volumes.

Frequently Asked Questions

What is the minimum order quantity for this tray dehydrator heat pump?

The standard minimum order quantity is 1 set. Trial orders can usually be arranged for buyers evaluating the product before a full production run.

What warranty is provided?

The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.

Can the tray dehydrator heat pump be supplied for my local voltage?

The standard configuration is custom. Alternative voltage and frequency builds are available when specified at the time of order.

Do you accept OEM or custom branding?

Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.

How long does production and delivery take?

In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
