This vent booster fan is published with the manufacturer’s full specification — type AC vent booster fan, model number D0100XFRCH7. Made by TradeTech Innovations Inc (1 year on the platform, typical reply ≤2h). Send your target quantity and destination for a firm quotation with current lead times.

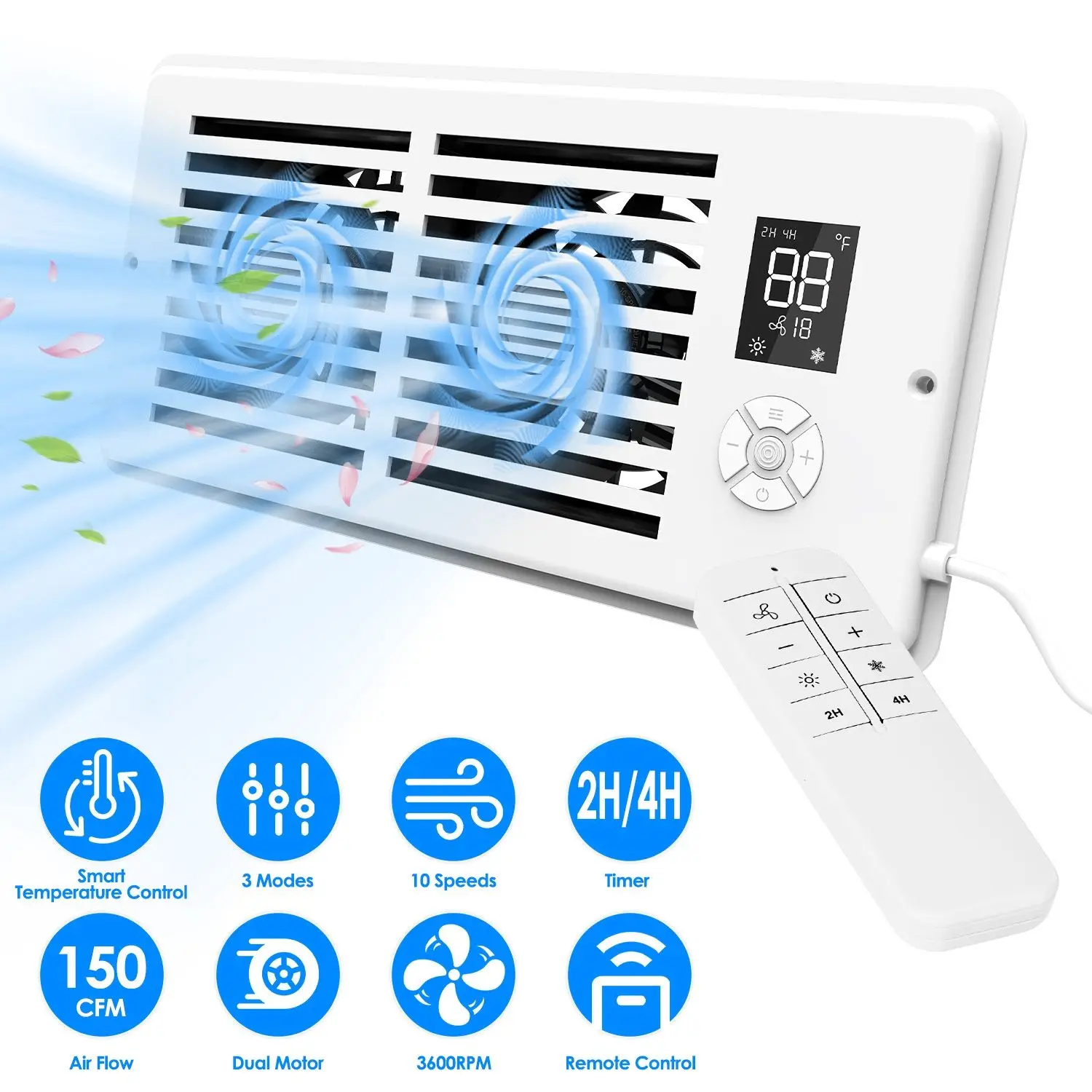

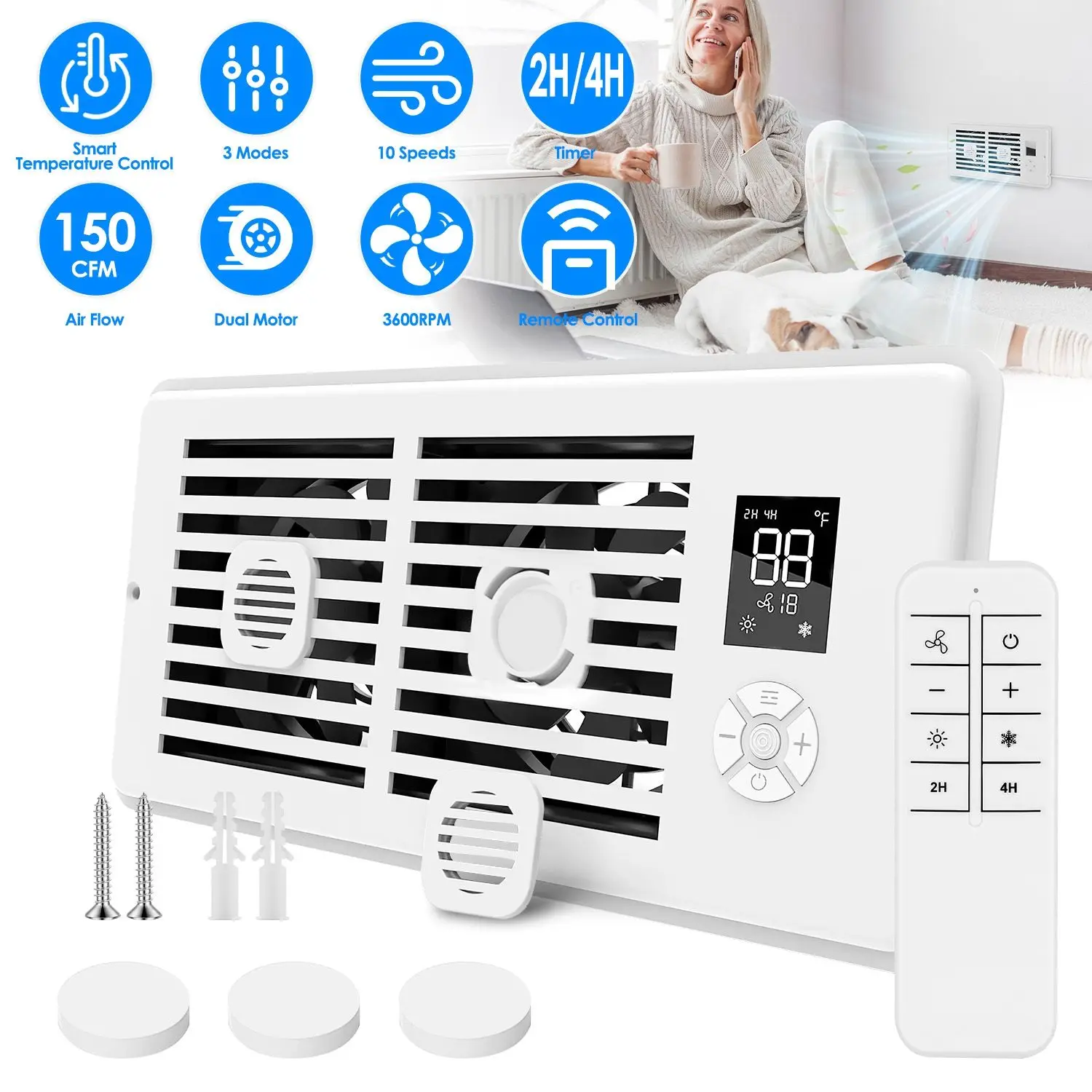

Key Features of This Vent Booster Fan
- Model Number: D0100XFRCH7
- Wind Speed: 3400 RPM
- Feature: LCD screen, 3 modes, 10 speeds, 2H/4H timer, dual motor
- Type: AC vent booster fan
- Control Type: Remote Control
- Single Package Size: 35.00X14.99X7.01 cm
Technical Specifications
| Type | AC vent booster fan |
|---|---|
| Control Type | Remote Control |
| Wind Speed | 3400 RPM |
| Feature | LCD screen, 3 modes, 10 speeds, 2H/4H timer, dual motor |
| Timer | Yes |
| Light | White |
| Remote Control | Yes |
| Model Number | D0100XFRCH7 |
| D0102X3TSLG | White |
| Selling Units | Single item |
| Single Package Size | 35.00X14.99X7.01 cm |
| Single Gross Weight | 0.730 kg |
Product Details
*Features*:
*Ventilation Booster Fan*:This fan system enhances airflow through your wall and floor HVAC ducts to improve home comfort. It eliminates uneven room temperatures with high-precision temperature sensor,automatically turning on/off to maintain your desired climate setting.
*Smart Temperature & Dual Diffuser Slots*:Featuring automatic temperature detection and dual built-in aroma diffuser slots,this smart register fan lets you add essential oils or perfume(not included) to the included cotton pads. Enjoy a fresh,fragrant atmosphere as air circulates throughout your space.
*Smart Remote & LCD Display*:Equipped with 3 modes including:Winter Mode(operates from 70°F to 99°F),Summer Mode(operates from 55°F to 80°F),and Fan Mode(10-level speeds,),and a 2H/4H timer with the full-function remote. The LCD clearly displays temperature and speed,with auto-dimming after 1 minute to prevent nighttime glare.
*High-Efficiency Dual Motor Performance*:Dual motors with PWM technology and 3600RPM speed deliver a powerful 150 CFM airflow—faster and stronger than standard vent fans. It quickly balances temperatures across floor,ceiling,and wall vents,offering quiet yet robust performance for hard-to-reach rooms.
*Complete 4×10 Vent Fan Upgrade Kit*:Includes:1 booster fan,1 adapter,1 remote control,2 screws,2 expansion anchors,3 cotton pads,and a user manual. Everything you need for an easy upgrade to your 4"x10" air vent.
Friendly Reminder:
* The floor vent fan booster is designed to increase airflow from the vent,it neither heats nor cools the air.
* The summer mode of this exhaust fan needs to be set at 55-80°F,and the winter mode temperature needs to be set at 70-99°F before the machine starts to run. If the machine does not work after receiving it,please check whether the temperature is set correctly!

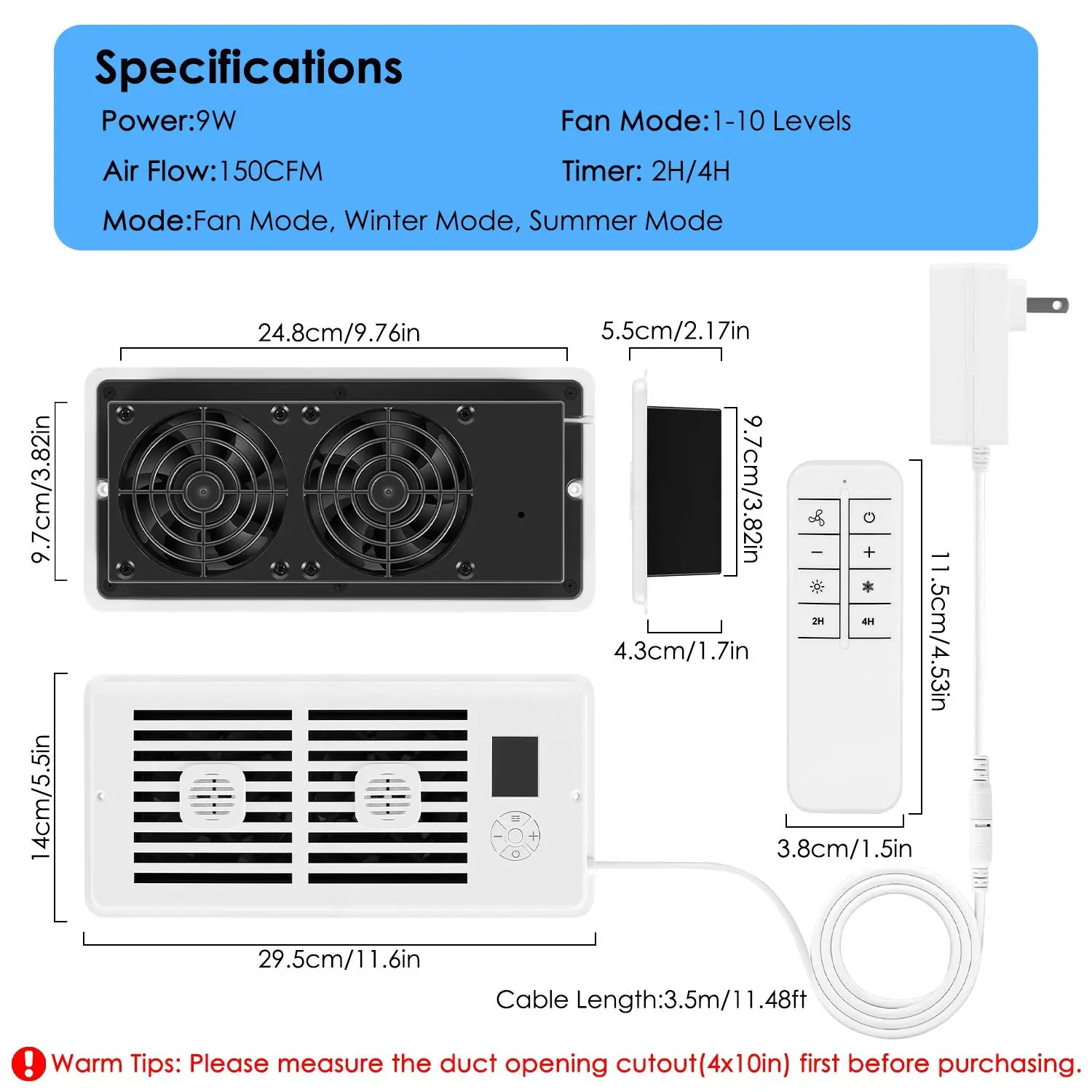

*Specifications*:
Product Type: Register Booster Fan
Color: White
Material: ABS
Power: 9W
Speed: 3600RPM
Air Flow: 150CFM
Powered By: 100-240V 50/60HZ Plug(22AWG Pure Copper Cable)
Power Adapter Cable Length: 3.5m/11.48ft
Motor: Brushless Motor, With PWM Technology
Fit Vents Size: 4x10in

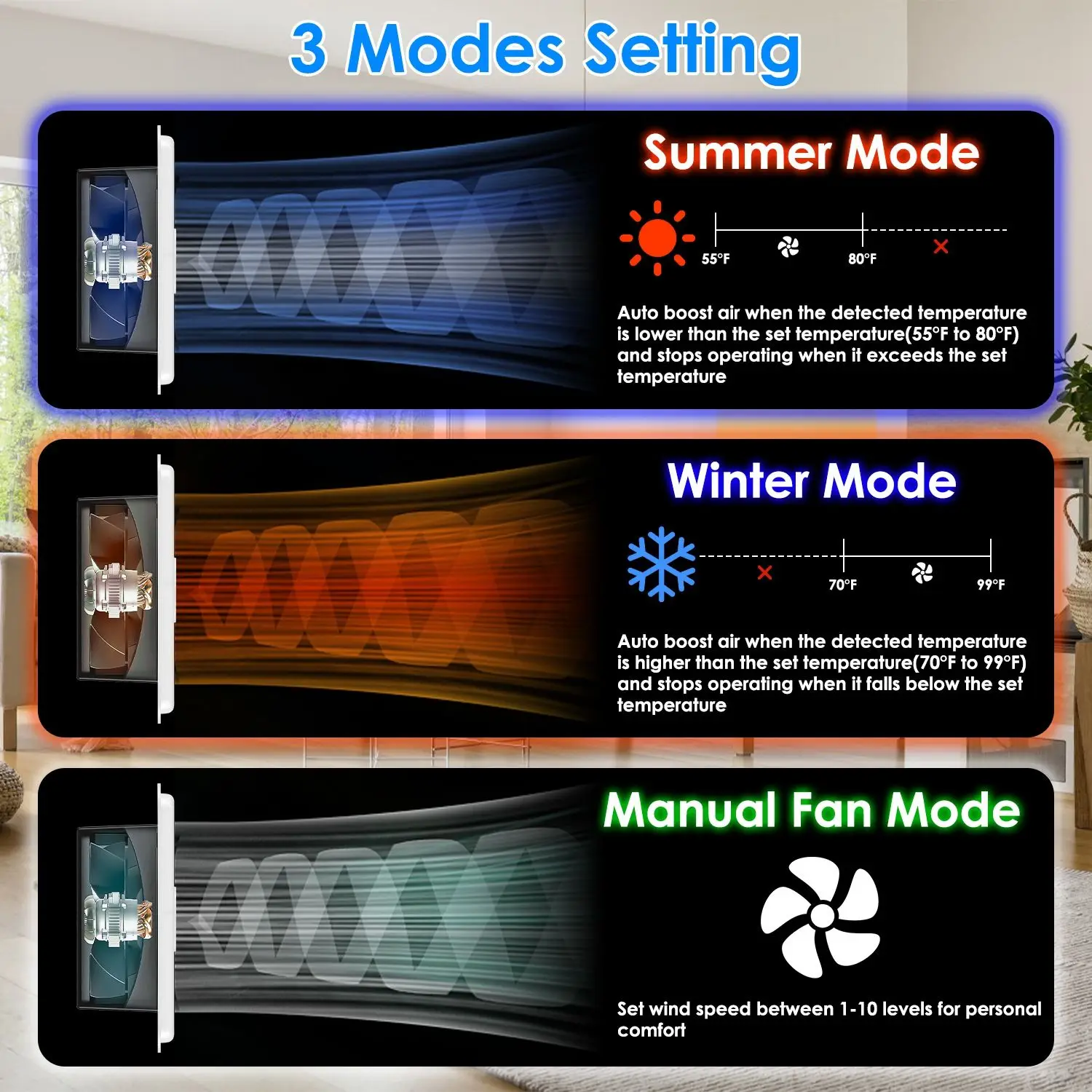

Mode: Fan Mode, Winter Mode, Summer Mode
Fan Mode: 1-10 Levels Wind Speed
Summer Mode: The fan operates from 55°F to 80°F. The fan starts operating when the detected temperature is below the set temperature and stops operating when it exceeds the set temperature.
Winter Mode: The fan starts operating from 70°F to 99°F. The fan starts operating when the detected temperature is above the set temperature and stops operating when it falls below the set temperature.
Low-Power Mode(Screen Dim): After 1 minute of inactivity, the display goes dark and enters low-power mode. Press any key to activate the screen again.

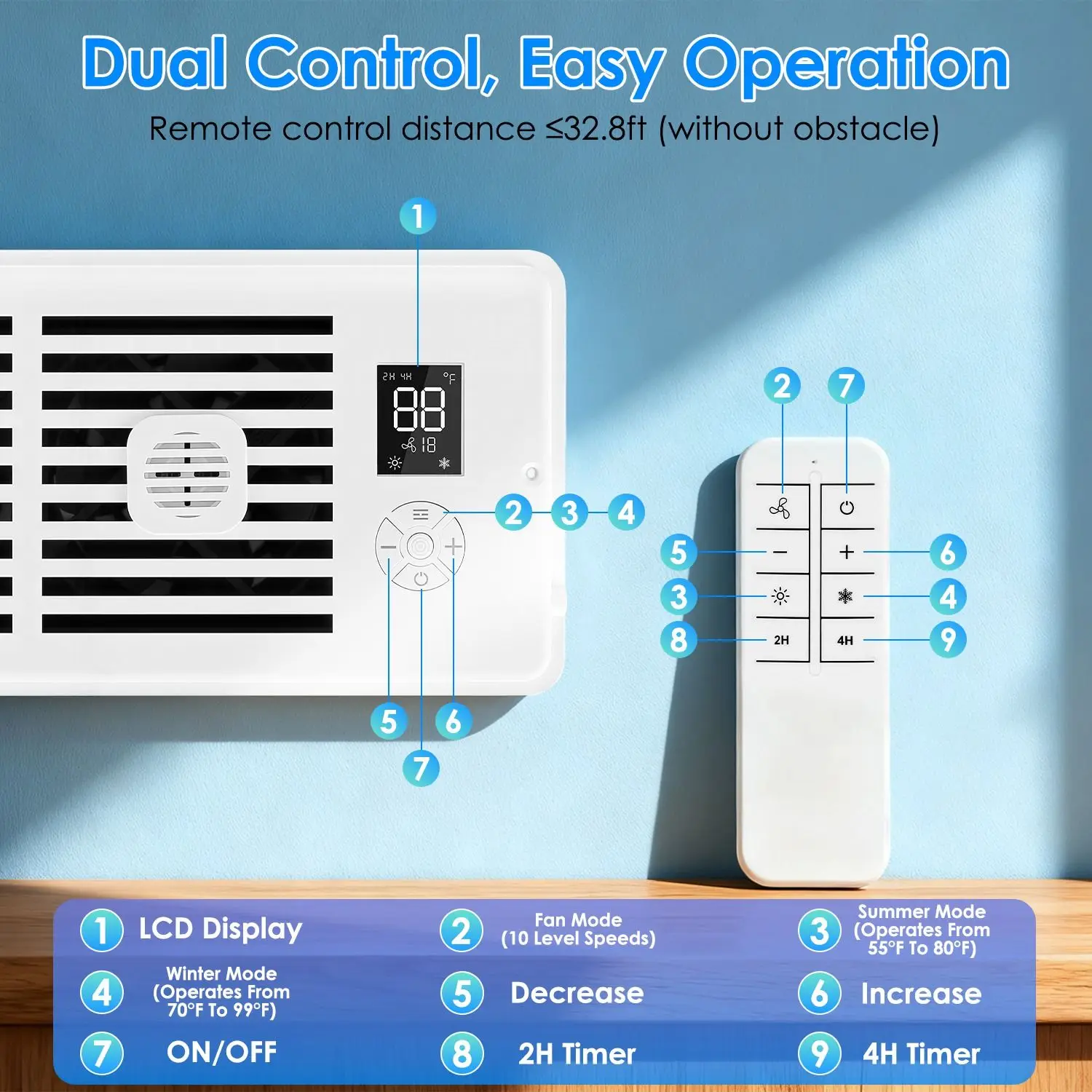

Control Method: Button Control, Remote Control
Timer: 2H/4H
Remote Control Powered By: 2Pcs AAA Batteries(Not included)
Remote Control Distance: 10m/32.8ft Without Obstacle
Display: 3.5×2.6cm/1.38×1.02in
Fan: 2Pcs, 7-Blade, 9cm/ Diameter
Item Size: 29.5x14x5.5cm/11.6×5.5×2.17in
Item Weight: 440g/0.97lbs
Package Size: 35x15x7cm/13.78×5.9×2.76in
Package Weight: 725g/1.6lbs

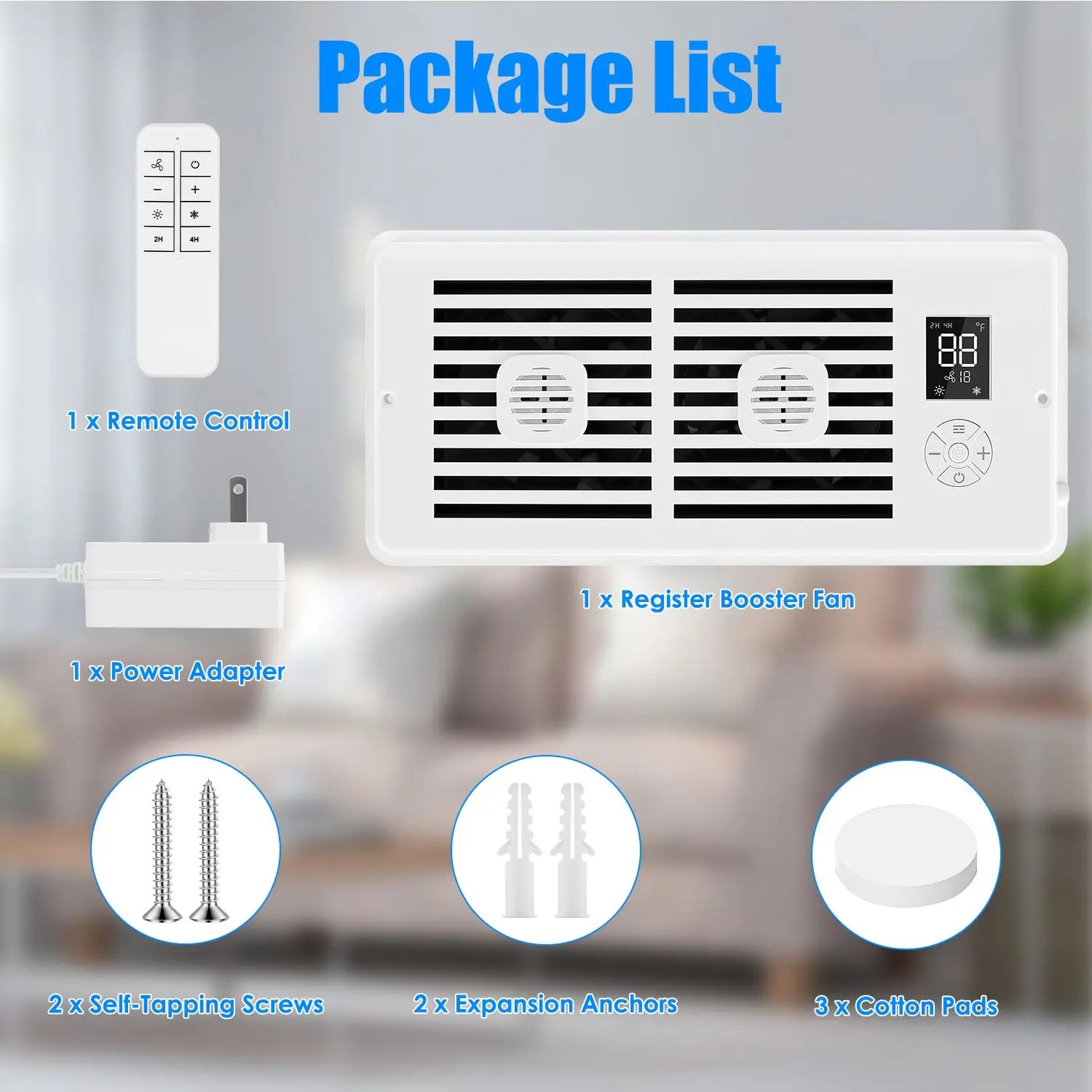

*Package Lists*:
1 x Register Booster Fan
1 x Power Adapter
1 x Remote Control
2 x Self-Tapping Screws
1 x Expansion Anchors
3 x Cotton Pads
1 x User Manual
| model number | D0100XFRCH7 |
| D0102X3TSLG | White |
Ordering and Pricing
- Minimum order quantity: 1 piece
- Ships from: US
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this vent booster fan?
The standard minimum order quantity is 1 piece. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
