Ventilation Exhaust Fancooling, 120 V, Electric

Key specification for this ventilation exhaust fancooling: 120 V, Other, 220, 380, power source Electric. Everything below is reproduced from the factory data sheet. Made by Weifang Laileo Machinery Co., Ltd. (4 years on the platform, typical reply ≤2h). Quantity and destination market determine the final price — tell us both for a firm quote.

Key Features of This Ventilation Exhaust Fancooling

• Power Source: Electric
• Power Supply: Electric Power
• Voltage: 120 V, Other, 220, 380
• Material: Stainless Steel
• Blade Material: Stainless Steel
• Warranty: 1 Year

Technical Specifications

Product Details

Product Description

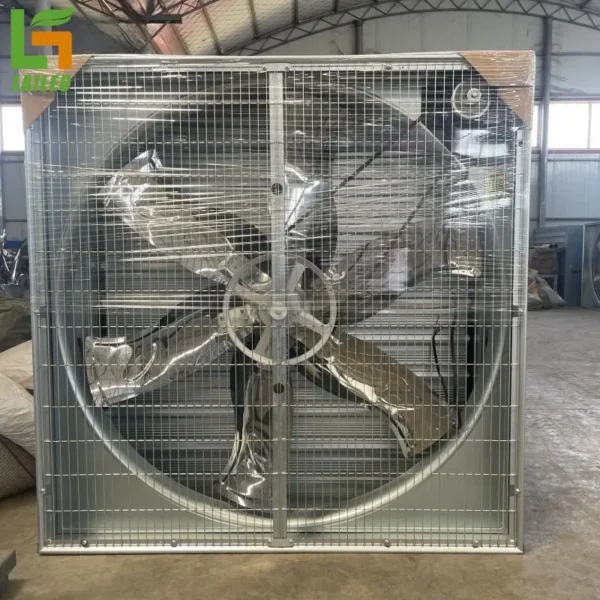

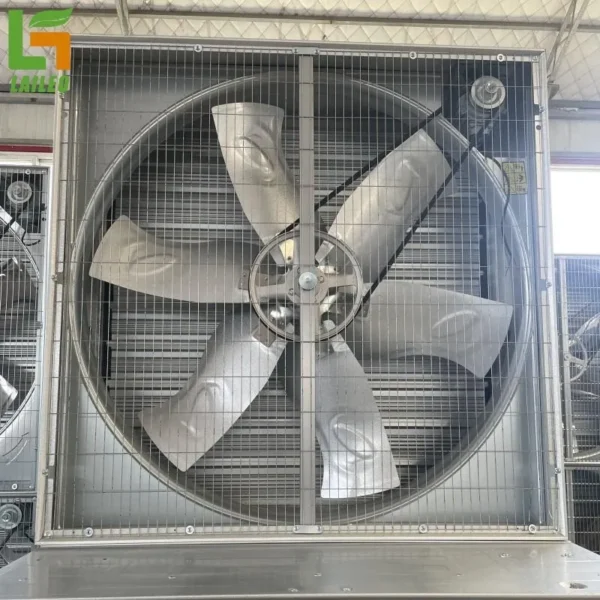

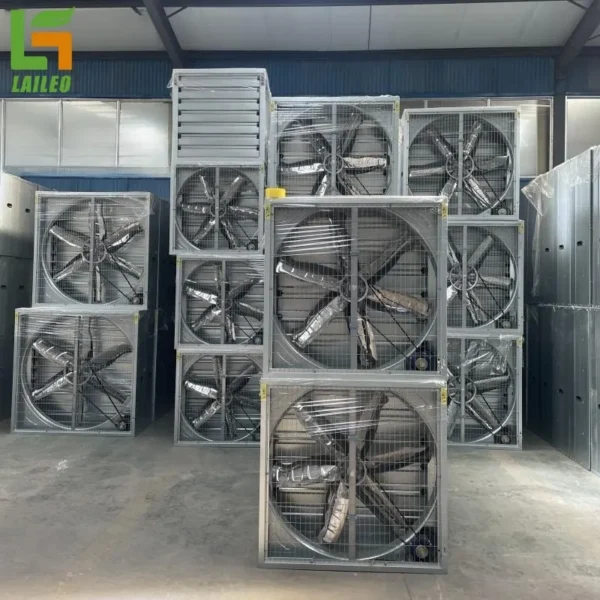

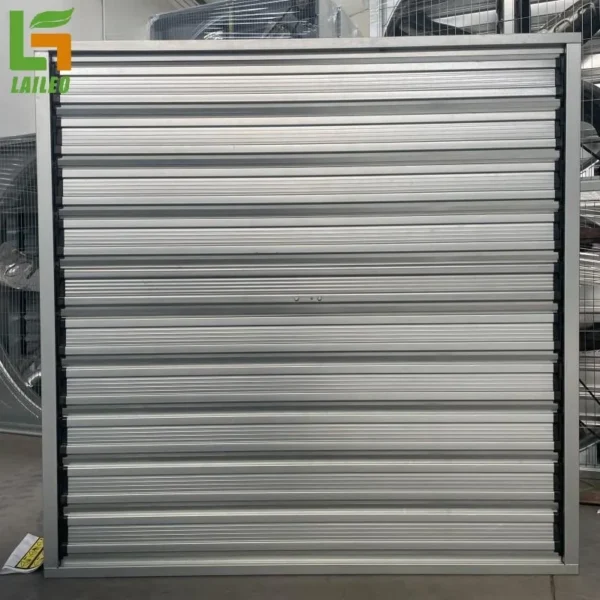

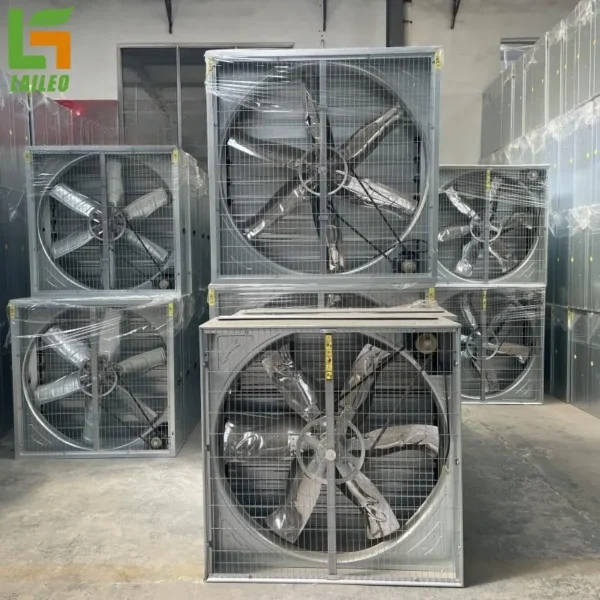

Ventilation Exhaust Fan/Cooling fan for greenhouse used

The fan is mainly composed of fan blades, motors, outer frames, guard nets, support frames, shutters, etc. This product is suitable for ventilation and cooling in various types of greenhouses, livestock farms, industrial plants and other places. The greenhouse fan wet curtain cooling system adopts negative pressure ventilation and cooling: the installed fan is used to extract and exhaust air, so that the indoor pressure is lower than that of the outdoor, so that the negative pressure formed will suck the fresh outdoor air into the room and keep the room cool.

Specification

model	fan blade dia          mm	motorspeed       r/min	capacity m3/h	power/w	voltage       v	length   mm	width  mm	thickness       mm
L-1000	900	610	25000	750	220/380	1000	1000	400
L-1100	1000	600	325000	750	220/380	1100	1100	400
L-1220	1100	460	38000	750	220/380	1220	1220	400
L-1380	1250	439	44000	1100	220/380	1380	1380	400
L-1530	1300	325	55800	1500	220/380	1530	1530	400

Product Paramenters

Fan blade

The fan blades are stamped and formed by Krupp stainless steel, no dust, beautiful and durable. The special blade shape design ensures a large air volume, no deformation, no breakage, and makes the air volume the same all the way.

Fan motor

Equipped with high-efficiency and energy-saving motors, passed 3C certification, protection class: IP55, insulation class: F class.

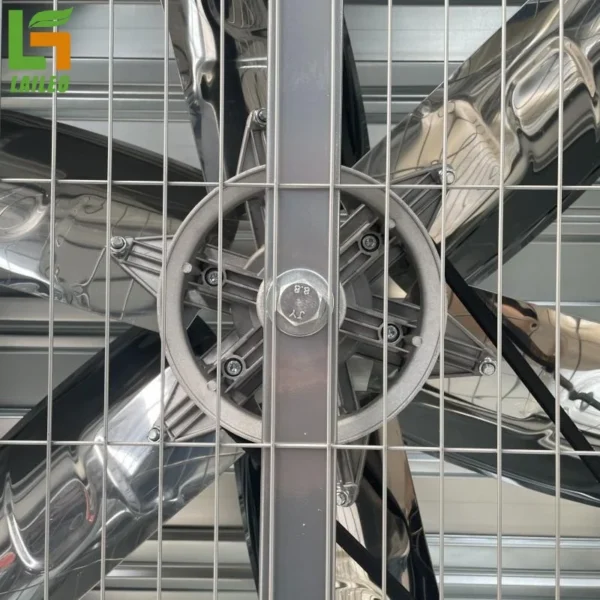

Fan pulley

The fan pulley is die-cast from high-strength aluminum-magnesium alloy to reduce weight, the impeller blades are complete, and have high internal corrosion resistance. Reinforced belt wheel design. Consume internal stress, improve its own rigidity and stability, and will not break.

Fan bearing

The fan bearing adopts a special waterproof design for double-row bearings, and water cannot enter. High strength, low noise, maintenance-free, long service life.

Belt

China's high-quality belts, Japan's Samsung belts, Korea's Dongil belts, and toothed cooling belts are your choice; A-type V-belts and B-type V-belts are your choice.

Company Profile

Weifang Laileo Machinery Co., Ltd., located in Weifang City, Shandong Province, the major products is exhaust fan and drying equipment supporting high temperature resistance. The company has fully automated fan production equipment, testing equipment, excellent manufacturing technology and modern management technology, as well as a professional management team to ensure efficient and error-free production and delivery.
Motor products include: negative pressure fans, high temperature fans, explosion-proof motors, high temperature explosion-proof motors, etc. Motors for special environments can be customized according to customer requirements. 3C, CE, explosion-proof certification, etc. meet the requirements of national standards, and the motors are sold to Southeast Asia, Africa, Europe and other parts of the world.

Contact us

Packing & Delivery

FAQ

1. How long is the delivery time?
According to your require of the products, the delivery time is usually 10-60 days.
2. How long is the warranty period?
usually for the fan, the warranty time is 1 year.
3. Is your company foreign trade company or manufacturer?
we are manufacturer & foreign trade company
4. Can you supply sample?
Small parts can be supplied, but you should pay the express.

Ordering and Pricing

• Minimum order quantity: 1 piece
• Volume pricing:
  • 1–49 piece: US $120 / piece
  • 50–99 piece: US $118 / piece
  • 100+ piece: US $115 / piece
• Ships from: China
• Customization: OEM and ODM accepted on qualifying volumes.

Frequently Asked Questions

What is the minimum order quantity for this ventilation exhaust fancooling?

The standard minimum order quantity is 1 piece. Trial orders can usually be arranged for buyers evaluating the product before a full production run.

What warranty is provided?

The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.

Can the ventilation exhaust fancooling be supplied for my local voltage?

The standard configuration is 120 V, Other, 220, 380. Alternative voltage and frequency builds are available when specified at the time of order.

Do you accept OEM or custom branding?

Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.

How long does production and delivery take?

In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
