Wall mount metal fan — power 20-260W, material Metal. The complete factory specification follows. Made by Guangzhou Mingle Technology Co., Ltd. (8 years on the platform, factory-assessed). Send your target quantity and destination for a firm quotation with current lead times.
Key Features of This Wall Mount Metal Fan
- Model Number: MFJ- W85I
- Power (W): 20-260W
- Power Source: Electric
- Material: Metal
- Noise Level: 40 dB and above
- Wind Speed: Four
Technical Specifications
| Application | Outdoor, Hotel, Garage, Commercial, Household |
|---|---|
| Blade Diameter | 36 Inch |
| Power (W) | 20-260W |
| Wind Speed | Four |
| Noise Level | 40 dB and above |
| Oscillation | Oscillating |
| Motor | DC Motor |
| Power Source | Electric |
| Type | Air Cooling Fan |
| Control Type | Mechanical |
| Material | Metal |
| Number Of Blades | 3 |
| Timer | No |
| Remote Control | No |
| App-Controlled | No |
| Adjustable Height | Yes |
| Operating Language | English |
| Warranty | 1 Year |
| After-Sales Service Provided | Free Spare Parts |
| Packaging Types | Corrugated Box |
| Private Mold | Yes |
| Feature | waterproof / dust-proof / overheat protection |
| Place Of Origin | Guangdong, China |
| Brand Name | Mingletec |
| Model Number | MFJ- W85I |
| Product Name | 36 Inch Large Air Volume BLDC Wall Mounted Fan |
| Size | 36 Inch |
| Motor Type | BLDC Copper motor |
| Air Volume(M3/H) | 4500-21000m³/h |
| Speed | 600-12000rpm |
| Blade | 3 Aluminum Blades |
| Packing | SKD |
| MOQ | 10 Pcs |
| Selling Units | Single item |
| Single Package Size | 115X30X94 cm |
| Single Gross Weight | 15.0 kg |
Product Details

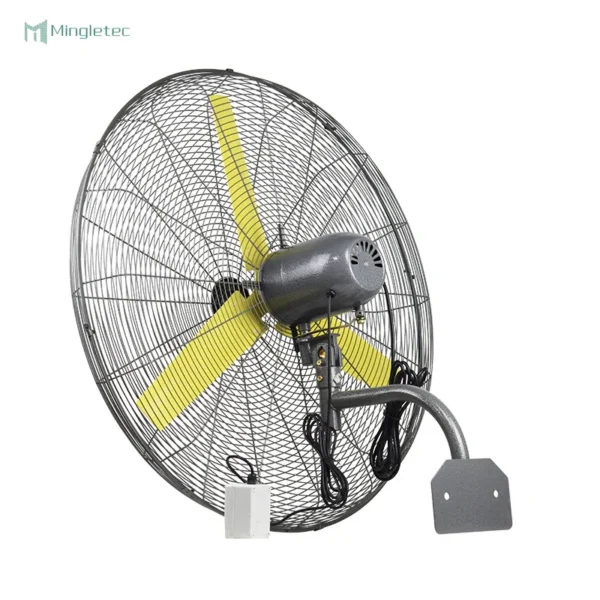

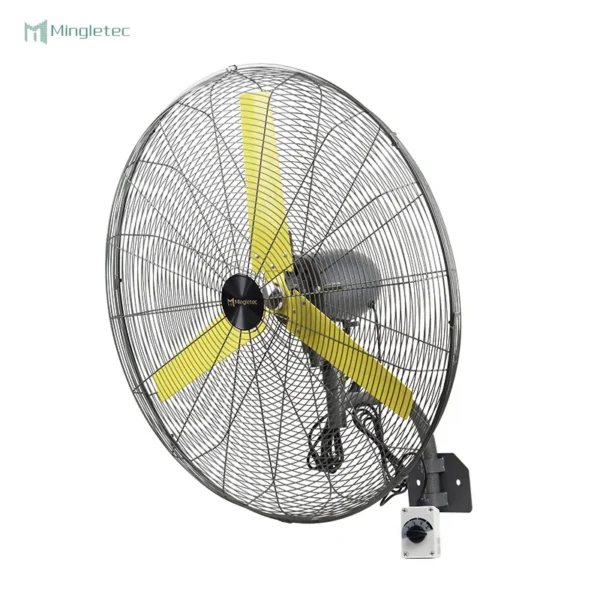

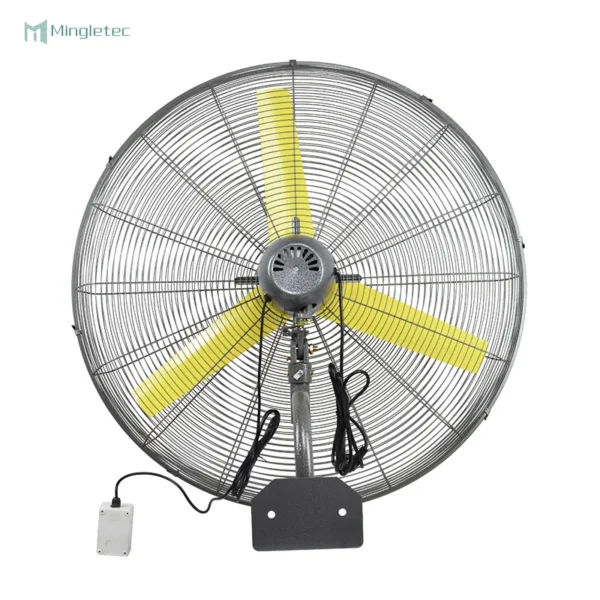

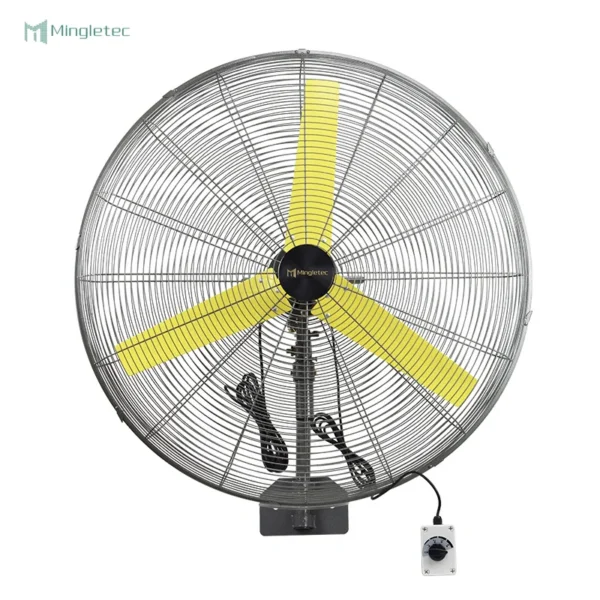

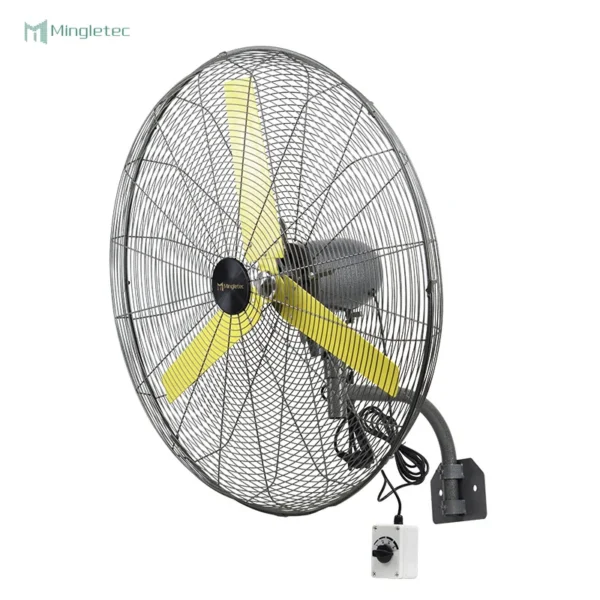

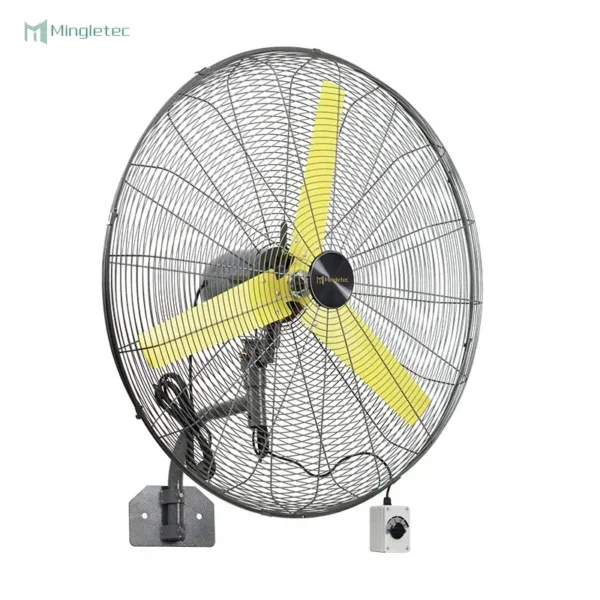

High Power 36inch Industrial Oscillating Wall Mount Metal Fan
Products Presentation

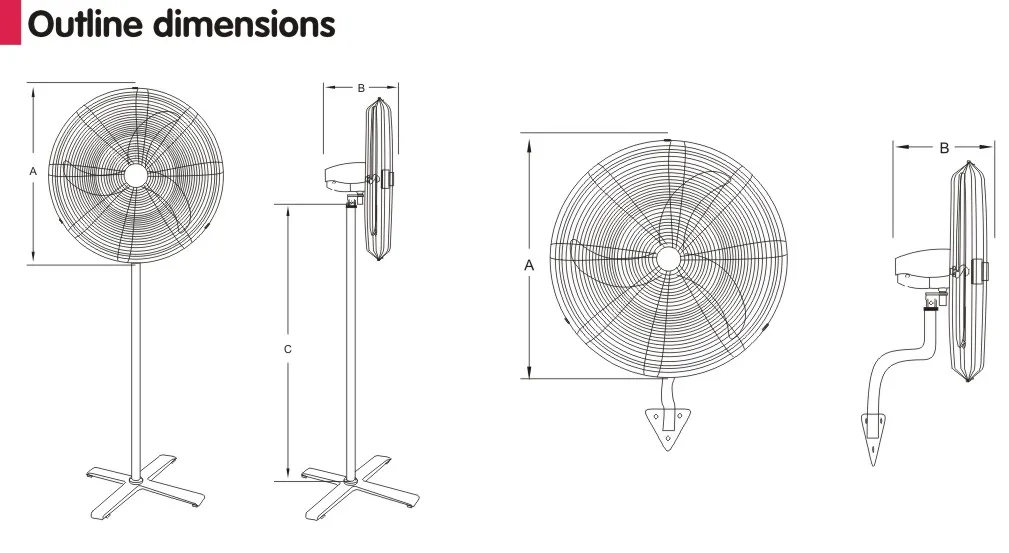

Model | Voltage (V/Hz) | Power (W) | Speed (r/min) | Air Volume (m3/h) | Product Size(mm) | Weight (kg) | ||||
A | B | C | ||||||||
MFJ-W50I | 220-240/50-60 | 20-63 | 700-1400 | 1700-8500 | 560 | 360 | 1350 | 8 | ||
MFJ-W65I | 220-240/50-60 | 20-125 | 700-1350 | 2400-12000 | 715 | 360 | 1350 | 9.2 | ||
MFJ-W75I | 220-240/50-60 | 20-130 | 700-1280 | 2700-13500 | 815 | 360 | 1350 | 10 | ||
MFJ-W85I | 220-240/50-60 | 20-260 | 600-1200 | 4500-21000 | 915 | 400 | 1350 | 14 | ||
Product Features:
1. By using a permanent magnet brushless DC motor. The motor with low temperature rises and remarkable energy-saving effect. 2. The energy saving for 40%-80%. 3. Fully sealed motor. No need for heat dissipation. Dust proof, smoke proof, oil proof, which can be used in harsh environment. 4. over-load protection, no burnt motor, and keeps longer service life. 5. Stamped Aluminum blade for 2mm, perfect balance, big air volume, long air delivery. 6. 4 Speeds adjustable for various air volumes. 7. Adjustable height provides large air volume and a big area. 8. Widely used in the general environment of the factory, workshops, warehouses, basements etc, for ventilation and improving the environment.

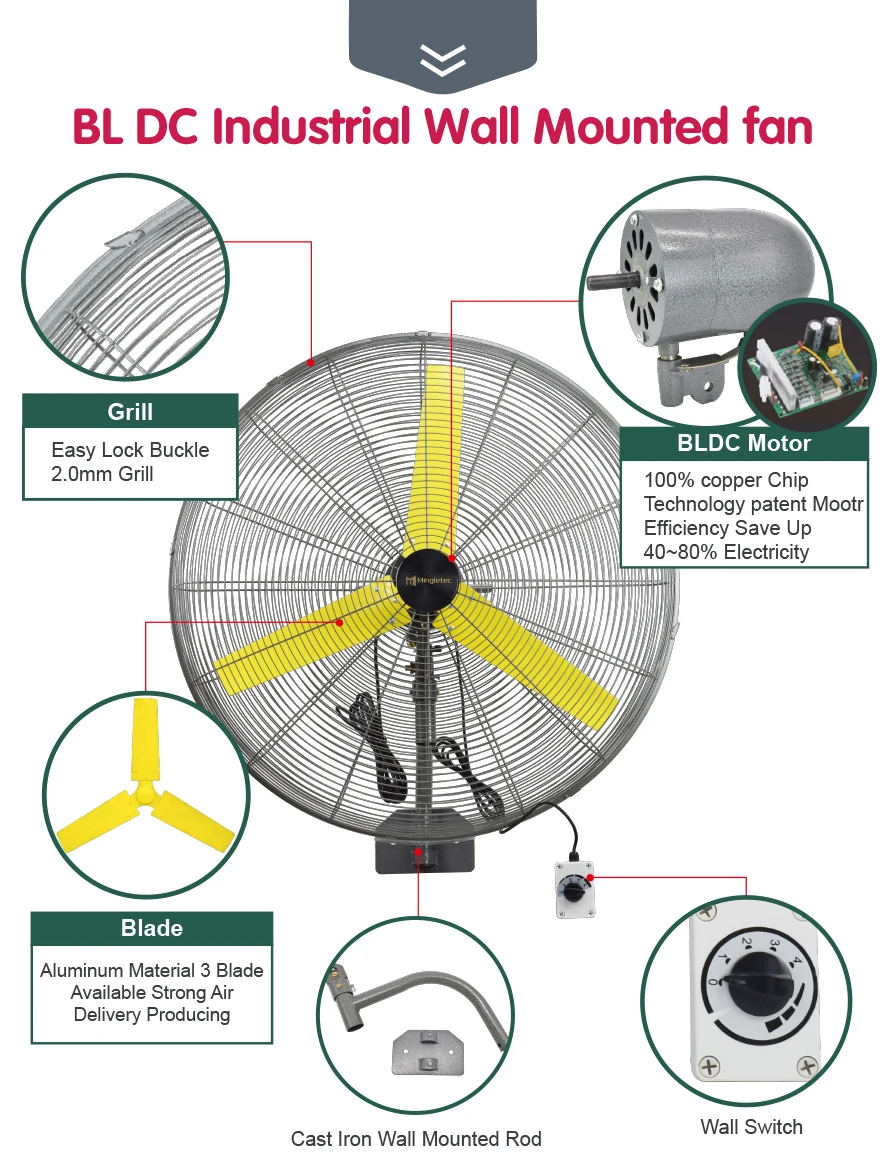

Details And Options

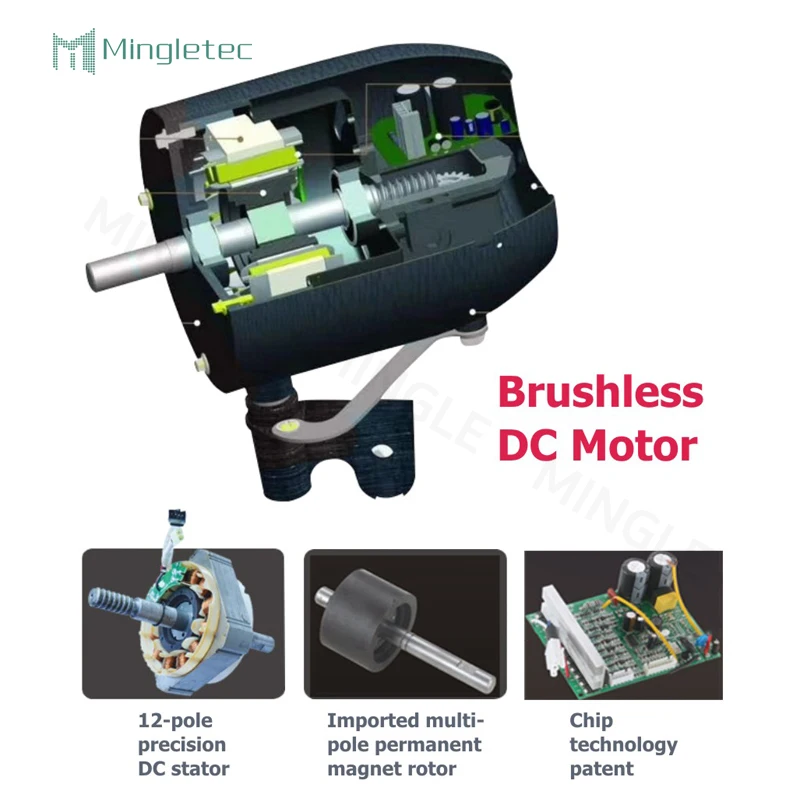

Brushless DC motor
Brushless DC motor design for smooth operation

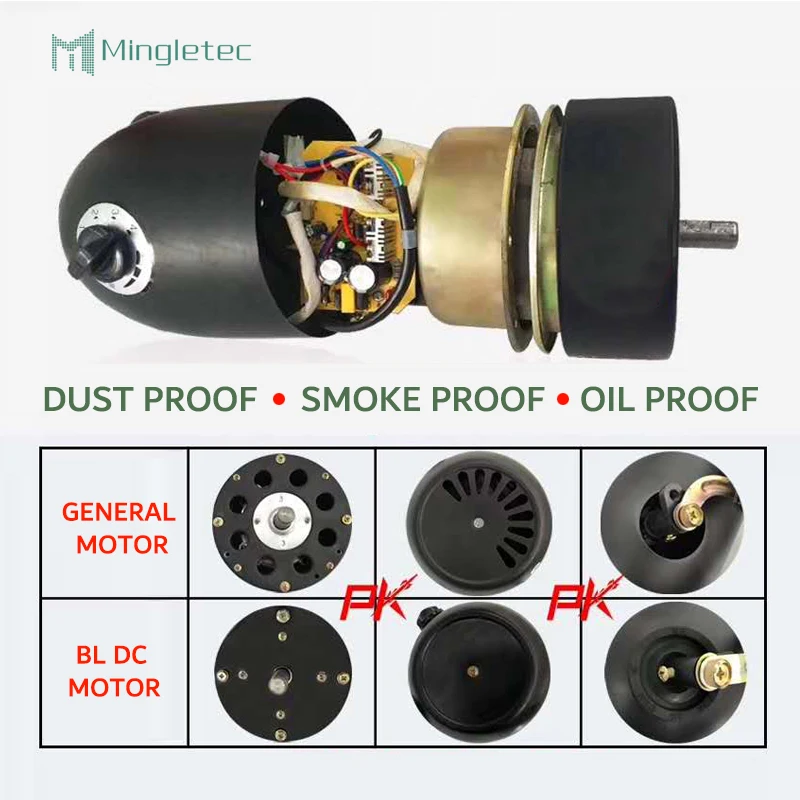

DC motor internal details
Overload and overheat protection, not burn the motor
DC motor advantage
DC motor can save the energy up to 40-80% versus general motor

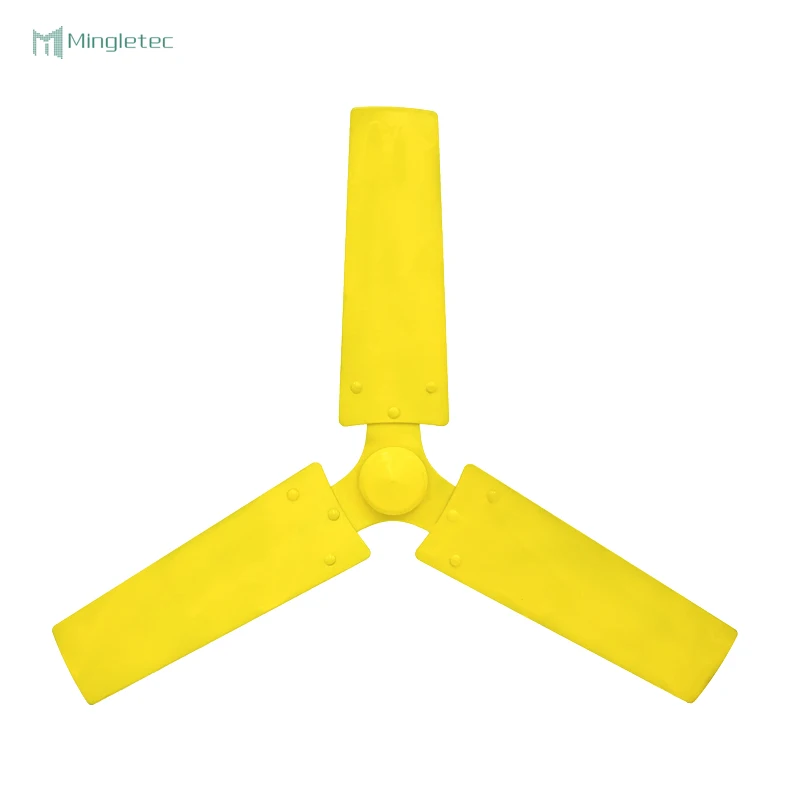

Aluminum blade
Aluminum blade provide strong air volume

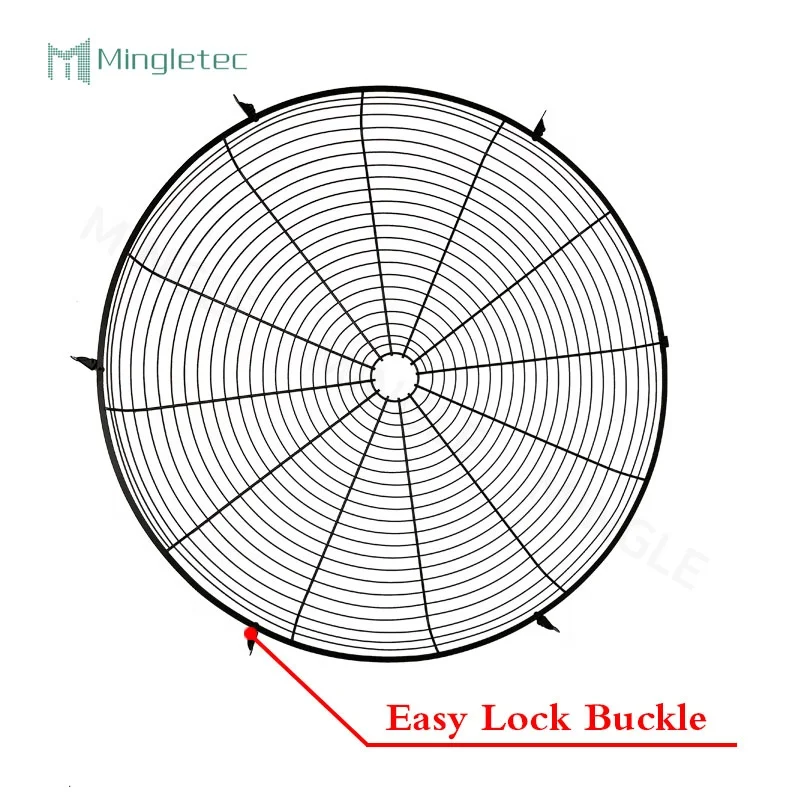

Grill
2.0mm metal grill, easy to install and lock buckle

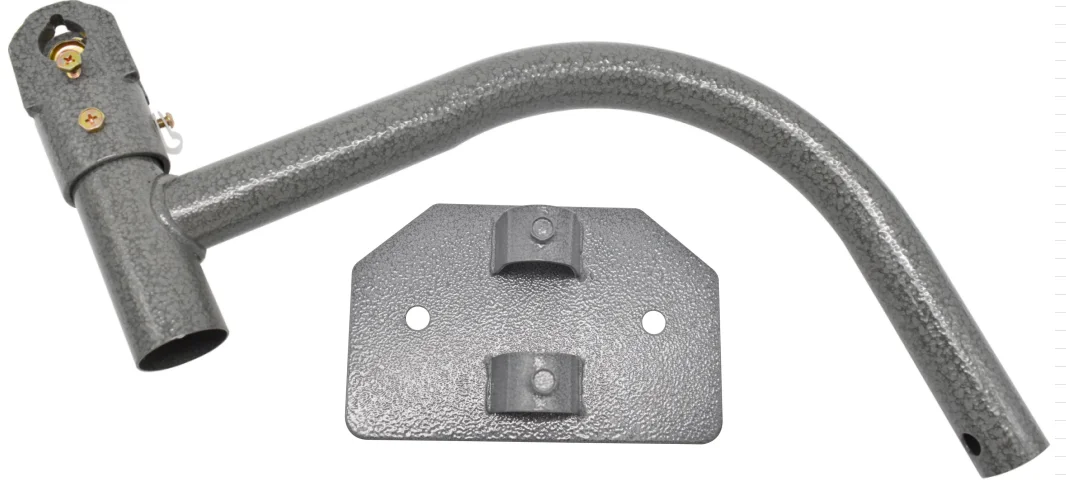

Wall Mounted Rod
Wall mounted metal rod strong enough to support

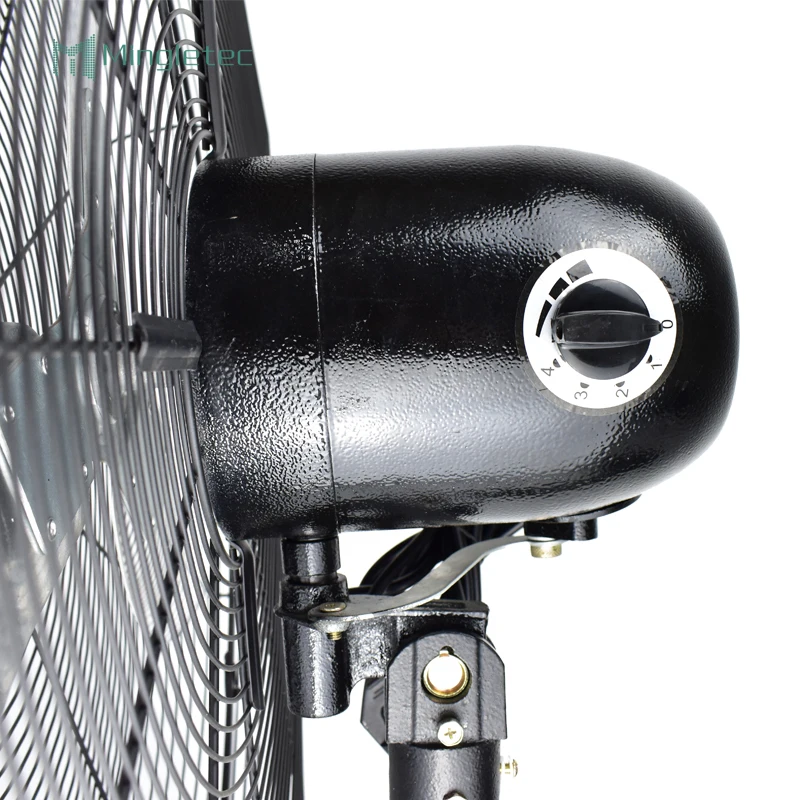

4 speeds setting
4 speeds control provide ideal air volume
Our Plant
Certifications
Exhibition
Good Feedback From Our Customers
FAQ
Q1. When can I get the quotation ?
Normally, we will send the quote to you within 12 hours. If you are urgent to get the price, please give us a call or send the email to let us know.
Q2 . Can you customize the item for us, and put my own logo on the product ?
Yes. We have a professional team having rich experience in design and manufacturing. Regarding the logo, for any item, if the quantity over 300pcs, we can put your own logo on the products.
Q3. Can I buy 1 or 2 pieces of samples for testing before bulk order ?
Yes, of course. we are pleasure to supply the samples for the quality and performance. test. We are full of confidence that you will be satisfied once you get it. Meanwhile, we will take the sample charge from you, but we will return the sample charge back to you when you place the bulk order.
Q4. What if I haven’t done the import before, how can I buy the product from you ?
You only need to pick up the items you need. We have the cooperated shipping agent to help you to do the shipping and custom clearance, and then the goods could be delivered to your warehouse directly. You don’t need to do anything.
Q5. What about delivery date ?
If we have free stocks of the item you need, it can be sent within 1 week after receiving. deposit or 100% payment into our bank account.
If we don't have free stock, the delivery date can be different for different products. Generally speaking, it will take 30-35 days.
Q6. What is the after-sale service proposal ?
We maintain our products for its life time for the spare parts from overseas service. For the first year, we could supply the free parts. After the one year warranty, you will pay some money on the spare parts.
Normally, we will send the quote to you within 12 hours. If you are urgent to get the price, please give us a call or send the email to let us know.
Q2 . Can you customize the item for us, and put my own logo on the product ?
Yes. We have a professional team having rich experience in design and manufacturing. Regarding the logo, for any item, if the quantity over 300pcs, we can put your own logo on the products.
Q3. Can I buy 1 or 2 pieces of samples for testing before bulk order ?
Yes, of course. we are pleasure to supply the samples for the quality and performance. test. We are full of confidence that you will be satisfied once you get it. Meanwhile, we will take the sample charge from you, but we will return the sample charge back to you when you place the bulk order.
Q4. What if I haven’t done the import before, how can I buy the product from you ?
You only need to pick up the items you need. We have the cooperated shipping agent to help you to do the shipping and custom clearance, and then the goods could be delivered to your warehouse directly. You don’t need to do anything.
Q5. What about delivery date ?
If we have free stocks of the item you need, it can be sent within 1 week after receiving. deposit or 100% payment into our bank account.
If we don't have free stock, the delivery date can be different for different products. Generally speaking, it will take 30-35 days.
Q6. What is the after-sale service proposal ?
We maintain our products for its life time for the spare parts from overseas service. For the first year, we could supply the free parts. After the one year warranty, you will pay some money on the spare parts.
Ordering and Pricing
- Minimum order quantity: 10 piece
- Volume pricing:
- 10–99 piece: US $80.99 / piece
- 100–999 piece: US $75.99 / piece
- 1000+ piece: US $69.99 / piece
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
