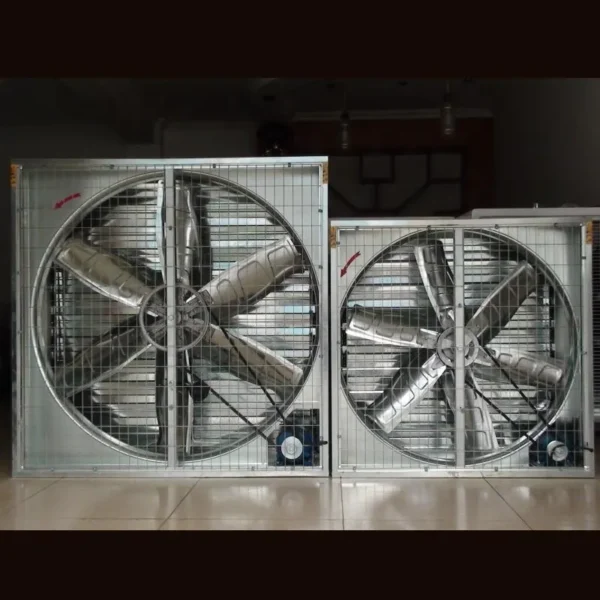

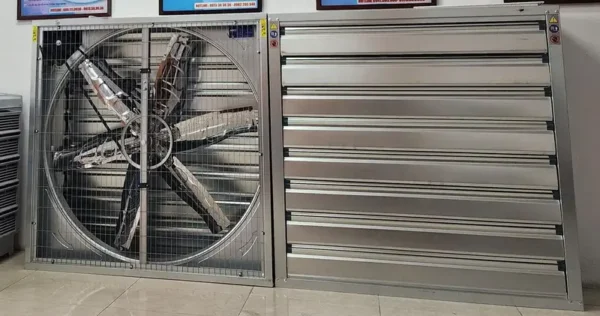

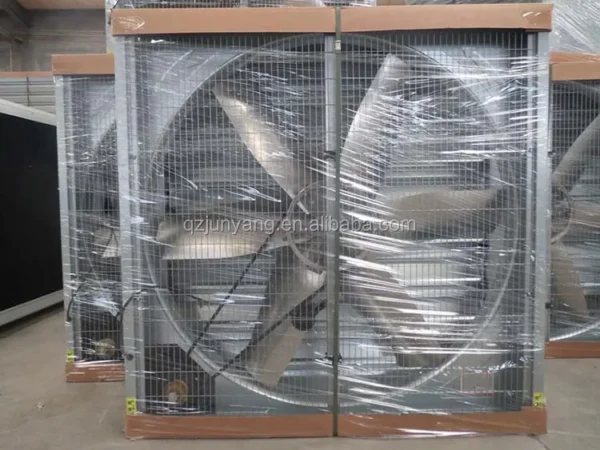

Wall-mounted Axial Fan, 1380, Stainless, Steel

This wall-mounted axial fan is published with the manufacturer’s full specification — 380 V, AC 220 V, power source Electric. Made by Qingzhou Junyang Industry And Trade Co., Ltd. (9 years on the platform, typical reply ≤2h). Quantity and destination market determine the final price — tell us both for a firm quote.

Key Features of This Wall-Mounted Axial Fan

• Power Source: Electric
• Voltage: 380 V, AC 220 V

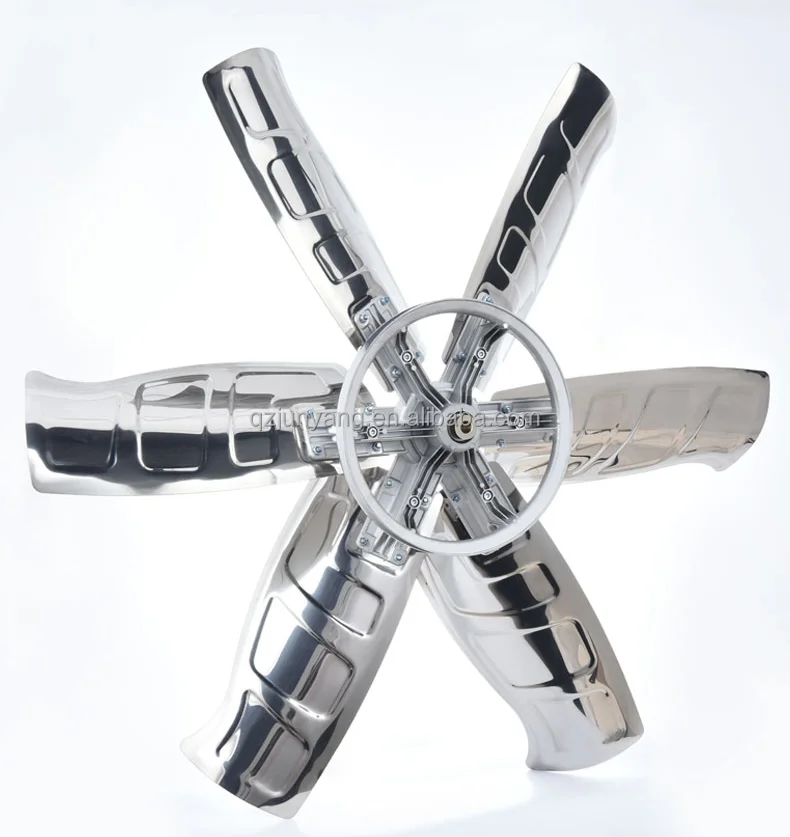

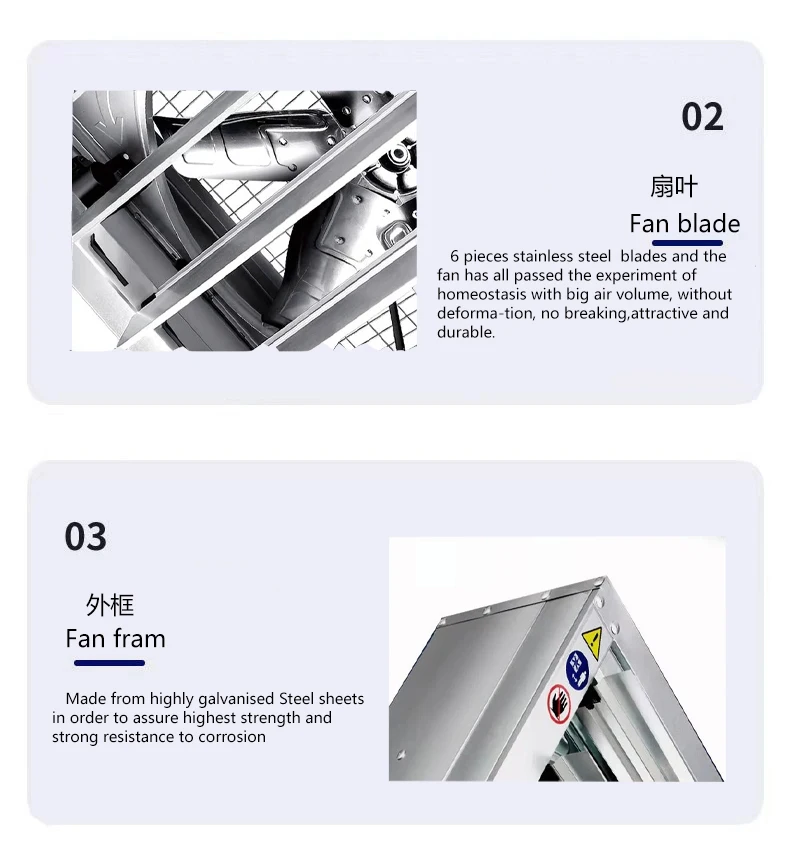

• Blade Material: Stainless Steel
• Warranty: 1 Year
• Place Of Origin: Shandong, China
• Type: Wall-Mounted Axial Fan

Technical Specifications

Product Details

Product Details

Model specifications	JY-800	JY-900	JY-1000	JY-1100	JY-1220	JY-1380	JY-1530
Diameter blade(mm)	710	750	900	1000	1100	1250	1400
Blade rotational speed fpm	650	630	610	600	460	439	325
Motor rotational speed rpm	1400	1400	1400	1400	1400	1400	1400
Air flow(m3/h)	18000	22000	23000	32500	38000	44000	55800
Total pressure(Pa)	75	65	70	70	73	56	60
Noise decibels	70	65	70	70	70	75	70
Input power(W)	370	550	550	750	750	1100	1500
Rated voltage(V)	380	380	380	380	380	380	380
Height(mm)	800	900	1000	1100	1220	1380	1530
Width(mm)	800	900	1000	1100	1200	1380	1530
Thickness(mm)	370	400	400	400	400	400	400

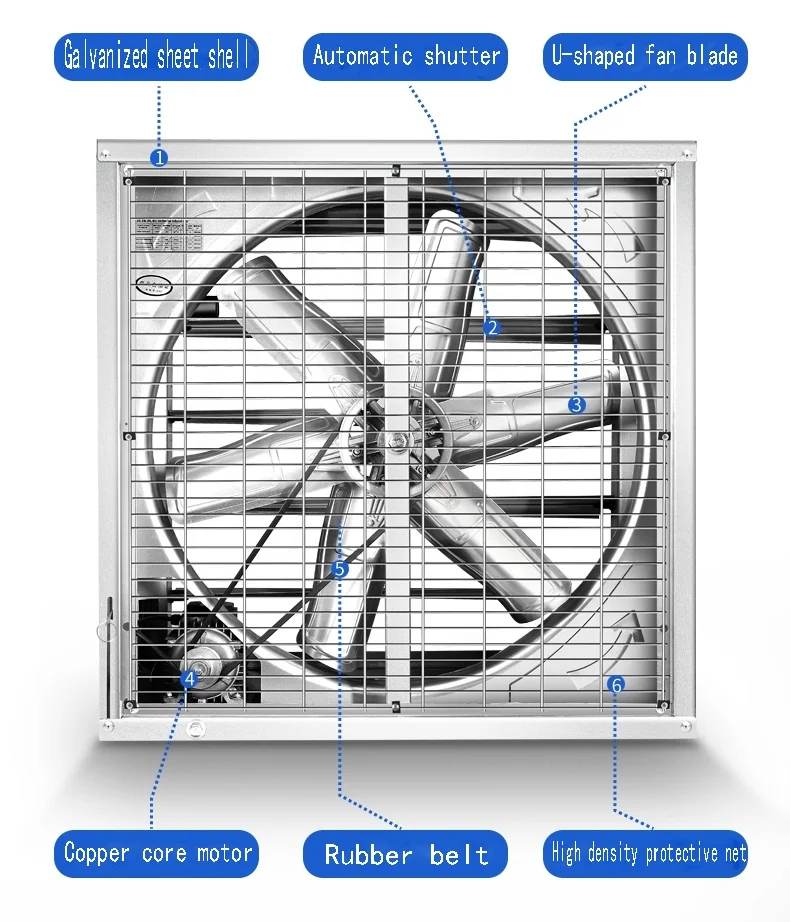

Details Images

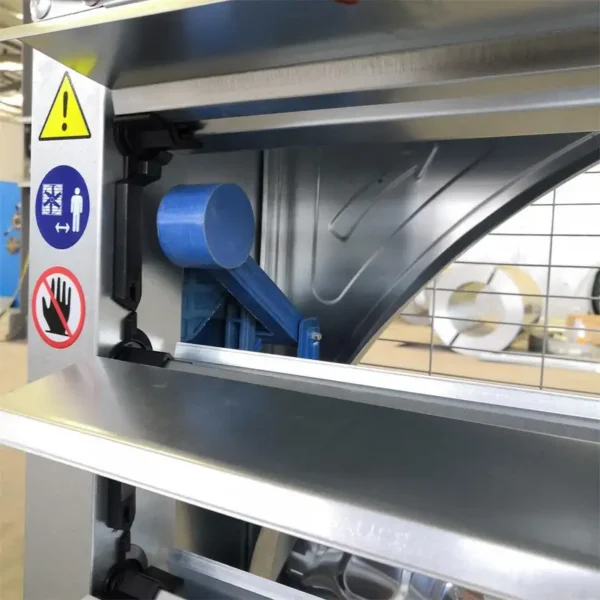

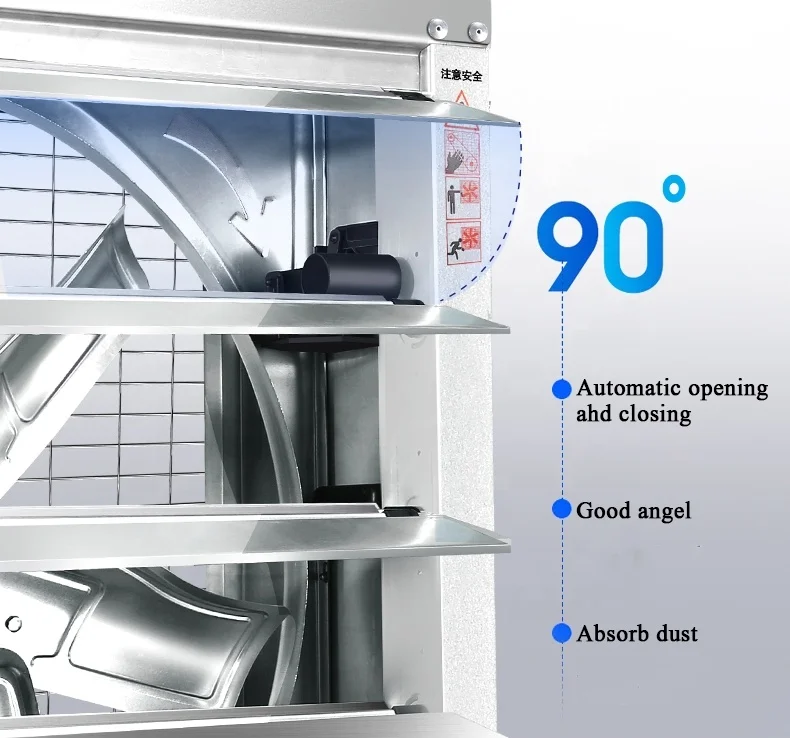

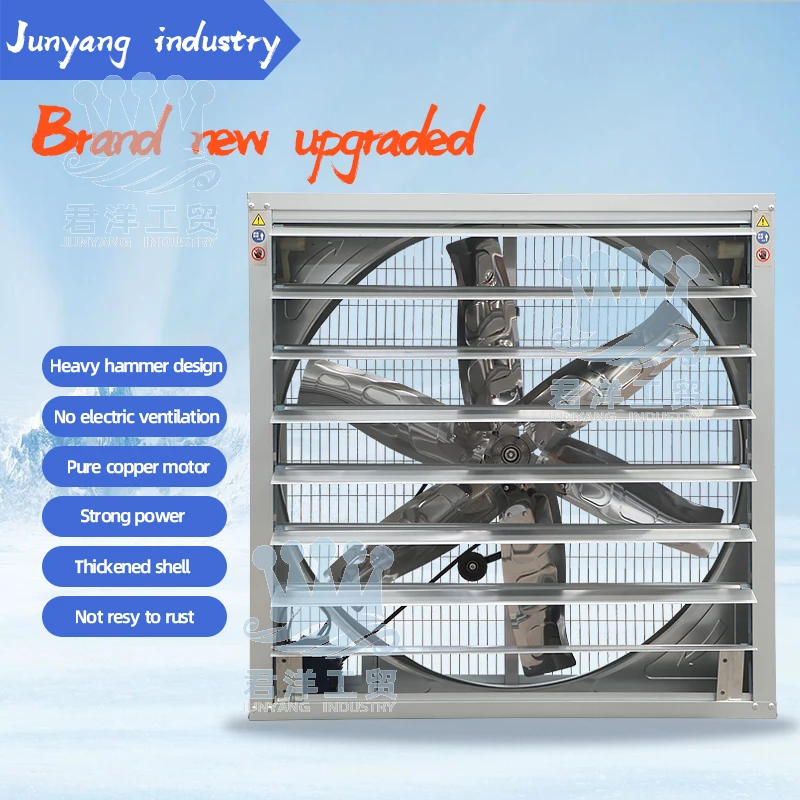

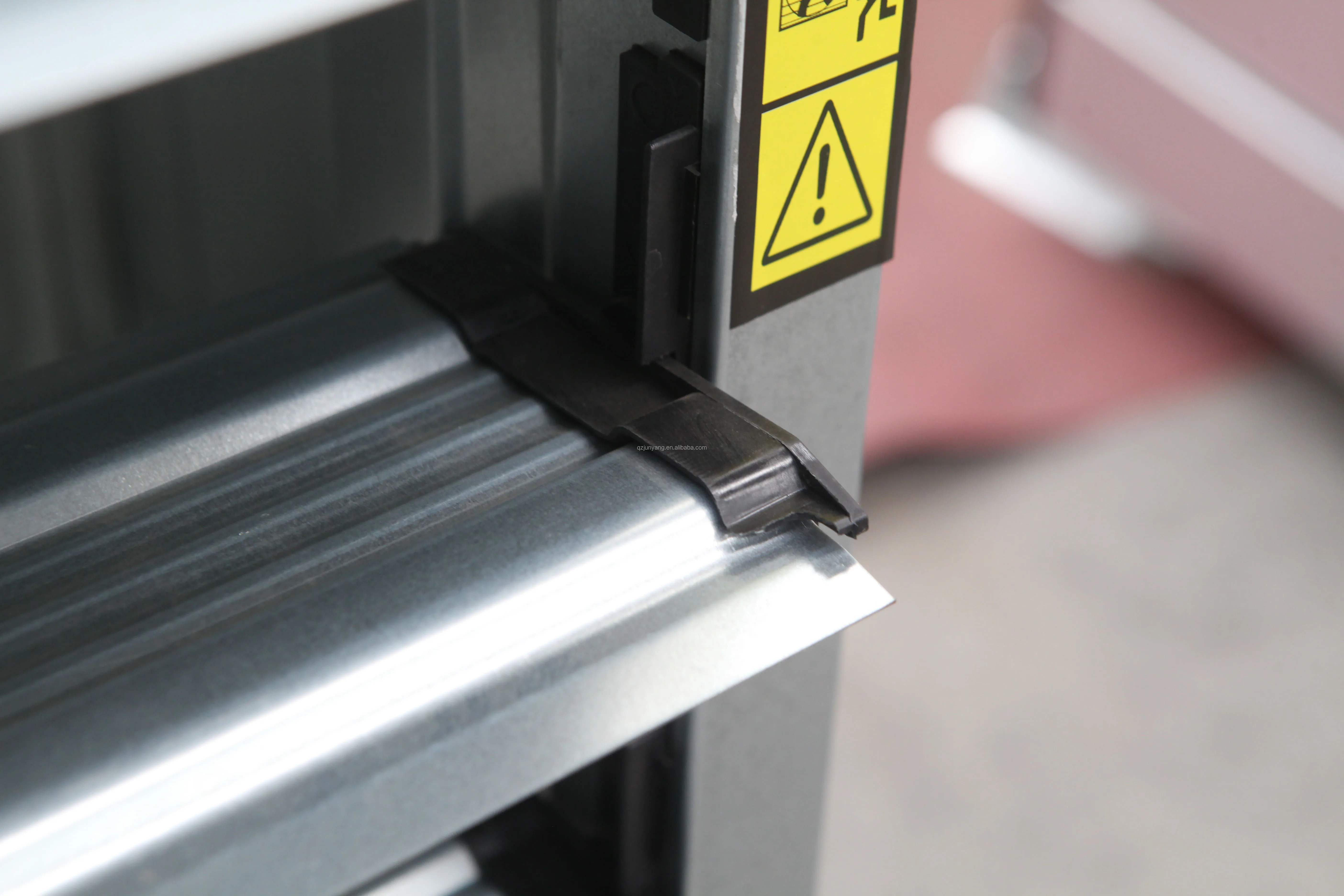

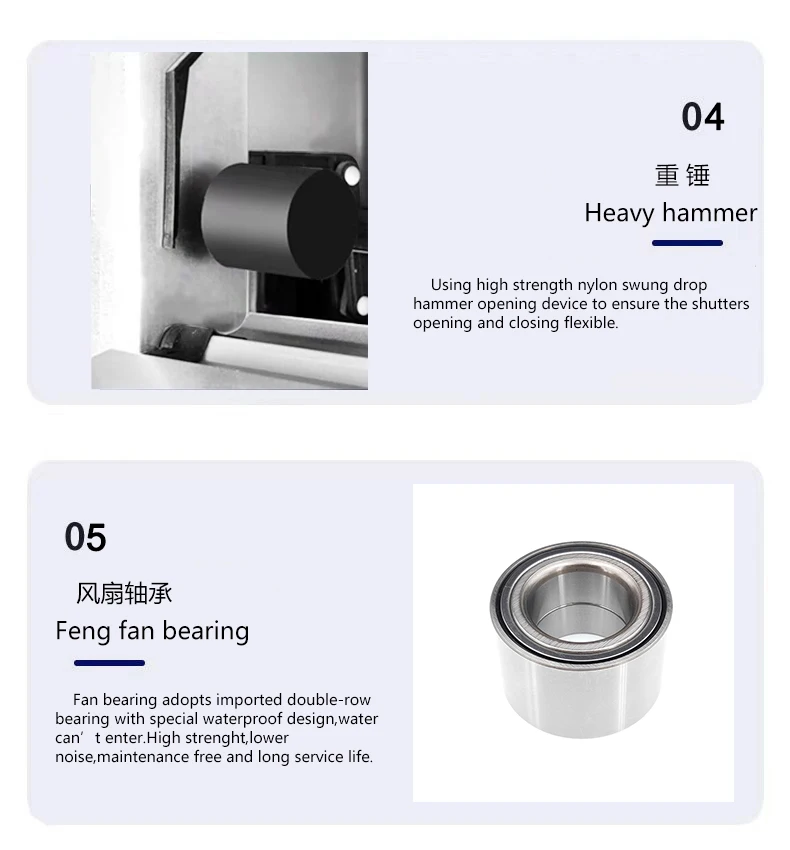

Negative pressure heavy hammer type is a more common, simple structure, more durable, like the remote control system is divided into mechanical version and intelligent version, because the mechanical version of the control is simple, so the failure is less.

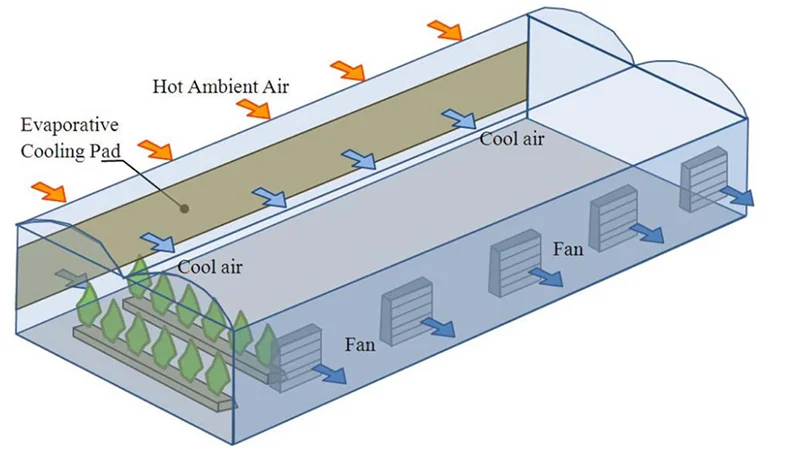

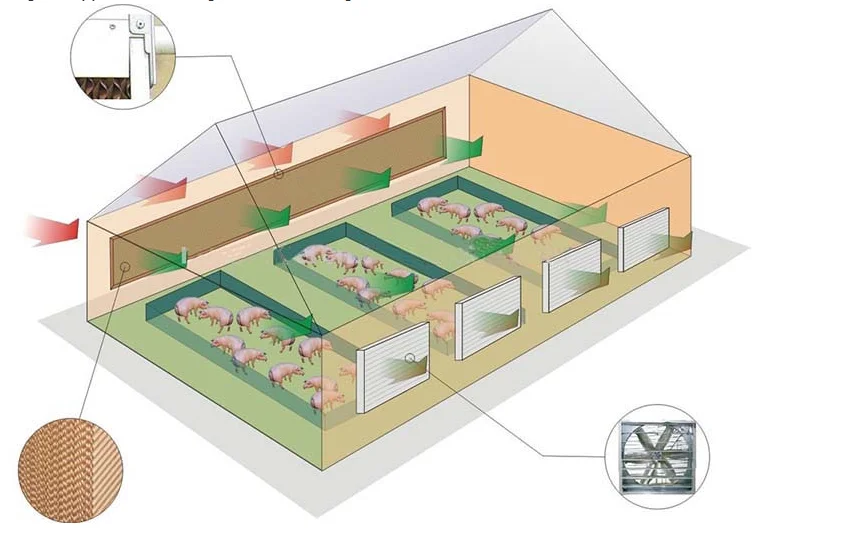

Using the air convection, the principle to design of negative pressure ventilation. In poorly ventilated places, normal work, using mechanical kinetic energy causes the fan operation.

Will indoor heat, the smell, lampblack, standing still in the shortest possible time emitted quickly, at the same time the outdoor fresh air and indoor ventilation cooling circulation exchange so as to achieve the purpose of improving indoor air environment.

Install the product:

1. Adjust the horizontal and vertical , keeping the fan blade running smoothly

2. After fixing the fan, the remaining gap need to be sealed
3. The Expansion screws and Self tapping screw can be used to fix .

Product Usage

•


•

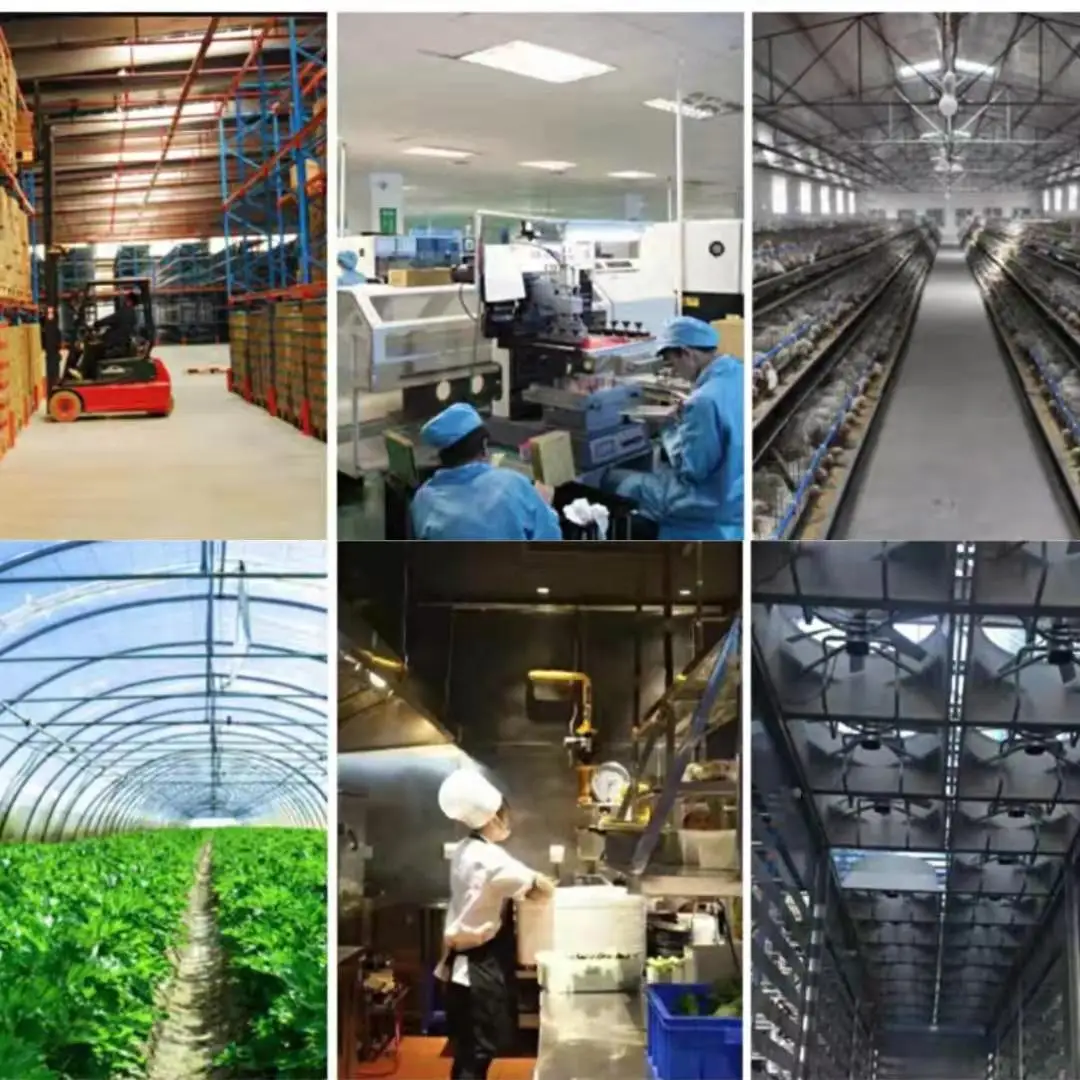

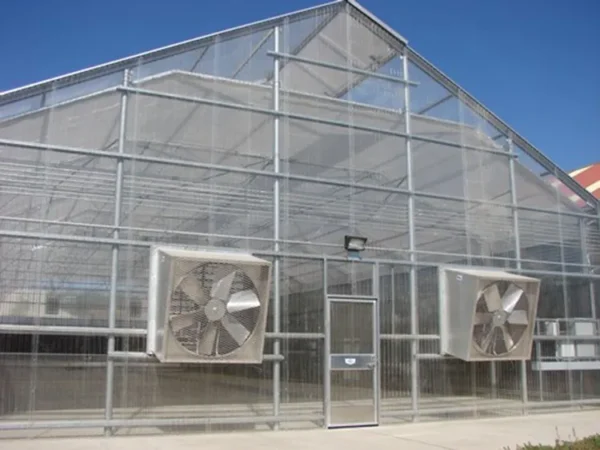

• Product case presentation


产品案例展示

    Our customers all over the world and even abroad, the case is real and effective, welcome to visit our factory to negotiate
business

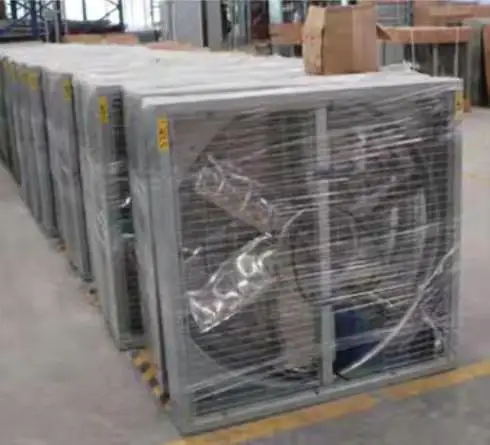

Packing&Shipping

Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.

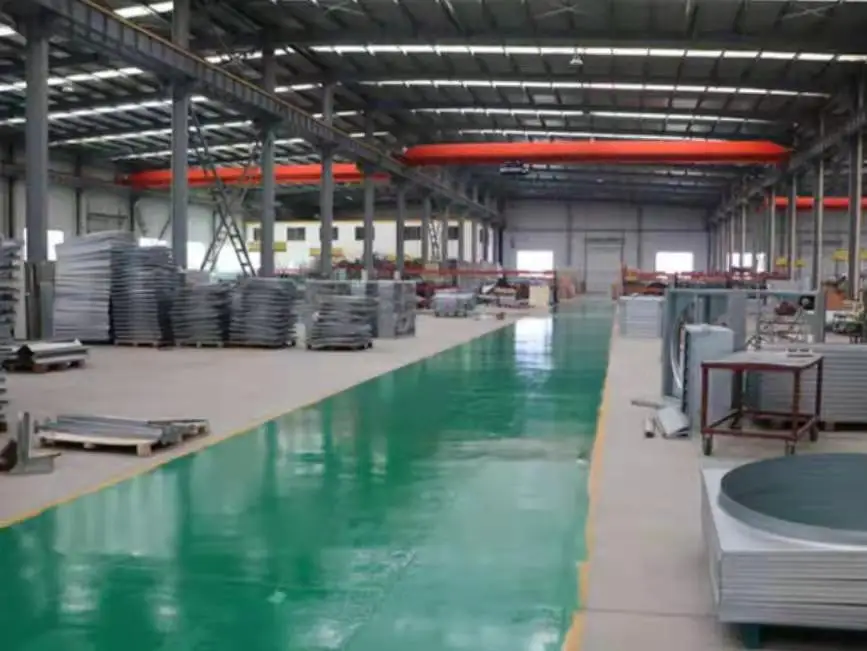

Company Introduction

Junyang is specialized in manufacturing greenhouses, greenhouse equipments, poultry equipments, temperature control equipmentsetc.The company has established a one-stop industrial system from product development, engineering project design, selectionandmatching to installation and commissioning services.

Our Services & Strength

The quality of our heavy hammer negative pressure fan is very confident, and the brand quality guarantee makes your after-sales worry-free.

FAQ

1)Q:Are you trading company or factory?

A:We are a factory with many years of experience.

2) How can i get your pricelist?

A:Send an enquiry to us and tell us u need our pricelist,our sales will reply u within 24 hours with pricelist.

.3)Q:Can I get a sample? A:0f course I'm sure our high quality products will bring you more orders,but you may need to pay sample charge which will be returned afterany order signed.

4)Q:What certificates your products have? A:Most of our products have CCC,CE,ISO and RoHS certificates.If you needothers such as UL,PSE and so on, we can proceed them too.

5)Q: What is the after-sale service proposal? A: Considering to the expensive overseas freight, we advise to provide certainpercent of critical components for free, or provide certain discount to let ourbusiness partners handle the after-sale service by themselves.

6)Q:What's your delivery time? A:Usually it can be within 30 days!

7)Q:What is your accept payment method? A:We can accept TT,Paypal,L/C at sight. 30% deposit before production and 70%before loading!

•


Ordering and Pricing

• Minimum order quantity: 20 set
• Volume pricing:
  • 20–299 set: US $189 / set
  • 300+ set: US $110 / set
• Ships from: China
• Customization: OEM and ODM accepted on qualifying volumes.

Frequently Asked Questions

What is the minimum order quantity for this wall-mounted axial fan?

The standard minimum order quantity is 20 set. Trial orders can usually be arranged for buyers evaluating the product before a full production run.

What warranty is provided?

The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.

Can the wall-mounted axial fan be supplied for my local voltage?

The standard configuration is 380 V, AC 220 V. Alternative voltage and frequency builds are available when specified at the time of order.

Do you accept OEM or custom branding?

Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.

How long does production and delivery take?

In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.

About the Manufacturer

This product is produced by Qingzhou Junyang Industry And Trade Co., Ltd., based in China. The company 9 years as a verified Alibaba.com supplier, operates its own manufacturing. Browse the full Qingzhou Junyang Industry And Trade Co., Ltd. range on HVACR Nexus.
