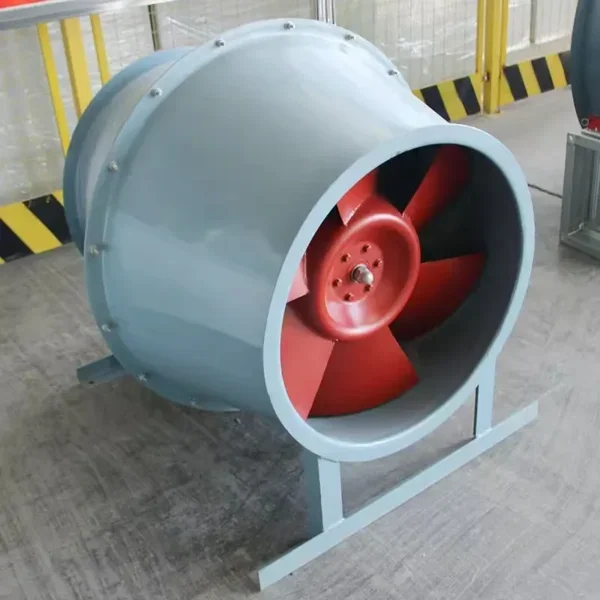

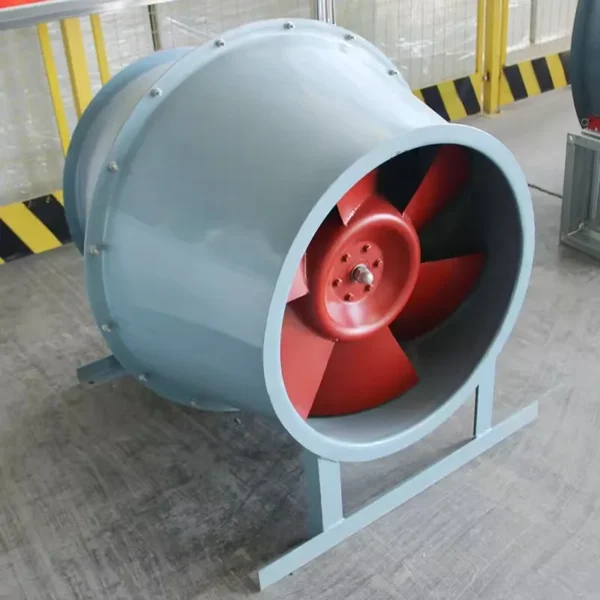

Wall Mounted Oil Bearing, 230V, Axial

Wall mounted oil bearing — 230 V, power source Electric. The complete factory specification follows. Made by Dezhou Spruce Hvac Equipment Co., Ltd. (1 year on the platform, typical reply ≤1h). Send your target quantity and destination for a firm quotation with current lead times.

Key Features of This Wall Mounted Oil Bearing

• Power Source: Electric
• Voltage: 230 V
• Material: Carbon Steel
• Blade Material: Carbon Steel
• Speed: 1450RPM
• Warranty: 1 Year

Technical Specifications

Product Details

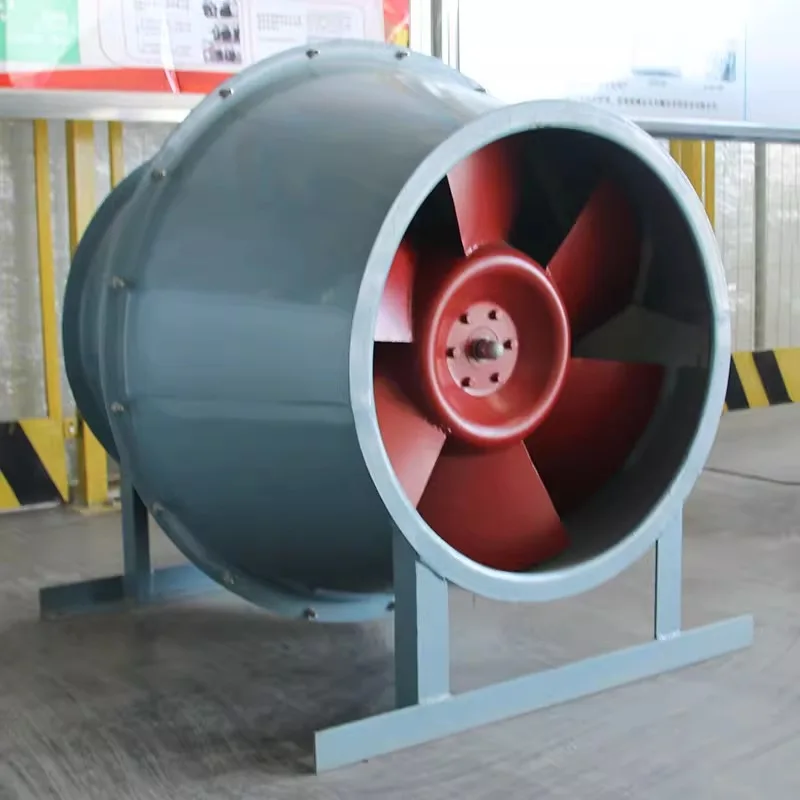

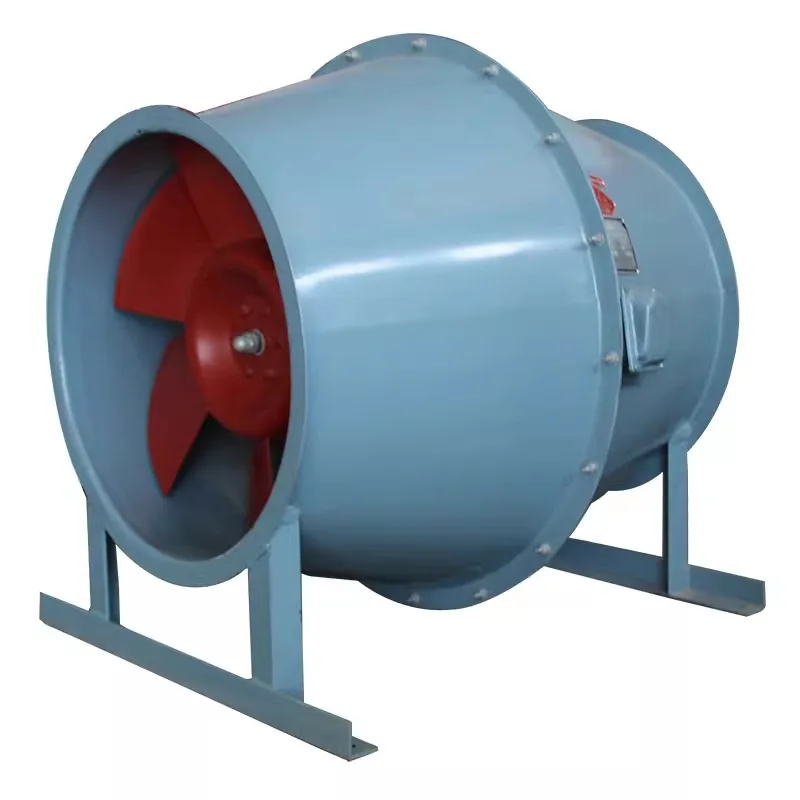

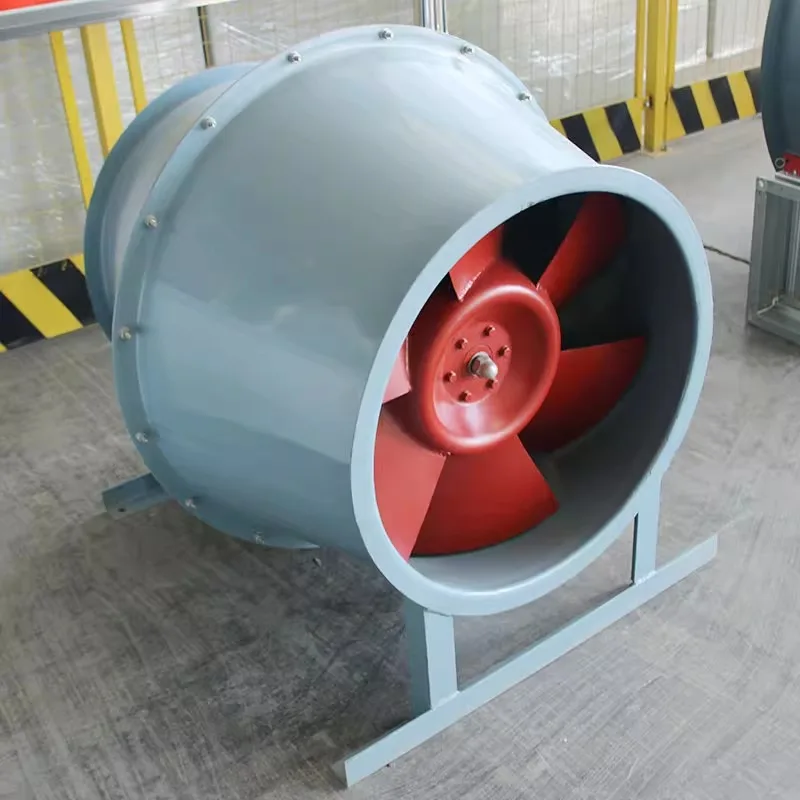

The inclined flow fan applies the theory of meridional acceleration and designs an inclined flow impeller and a bulging conical shell, which accelerates the airflow on the meridional plane of the fan, reduces the static pressure gradient, and avoids or reduces the detachment of the airflow, improves the pressure coefficient and fan efficiency, and reduces noise. The pressure coefficient of diagonal flow fans is higher than that of axial flow fans, and the flow coefficient is higher than that of centrifugal fans. This unique aerodynamic characteristic makes it most suitable for pressurization and air supply and exhaust in ventilation ducts, while centrifugal fans and axial flow fans are often not suitable for use in such situations. Under the same on-site conditions, replacing low-pressure centrifugal fans and high-pressure axial fans with diagonal flow fans can significantly reduce the use of noise reduction measures. There are a total of 12 machine numbers and 27 specifications for diagonal flow fans. The air volume coverage reaches 100m ³/h~50000m ³/h, and the static pressure coverage reaches 20Pa~1100Pa, providing users with a wide range of choices to meet the selection needs of different projects

Brand name	yunshan
product name	Smoke Exhaust Fan

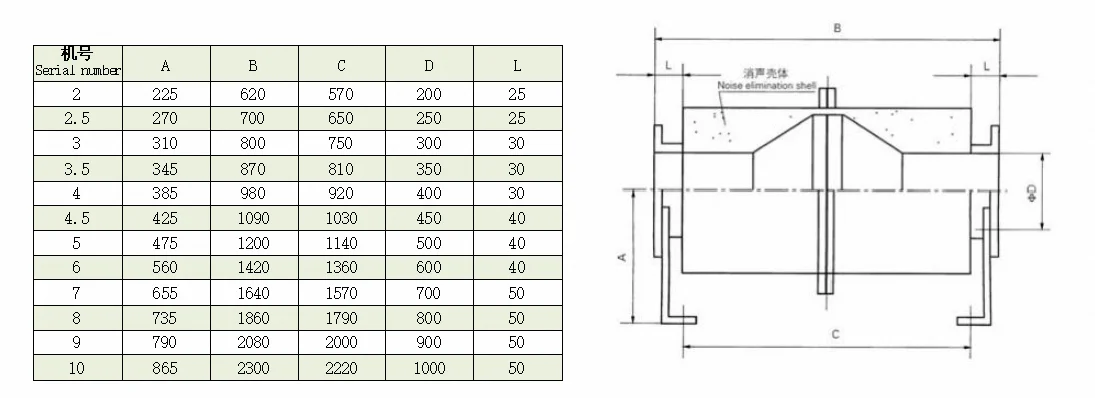

Details Images

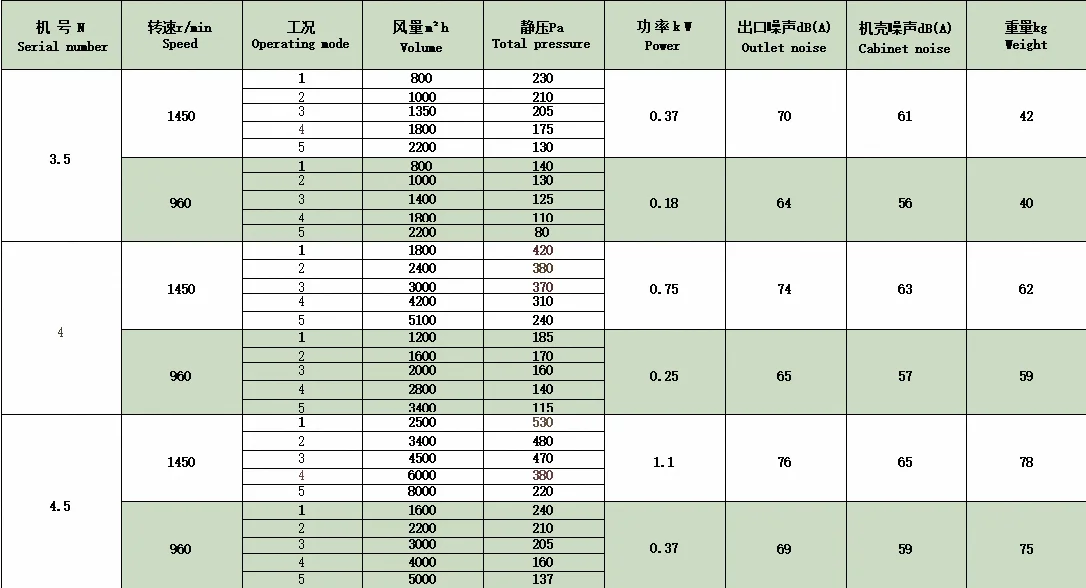

机号No Serial number	r/min Speed	Operating mode	风量m³/h Volume	静压Pa Total pressure	功率KW Power	出口噪声 dB(A) Outlet noise
2F	1450	1	300	90	0.04	59
				2			400	80
				3			500	75
				4			600	70
				5			700	50
2.5F	1450	1	600	150	0.12	62
				2			800	140
				3			900	130
				4			1100	120
				5			1400	65
3F	1450	1	800	230	0.25	65
				2			1000	210
				3			1350	205
				4			1800	175
				5			2200	130
3.5S	960	1	800	140	0.18	64
				2			1000	130
				3			1400	125
				4			1800	110
				5			2200	80
3.5F	1450	1	1200	320	0.37	70
				2			1600	290
				3			2000	270
				4			2800	240
				5			3600	180
4S	960	1	1200	185	0.25	65
				2			1600	170
				3			2000	160
				4			2800	140
				5			3400	115
4F	1450	1	1800	420	0.75	74
				2			2400	380
				3			3000	370
				4			4200	310
				5			5100	240
4.5S	960	1	1600	240	0.37	69
				2			2200	210
				3			3000	205
				4			4000	160
				5			5000	130
4.5F	1450	1	2500	530	1.1	76
				2			3400	480
				3			4500	470
				4			6000	380
				5			8000	220
5S	960	1	2200	285	0.75	73
				2			3000	260
				3			4000	250
				4			5500	205
				5			7000	160

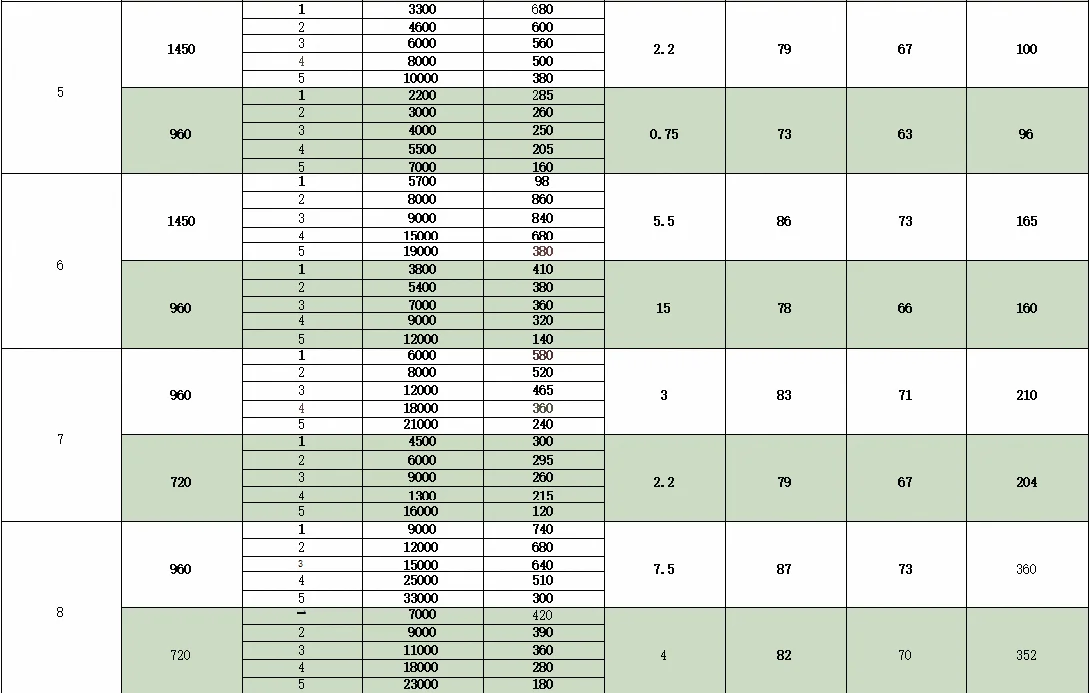

机号N Serial number	转速r/min Speed	工况 Operating mode	风量m³h Volume	静压Pa Total pressure	功率kW Power	出口噪声 dB(A) Outlet noise
5F	1450	1	3300	660	2.2	79
				2			4600	600
				3			6000	560
				4			8000	500
				5			10000	380
6E	720	1	2800	240	1.1	74
				2			3800	220
				3			4800	210
				4			7500	160
				5			9000	100
6S	960	1	3800	410	1.5	78
				2			5400	380
				3			7000	360
				4			9000	320
				5			12000	140
6F	1450	1	5700	980	5.5	86
				2			8000	860
				3			9000	840
				4			15000	680
				5			19000	380
7E	720	1	4500	300	2.2	79
				2			6000	295
				3			9000	260
				4			13000	215
				5			16000	120
7S	960	1	6000	580	3	83
				2			8000	520
				3			12000	465
				4			18000	360
				5			21000	240
8E	720	1	7000	420	4	82
				2			9000	390
				3			11000	360
				4			18000	280
				5			2300	180
8S	960	1	9000	740	7.5	87
				2			12000	680
				3			15000	640
				4			25000	510
				5			33000	300
9E	720	1	10000	520	5.5	90
				2			13000	500
				3			20000	420
				4			26000	360
				5			33000	200
10E	720	1	13000	650	11	93
				2			17000	600
				3			23000	560
				4			35000	470
				5			46000	280

Application Scenarios

The linear structure of the diagonal flow fan allows its inlet and outlet to be located on the same axis, making installation convenient and flexible. Depending on the situation of the duct system, it can be arranged in the middle of the duct, or at the inlet or outlet of the duct. For narrow installation spaces, it particularly demonstrates the superiority of its compact structure. Diagonal flow fans are suitable for pressurization, air supply, exhaust, and general ventilation and air exchange in various civil and industrial building duct systems. In high-rise buildings and other structures that require the installation of fire smoke exhaust systems, the positive pressure air supply fan used as a smoke proof staircase and front room can maintain the necessary positive pressure in the staircase and front room during a fire, ensuring the safe evacuation of personnel.
