Key specification for this water chiller: 220 V, 380 V, 14.6KW. Everything below is reproduced from the factory data sheet. Made by Shengzhou Chenda Refrigeration Equipment Co., Ltd. (2 years on the platform, typical reply ≤6h). Send your target quantity and destination for a firm quotation with current lead times.
Key Features of This Water Chiller
- Power: 14.6KW
- Voltage: 220 V, 380 V
- Warranty: 3 Years
- Place Of Origin: Zhejiang, China
- Plug Type: European Plug
- Weight (Kg): 300
Technical Specifications
| Voltage | 220 V, 380 V |
|---|---|
| Power | 14.6KW |
| Compressor Brand | Copeland |
| Warranty | 3 Years |
| Machinery Test Report | Provided |
| Video Outgoing-Inspection | Provided |
| Key Selling Points | High-Accuracy, Easy To Operate, Low Noise Level |
| Plug Type | European Plug |
| Place Of Origin | Zhejiang, China |
| Weight (Kg) | 300 |
| Brand Name | Chenda |
| Dimension(L*W*H) | 1200 * 630 * 1230 MM |
| Selling Units | Single item |
| Single Volume | 0 cm³ |
| Single Gross Weight | 0.0 kg |
Product Details
Parameter | Air-cooled Chiller 3HP | Air-cooled Chiller 5HP | ||||
Cooling Capacity | KW | 8.72 | 14.6 | |||
Kcal/h | 7500 | 12600 | ||||
Total lnput | KW | 3.85 | 4.9 | |||
Power Supply | 3N-380V 50HZ | 3N-380V 50HZ | ||||
Refrigerant | Refrigerant Type | R22a/R407c/R134a/R410a | R22a/R407c/R134a/R410a | |||
Control Type | Extermal Balanced Themostatic Expansion Valve,Electronic Expansion Valve | Extermal Balanced Themostatic Expansion Valve,Electronic Expansion Valve | ||||
Compressor | Compressor Type | Hermetic Scroll | Hermetic Scroll | |||
Motor (KW) | 2.55 | 3.75 | ||||
Protector | Compressor overheating protection,high and low voltage protection,current ovreload protection,antifreeze protection,phase-sequence protection | Compressor overheating protection,high and low voltage protection,current ovreload protection,antifreeze protection,phase-sequence protection | ||||
Condenser | Parallel Flow Condenser | Parallel Flow Condenser | ||||
Evaporator | Copper coil evaporator,shell and tube heat exchanger or plate heat exchanger | Copper coil evaporator,shell and tube heat exchanger or plate heat exchanger | ||||
Pump | Pump Type | imported high efficiency ,low noise centrifugal pumps or stainless steel pump | imported high efficiency ,low noise centrifugal pumps or stainless steel pump | |||
Motor (KW) | 0.45 | 0.75 | ||||
Dimension | Length | 960 | 1200 | |||
Width | 540 | 630 | ||||
Height | 1170 | 1230 | ||||
★Cooling Capacity Reference; Inlet 12℃, Cold Water Outlet 7℃, Cold Water Ambient Temperature 35℃. | ||||||
Q1: What is your delivery time? | ||||||||
Generally 15-25 working days, but exact delivery time depends on exact order quantity and the shipping way you choose. | ||||||||
Q2: Where is your factory located? | ||||||||
Our factory is located in Shengzhou city, Zhejiang province, you can go there by plane to Hangzhou international airport, it is about 100km from airport to our factory. | ||||||||
Q3: Is a sample available? | ||||||||
Yes, but the sample will be at your charge. | ||||||||
Q4: What is the main market for your products? | ||||||||
Our main market is in Middle East, South America, Europe and USA. | ||||||||
Q5: What is your warranty? | ||||||||
We can assure you one year against manufacturing defect. | ||||||||
Q6:Can we do our OEM logo? | ||||||||
Yes,we can do OEM logo for you. | ||||||||
Q7: How can we guarantee quality? | ||||||||
Always a pre-production sample before mass production, Always final Inspection before shipment. | ||||||||

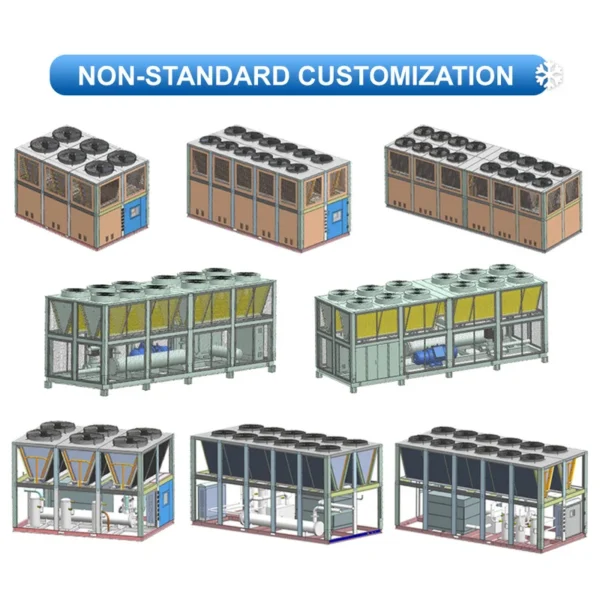

Q8: Can we accept customized products? | ||||||||
Yes, we can according to your drawings, technical parameters, configuration requirements, and then combined with the equipment and mold specifications of our factory to match your requirements. | ||||||||
Ordering and Pricing
- Minimum order quantity: 2 piece
- Volume pricing:
- 2–9 piece: US $1000 / piece
- 10–99 piece: US $800 / piece
- 100+ piece: US $500 / piece
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this water chiller?
The standard minimum order quantity is 2 piece. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 3 Years warranty. Spare parts and technical support remain available after the warranty period.
Can the water chiller be supplied for my local voltage?
The standard configuration is 220 V, 380 V. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.

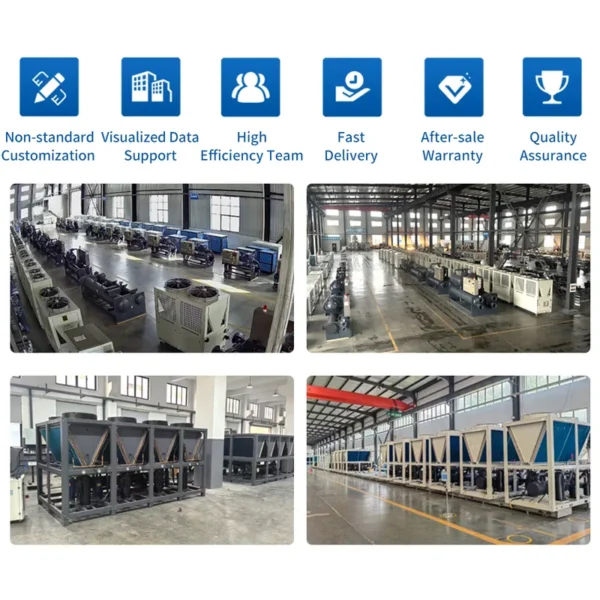

About the Manufacturer
This product is produced by Shengzhou Chenda Refrigeration Equipment Co., Ltd., based in China. The company 2 years as a verified Alibaba.com supplier, operates its own manufacturing. Browse the full Shengzhou Chenda Refrigeration Equipment Co., Ltd. range on HVACR Nexus.
