Key specification for this water heater: heating capacity 1.63~7.25kW, power source Electric, Solar. Everything below is reproduced from the factory data sheet. Made by Guangdong Europe Mango New Energy Technology Co., Ltd. (6 years on the platform, factory-assessed). Send your target quantity and destination for a firm quotation with current lead times.
Key Features of This Water Heater
- Model Number: WE-07
- Power Source: Electric, Solar
- Power Supply: 220-240/1/50 (V/Ph/Hz)/380-415/3/50(V/Ph/Hz))
- Heating Capacity: 1.63~7.25kW
- Housing Material: Plastic
- Refrigerant: R32
Technical Specifications
| Type | Air Source Heat Pump |
|---|---|
| Heating Capacity | 1.63~7.25kW |
| Energy Efficiency Rating | Class A |
| Application | Outdoor, Hotel, Garage, Commercial, Household, Restaurant, Swimming Pool |
| Refrigerant | R32 |
| Storage / Tankless | Storage |
| Compressor | scroll inverter compressor |
| Installation | Freestanding |
| App-Controlled | Yes |
| Housing Material | Plastic |
| Feature | Eco-Friendly, Easy Installation, Easy Operation, Energy-Saving, Safe, High Efficiency |
| Power Source | Electric, Solar |
| Warranty | 2 Years |
| After-Sales Service Provided | Free Spare Parts, Field Maintenance and Repair Service |
| Operating Language | English |
| Private Mold | Yes |
| Packaging Types | plywood, Corrugated Box |
| Place Of Origin | Guangdong, China |
| Brand | Mango Energy |
| Model Number | WE-07 |
| Power Supply | 220-240/1/50 (V/Ph/Hz)/380-415/3/50(V/Ph/Hz)) |
| Max Hot Water Temperature | 28C-40C |
| COP | 6.2-12 |
| Noise(1m) | 40-44db(A) |
| Refrigerant Type | R32 Refrigerant |
| Working Ambient Temperature | Minus 30C-45C |
| OEM Service | Accept |
| MOQ | 1 Unit |
| Selling Units | Single item |
| Single Volume | 0 cm³ |
| Single Gross Weight | 0.0 kg |
Product Details
Heating Capacity (kW) | 7.6~1.7 | 9.5~2.3 | 13~3.0 | 17~3.8 | 21~4.8 | 28~6.8 | 35~8.8 | 28~6.8 | 35~8.8 | |||||||||
Power Input (kW) | 1.12~0.11 | 1.40~0.15 | 1.91~0.19 | 2.5~0.24 | 3.09~0.30 | 4.12~0.43 | 5.15~0.56 | 3.97~0.43 | 5.15~0.56 | |||||||||
COP | 15.8~6.8 | 15.8~6.8 | 16~6.8 | 15.8~6.8 | 15.8~6.8 | 15.8~6.8 | 15.8~6.8 | 15.8~6.8 | 15.8~6.8 | |||||||||
* Heating Capacity at Air 15℃, Humidity 70%, Water 26℃ in, 28℃ out | ||||||||||||||||||
Heating Capacity (kW) | 6.1~1.4 | 7.6~1.9 | 9.8~2.3 | 13.5~3 | 16.5~3.8 | 23~5.5 | 25.5~6.4 | 23~5.5 | 25.5~6.4 | |||||||||
Power Input (kW) | 1.24~0.18 | 1.55~0.25 | 1.96~0.30 | 2.76~0.39 | 3.37~0.5 | 4.7~0.72 | 5.2~0.84 | 4.7~0.72 | 5.2~0.84 | |||||||||
COP | 7.6~4.9 | 7.6~4.9 | 7.6~5 | 7.6~4.9 | 7.6~4.9 | 7.6~4.9 | 7.6~4.9 | 7.6~4.9 | 7.6~4.9 | |||||||||
* Cooling Capacity at Air 35℃, Water 29℃ in, 27℃ out | ||||||||||||||||||
Cooling Capacity (kW) | 4.2~1.0 | 5.3~1.3 | 7.2~1.7 | 9.4~2.1 | 11.6~2.7 | 14.9~3.8 | 19.3~4.9 | 14.9~3.8 | 19.3~4.9 | |||||||||
Power Input (kW) | 1.11~0.15 | 1.4~0.19 | 1.89~0.25 | 2.47~0.31 | 3.05~0.4 | 3.92~0.57 | 5.08~0.73 | 3.92~0.57 | 5.08~0.73 | |||||||||
EER | 6.6~3.8 | 6.7~3.8 | 6.7~3.8 | 6.7~3.8 | 6.7~3.8 | 6.7~3.8 | 6.7~3.8 | 6.7~3.8 | 6.7~3.8 | |||||||||
Power supply | 220~240V/1/50 | 380~415V/3/50 | ||||||||||||||||
Max Power Input (kW) | 1.55 | 1.78 | 2.2 | 2.6 | 3.2 | 4.45 | 4.76 | 6.43 | 6.93 | |||||||||
Max Current (A) | 7.3 | 8.3 | 10.2 | 12 | 14.7 | 20.4 | 30 | 7.9 | 11.3 | |||||||||
Water Flow Volume (m3/h) | 2.5 | 3.5 | 4.5 | 5.5 | 6.5 | 9 | 12 | 9 | 12 | |||||||||
Refrigerant | R32 | |||||||||||||||||
Heat Exchanger | Titanium | |||||||||||||||||
Air Flow Direction | Horizontal | |||||||||||||||||
Kind of defrost | by 4 way valve | |||||||||||||||||
Working temp. range (℃) | -15~43 | |||||||||||||||||
Casing Material | ABS | |||||||||||||||||
Water Proof Level | IPX4 | |||||||||||||||||
Noise level 1m dB(A) | 39~49 | 40~52 | 42~53 | 43~55 | 45~56 | 47~58 | 49~59 | 47~58 | 49~59 | |||||||||
Noise level 10m dB(A) | 20~29 | 20~32 | 22~33 | 23~35 | 25~36 | 27~38 | 29~39 | 27~38 | 29~39 | |||||||||
Q1> What does mango energy company do ?
A1: Mango energy is professional manufacturer of ON/OFF heat pump , DC inverter heat pump, air source heat pump,water to water
heat pump , swimming pool heat pump,high temperature heat pump so on all kind of heat pump.
Q2> What is the daily production of Mango energy company ?
A2: Mango energy one day produce heat pump water heater around 150~255 PCS / day.
Q3> What is Mango heat pump certification ?
A3 : Mango energy have : SGS, CE,CB, IEC60335-2-40, EN14511 certificate from TUV Lab,, got ISO9001. ISO18001, ISO14001 and CCC
certificate. Get Class A+, A as ErP EN14825 test report .
Q4> Where are the Mango energy heat pump export to till now ?

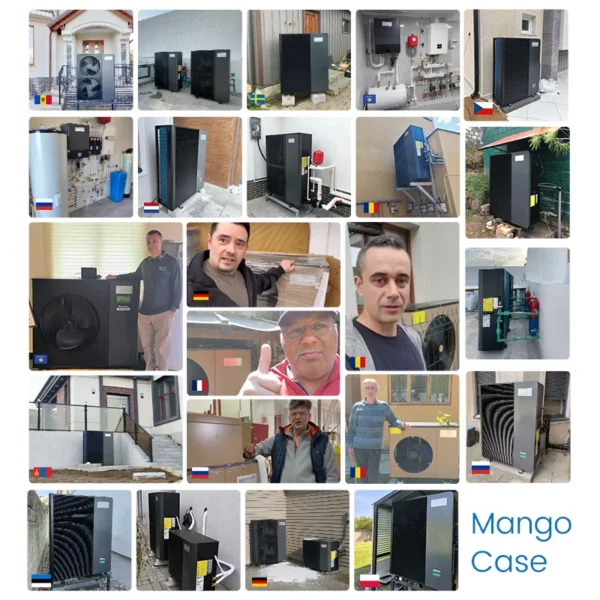

A4 : Currently the products has been exported to Western Europe, North Europe, South Africa, Middle-East, South American and
Australia market.
Q5> What is the marketing cooperation case with Mango energy ?
A5: Mango energy all find exclusive agent / distributor / wholesale / OEM
Mango energy is manufacturer , so we do not directly face to end user / retail ,
After sign sales contract at this district , we will do not sales to others buyers again,
So agent / distributor care for this district sales & service .
Q6> What Mango energy do for their agent / distributor /OEM ?
A6 : Mango energy offer sales training , heat pump & solar air conditioner product training,
After sales service training , maintenance machine training , big air chiller ,or heating
Project design case training , inside parts exchange training and test training.
Q7> How can get training from Mango energy ?
A7 : If have time , can visit to my factory to training, or invite we engineer team to yours side
Training , or by Video training online.
Q8> What Mango energy offer to their business partner ?
A8: Mango energy offer 1%~2% free spare parts according to order quantity .
Offer whole this district market exclusive sales right .
Offer rebate as this district agent sales amount within one year .
Offer best competitive price & repair parts .
Offer 24 hours online service .

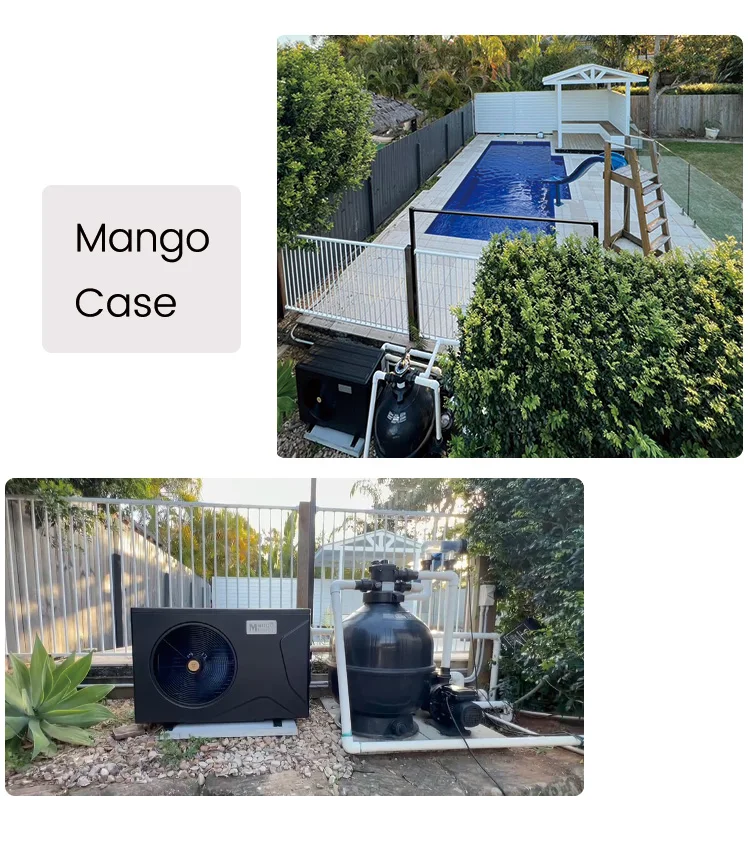

Q9> where is Mango energy heat pump using ?
A9: Because Air source heat pump save energy around 70% , ( EVI heat pump and central cooling & heating heat pump ) is Widely used
in home heating, hotels hot water & heating , restaurants, hospitals,schools, bath center, residential central heating and hot
water plants, etc.
Ordering and Pricing
- Minimum order quantity: 1 unit
- Volume pricing:
- 1–9 unit: US $800 / unit
- 10+ unit: US $750 / unit
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this water heater?
The standard minimum order quantity is 1 unit. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 2 Years warranty. Spare parts and technical support remain available after the warranty period.
Can the water heater be supplied for my local voltage?
The standard configuration is 220-240/1/50 (V/Ph/Hz)/380-415/3/50(V/Ph/Hz)). Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
About the Manufacturer
This product is produced by Guangdong Europe Mango New Energy Technology Co., Ltd., based in China. The company 6 years as a verified Alibaba.com supplier, operates its own manufacturing, passed third-party supplier assessment. Browse the full Guangdong Europe Mango New Energy Technology Co., Ltd. range on HVACR Nexus.
