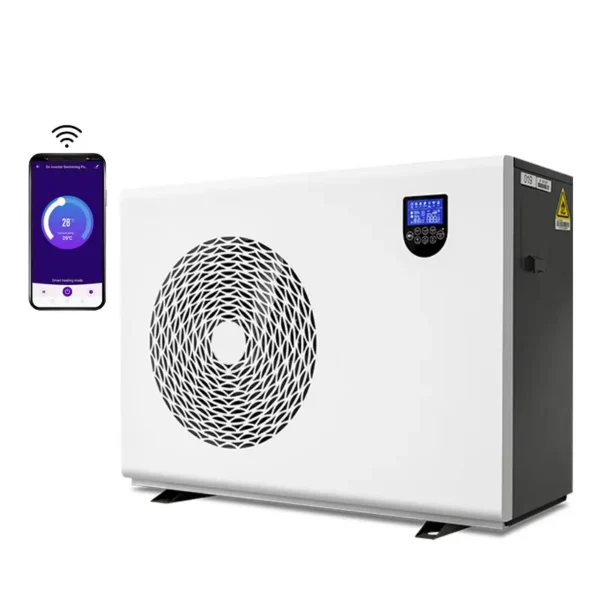

The water heater listed here carries power source Electric, refrigerant R32, documented exactly as the manufacturer publishes it. Made by Zhongshan Raicot Heat Pump Technology Co., Ltd. (10 years on the platform, typical reply ≤7h). Quantity and destination market determine the final price — tell us both for a firm quote.
Key Features of This Water Heater
- Model Number: CLSP-150BP
- Power Source: Electric
- Housing Material: iron
- Refrigerant: R32
- Warranty: 3 Years
- Certification1: ce
Technical Specifications
| Type | Air Source Heat Pump |
|---|---|
| Application | Outdoor, Hotel, Commercial, Household |
| Refrigerant | R32 |
| Storage / Tankless | tankless |
| Compressor | Scroll Compressor |
| Installation | Freestanding |

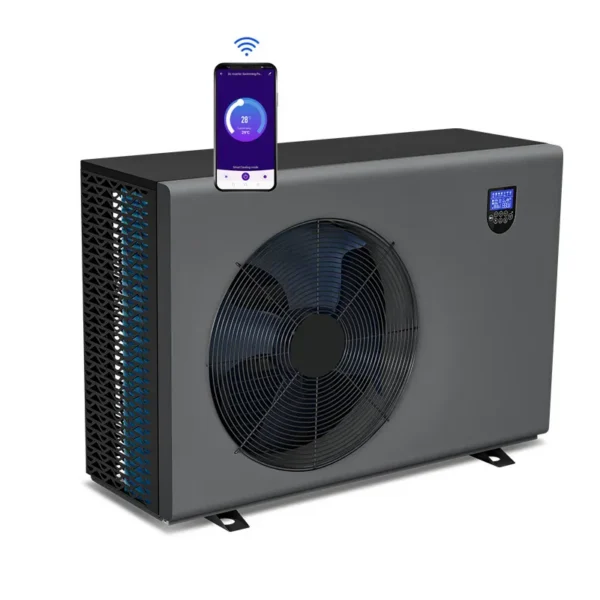

| App-Controlled | Yes |
| Housing Material | iron |
| Feature | Safe, High Efficiency, Energy-Saving, Eco-Friendly, Easy Operation, Easy Installation |
| Power Source | Electric |
| Warranty | 3 Years |
| After-Sales Service Provided | Return and Replacement, Field Maintenance and Repair Service |
| Operating Language | English |
| Private Mold | Yes |
| Packaging Types | Corrugated Box |
| Place Of Origin | Guangdong, China |
| Brand | CALORVA/OEM |
| Model Number | CLSP-150BP |
| High COP | 6.53(Ambient 24℃ Water 26℃ in, 28℃ out) |
| Default Temp. | 28 degree |
| Max Tem. | 43 degree |
| Function | Swimming Pool Heating Cooling |
| MOQ | 1 Pcs |
| Heat Source | Air Source 75%+electricity25% |
| Certification1 | ce |
| Certification2 | EMC |
| Certification3 | RoHS |
| Selling Units | Single item |
| Single Package Size | 1X1X1 cm |
| Single Gross Weight | 100.0 kg |
Product Details
| How Does a Heat Pump Work? |
| Heat pumps extract the ambient temperature from the surrounding air and is then absorbed by the refrigerant gas,it is then compressed,this causes the heat to rise,the heat is then returned to your pool water via the Titanium Heat Exchanger coil. |

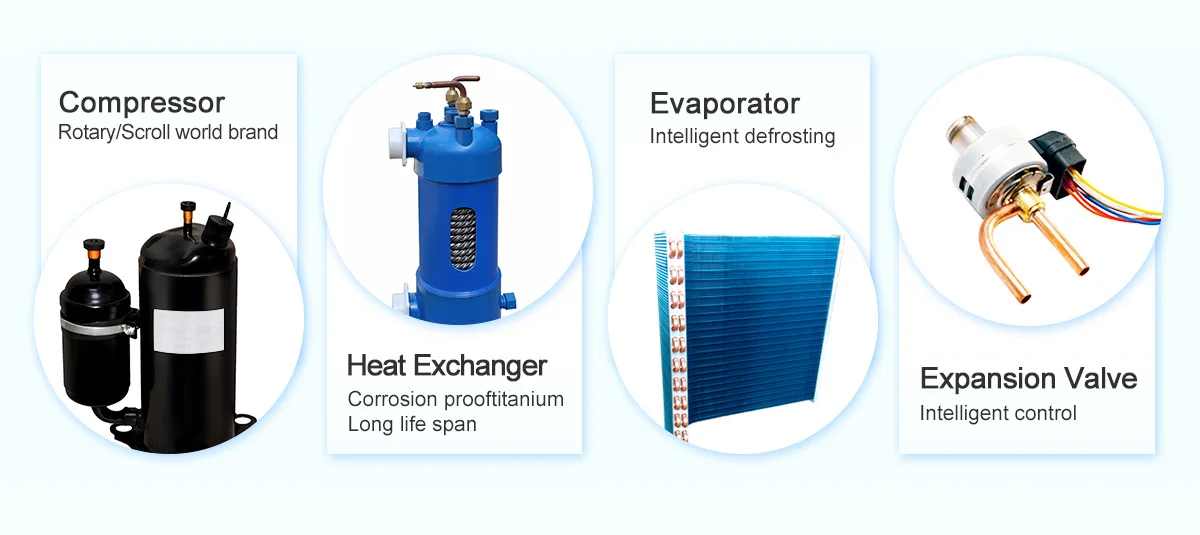

| The Core Components |
| Certifications |
| Technical Specification |
| Model | CLSP-BP50RC | CLSP-BP70RC | CLSP-BP90RC | CLSP-BP120RC | |
| Ambient 24℃ Water 26℃ in, 28℃ out | capacity(kW) | 12.11 | 14.80 | 17.21 | 21.19 |
| power input(kW) | 1.91 | 2.34 | 2.86 | 3.52 | |
| COP | 6.34 | 6.33 | 6.01 | 6.02 | |
| Ambient 15℃ Water 26℃ in, 28℃ out | capacity(kW) | 9.42 | 11.06 | 13.98 | 16.12 |
| power input(kW) | 1.82 | 2.16 | 2.79 | 3.21 | |
| COP | 5.18 | 5.11 | 5.01 | 5.02 | |
| Ambient 35℃ Water 29℃ in, 27℃ out | capacity(kW) | 8.73 | 10.86 | 11.62 | 13.07 |
| power input(kW) | 2.53 | 3.08 | 3.86 | 4.34 | |
| EER | 3.45 | 3.53 | 3.01 | 3.01 | |
| Power supply | 220~240V / 50Hz | ||||
| Max power input | kW | 3.16 | 3.67 | 4.63 | 5.74 |
| Max current | A | 14.40 | 16.7 | 22.3 | 27.4 |
| Refrigerant | R410A | R410A | R410A | R410A | |
| Unit net dimensions(mm) L*W*H | 927*440*694 | 1110*506*747 | |||
| Net weight kg | 59 | 62 | 71 | 96 | |
| Compressor type | Rotary | Scroll | |||

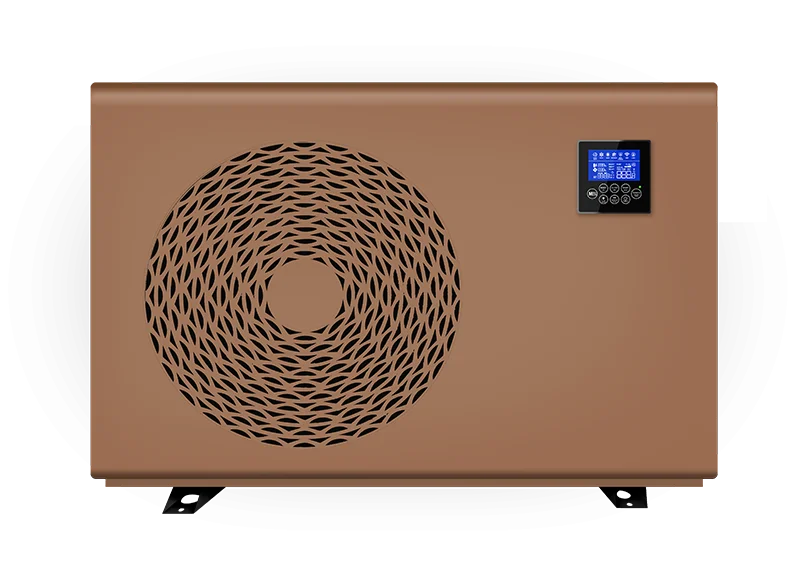

| Option: 1. Winter protection cover 2. 10 meters extension communication cable 3. Cabinet color:white,black,grey,bronze,etc. | |||||
| Packing & Delivery |
Ordering and Pricing
- Minimum order quantity: 2 set
- Volume pricing:
- 2+ set: US $899 / set
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this water heater?
The standard minimum order quantity is 2 set. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 3 Years warranty. Spare parts and technical support remain available after the warranty period.
Which certifications does this water heater carry?
It is supplied with ce documentation, which covers the requirements of most import markets. Additional test reports can be issued on request.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
