Key specification for this water heater: 380V-60Hz, 22kw. Everything below is reproduced from the factory data sheet. Made by Nulite New Energy (guangzhou) Co., Ltd. (7 years on the platform, factory-assessed). Send your target quantity and destination for a firm quotation with current lead times.
Key Features of This Water Heater
- Model Number: NL-G5B
- Power Source: Electric
- Voltage: 380V-60Hz
- Heating Capacity: 22kw
- Housing Material: Galvanized sheet
- Refrigerant: R410A

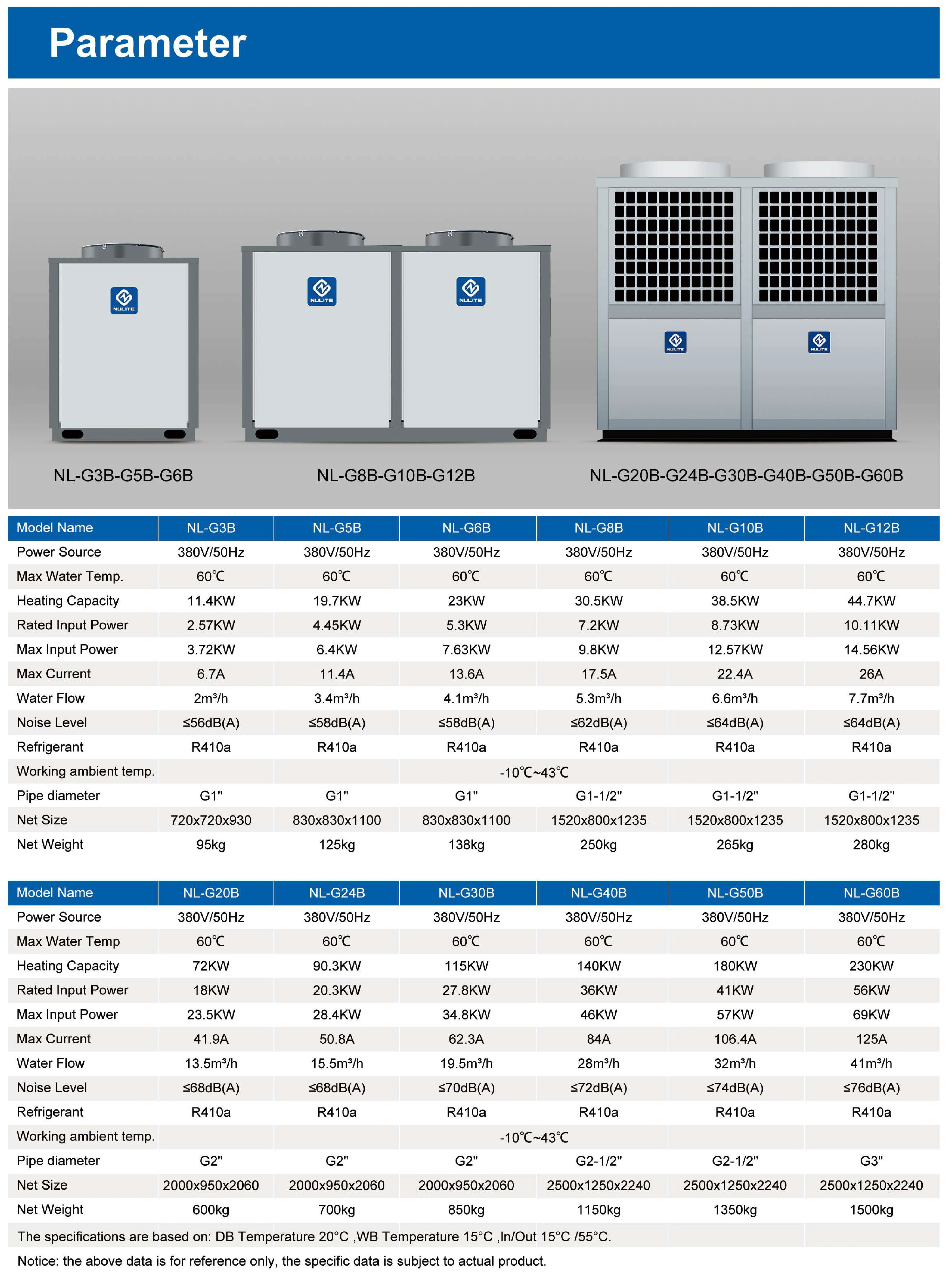

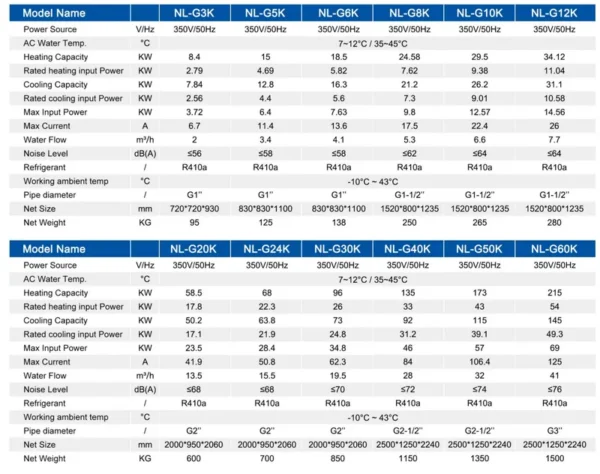

Technical Specifications
| Type | Air Source Heat Pump |
|---|---|
| Energy Efficiency Rating | Class A+++ |
| Application | Outdoor, Hotel, Commercial, Household |
| Refrigerant | R410A |
| Storage / Tankless | Instant / Tankless |
| Installation | Freestanding |
| App-Controlled | Yes |
| Housing Material | Galvanized sheet |
| Feature | Easy Installation, Easy Operation, Eco-Friendly, Energy-Saving, High Efficiency, Safe |
| Power Source | Electric |
| Warranty | 2 Years |
| After-Sales Service Provided | Free Spare Parts |
| Operating Language | English |
| Private Mold | Yes |
| Place Of Origin | Guangdong, China |
| Brand | Nulite New Energy |
| Model Number | NL-G5B |
| Function | Hot water,heating |
| Compressor | Copeland |
| Working Ambient Temperature | Minus 10C- 43C |
| Heating Capacity | 22kw |
| Max Hot Water Temperature | 60℃ |
| Certification | CB, ce, EMC, RoHS |
| Sound Level | <64.5dB/(A) |
| Voltage | 380V-60Hz |
| Selling Units | Single item |
| Single Package Size | 143X74.5X121 cm |
| Single Gross Weight | 900.0 kg |
Product Details
Product description

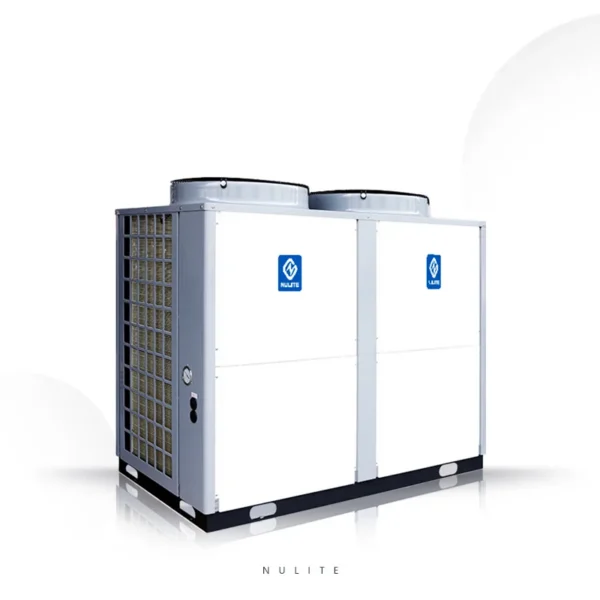

Nulite Commercial Hot Water Heat Pump Water Heater
R410a commercial hot water heat pump water heater has the following advantages: ✦ Heating capacity selection：11kw，20kw，23kw，30kw，38kw，45kw，72kw，90kw，115kw，140kw，180kw，230kw……（Can be customized according to your needs）
✦ High efficiency: Using Panasonic/Mitsubishi/Copeland compressors to achieve high energy efficiency, thereby lowering operating costs and reducing energy consumption. ✦ Rapid heating: Provides fast and efficient 60°C hot water production, ensuring rapid availability for commercial purposes.
✦ Environmental protection: Using R410a refrigerant, compared with other refrigerants, it has less impact on the environment and contributes to sustainable development. (R32, R290, R134a refrigerant can be customized) ✦ Reliable performance: Ensure stable and reliable performance to meet the hot water needs of commercial applications. ✦ Versatility: Suitable for a variety of commercial environments including hotels, restaurants, hospitals and gyms, providing a versatile solution for hot water needs.
Please feel free to contact me right now！
Ben：Tel/ WhatsApp：+86 15817703931

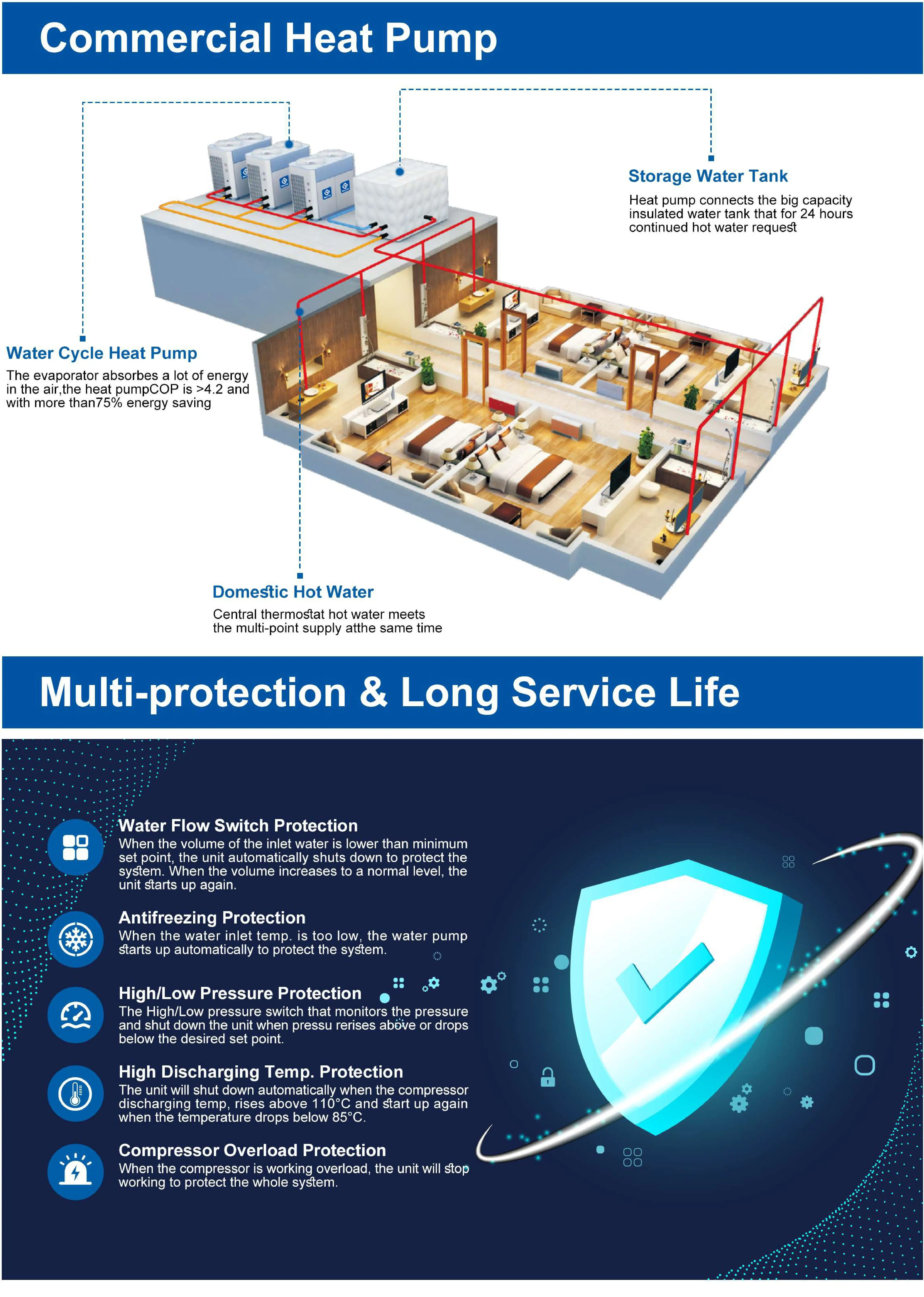

1. Water Flow Switch Protection
When the water inlet volume is low,the unit stops to protect the system.When the water volume recovers,the unit starts working again.
2. High/Low Pressure Protection
2. High/Low Pressure Protection
High/Low pressure switches will switch off the heat pump automatically to protect the whole system when the pressure is over high/low.
3. High Discharging Temperature Protection
3. High Discharging Temperature Protection
When the compressor discharging temperature is higher than 110℃，the unit will not work until the temperature is lower than 85℃.
4. Antifreezing Protection
4. Antifreezing Protection
When the unit is standby and water inlet temperature is lower than 4℃ but higher than 2℃ ,the water pump starts up to protect the system.
5. Compressor Overload Protection
5. Compressor Overload Protection
When the compressor is working overload,the unit will stop working to protect the whole System.

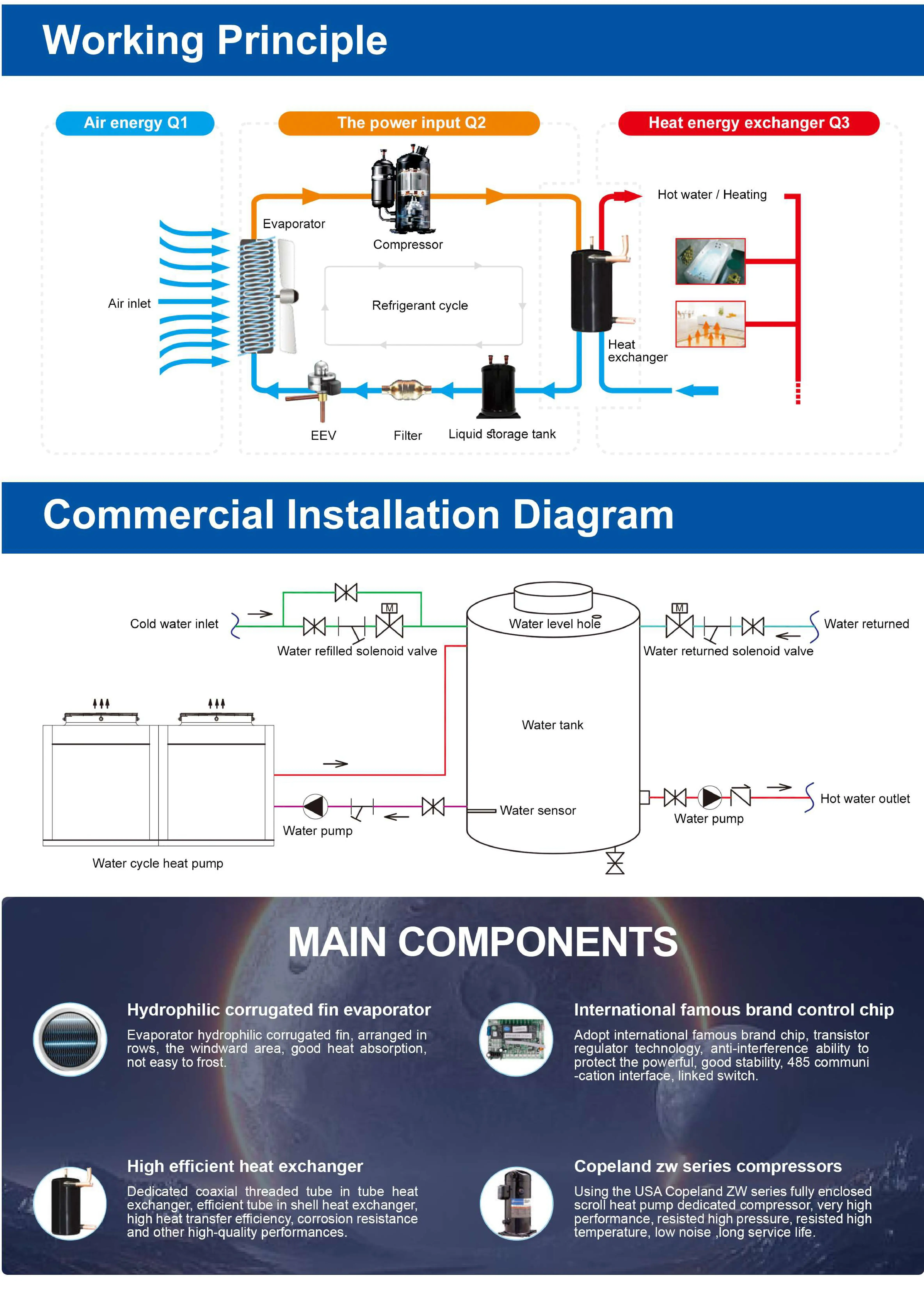

Main components：
1. Hydrophilic corrugated fin evaporator： Evaporator hydrophilic corrugated fin, arranged in rows, the windward area, good heat absorption, not easy to frost. 2. High efficient heat exchanger： Dedicated coaxial threaded tube in tube heat exchanger, efficient tube in shell heat exchanger,high heat transfer efficiency, corrosion . 3. International famous brand control chip： Adopt intemational famous brand chip, transistor regulator technology, anti-interference ability to protect the powerful, good stability, 485 communication interface, linked switch，resistance and other high-quality performances. 4. Copeland zw series compressors： Using the USA Copeland ZW series fully encosed scrall heat pump dedicated compressor, very high performance, resisted high pressure, resisted high temperature, low noise ,long service life.

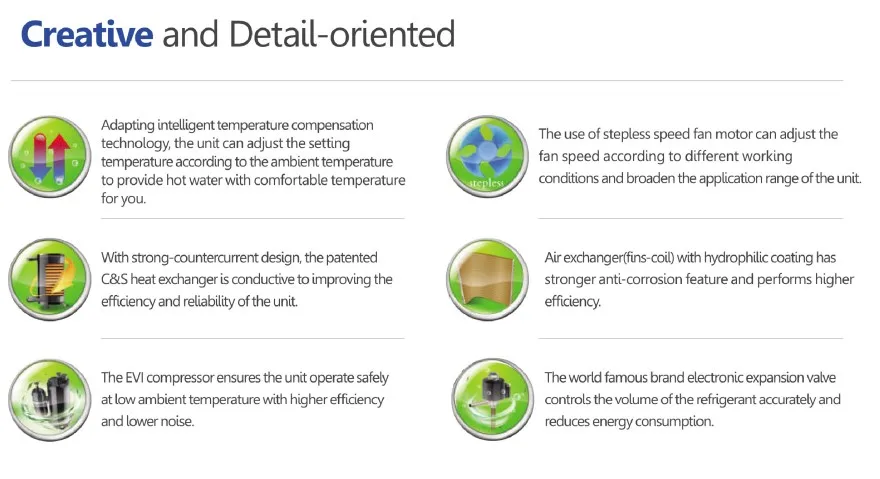

Detailed Feature
Customers Feedback
Packing & Shipping
✦ We adopt Stable Ply-wooden Package、Professional Container.
You can rest assured of the safety and integrity of fast shipping transportation.
Why choose & trust us
✦ Top Scale Manufacturer, 100,000 + machines were exported in 2022
✦ Fast shipping, support for a variety of payment/logistics methods
✦ Secure after-sales service : Trained engineers are on hand to provide technical support. Any question will be answered and assisted within 12 hours.
✦ Fast shipping, support for a variety of payment/logistics methods
✦ Secure after-sales service : Trained engineers are on hand to provide technical support. Any question will be answered and assisted within 12 hours.
✦ -25℃ Super Low Ambient Stable Working
✦ Low Noise，High Efficiency，Easy WIFI Controlling
✦ Low Maintainess Cost, Long Service Life up to 15 Years+
✦ Low Maintainess Cost, Long Service Life up to 15 Years+
✦ NuLite，established in 2003,which is a national high-tech enterprise for HVAC products.
✦As heat pump factory，We have developed advanced & unique technology and takes the leads of Floor Heating EVI & Inverter Heat Pump，wifi heat pump，heat pump water，air to water heat pump，Wärmepumpe，heatpump heating，power world heat pump , Swim Pool Heat Pump, Central Hot Water Heat Pump, Fan Coil Unit and Geothermal Heat Pump.
✦We have R290，R32，R410A，R134A，R407 Refrigerant Available.

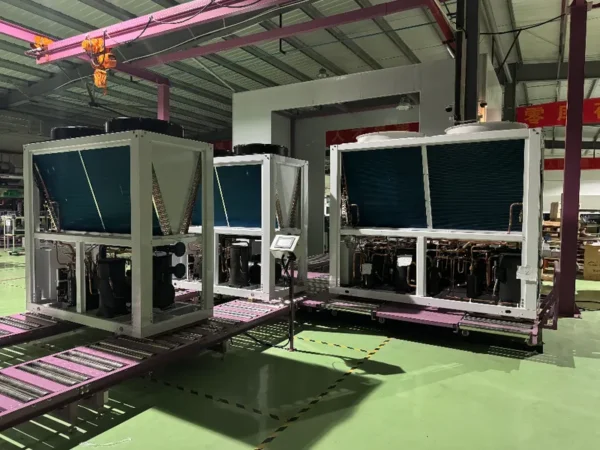

✦ We have 3 manufacturing bases located in Guangdong province.
✦ Last in 2022, we exported more than 100,000 units heat pumps all around the world.
FAQ
Q: Where is your factory located?
A: Our company is located in Huadu District, Guangzhou City, Guangdong Province, China.
Q: Air to water heat pump is heating faster?
A:Air to water heat pump heating rate according to the water temperature and outdoor temperature. Summer inlet water temperature and outdoor temperature are high,so heating faster. In winter inlet water and outdoor temperature are lower so the heating is slow.
Q: How much the air to water heat pump power consumption?
A: Mainly influenced by outdoor temperature. When the outdoor temperature is lower, the heating time is longer,the power consumption is more,and vice versa.
Q: What are the benefits of heat pump?
A: There are five main benefits of dual system, safety, long lifespan, low maintenance and eco-friendly.
Q: Can it be used if it rains?
A: The air to water heat pump only influence of the outdoor temperature and inlet water temperature, not affected by rain.This is the most obvious advantages compared with the solar energy heater.
A: Our company is located in Huadu District, Guangzhou City, Guangdong Province, China.
Q: Air to water heat pump is heating faster?
A:Air to water heat pump heating rate according to the water temperature and outdoor temperature. Summer inlet water temperature and outdoor temperature are high,so heating faster. In winter inlet water and outdoor temperature are lower so the heating is slow.
Q: How much the air to water heat pump power consumption?
A: Mainly influenced by outdoor temperature. When the outdoor temperature is lower, the heating time is longer,the power consumption is more,and vice versa.
Q: What are the benefits of heat pump?
A: There are five main benefits of dual system, safety, long lifespan, low maintenance and eco-friendly.
Q: Can it be used if it rains?
A: The air to water heat pump only influence of the outdoor temperature and inlet water temperature, not affected by rain.This is the most obvious advantages compared with the solar energy heater.
Q: What is your terms of payment for heat pump ?
A: Payment<= 5000USD, 100% in advance. Payment>= 5000USD, 30% T/T in advance ,balance before shippment. AIibaba trade assurance payment available. L/C Payment available only with 1 millon+ USD dealing amount.
Please feel free to contact us right now ↓
Ordering and Pricing
- Minimum order quantity: 1 unit
- Volume pricing:
- 1–19 unit: US $1500 / unit
- 20–49 unit: US $1450 / unit
- 50+ unit: US $1339 / unit
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this water heater?
The standard minimum order quantity is 1 unit. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 2 Years warranty. Spare parts and technical support remain available after the warranty period.
Which certifications does this water heater carry?
It is supplied with CB, ce, EMC, RoHS documentation, which covers the requirements of most import markets. Additional test reports can be issued on request.
Can the water heater be supplied for my local voltage?
The standard configuration is 380V-60Hz. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
