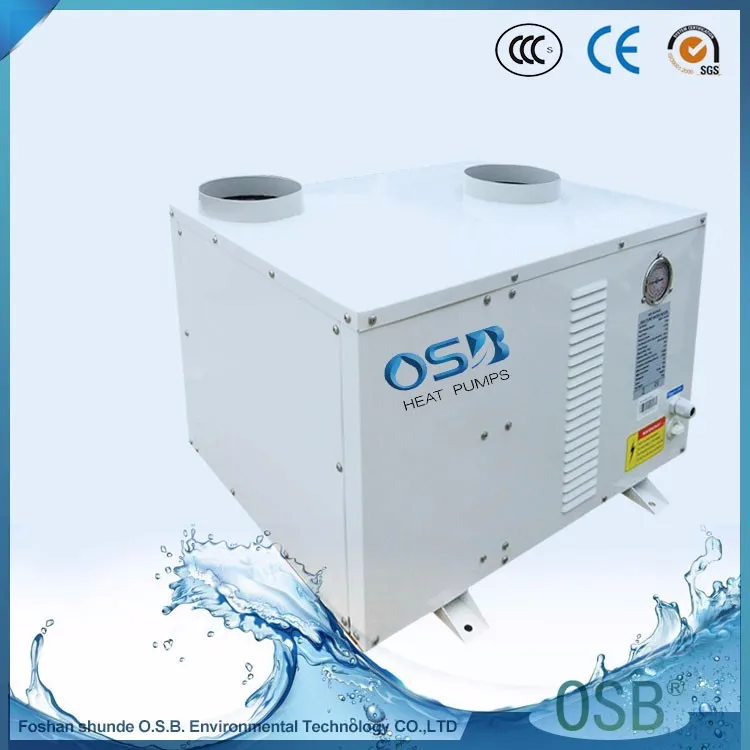

The water heater listed here carries power supply 220/1/50, 3.0KW, documented exactly as the manufacturer publishes it. Made by Guangdong Shunde O.S.B. Environmental Technology Co., Ltd. (11 years on the platform, factory-assessed). For a binding price and lead time, send the volume you need and where it ships to.
Key Features of This Water Heater

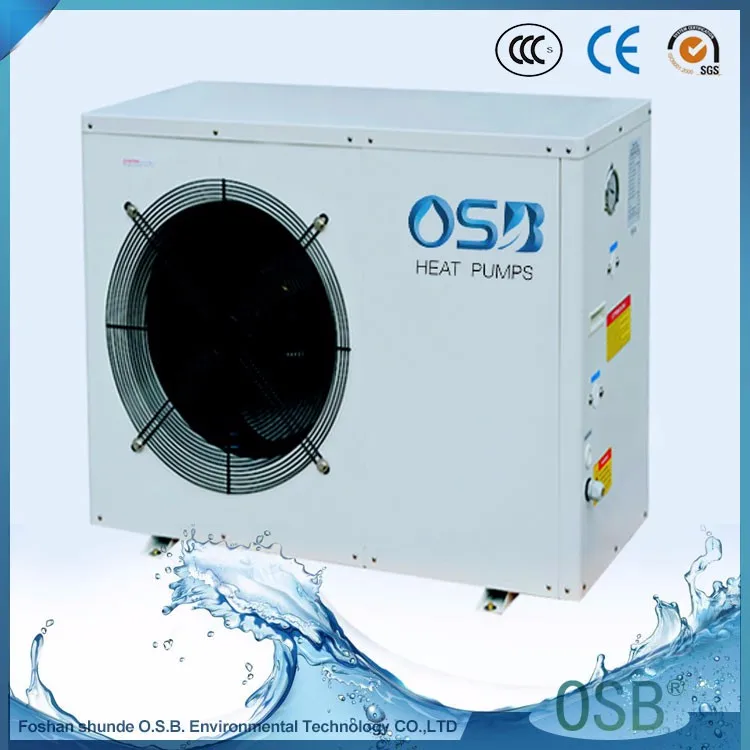

- Model Number: BC15-006T
- Power Source: Electric
- Power Supply: 220/1/50
- Heating Capacity: 3.0KW
- Housing Material: Galvanized with powder
- Refrigerant: R410a/R407c
Technical Specifications
| Type | Air Source Heat Pump |
|---|---|
| Application | Outdoor, Hotel, Garage, Commercial, Household |
| Storage / Tankless | Storage |
| Installation | Freestanding |
| App-Controlled | Yes |
| Housing Material | Galvanized with powder |
| Power Source | Electric |
| Warranty | 2 Years |
| After-Sales Service Provided | Overseas Call Centers |
| Logo/Graphic Design | Silk Screen Printing, Laser Printing, Hot Stamping |
| Place Of Origin | Guangdong, China |
| Brand | OSB/ OEM brand |
| Model Number | BC15-006T |
| Heat Exchanger | Tube-in-shell Heat Exchanger |
| Refrigerant | R410a/R407c |
| Heating Capacity | 3.0KW |
| COP | 3.61 |
| Power Supply | 220/1/50 |
| Working Ambient Temperature | -7~43℃ |
| Max Hot Water Temperature | 60℃ |
| Additional Function | Air ventination |
| Function | use as air cooler/ventilation |
| Selling Units | Single item |
| Single Package Size | 67X56X48 cm |
| Single Gross Weight | 52.0 kg |
Product Details
Parameter:
| Model | BC15-006T | |
| Heating capacity | KW | 3.0 |
| BTU | 9800 | |
| COP | 3.61 | |
| Heating power input | KW | 0.83 |
| Power supply | V/Ph/Hz | 220/1/50 |
| Max outlet temp | ℃ | 60 |
| Applicable ambient temp | ℃ | -7~43 |
| Running current | A | 4.5 |
| Sound level | dB(A) | 52 |
| Water connections | Inch | 3/4'' |
| Gross weight | KG | 52 |
Features:
1. Green gas R407c/ R410a, powder coated steel white color cabinet (Stainless steel or plastic optional).
2. Maximum hot water outlet temp 60℃.
3. Able to combine with solar heater, or other heaters, throught tank.
4. EEV intelligent adjustment, auto defrosting. With auto or manual defrosting.
5. Once fault, automatic execution protection.

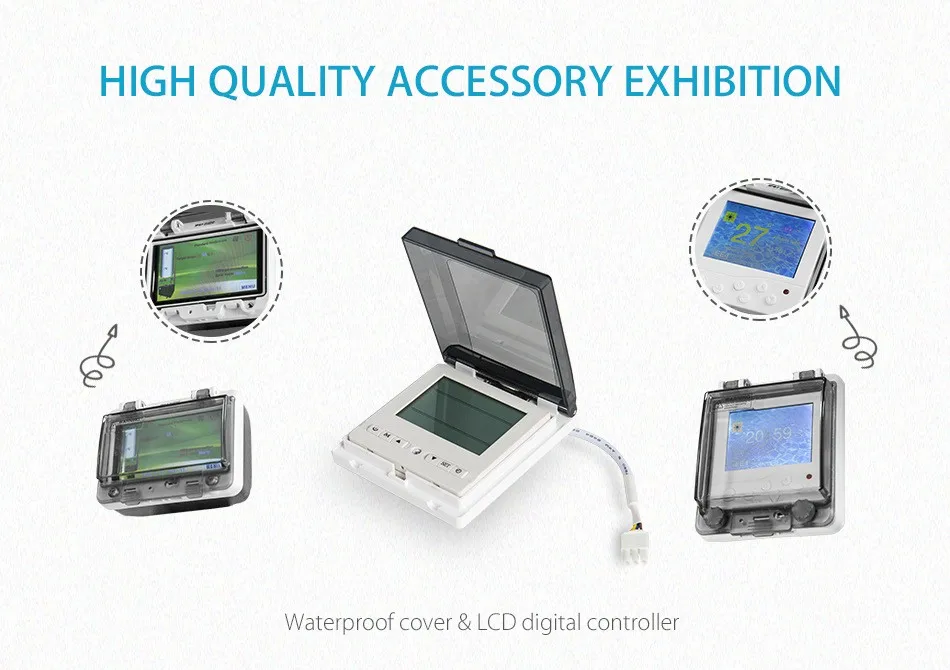

6. Timer setting function on digital LCD wire controller, user's friendly.
7. High efficient tube-in-shell heat exchanger, good heating performance.

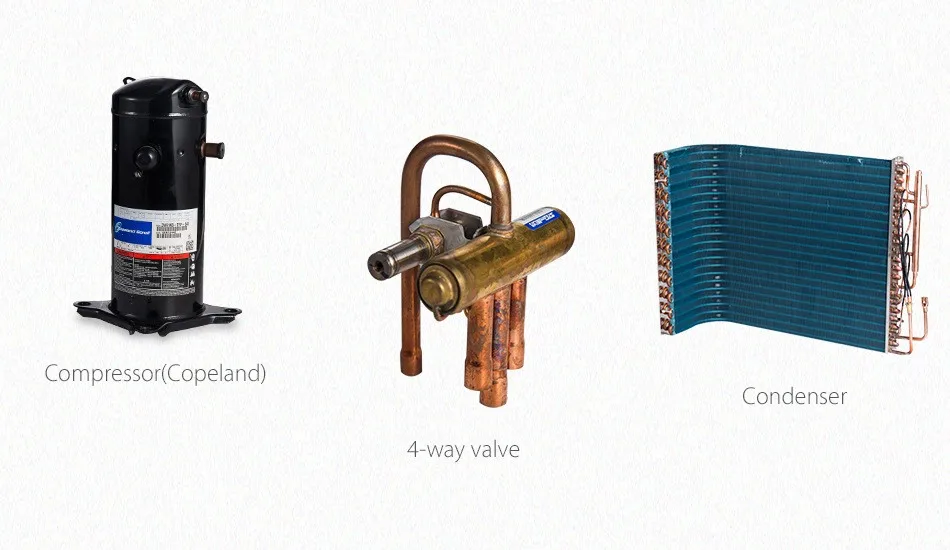

8. Use reliable worldwide famous compressor, such like Copeland.

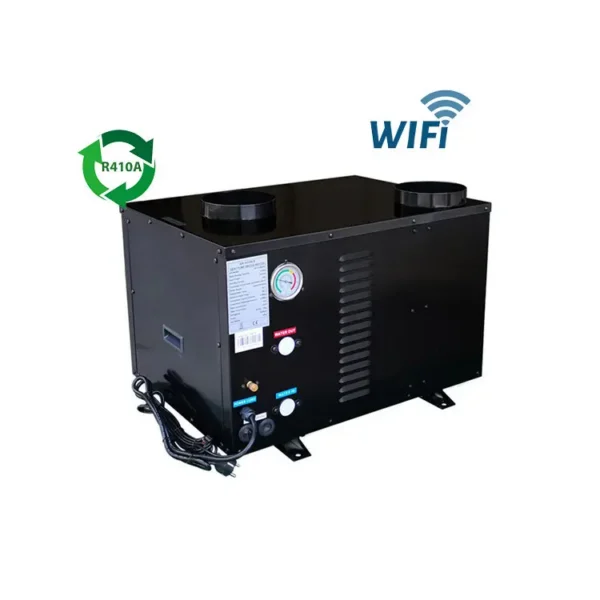

9. WiFi remote control function optional.
As the innovative continuation of Guangdong Shenbao Electrical Appliance CO., LTD, which was established in 1999, with rich experience in manufacturing and exporting air to water heat pump products. O.S.B. have born in 2014, dedicated to provide the highest quality of service and most demanding products available in the latest market.

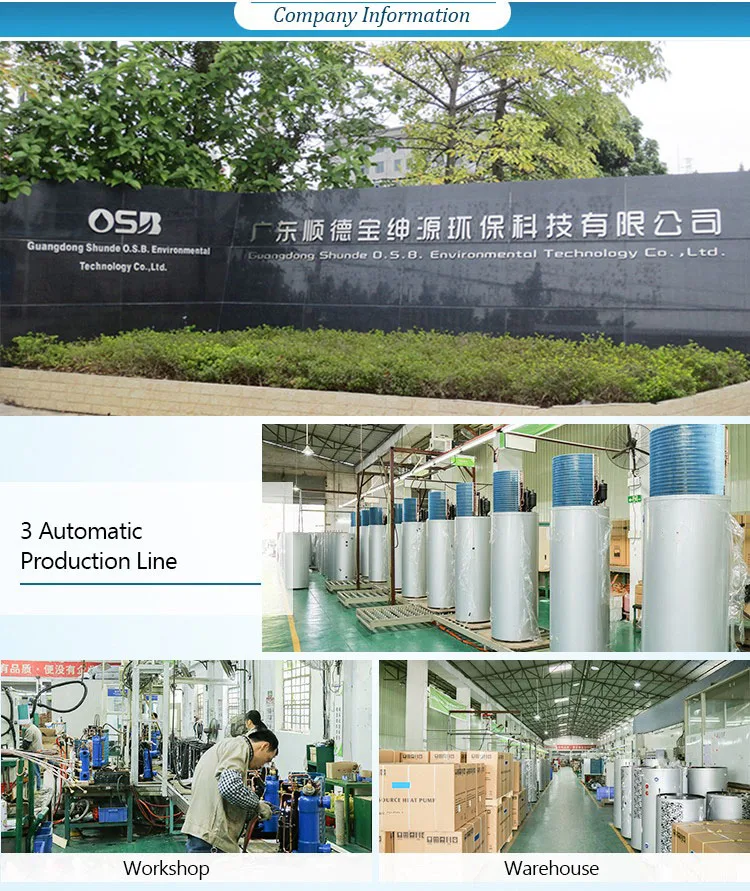

Up to now, we have equipped with 3 automatic production line, 3 cold/hot condition enthalpy testing lab , fully refrigerant auto-refilling machine , as well as all necessary testing equipment, such as 4-in-1 electricity safety inspection machine and halogen leakage checking machine, etc. All management are executed by following ISO 9001:2008 system.
The heat pump products we have been manufacturing and supplying to Europe, South Africa and Asia are well accepted by the market and we have achieved more success by passing EN 14511, EN16147, EN14825 etc energy efficiency test , as well as our self developed IOT wifi control function that applicable in almost all of our air to water heat pump products.
We compete, we innovate, we welcome you to join us and be partner with us to make the best products!
Ordering and Pricing
- Minimum order quantity: 1 set
- Volume pricing:
- 1–39 set: US $435 / set
- 40+ set: US $385 / set
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this water heater?
The standard minimum order quantity is 1 set. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 2 Years warranty. Spare parts and technical support remain available after the warranty period.
Can the water heater be supplied for my local voltage?
The standard configuration is 220/1/50. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
About the Manufacturer
This product is produced by Guangdong Shunde O.S.B. Environmental Technology Co., Ltd., based in China. The company 11 years as a verified Alibaba.com supplier, operates its own manufacturing, passed third-party supplier assessment. Browse the full Guangdong Shunde O.S.B. Environmental Technology Co., Ltd. range on HVACR Nexus.
